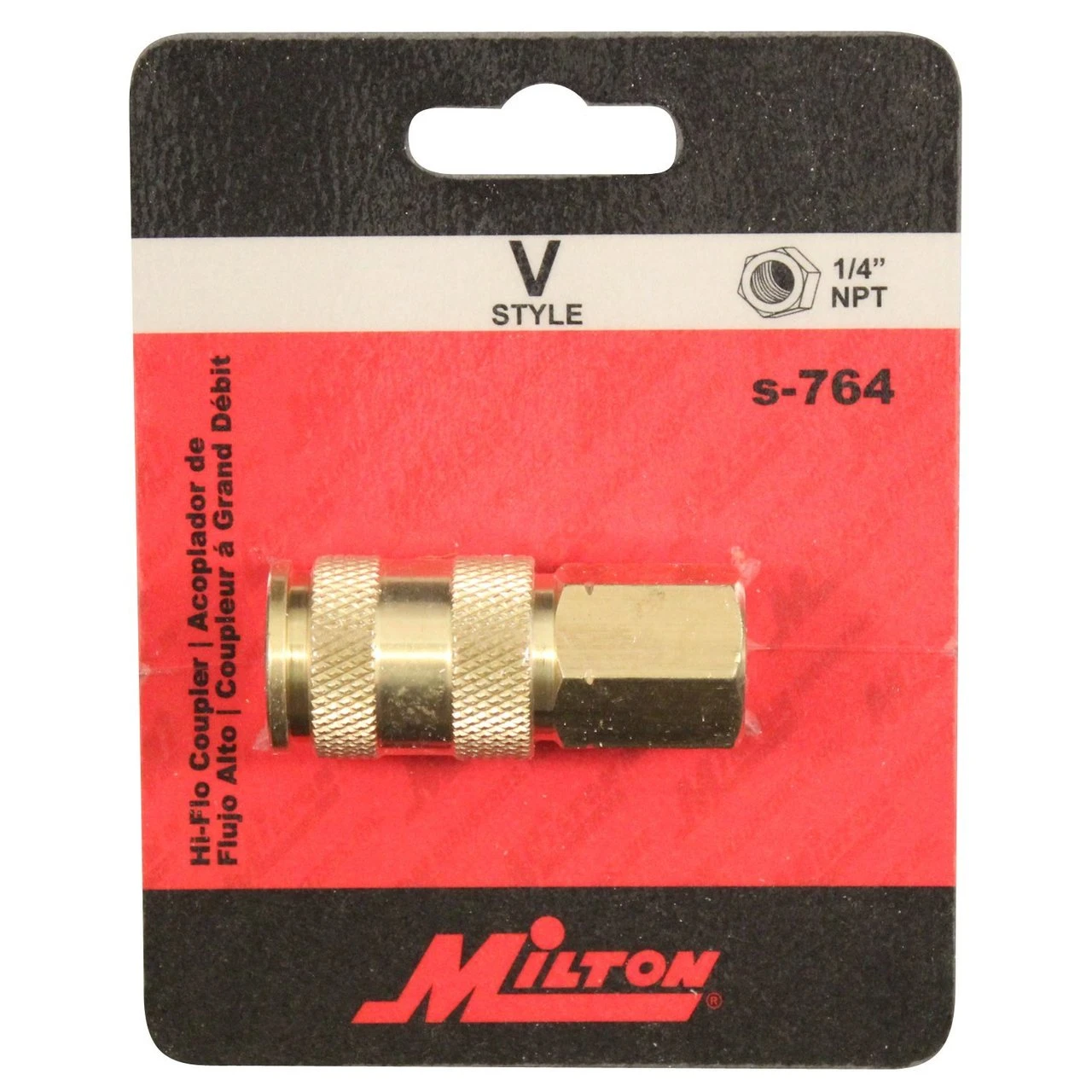

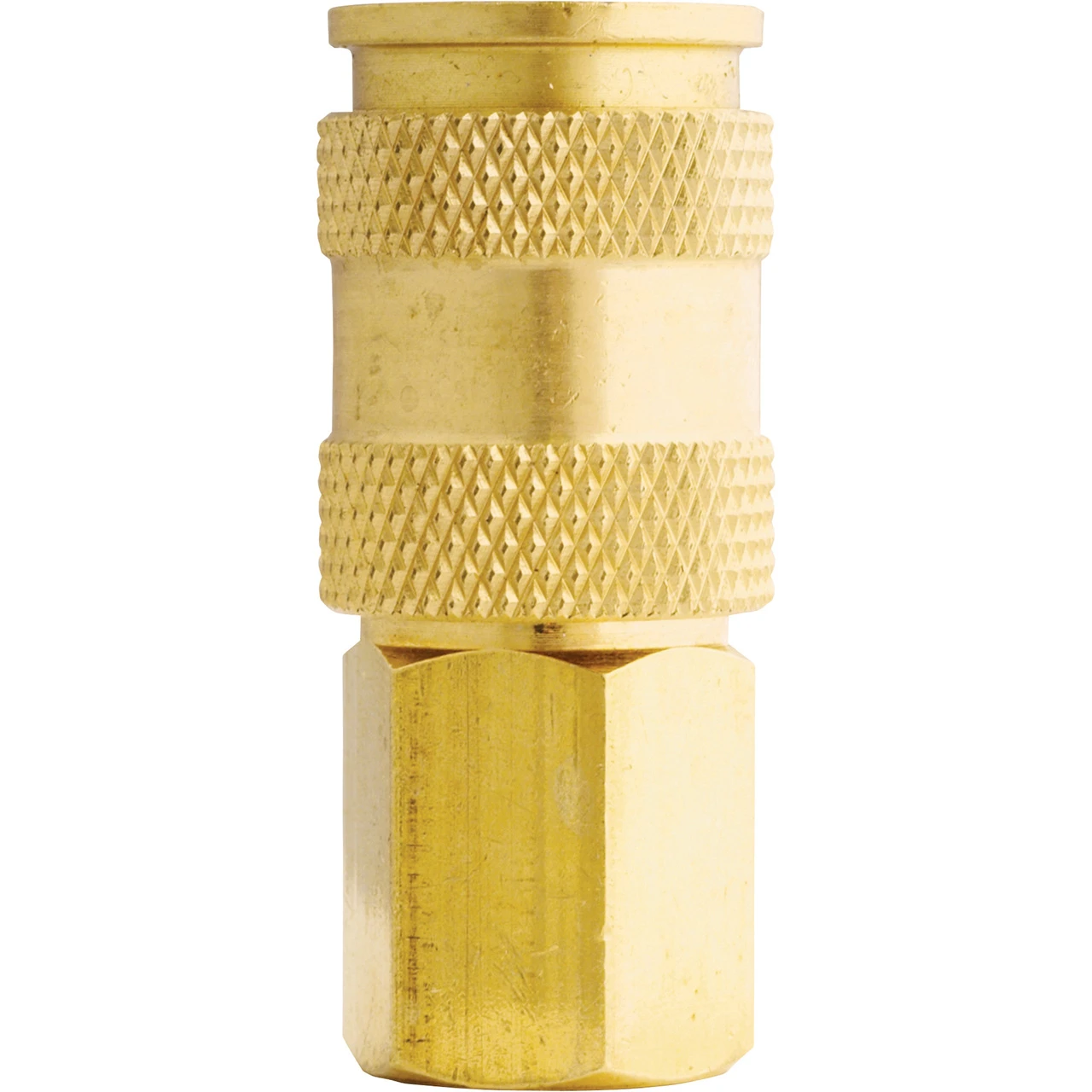

Milton S764 1/4" FNPT V Style High Flow Coupler
1/4" FNPT high flow V style couplers will accept A, M and V style plugs, however, to retain maximum air flow use V style plugs. Sleeve release is a push type and is easy to use; simply push plug into coupler to engage, pull sleeve back to remove. Perfect for high volume, low pressure applications. V style couplers have a 1/4" basic flow size and a maximum pressure of 300 PSI.
1/4" female national pipe threads
Maximum inlet pressure of 300 pounds per square inch
Air flow of 74 standard cubic feet per minute
Maximum temperature of 250 degrees Fahrenheit
Product identification
- Brand: Milton
- Model / MPN: S764
