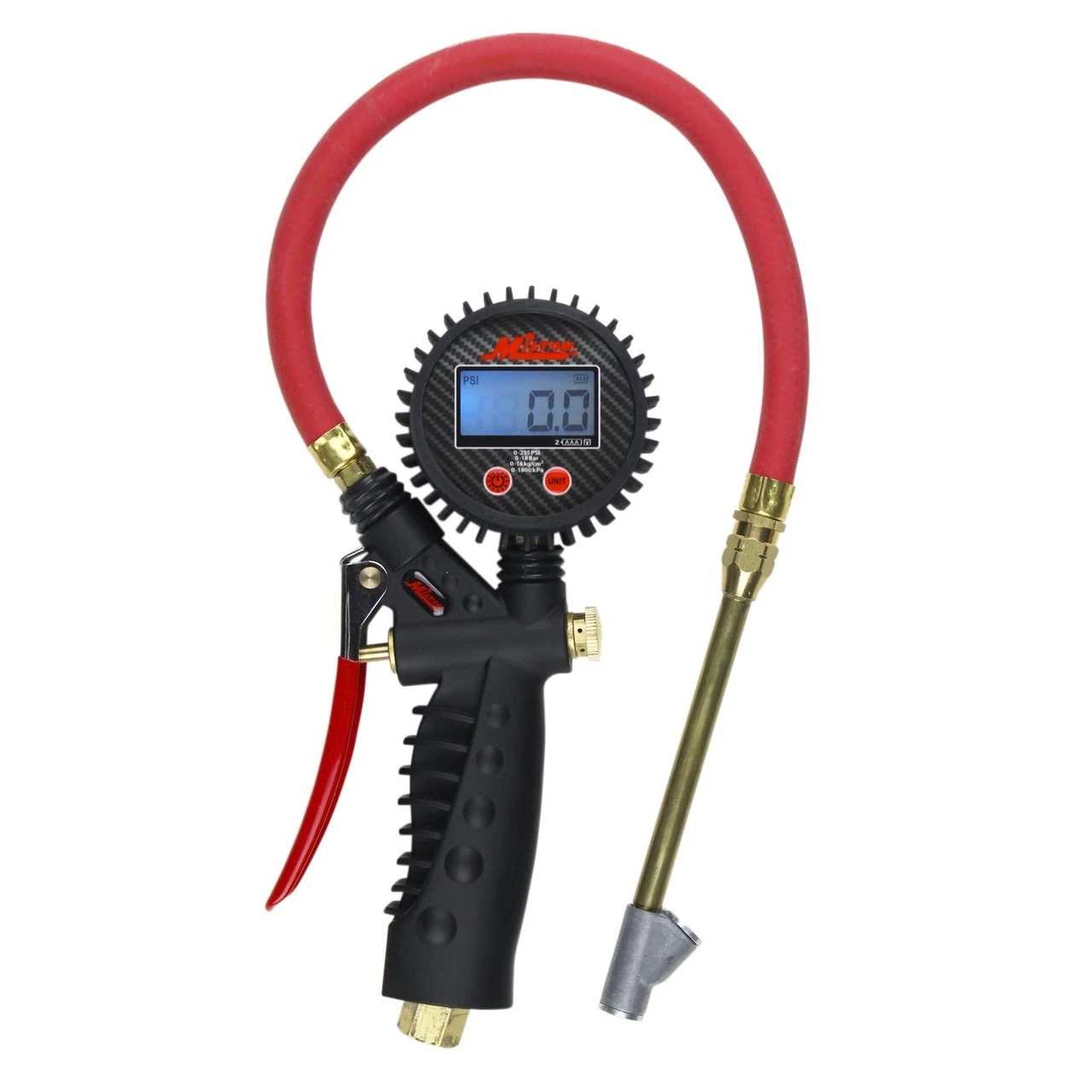

Milton S577D Pro Digital Pistol Grip Inflator Gauge, 15" Hose – 255 PSI

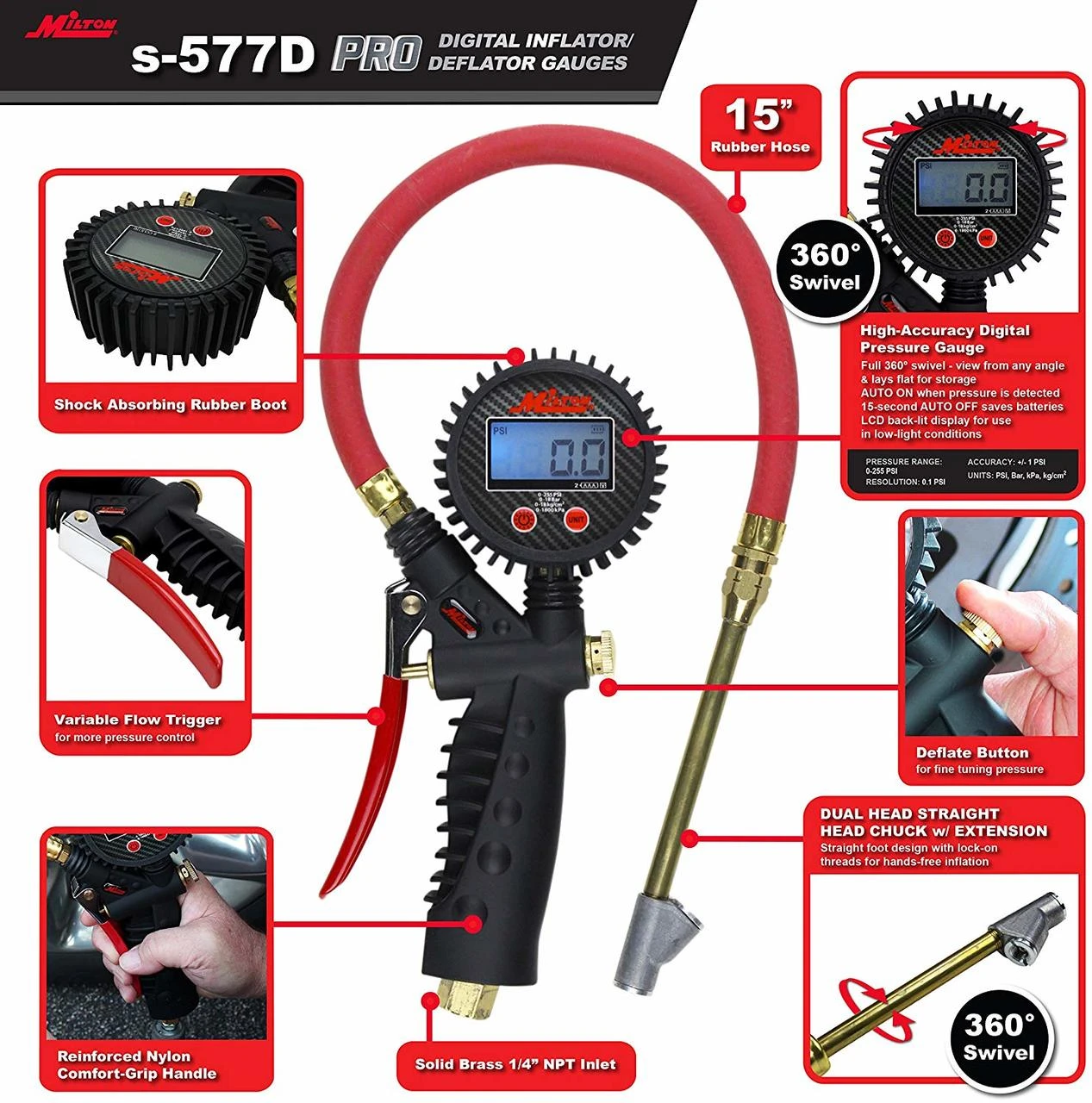

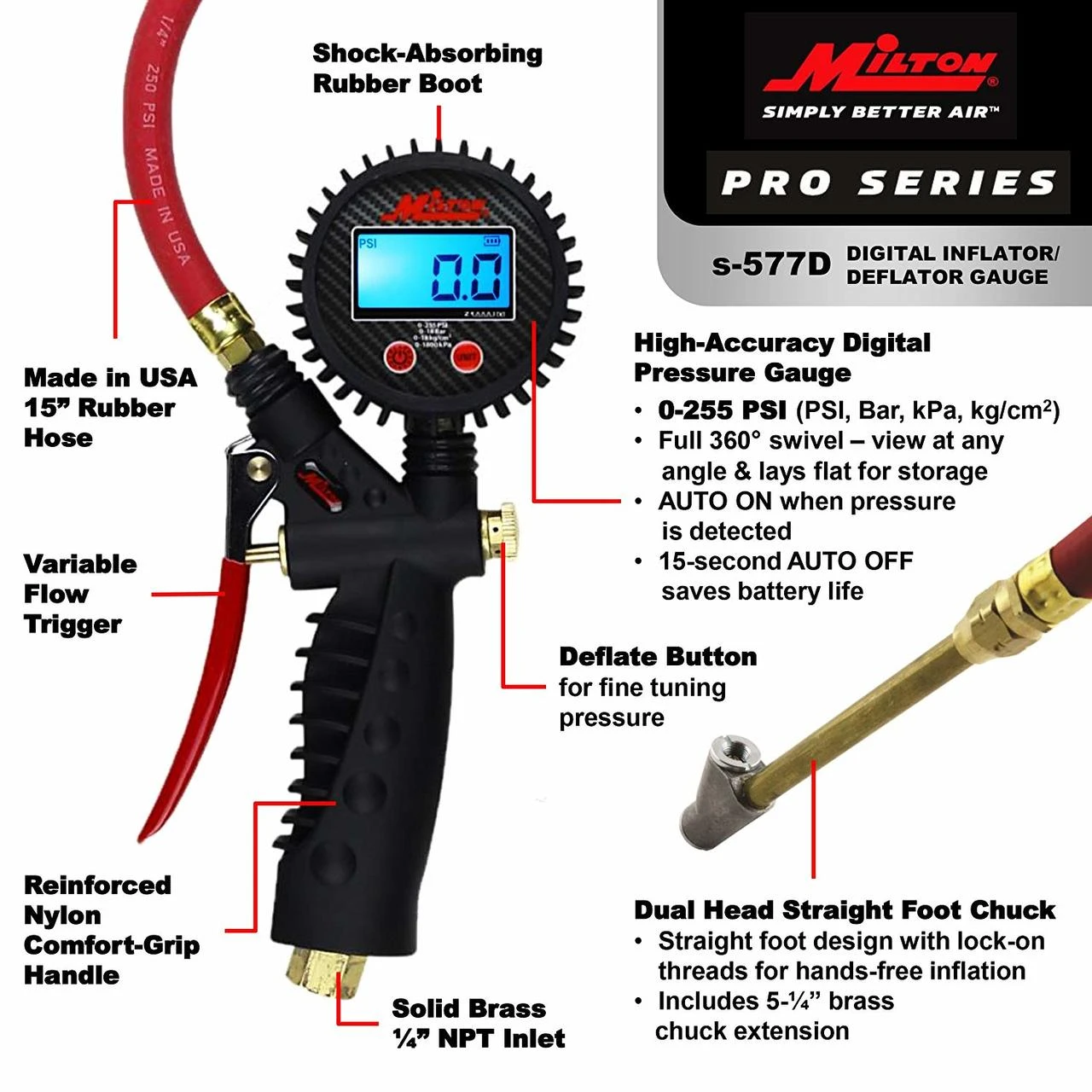

Milton S577D Pro Digital Pistol Grip Inflator Gauge – Straight Foot Dual Chuck and 15" Hose – 255 PSI
ACCURATE: Measures in PSI (0-255), kPa (0-1800), kg/cm2 (0-18), and Bar (0-18). Meets ANSI/ASME B40.1 standards.
GAUGE SWIVELS: Reads at any angle, lays flat in your toolbox. Gauge protected by rubber boot.
BACKLIT DISPLAY: Auto-on when tire pressure is detected; Auto-off after inactivity to save battery.
EASY HANDLING: Durable/ergonomic grip. Quick fine tuning in case you exceed the target pressure.
6" STRAIGHT FOOT CHUCK: Full swivel + hose w/threaded lock-on design, enabling hands-free inflation.

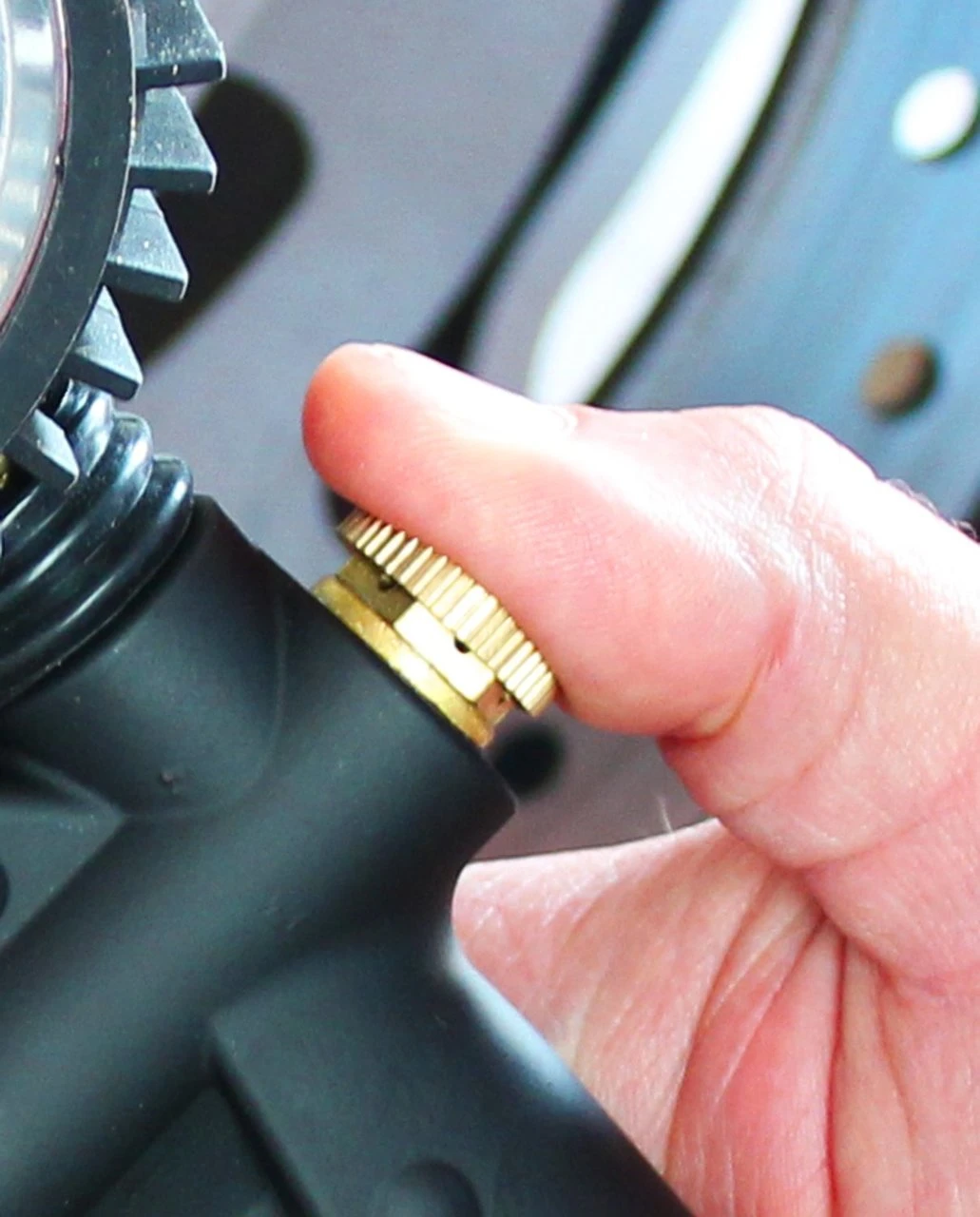

This provides 4 units of measurements: (PSI, Bar, kg/cm2, kPa), compared to the traditional 2 units from an analog gauge. Carbon fiber gauge face appearance with a protective rubber boot to shield against impacts. Comfort molded nylon handle with coating is incredibly durable and ergonomic. Steel inflator trigger with separate brass deflation button for quick fine tuning in case you go past your target pressure. Solid brass fittings throughout provide long-lasting performance, with 1/4" NPT female air inlet (Milton 727 plug is recommended).
PACKAGE CONTENTS:
Digital Inflator Gauge w/rugged comfort-grip handle
Straight Foot Dual Chuck + deflate button
2 AAA Batteries (already inserted)
Handle: reinforced coated nylon
Trigger: plated steel with PVC grip
Product dimensions (w/o hose): 9.9 x 4.6 x 1.6 (L x W x H)
Hose: 1/4" ID x 15" EPDM rubber w/ brass fittings
Operating temperature: -4 to +140 degrees F (-20 to +60 C)
Air inlet: 1/4" NPT female (Milton 727 plug sold separately)
Assembled in the USA from global & domestic sourced materials.
INSTRUCTIONS FOR USE:
If using a dual head type tire chuck with an inflator gauge and notice air is escaping through the off-side once connected to the tire’s Schrader valve, simply release the trigger and remove the inflator from the Schrader/tire valve. Point the straight side of the outlet up into the air (make sure it’s not pointed at someone). Squeeze trigger, allow air to flow (gravity will cause the sealing valve to drop), and place the chuck end onto the Schrader/tire valve while air is still flowing. Air will start to flow into the tire.
Dual head type tire chucks are unable to inflate a completely flat (zero air pressure) tire. Tire air pressure would normally cause the sealing valve to move and seal the unused side of the chuck. However, if a tire has 0 air pressure, the self-sealing valve has no pressure to react to.
Made in USA: Yes
Gauge Type: Digital Tire Pressure Gauge
Auto shut-off: Yes
NPT thread size: 1/4" Female NPT
Chuck type: Straight foot dual head chuck
Thread Size: 1/4" – 18 NPT
Battery requirement: Yes (2) AAA
Hose length: 36" Hose
Manufacturer: Milton Industries
PSI range: 0 to 255 PSI
Material Type: Brass
Rubber boot: Yes (Protective Rubber Boot for Dial)
Deflator valve included: Yes
Product identification
- Brand: Milton
- Model / MPN: S577D
