Milton573A Analog Tire Inflator with Ball-Foot Chuck

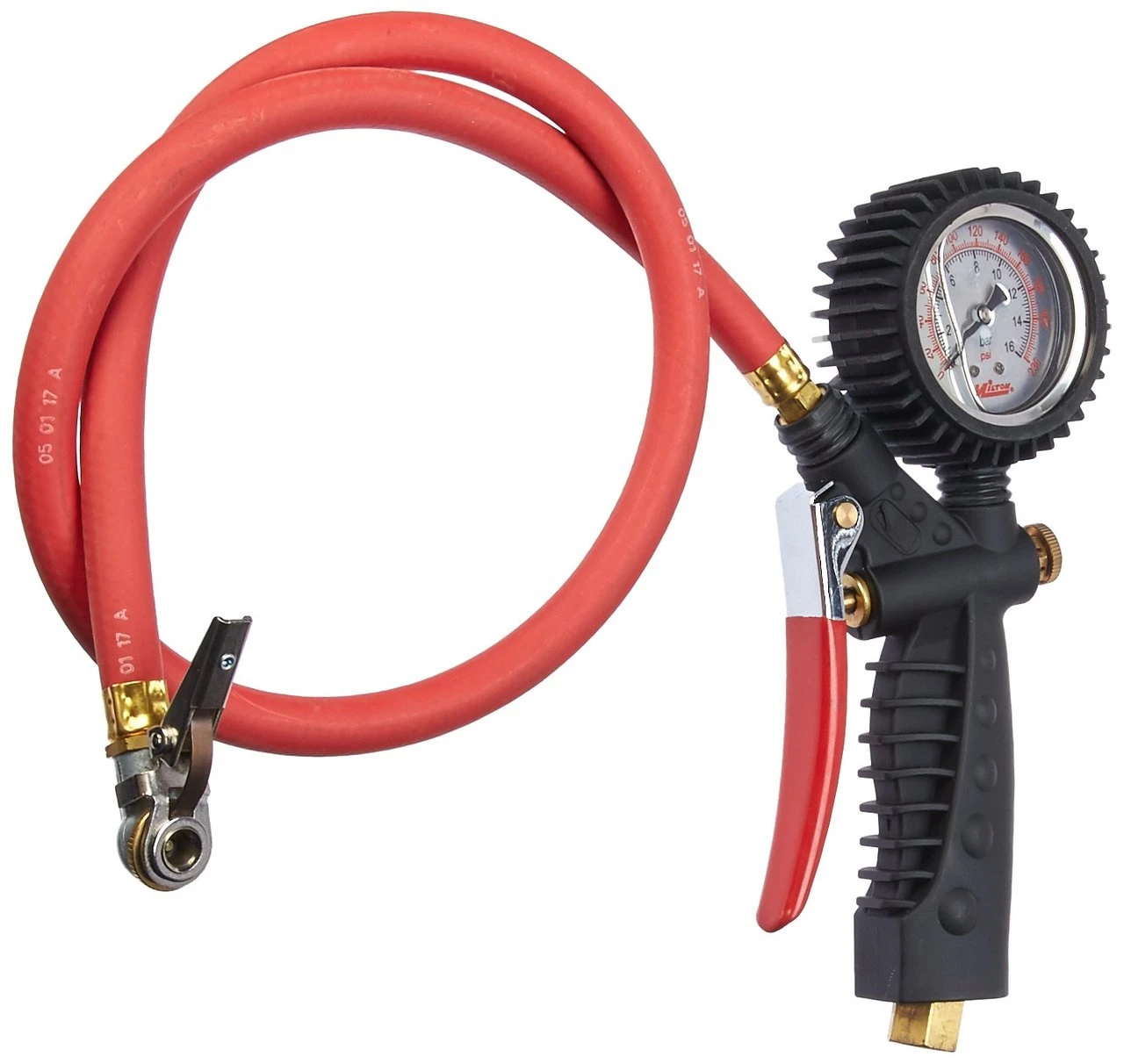

Milton573A is an analog pistol-grip tire inflator with a lock-on ball-foot chuck and separate deflation button. The chuck configuration distinguishes it from the 572A Kwik Grip version while keeping a 36-inch hose and dual-unit pressure dial.
Specifications and included details
- 0–160PSI and 0–11bar scale;2PSI resolution.

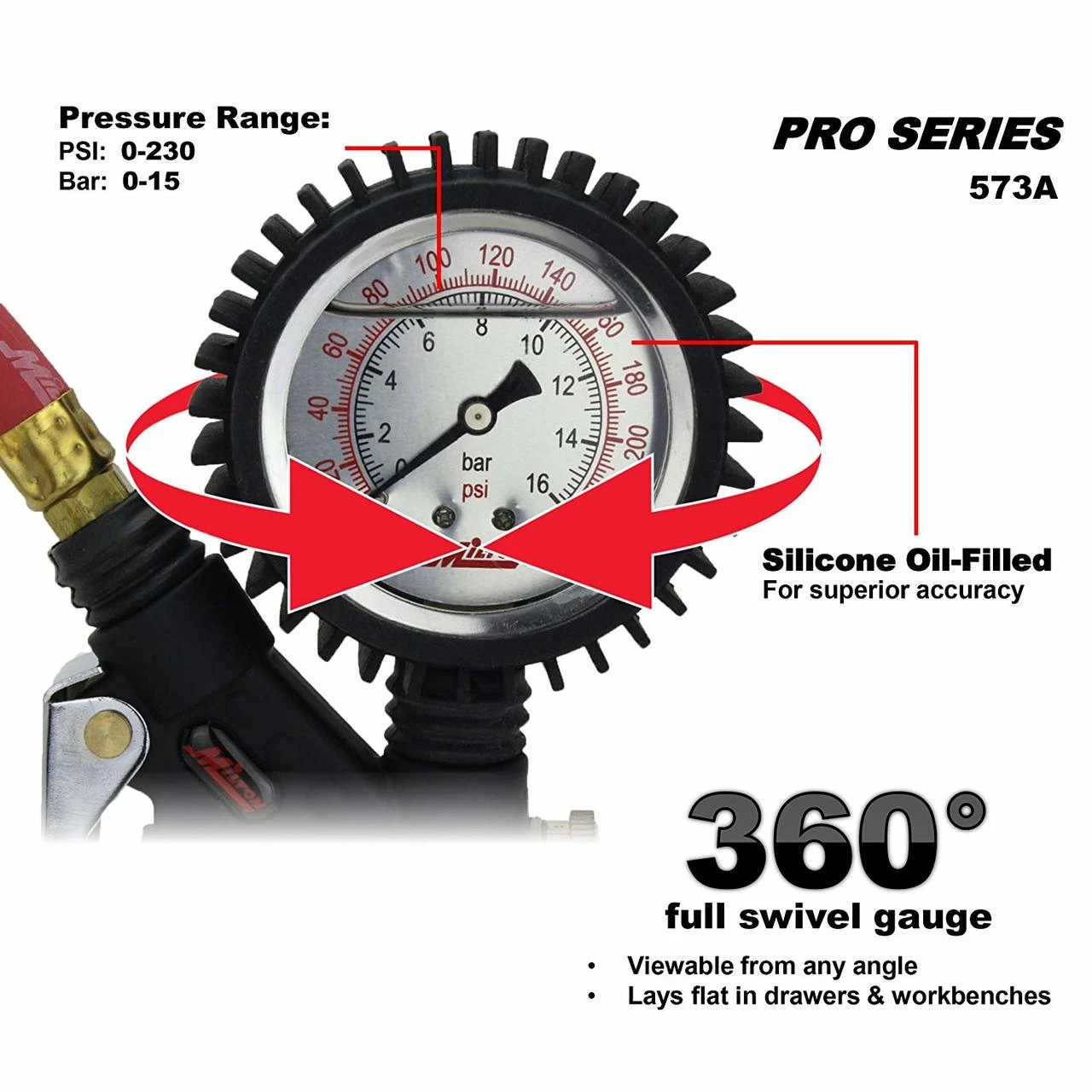

- Liquid-filled analog gauge with protective rubber boot.

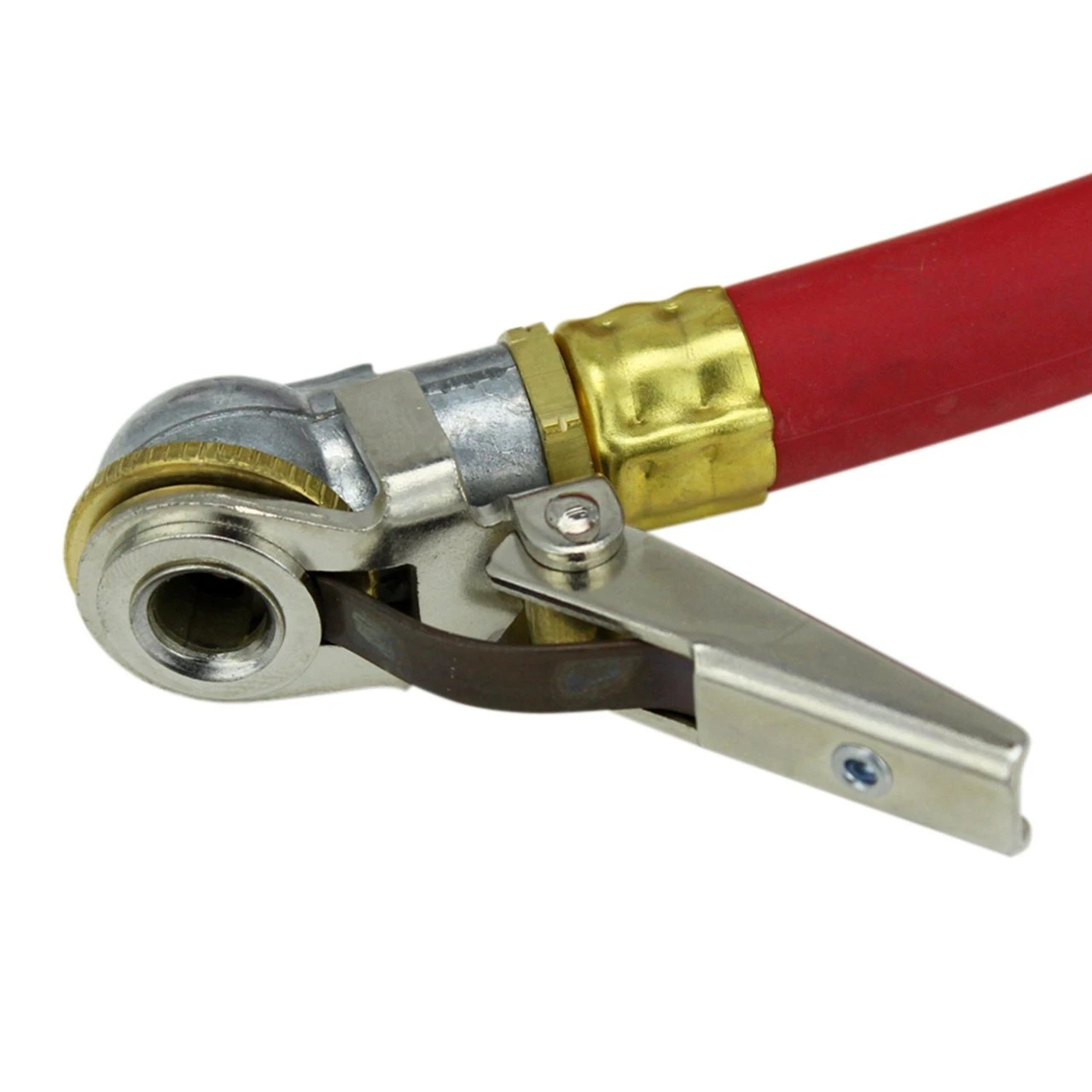

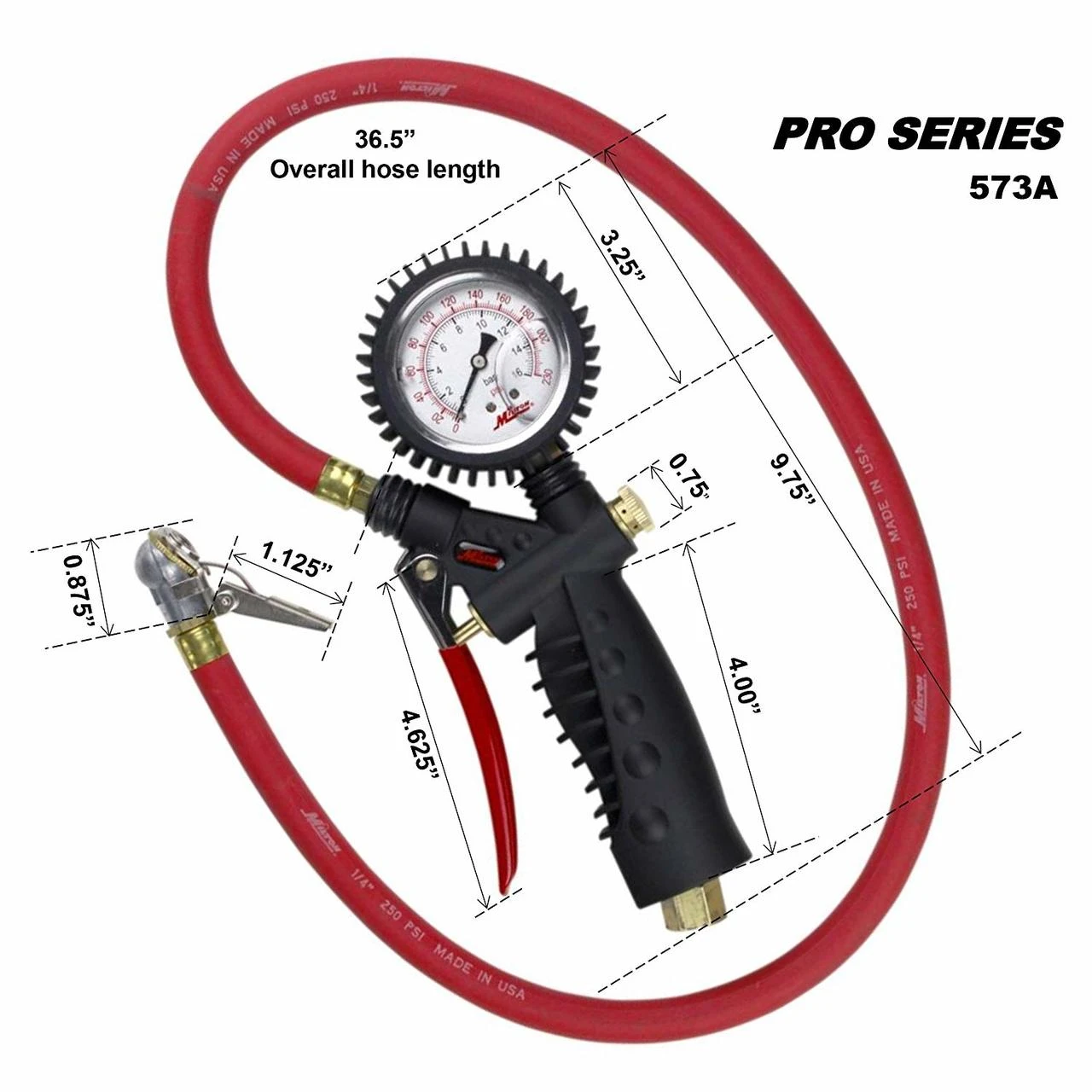

- 36-inch hose and ball-foot chuck with clip.
- 1/4-inch female NPT inlet; Milton727 plug sold separately.
- Separate deflation button for pressure adjustment.
Before ordering
Match the chuck to valve access and provide a suitable external air supply and inlet fitting. Use the tire's specified pressure. Resolution does not establish an accuracy tolerance, and liquid filling does not guarantee elimination of every pressure spike.
Product questions and answers
What differs from Milton572A?
This 573A lists a clipped ball-foot chuck;572A lists a Kwik Grip chuck. Verify which connection suits the valve access.
Is the 727 inlet plug included?
No. It is listed as sold separately.
Does this analog gauge require batteries?
No battery-powered display is required for the listed analog gauge.
Browse Automotive Service Tools > Tire Tools to compare other options.
