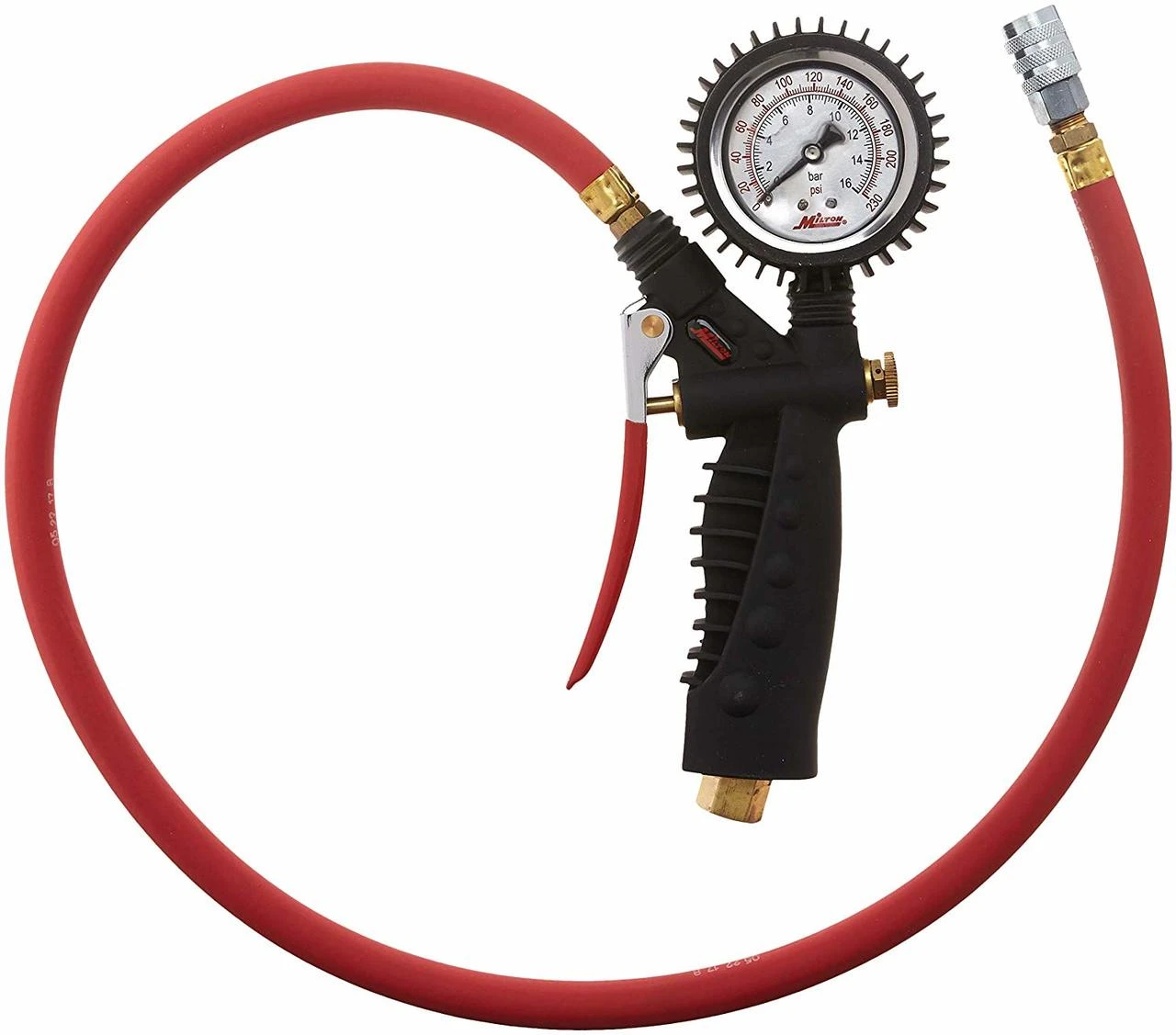

Milton572A Analog Tire Inflator with36in Hose
Milton572A combines a liquid-filled analog pressure gauge with a pistol-grip inflation trigger and separate deflation button. Its36-inch hose and locking Kwik Grip chuck define the working connection; an external compressed-air supply is required.
Specifications and included details
- 0–160PSI and 0–11bar analog scale;2PSI resolution.
- Liquid-filled dial with protective rubber boot.

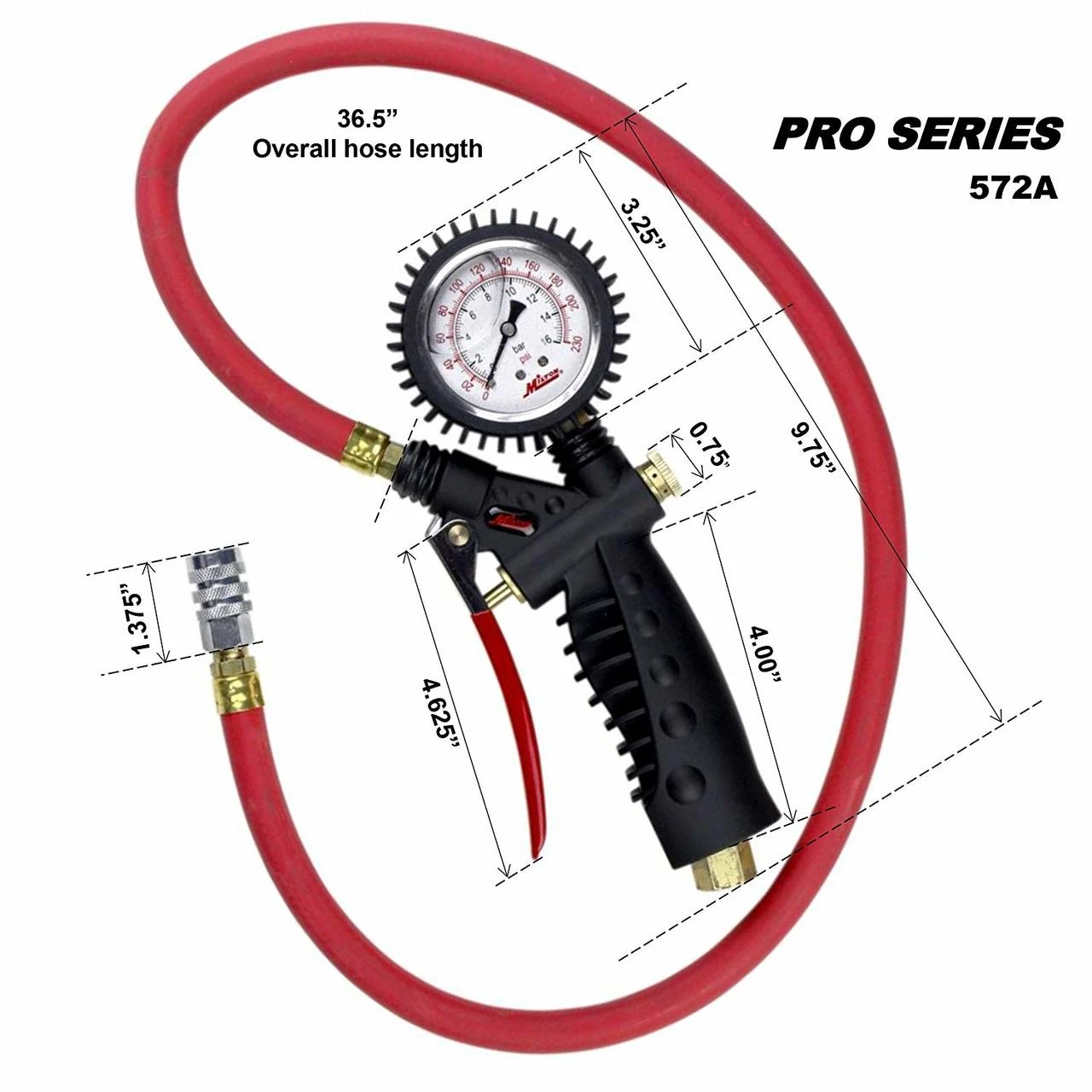

- 36-inch hose and Kwik Grip Safety Chuck.
- 1/4-inch female NPT air inlet.
- Milton727 inlet plug recommended and sold separately; deflation button listed.
Before ordering
Match the air inlet to your supply fitting and verify operating limits. Resolution is the scale increment, not a standalone±2PSI accuracy claim. The gauge measures/inflates from a supplied air product description; it is not a powered compressor.
Product questions and answers
Does the analog gauge need batteries?
The listed analog gauge does not require batteries.
Is the Milton727 plug included?
No. It is identified as recommended and sold separately.
Does2PSI resolution mean±2PSI accuracy?
No. Resolution and accuracy are different specifications; do not equate the scale step with an accuracy tolerance.
