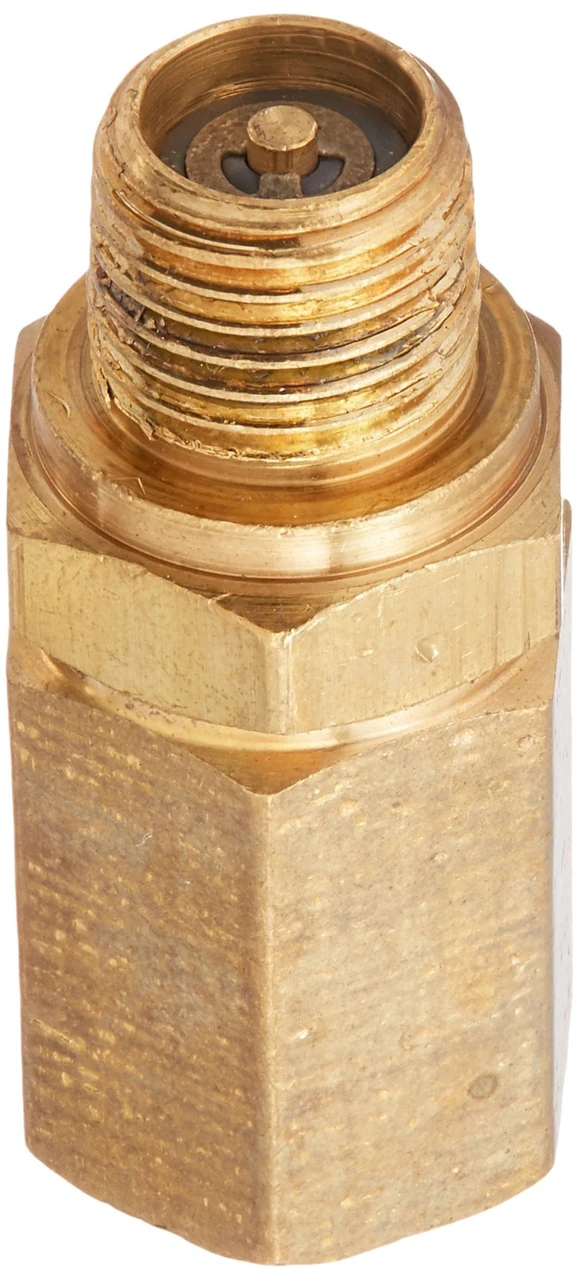

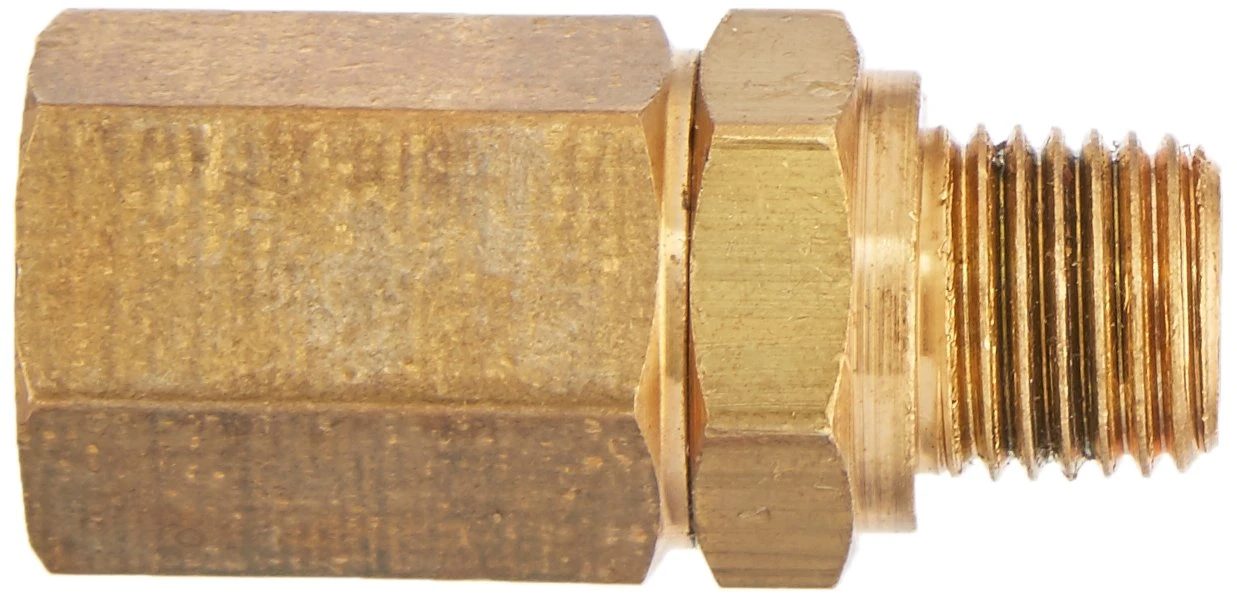

Milton 1098-4 1/4" FNPT x 1/4" MNPT Load Genie
This load genie has a 1/4" FNPT inlet and a 1/4" MNPT outlet and is used to unload discharge manifold in either a vertical or horizontal position of any compressor when compressor cycles and flow stops. This combination un-loader and check valve is efficient, quiet, economical and eliminates tubing/fittings of conventional pressure switch un-loader. With a maximum of 250 PSI, this load genie comes with a range of 1 to 6 SCFM.
1/4" female national pipe thread inlet, 1/4" male national pipe thread outlet
Offers 1 to 6 standard cubic feet per minute
Maximum working pressure of 250 pounds per square inch
Maximum recommended temperature of 450 degrees Fahrenheit
Maximum recommended compressor speed of 400 rpm; Made in USA
Length (cm): 9.1
Height (cm): 5.3
Product identification
- Brand: Milton
- Model / MPN: 1098-4
