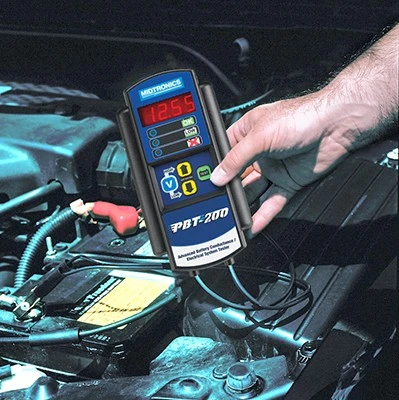

Midtronics Advanced Battery Conductance & Electrical System Tester (PBT-200) (Model PBT200)
Midtronics PBT-200 Advanced Battery Conductance & Electrical System Tester is the newest innovation in battery testing technology, designed for precise diagnostics of larger batteries up to 850 CCA. Building upon the success of the PBT-100, the first built for technician's toolbox, the PBT-200 offers these additional capabilities:
Specifications and Dimensions:
Test Capability: Up to 850 CCA
Displays: Condition, voltage, and available power in CCA
Advanced Diagnostics: BAD CELL detection, starter, and alternator testing
Extends testing to larger batteries with enhanced accuracy
Quick and easy assessments with immediate results display
Test larger batteries – up to 850 CCA
Shows available power in CCA's in addition to condition & voltage
BAD CELL detection
Advanced Starter Testing: Captures and displays the captured low voltage from cranking the engine for simple starter analysis
Advanced Electrical System Testing: Using the up & down arrows while the engine is running displays the captured high & low voltage for simple alternator/regulator analysis
PBT-200 Advanced Battery Conductance & Electrical System Tester
General Attributes
Product Weight: 1 LBS
Product Height: 2.5 IN
Product Length: 9 IN
Product Width: 4 IN
Country of Origin: China
Test Equipment General Attributes
Battery Type: Other
Power Supply Voltage: Battery Powered
Product identification
- Brand: Midtronics
- Model / MPN: PBT200
