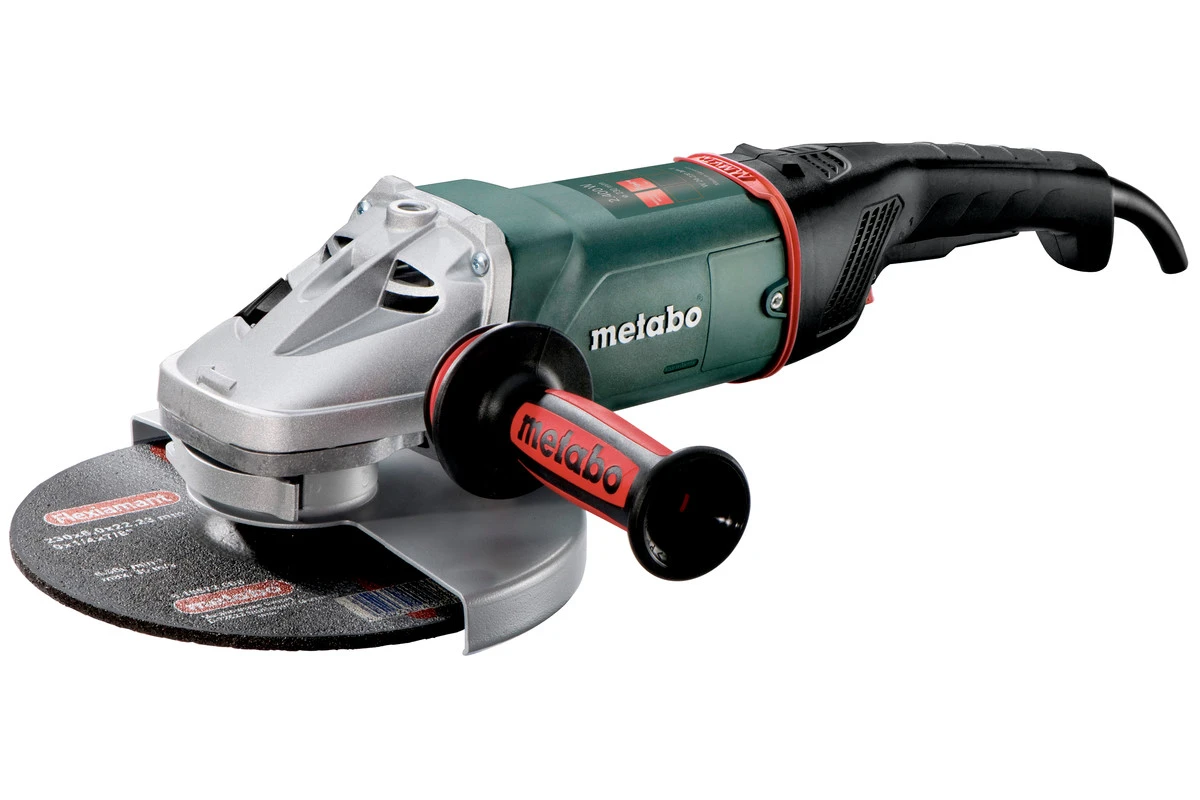

Metabo W24-230MVT 9-Inch Grinder, Deadman Switch
Metabo W24-230MVT is a 9-inch, 15 Amp corded angle grinder with a deadman switch and adjustable grip positions. Compare its wheel diameter and spindle thread first, then plan the guard and abrasive needed for the intended operation.
Specifications and included details
- 230 mm / 9-inch wheel diameter and 5/8-11 UNC spindle thread.
- 6,600 RPM no-load speed; 4,600 RPM at rated load.
- Rotating rear handle and side handle mounting at three positions; MVT side handle provided.
- Tool-free adjustable twist-proof guard, safety switch and auto-stop carbon brushes; 12.8 lb weight without cable.
Before ordering
Select an abrasive with suitable diameter, bore or threaded mount, speed rating and approved guard for the operation. A pictured wheel does not establish its inclusion or suitability for every job. Plan for the grinder's weight and cord routing.
Product questions and answers
What is the spindle thread?
The specified spindle thread is 5/8-11 UNC. Match the accessory's mounting system as well as its diameter and speed rating.
Which RPM figure should I compare for accessories?
The no-load speed is 6,600 RPM, distinct from the 4,600 RPM rated-load figure. Follow the manual and accessory instructions when checking permissible speed.
Can the grip positions be changed?
Yes. The rear handle rotates and the side handle has three mounting positions. Choose the configuration allowed by the manual for the operation.
