Pin punch details

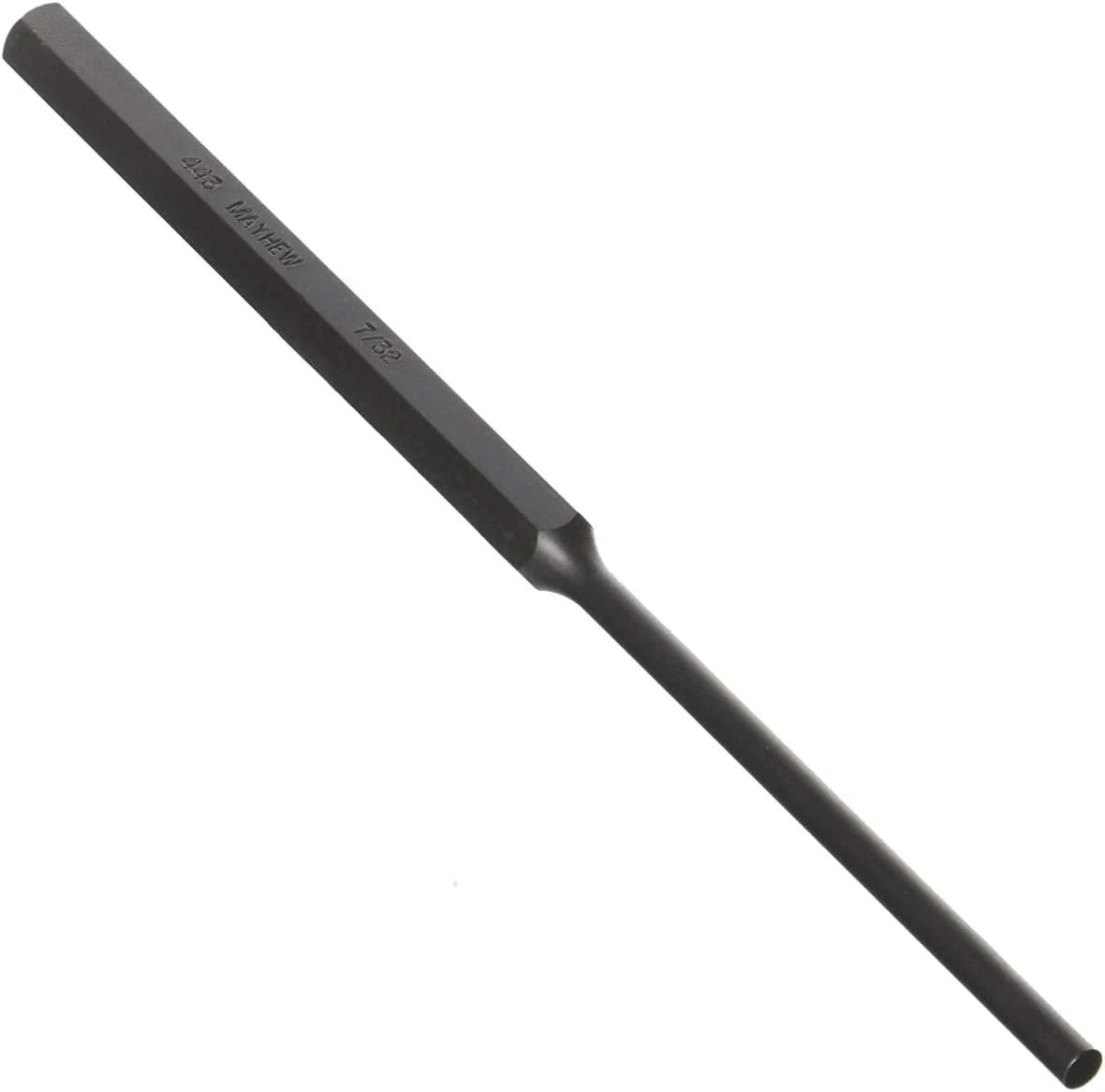

Mayhew 7/32" Pin Width Extra Long Pin Punch (21505)
The Mayhew 7/32" Pin Width Extra Long Pin Punch (21505) is a specialized hand tool engineered for the precise removal of pins and keys that have already been loosened. Its slender 7/32-inch pin width is ideal for engaging smaller pin apertures, while the extra-long design provides the necessary reach for recessed components. Manufactured from high-quality alloy steel in the USA, this punch offers consistent performance. A black oxide finish coats the tool, providing excellent resistance against rust and corrosion, thereby extending its service life in various working environments. This punch is a crucial addition to any toolkit requiring accurate and careful pin extraction following initial pin movement.
KEY FEATURES AND BENEFITS:
Precise Pin Width: 7/32-inch tip provides accurate engagement with smaller pin apertures.
Extra-Long Design: Reaches recessed or difficult-to-access pins with ease.
Post-Loosening Extraction: Designed for driving out pins that have already been loosened by a starter punch.
Durable Construction: Made from high-quality alloy steel for long-term use and reliability.
Rust Protection: Black oxide finish resists corrosion and maintains tool integrity.
American Made: Manufactured in the USA with professional-grade standards.
Model/Part Number: 21505
Type: Pin Punch, Extra Long
UPC: 045256215051
Pin/Tip Size: 7/32 inches
Overall Length (OAL): 7.875 inches
Body Size: 3/8 inches
Body Type/Shank Type: Hex
Pin Length: 3-1/2 inches
Material: Alloy Steel
Finish Type: Black Oxide Finish
Weight: 0.1835 lbs
Hardness (Rockwell): 55 – 57
Included in Product: 1x Mayhew 7/32" Pin Width Extra Long Pin Punch (21505)
Assess the Pin: Ensure that the target pin or key is already loosened. If the pin is seized or stuck, use a solid punch to initiate movement.
Select the Correct Punch Size: Choose this 7/32" punch for pins that match or slightly exceed its tip size.
Position the Punch: Place the tip squarely on the center of the loosened pin, keeping the punch vertical and aligned.
Strike Gently and Progressively: Use a hammer to apply light, controlled strikes to the punch's head until the pin begins to move.
Monitor Pin Movement: Continue striking until the pin is fully driven out or recessed for removal.
Clean and Store: After use, clean the punch and store it in a dry place to protect the black oxide finish.
BENEFITS OF USING MAYHEW 7/32" PIN WIDTH EXTRA LONG PIN PUNCH (21505):
Accurate Pin Extraction: Facilitates precise and controlled removal with minimal risk of damage.
Extended Reach: Ideal for accessing deeply recessed or confined components.
Application-Specific: Optimized for post-loosening use, protecting both the punch and workpiece.
Corrosion Resistance: Black oxide finish extends tool life and enhances durability.
Designed for removing pins after initial loosening.
Hexagonal body for secure gripping and anti-roll properties.
Manufactured with an extended blade for deep access.
Crafted from premium alloy steel for strength.
Rust-resistant black oxide coating for enhanced longevity.
Proudly made in the United States of America.
Product identification
- Brand: Mayhew Tools
- Model / MPN: 21505
