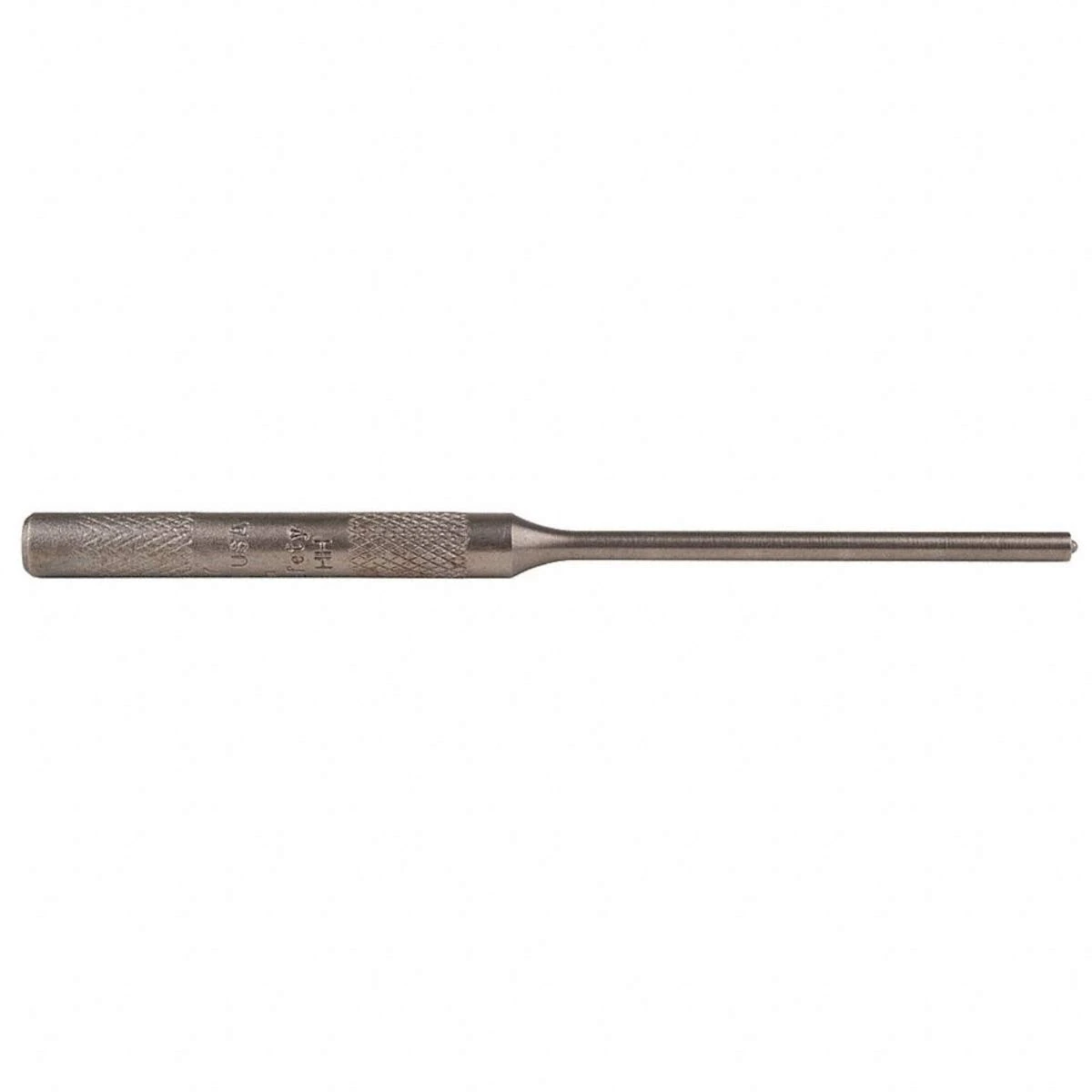

Mayhew 3mm Pin Width Metric Pilot Pin Punch (25017)
Mayhew 3mm Pin Width Metric Pilot Pin Punch (25017) is an essential tool engineered for the precise installation and removal of roll pins and other hollow tension pins. This specialized punch features Mayhew’s original patented design, incorporating a unique rounded end that perfectly fits within the hollow core of a roll pin. This design ensures stable contact and efficient force transfer, minimizing damage to the pin and the surrounding material during both insertion and extraction.
KEY FEATURES AND BENEFITS:
3mm Pin Width: Specifically sized for common metric 3mm roll pins and hollow tension pins, ensuring a precise fit.
Original Mayhew Patented Design: Features a unique rounded end that securely fits within the hollow core of a roll pin, preventing slippage and damage.
Dedicated Function: Primarily used to accurately drive in and remove roll pins or other hollow tension pins, making these tasks straightforward and efficient.
Black Oxide Finish: Provides an additional layer of protection against rust and corrosion, enhancing the tool's longevity and appearance.
Bulk Packaging: Designed for practical distribution and storage.
Made in the USA: Guarantees adherence to high manufacturing standards and supports domestic craftsmanship.
Weight: 0.031 lbs.
Length: 4 inches (Overall Length)
Width: 0.25 inches (Body Diameter)
Height: 0.25 inches (Body Diameter)
Body Type: Round
Body Size: 1/4 inch
Pin Length: 2 inches
Finish Type: Black Oxide Finish
Included: Product includes one Mayhew 3mm Pin Width Metric Pilot Pin Punch (25017) in bulk packaging.
Identify the Pin: Locate the 3mm roll pin or hollow tension pin you intend to install or remove. Ensure the pin's diameter matches the punch's 3mm width.
Select the Right Tool: Confirm you are using the Mayhew 3mm Pin Width Metric Pilot Pin Punch (25017).
Position the Punch: For removal, place the rounded tip of the punch securely into the hollow end of the roll pin. For installation, ensure the pin is aligned in its hole before placing the punch on its end.
Strike the Punch: Using a hammer, apply firm, controlled strikes to the striking end of the pilot punch. Maintain a steady grip on the punch and ensure the hammer strikes the center.
Monitor Progress: Continue striking until the roll pin is either fully driven into its position or pushed completely out of its assembly.
BENEFITS OF USING MAYHEW 3MM PIN WIDTH METRIC PILOT PIN PUNCH (25017):
Using the Mayhew 3mm Pin Width Metric Pilot Pin Punch (25017) provides significant advantages for tasks involving roll pins. Its patented design ensures that the punch makes full, secure contact with the inside of the hollow pin, drastically reducing the chance of the punch slipping off or damaging the pin's delicate edges.
Precision: Helps prevent costly rework and preserves the integrity of your components.
Durability: The tool's robust construction, being made in the USA, translates to exceptional reliability and a longer lifespan.
Corrosion Resistance: The black oxide finish offers critical corrosion protection, extending the punch’s functional life and maintaining its precise dimensions.
Efficiency: Simplifies the often frustrating and time-consuming operation of roll pin installation and removal.
Solid steel construction for enduring performance.
Precision-ground tip specifically contoured for 3mm hollow pins.
Optimal 4-inch length provides balanced reach and control.
Uniform 1/4-inch body size for comfortable grip and striking.
Corrosion-resistant surface treatment for enhanced tool life.
Engineered to facilitate clean and efficient pin manipulation.
Product identification
- Brand: Mayhew Tools
- Model / MPN: 25017
