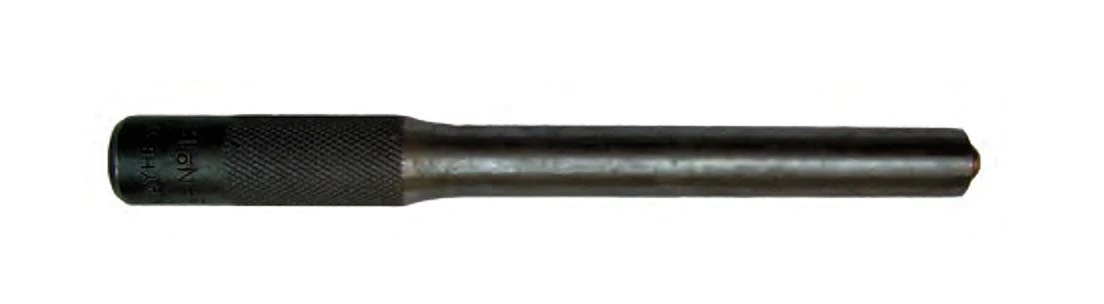

Mayhew 10mm x 6 Metric Pilot Pin Punch (25026)
The Mayhew 10mm x 6” Metric Pilot Pin Punch (25026) is a specialized tool engineered for the precise installation and removal of roll pins and other hollow tension pins. Its core feature is the original Mayhew patented design, which includes a unique rounded end. This design allows the punch to fit snugly within the inside diameter of a roll pin, providing superior stability and preventing damage to the pin or the workpiece during use. Constructed from heat-treated alloy steel, this punch delivers reliable performance and has a black oxide finish that offers effective protection against rust, extending the tool's lifespan. Made in the USA, this punch represents a commitment to quality and precise functionality in demanding applications.
KEY FEATURES AND BENEFITS:
Designed specifically for roll pins and hollow tension pins: Ensures accurate alignment and effective removal or installation.
Patented rounded tip for secure pin engagement: Reduces the risk of slipping and minimizes damage to the pin or workpiece.
Constructed from robust alloy steel: Delivers high strength and durability under repeated impact.
Heat-treated for enhanced strength: Maintains tool integrity even during heavy-duty applications.
Corrosion-resistant black oxide coating: Offers extended tool life and rust protection.
Manufactured in the United States: Ensures quality and reliability backed by American craftsmanship.
Weight: 0.233 lbs.
Body Type: Round
OAL (Overall Length): 6"
Finish Type: Black Oxide Finish
What's Included: One (1) Mayhew 10mm x 6” Metric Pilot Pin Punch (25026)
Select the Correct Punch: Ensure you are using the 10mm pilot pin punch for 10mm roll pins to guarantee a proper fit.
Position the Workpiece: Secure the item containing the roll pin in a vise or on a stable surface to prevent movement during the punching process.
Align the Punch: Place the rounded end of the Mayhew pilot pin punch directly into the hollow opening of the roll pin. The rounded tip helps to self-center the punch within the pin.
Apply Force (Removal): For removing a pin, strike the flat end of the punch squarely with a hammer. Use controlled, firm blows, ensuring the punch remains aligned with the pin. Continue striking until the pin is driven out from the other side.
Apply Force (Installation): For installing a pin, gently tap the pin into its hole to start it. Then, use the pilot pin punch, aligning it with the hollow pin, and strike the punch with a hammer until the pin is flush or seated to the desired depth.
Inspect: After installation or removal, inspect the pin and the surrounding area for any damage or misalignment.
BENEFITS OF USING MAYHEW 10MM X 6” METRIC PILOT PIN PUNCH (25026):
Minimized Damage: Prevents distortion of roll pins with its self-centering tip.
Improved Accuracy: Secure engagement reduces slippage for cleaner results.
Durability: Alloy steel and heat-treated construction withstand repeated use.
Corrosion Resistance: Black oxide finish protects against rust in workshop environments.
Trusted Manufacturing: Made in the USA, ensuring consistent quality and craftsmanship.
Designed specifically for roll pins and hollow tension pins.
Patented rounded tip for secure pin engagement.
Constructed from robust alloy steel.
Heat-treated for enhanced strength.
Corrosion-resistant black oxide coating.
Designed for precise 10mm metric pin applications.
Optimized length of 6 inches for leverage and reach.
Rounded body type for comfortable handling.
Pin length of 4 inches for effective pin driving.
Product identification
- Brand: Mayhew Tools
- Model / MPN: 25026
