10 mm pin punch details

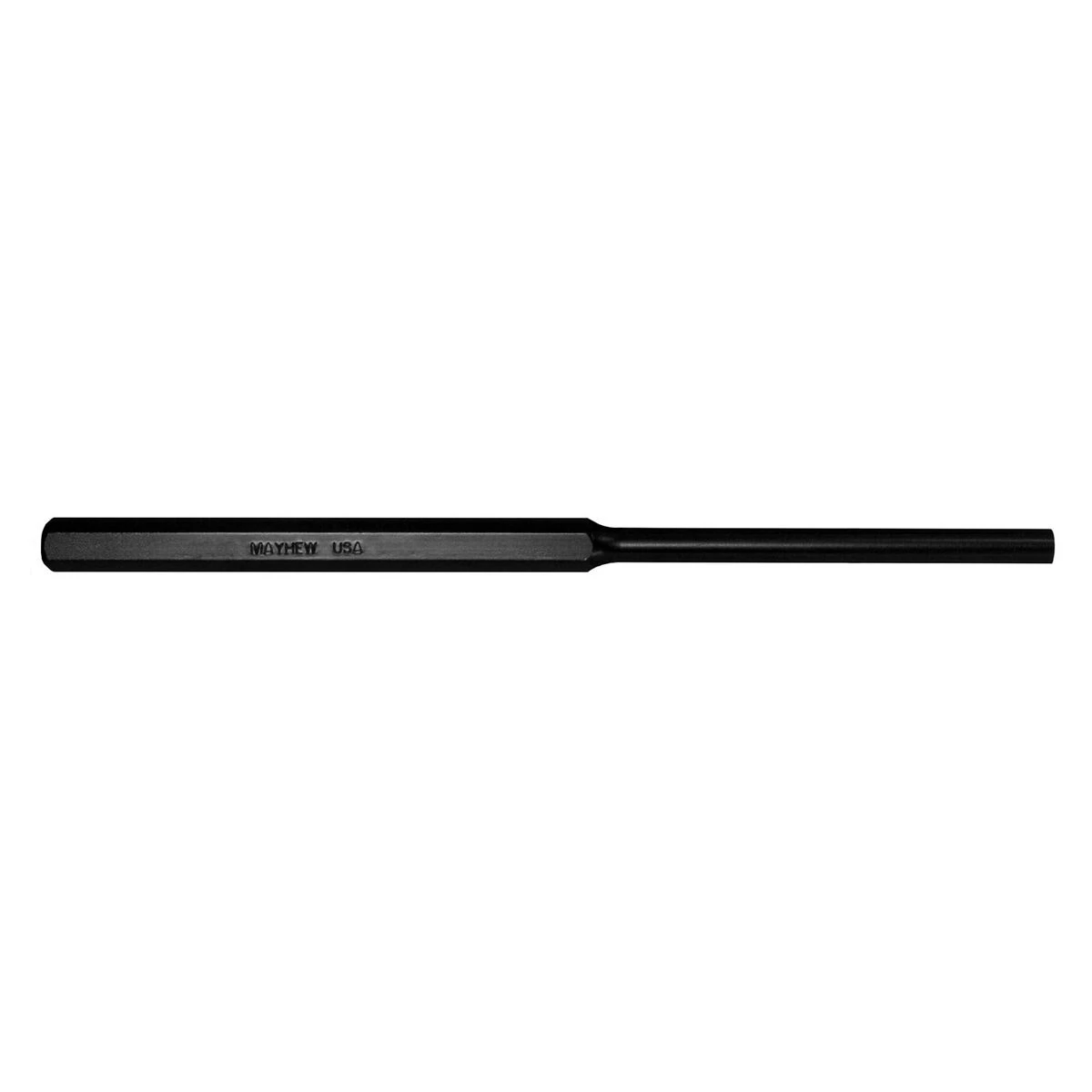

Mayhew 10mm Pin Width Metric Extra Long Pin Punch (21520)
The Mayhew 10mm Pin Width Metric Extra Long Pin Punch (21520) is a specialized tool engineered for the precise removal of already loosened pins and keys. Measuring 8 inches in total length with a 10mm pin width, this punch is a fundamental component for professional and personal use, ensuring efficient and controlled pin extraction after initial movement has been achieved by a solid punch. Manufactured in the USA, it combines quality construction with practical design to meet the demands of various tasks requiring accurate pin removal. Its black oxide finish provides an additional layer of protection against environmental elements, contributing to the tool's longevity.
KEY FEATURES AND BENEFITS:
Precise 10mm Pin Width: Specifically designed for driving out pins and keys with a 10mm diameter, ensuring a precise fit and effective force transfer for accurate removal.
Extra Long Design: The 8-inch overall length provides extended reach, allowing access to pins in deeper or less accessible locations where standard punches might fall short.
Optimal for Loosened Pins: Engineered to perform best on pins and keys that have already been initially moved or loosened by a solid punch, preventing damage to the tool and the workpiece.
Corrosion Resistance: Features a black oxide finish that provides an effective barrier against rust and corrosion, preserving the tool's integrity and appearance over time in various working conditions.
USA Made Quality: Manufactured in the USA using quality materials and processes, reflecting a commitment to reliable performance and consistent craftsmanship.
Weight: 0.3835 lbs.
Overall Length (OAL): 8"
Pin Length: 3-1/2"
Finish Type: Black Oxide Finish
Included in Product: One Mayhew 10mm Pin Width Metric Extra Long Pin Punch (21520).
Identify the Pin: Locate the pin or key you intend to remove.
Initial Loosening: If the pin is seized or tightly seated, first use a solid punch of appropriate size to initiate movement and loosen the pin. Do not use this extra-long pin punch for initial loosening.
Position the Punch: Place the 10mm pin end of the Mayhew 21520 punch squarely onto the top of the already loosened pin. Ensure the punch is aligned with the pin's axis to prevent slipping.
Strike with Mallet/Hammer: Using a mallet or hammer, strike the striking end of the punch with controlled force. The punch will then drive the pin further out of its housing.
Monitor Progress: Continue striking until the pin is fully expelled or moves to a point where it can be removed manually.
Clean and Store: After use, wipe the punch clean and store it in a dry place to maintain its condition.
BENEFITS OF USING MAYHEW 10MM PIN WIDTH METRIC EXTRA LONG PIN PUNCH (21520):
Improved Efficiency: Accelerates the process of removing already loosened pins and keys, reducing downtime in repair and assembly tasks.
Enhanced Precision: The specific 10mm pin width and straight design allow for accurate targeting and direct force application, minimizing damage to surrounding components.
Extended Reach Capability: The 8-inch length proves invaluable for accessing pins located deep within machinery or assemblies, negating the need for disassembly of other parts.
Professional Grade Reliability: Its robust construction from quality materials ensures consistent performance, making it a dependable tool for repeated use in demanding environments.
Maintenance Simplification: Facilitates easier maintenance and repair of various equipment and components by providing a dedicated tool for precise pin removal.
Elongated shaft for reaching confined spaces.
Hexagonal body design for secure gripping and anti-roll properties.
Constructed from high-grade tool steel for rigidity.
Tapered tip transition for smooth pin engagement.
Suitable for general machinery, automotive, and assembly applications.
Designed to withstand repetitive impact forces when used correctly.
Compact and lightweight for easy handling and storage.
Product identification
- Brand: Mayhew Tools
- Model / MPN: 21520
