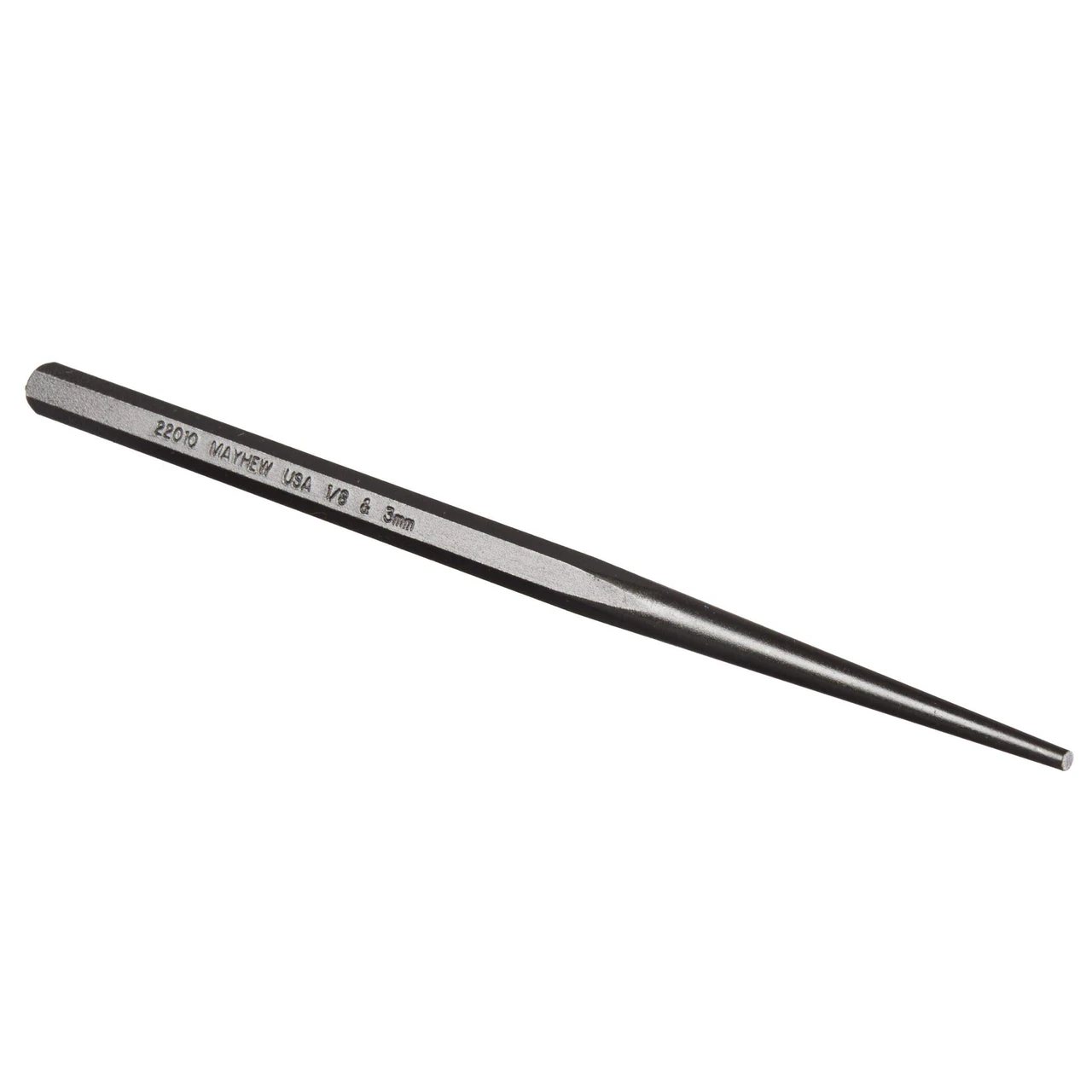

Mayhew 1/8-3mm Point Width Line-Up Punch (22010)
Mayhew 1/8-3mm Point Width Line-Up Punch (22010) is an essential tool for achieving accurate hole alignment in various applications. Its primary function is to align pre-drilled or semi-aligned holes, creating a precise path for the insertion of rivets, pins, or bolts. By inserting the punch's tapered end into slightly misaligned holes, it can be gently driven through, effectively bringing the holes into perfect alignment. This ensures that fasteners can be inserted smoothly and accurately, preventing damage to materials or the fasteners themselves. The black oxide finish on the punch provides an additional layer of protection against rust, extending the tool's lifespan and maintaining its appearance even with regular use. Often referred to as a "Drift Punch," this tool is a testament to quality craftsmanship, being proudly made in the USA. Its specific 1/8-3mm point width makes it versatile for a range of smaller alignment tasks.
KEY FEATURES AND BENEFITS:
1/8 inch (3mm) Point Width: Precisely sized for aligning small holes with accuracy and control.
Gradual Taper Design: Tapered body gradually aligns misaligned holes, ensuring a clean fit for rivets, pins, or bolts.
Black Oxide Finish: Provides rust resistance and helps preserve the tool’s appearance over time.
Made in the USA: Crafted in the United States to high standards of durability and performance.
Hexagonal Body: Prevents rolling and offers a stable grip during use.
Model Number: 22010
Point Width: 1/8 inch (3mm)
Overall Length (OAL): 7.875 inches (7-7/8")
Body Size: 5/16 inch
Taper Length: 3-1/2 inches
Weight: 0.152 lbs.
Finish Type: Black Oxide Finish
Country of Origin: USA
UPC Code: 045256220109
Identify Misalignment: Locate the holes that require alignment for the insertion of a rivet, pin, or bolt.
Insert Tapered End: Gently insert the tapered end of the Mayhew Line-Up Punch into one of the misaligned holes.
Align Gradually: Guide the punch through the holes, allowing its tapered design to gradually bring them into alignment.
Drive Through (if needed): If the holes are significantly misaligned, lightly tap the striking end of the punch with a hammer or mallet. The force will drive the punch through, creating a perfectly aligned path.
Remove Punch: Once alignment is achieved, remove the punch to allow for the insertion of your fastener.
BENEFITS OF USING MAYHEW 1/8-3MM POINT WIDTH LINE-UP PUNCH (22010):
Enhanced Accuracy: Ensures precise alignment of holes, crucial for proper fastener insertion and structural integrity.
Damage Prevention: Reduces the risk of damaging fasteners or the workpiece during insertion by eliminating force due to misalignment.
Improved Efficiency: Speeds up assembly processes by quickly and effectively preparing holes for components.
Extended Tool Life: The black oxide finish provides protection, contributing to the longevity of the punch.
Reliable Performance: Made in the USA, assuring a standard of quality and dependable operation for various tasks.
Standard 1/8-inch (3mm) point for focused alignment work
Designed to facilitate the proper seating of rivets, pins, or bolts
Hexagonal body design for a secure grip and resistance to rolling
Precision-tapered tip for gradual and effective hole correction
Protective coating guards against corrosion and wear
Manufactured with robust materials for consistent performance
Optimized length for balanced handling and reach
Product identification
- Brand: Mayhew Tools
- Model / MPN: 22010
