Taper punch details

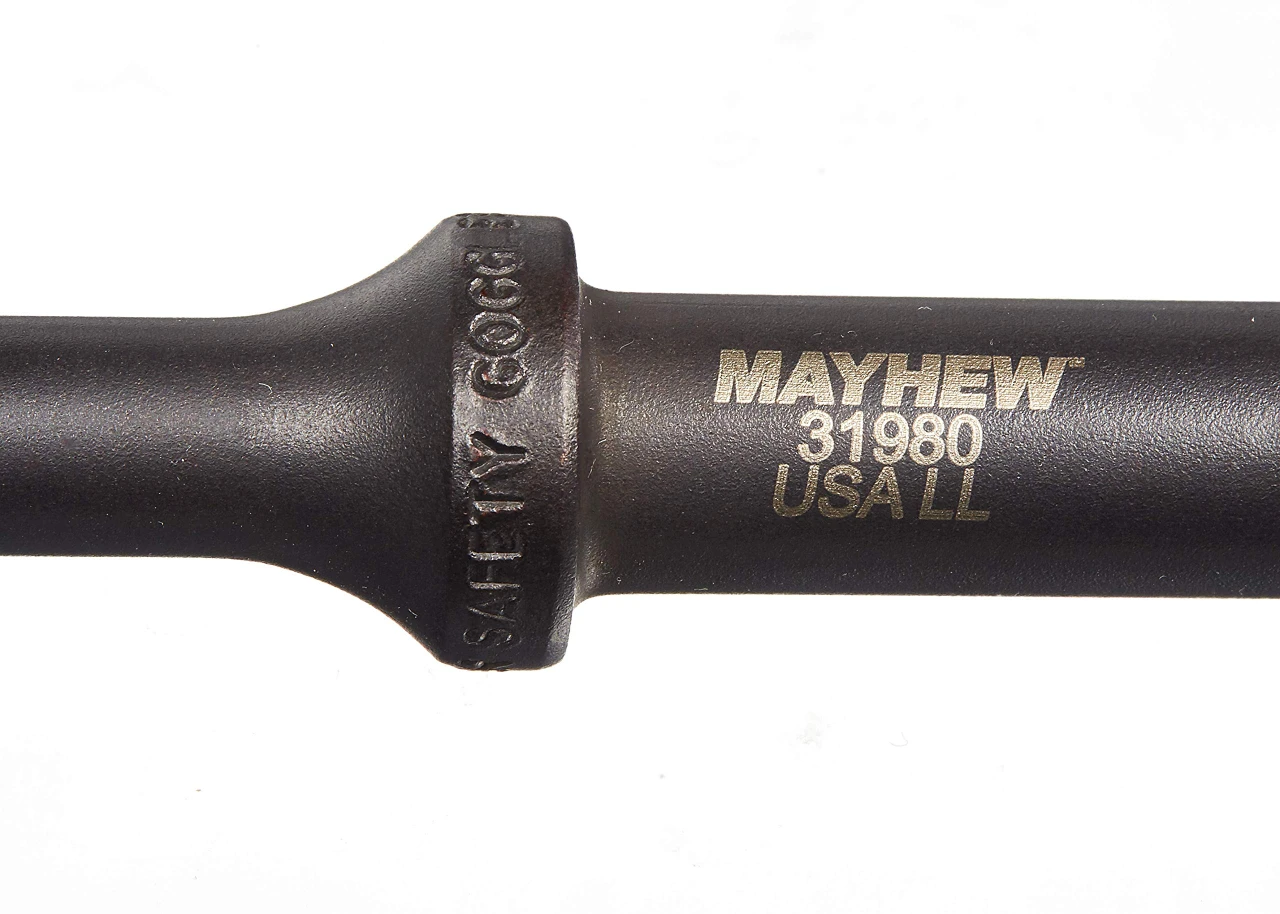

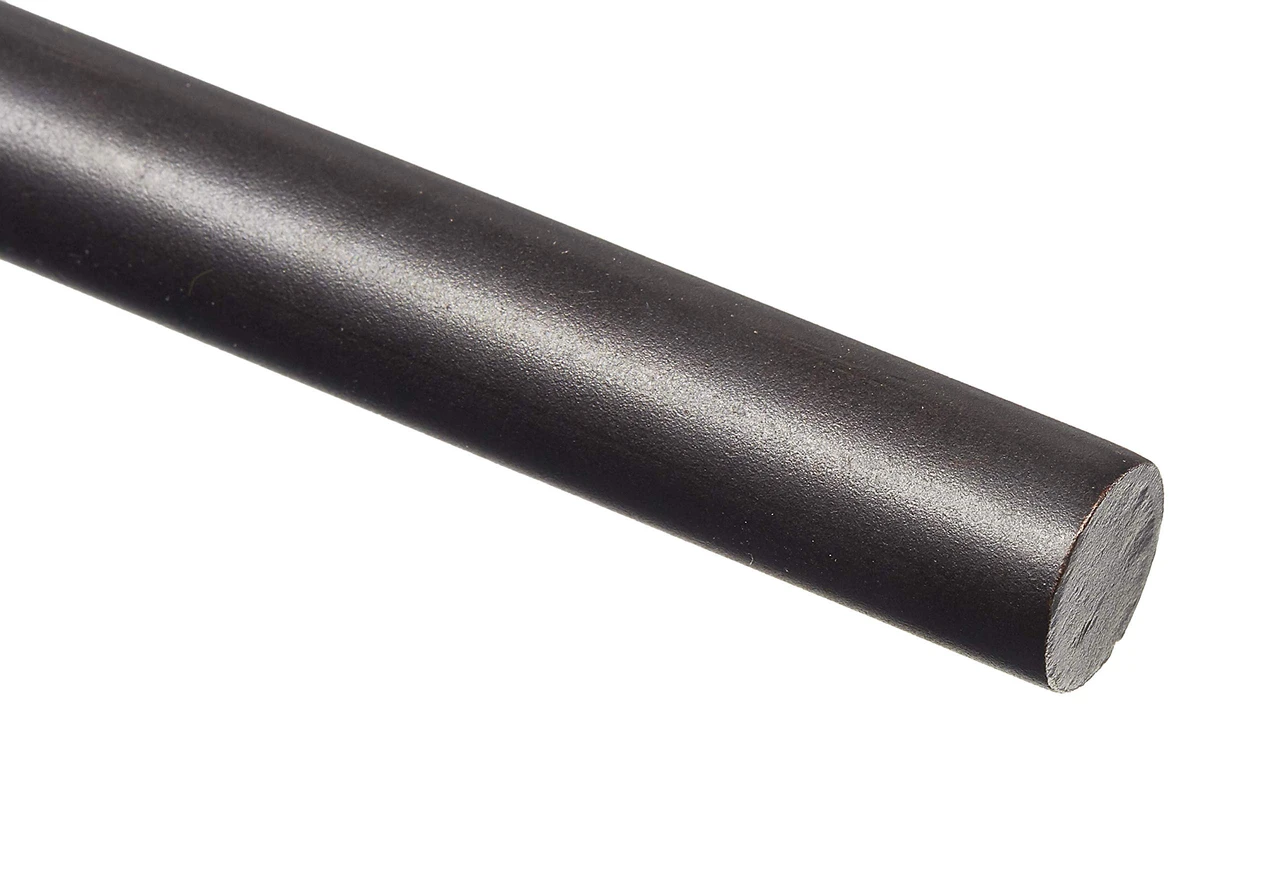

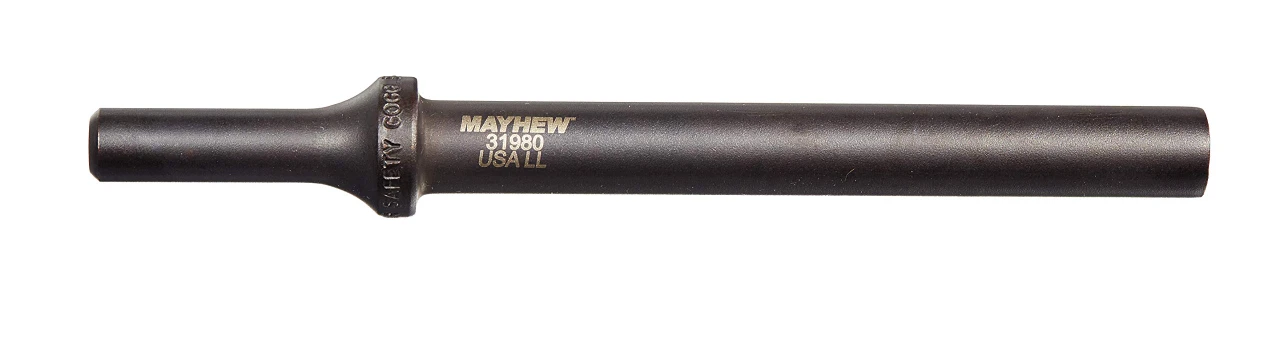

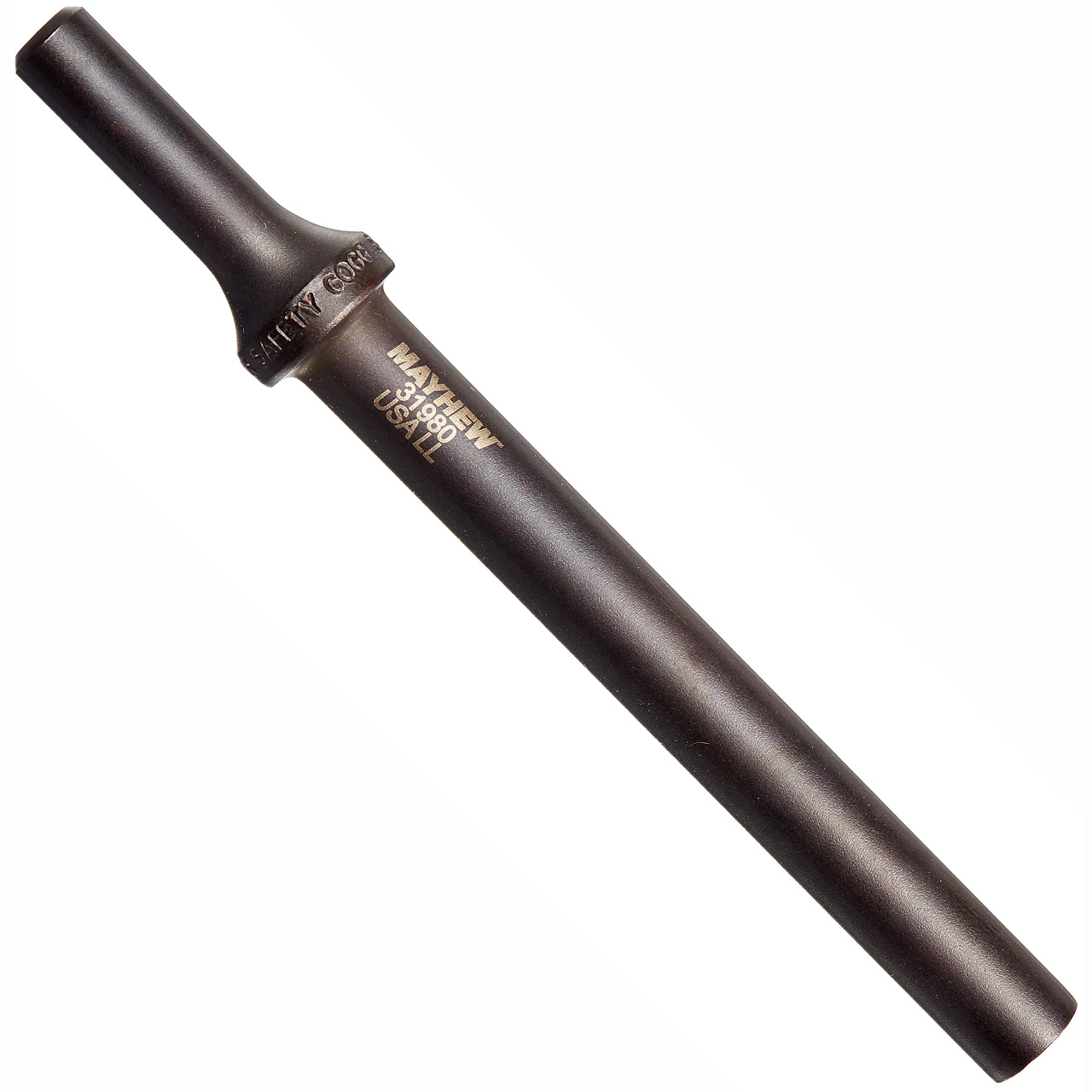

Mayhew 1/2" Blade Width Pneumatic Taper Punch (31980)
The Mayhew 1/2" Blade Width Pneumatic Taper Punch (31980) is a high-performance tool engineered for use with pneumatic air hammers. This specialized punch provides significant leverage and force, making it an excellent choice for a variety of demanding applications. Its 1/2-inch point diameter is suitable for tasks requiring precise impact, such as driving out stubborn pins, removing rivets, and breaking through resilient materials like mortar. The robust 6-inch shaft length offers reach and control, while the black oxide finish provides an essential layer of protection against rust, extending the tool's lifespan. Manufactured entirely in the USA, this punch reflects a commitment to quality and craftsmanship, ensuring reliability for professional use in automotive, construction, and general maintenance tasks.
KEY FEATURES AND BENEFITS:
Non-beveled tip for controlled impact: Provides precision for targeted striking.
Crafted from heat-treated alloy steel: Enhances durability and performance.
Fully hardened and tempered for resilience: Withstands heavy-duty applications.
Engineered for compatibility with air guns: Designed for efficient pneumatic tool operation.
Designed to minimize mushrooming at the tip: Prolongs tool life and safety.
Professional-grade tool for demanding tasks: Ideal for automotive, construction, and maintenance use.
Comes in convenient bulk packaging: Suitable for workshops and industrial settings.
Standard 0.401-inch Parker shank: Ensures compatibility with most air hammers.
Model Number: 31980
Weight: 0.322 lbs.
Brand: Mayhew Pro
Body Type: Round
Body Size: 0.401" (Shank Diameter)
Overall Length (OAL): 6"
Blade Width: 1/2"
Finish Type: Black Oxide Finish
Select Appropriate Air Hammer: Ensure your pneumatic air hammer is compatible with a 0.401-inch shank, which is the standard size for this punch.
Insert Punch: Firmly insert the 0.401-inch shank of the Mayhew 31980 punch into the chuck of your air hammer until it clicks securely into place.
Position Tool: Place the 1/2-inch point of the punch directly and accurately on the target material (e.g., the head of a stubborn pin, a rivet, or a specific point on mortar).
Activate Air Hammer: With proper safety gear (eye protection, gloves) in place, carefully engage the trigger of your air hammer. Apply consistent pressure to the tool as the air hammer delivers rapid impacts.
Monitor Progress: Observe the material as you work. Adjust the angle or pressure as needed to effectively drive, remove, or break the target.
Disengage and Clean: Once the task is complete, release the air hammer trigger. Carefully remove the punch from the air hammer and wipe it clean before storing.
BENEFITS OF USING MAYHEW 1/2" BLADE WIDTH PNEUMATIC TAPER PUNCH (31980):
Reduces manual effort by leveraging air hammer power for tough tasks.
Ideal for removing stubborn pins, rivets, or breaking mortar with control.
Constructed for high durability and extended tool life.
Minimizes user fatigue during demanding or repetitive jobs.
Improves job site safety by allowing precise and stable tool handling.
0.401-inch Parker shank for standard pneumatic hammer compatibility
Non-beveled tip for direct impact and control
Black oxide finish to resist rust and corrosion
Heat-treated and tempered alloy steel for strength
Bulk packaged for industrial or commercial procurement
Product identification
- Brand: Mayhew Tools
- Model / MPN: 31980
