Mastercool smoke machine details

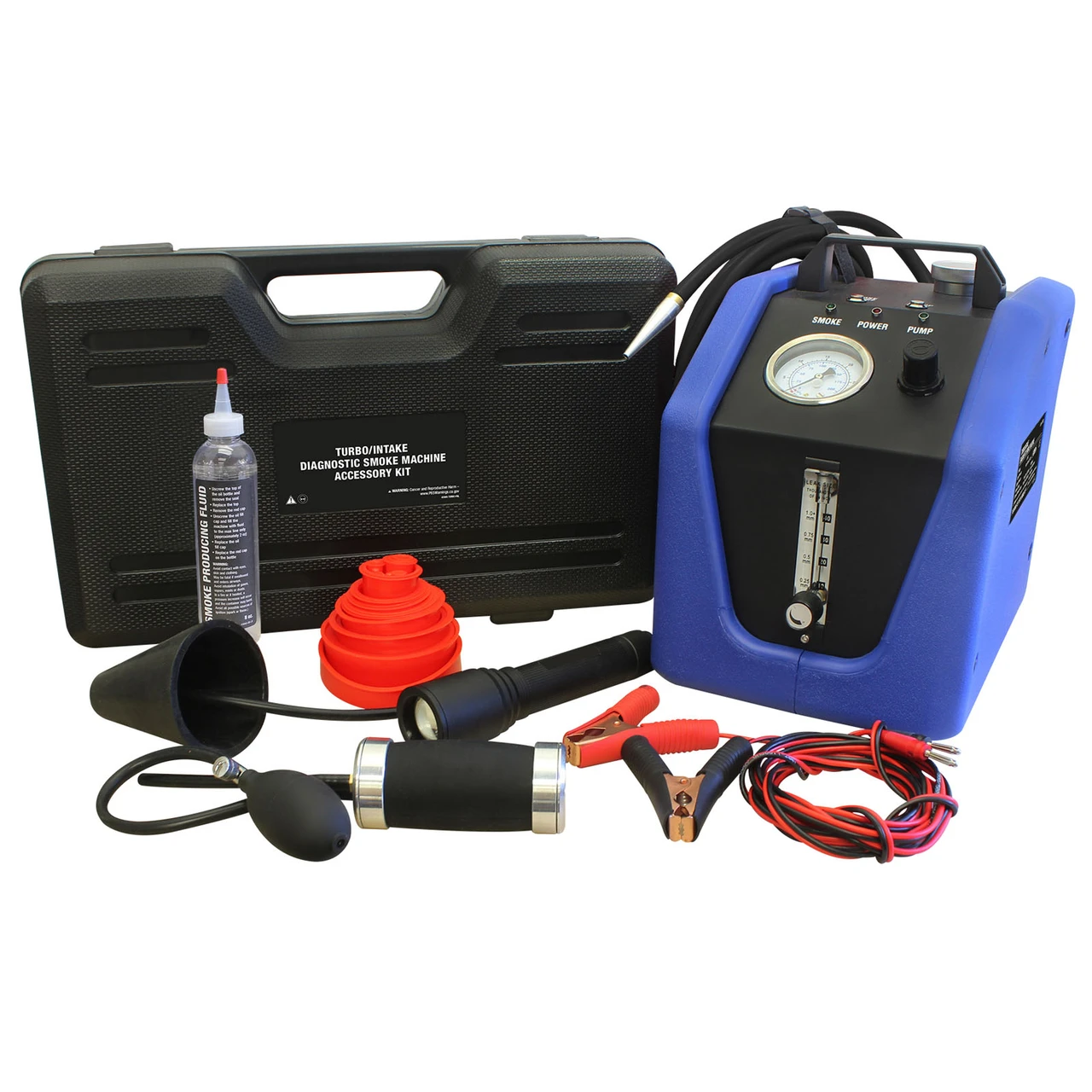

Mastercool 43060-TB Turbo/Intake Diagnostic Smoke Machine
For all turbo, intakes, exhaust, vacuum lines and vacuum components, manifolds, passenger compartment window and sunroof, headlight/tail-light fixtures and much more. Not for EVAP testing. This unit provides the option of compressed air, inert gases and a built-in internal compressor to inject the smoke into the system.
Accessories included: inflatable intake bladder, full set of block off caps, exhaust cone, high intensity battery powered smoke illuminating flashlight and 8 oz smoke producing fluid
Compact, heavy-duty design for years of reliable service
Multiple options for smoke injection include built-in internal compressor, shop air and inert gases
Quick smoke generation
Built-in safety pressure relief valve
Pressure can be regulated from 0 to 28 PSI
Large easy to read pressure decay gauge 0 – 30 PSI
Non-toxic and non-corrosive smoke
10’ 12V power cables with durable clamps
Heavy-duty 10’ smoke injection hose
Velcro strap for hose and power cable storage
Input Pressure: Max 100 psi (8.2 bar)
Output Pressure: Internal Pump Max 22 psi (150 kPa) / External Pressure Source Max 28 psi (190 kPa)
Safety Pressure Relief: 120 (±5) psi
Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
Power Consumption: Max 6.5 Amps
Operating Temperature: 0 °F to 140°F (-17°C to 60°C )
Operating Humidity: No Restrictions
Operating Altitude: No Restrictions
Vapor Output Hose: 10 feet
Power Cable: 10 feet
Pressure Supply: Air/Inert gas/Pump
Product identification
- Brand: Mastercool
- Model / MPN: 43060-TB
