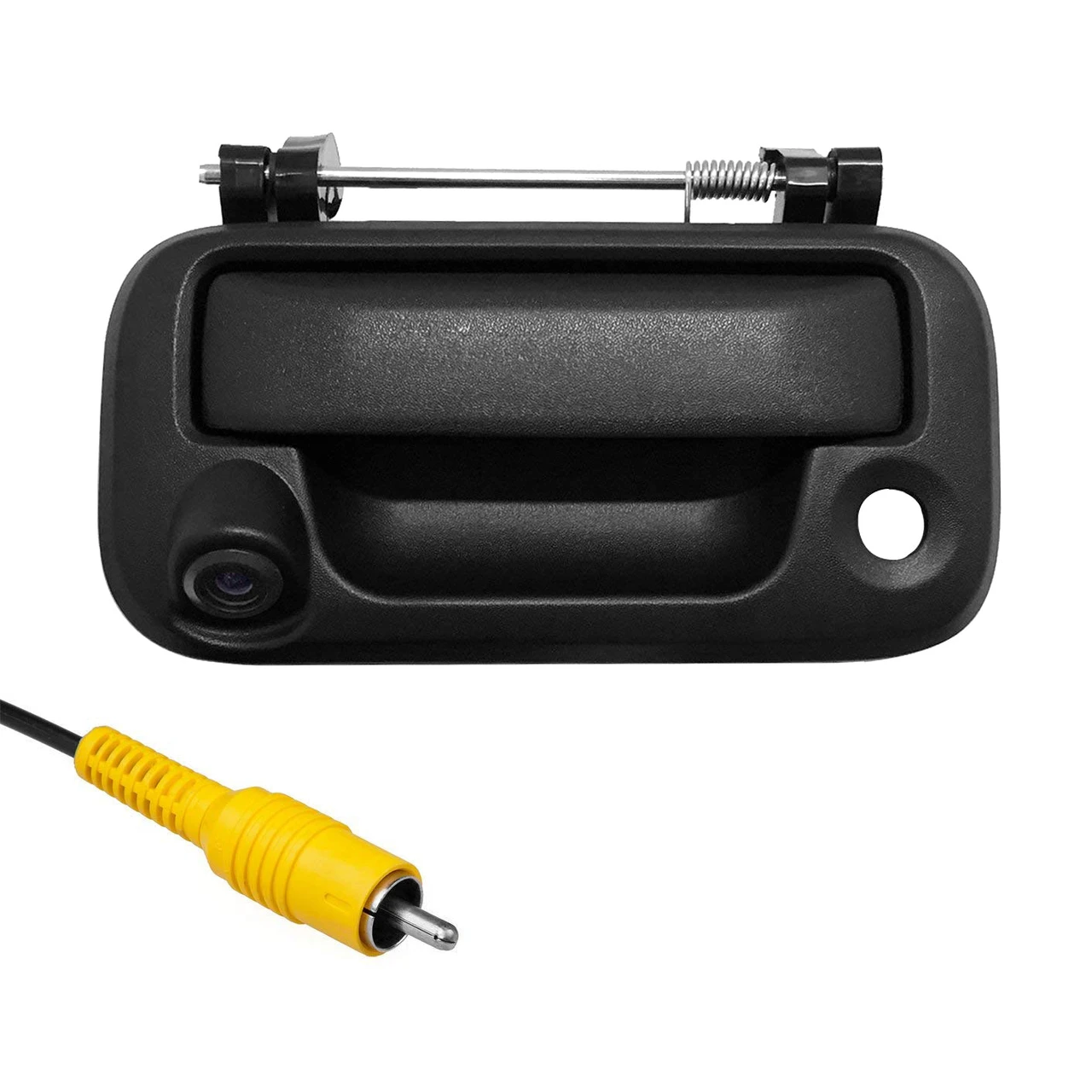

Master Tailgaters Ford F150, F250, F350, F450, F550 (2005-2016) Black Metal Replacement Tailgate Handle with Backup Camera (MT-F05B-M)
Master Tailgaters Black Metal Tailgate Handle with Backup Camera Replacement for Ford F150, F250, F350, F450, F550 2005-2016

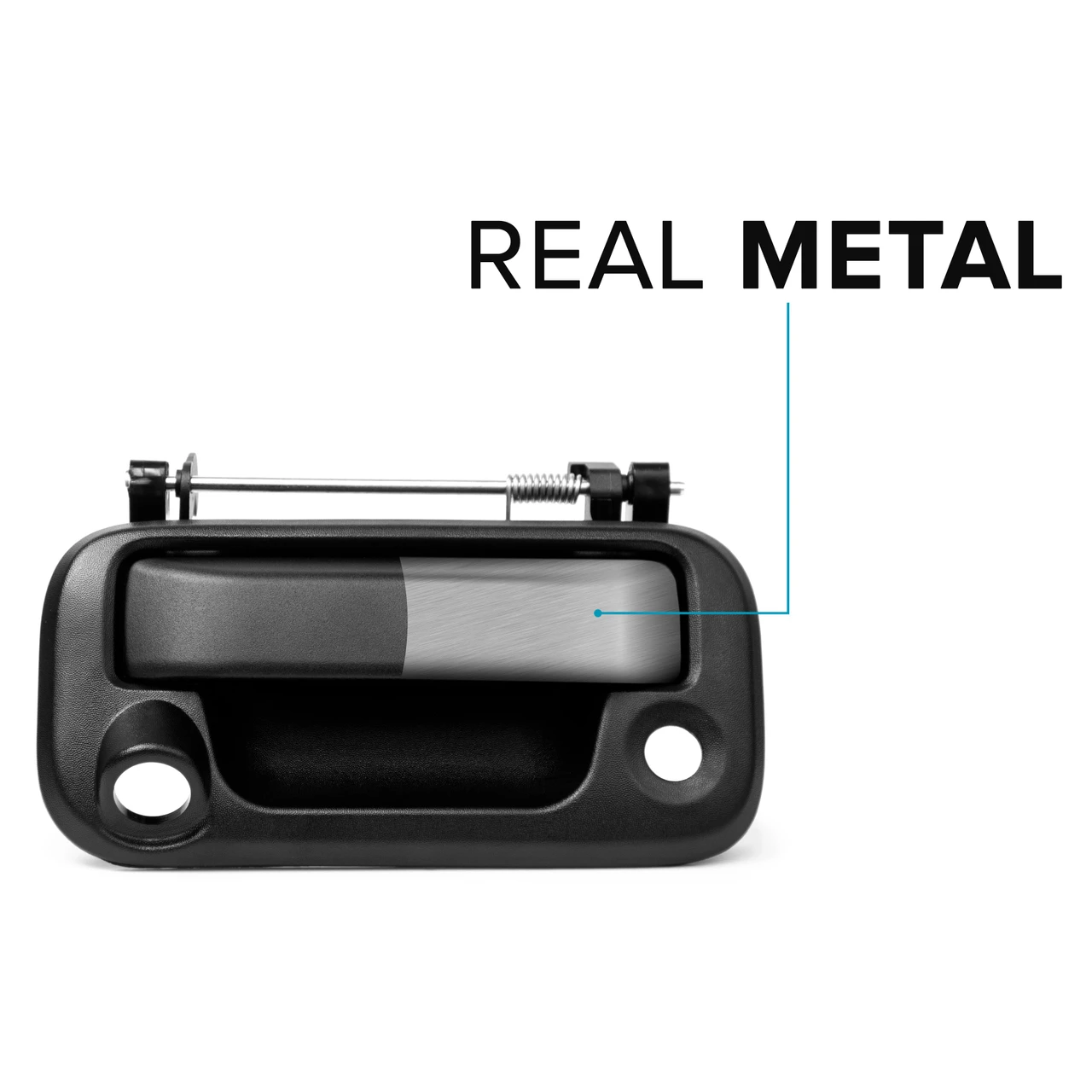

Black, Solid METAL Handle
Ford F150 (2005-2014), F250 (2008-2016), F350 (2008-2016), F450 (2008-2016), F550 (2008-2016)

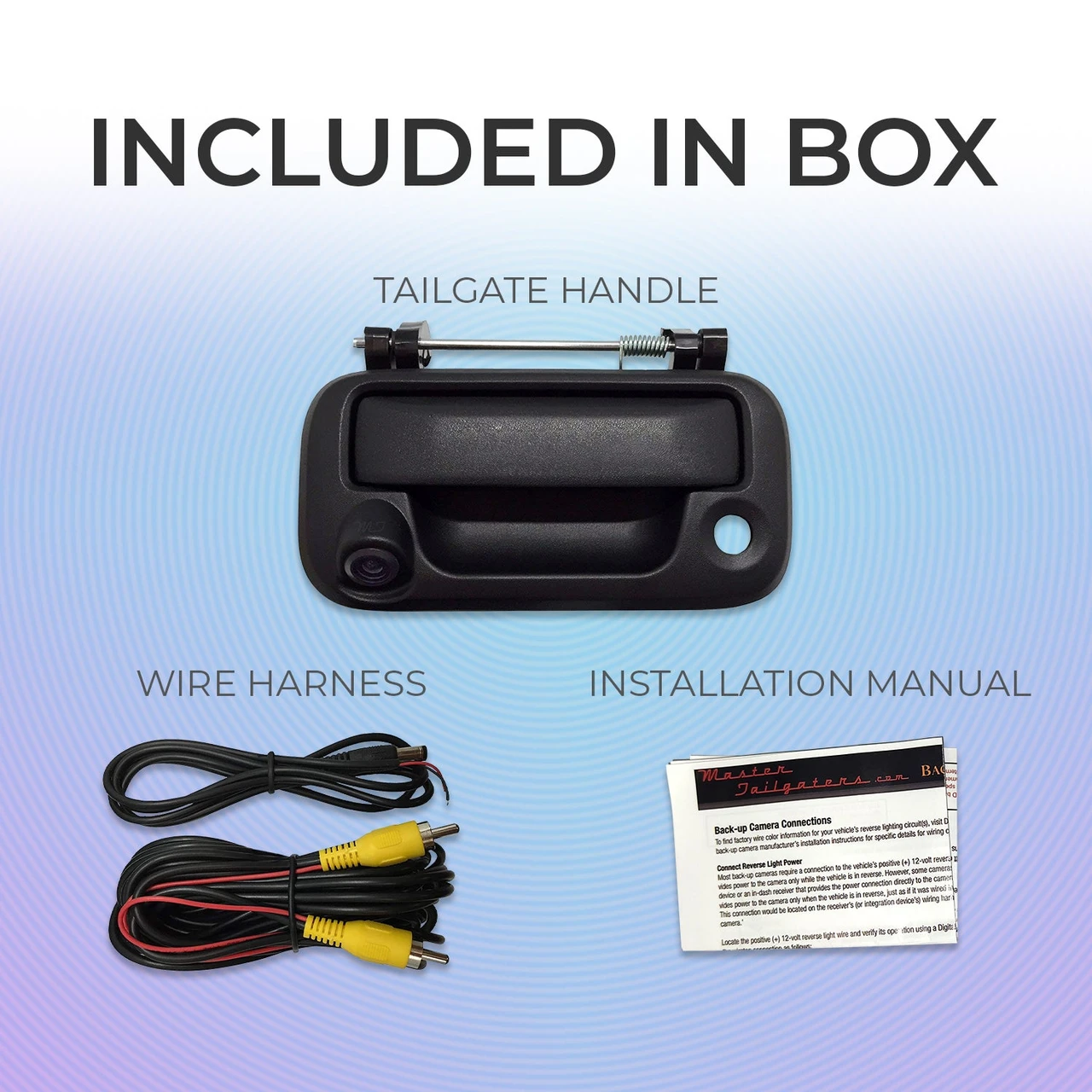

What's Included:
Metal Tailgate Handle with Backup Reverse Camera
26 Foot Video and Power Cable
Installation Instructions
This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

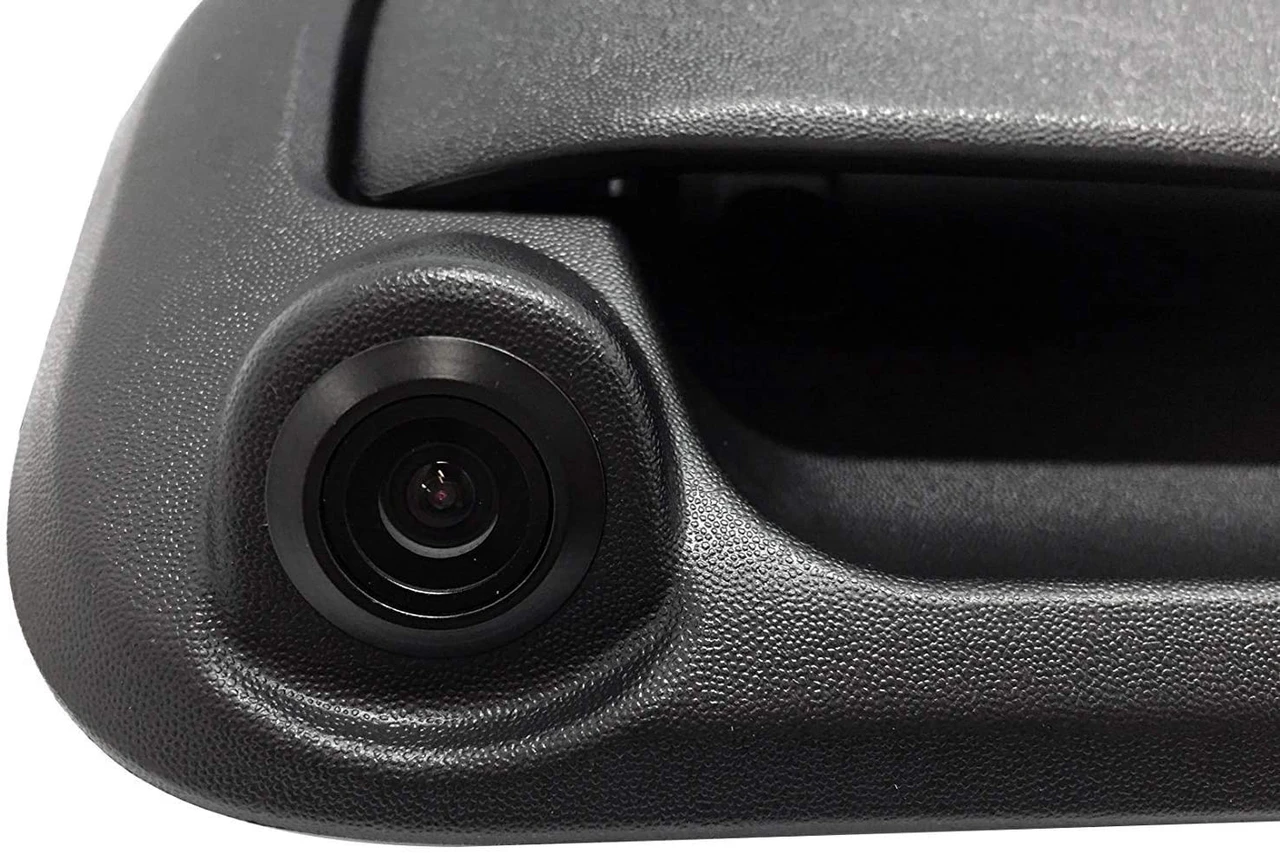

The most important feature of this Tailgate Handle is the camera. Master Tailgaters is dedicated to providing the best camera: clarity, dependability and longevity.

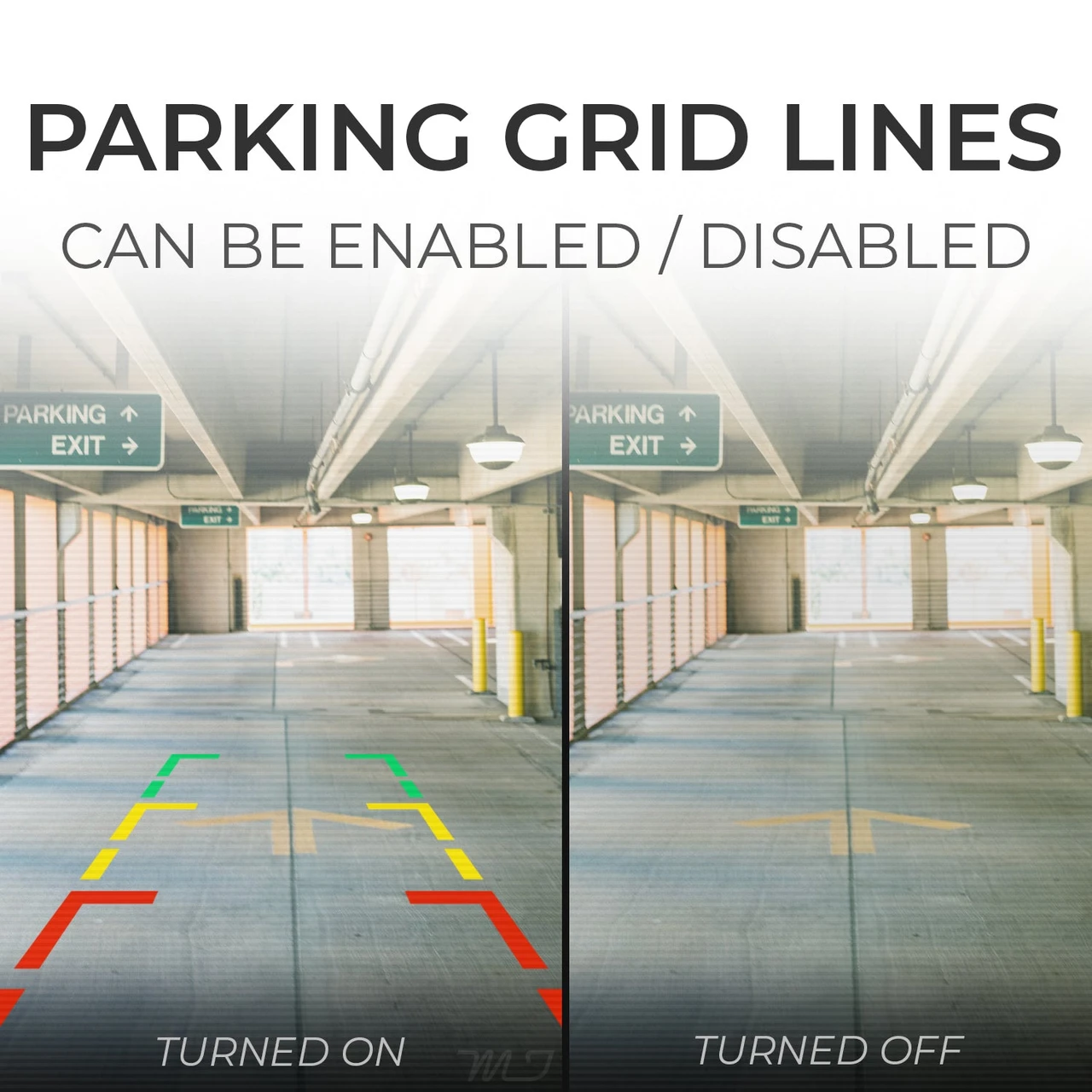

If you don't need the parking lines, the camera's parking grid lines can be turned off by cutting the white loop wire. To enable PAL mode, just cut the blue loop wire.
Camera Specifications:
Sensor: On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
Minimum Illumination : .1 Lux light sensitivity
Signal System: NTSC/PAL
Effective Pixels: 728 x 582
Electronic Shutter : 1/50 to 1/100,000 seconds
Resolution : 600 TV Line

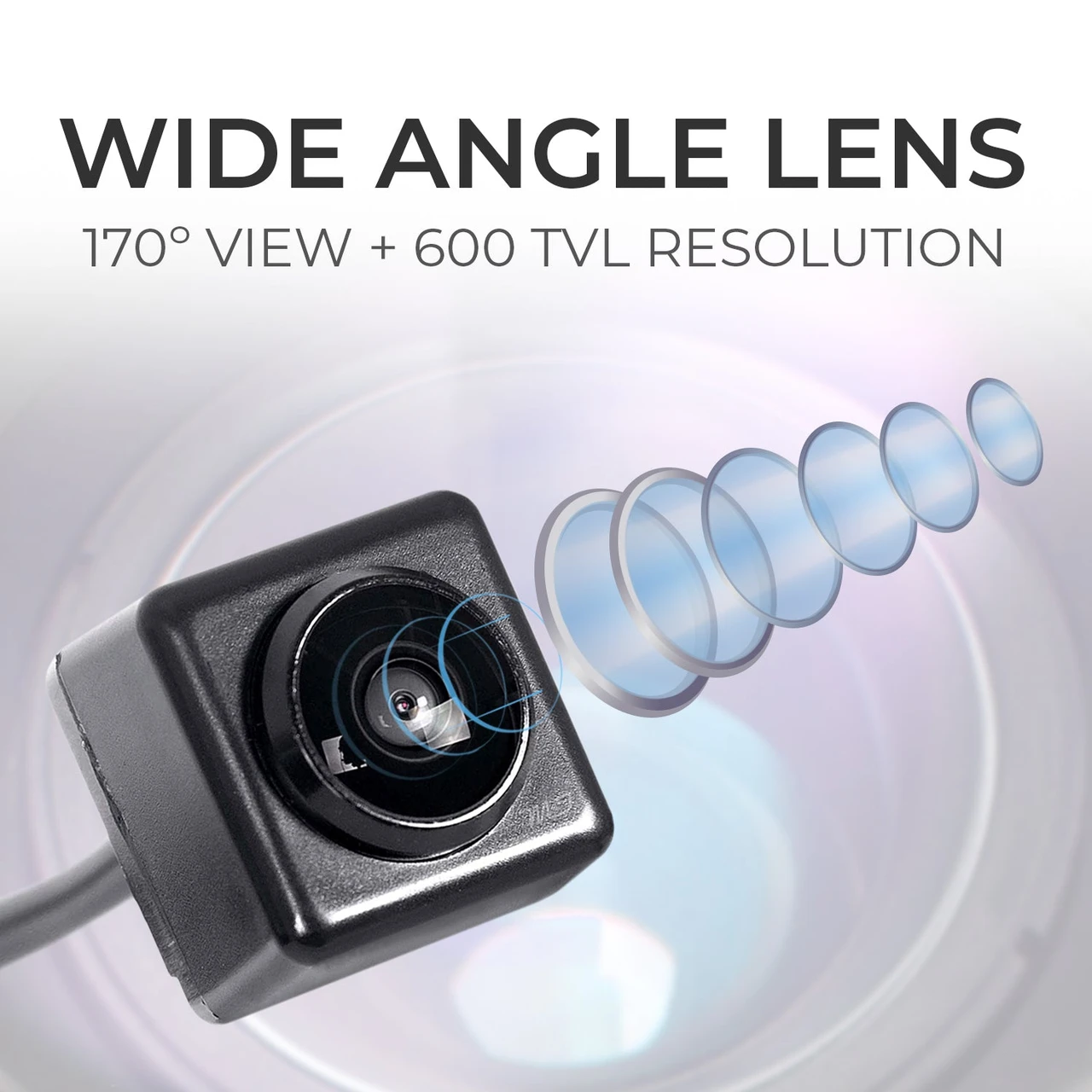

Angle : 170 Degree

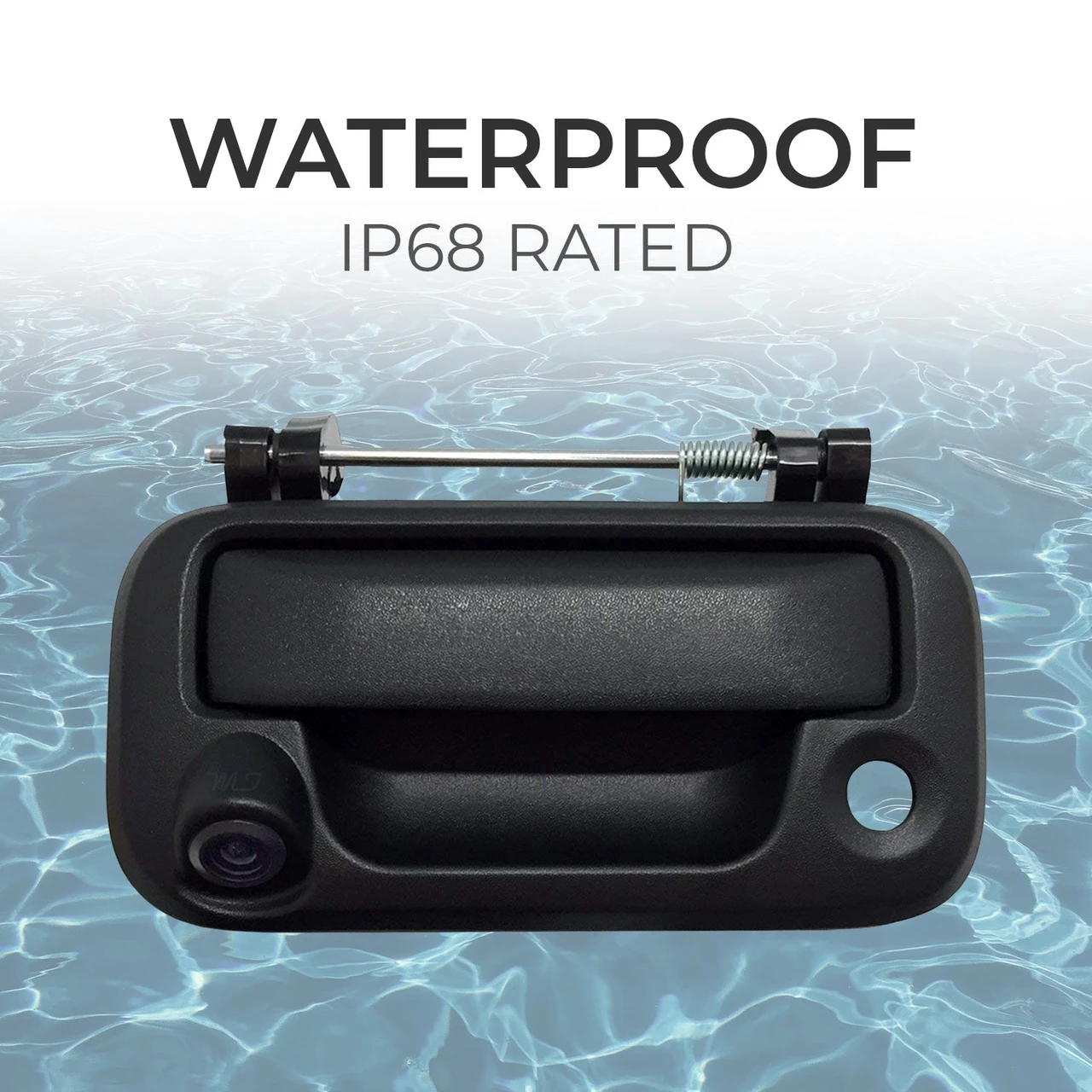

Waterproof Rate : IP68
Video Cable: 26 Feet (8 Meters)
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
[Fits]: Ford F150 (2005-2014), F250 (2008-2016), F350 (2008-2016), F450 (2008-2016), F550 (2008-2016)
[Resolution]: 600 TV Lines
[Image Sensor]: On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic), Lux: .1 Lux light sensitivity
[Angle]: Wide View 170 Degrees – Clearly see your Trailer Hitch!
Product identification
- Brand: Master Tailgaters
- Model / MPN: MT-F05B-M
