Martins Industries tire inflator details

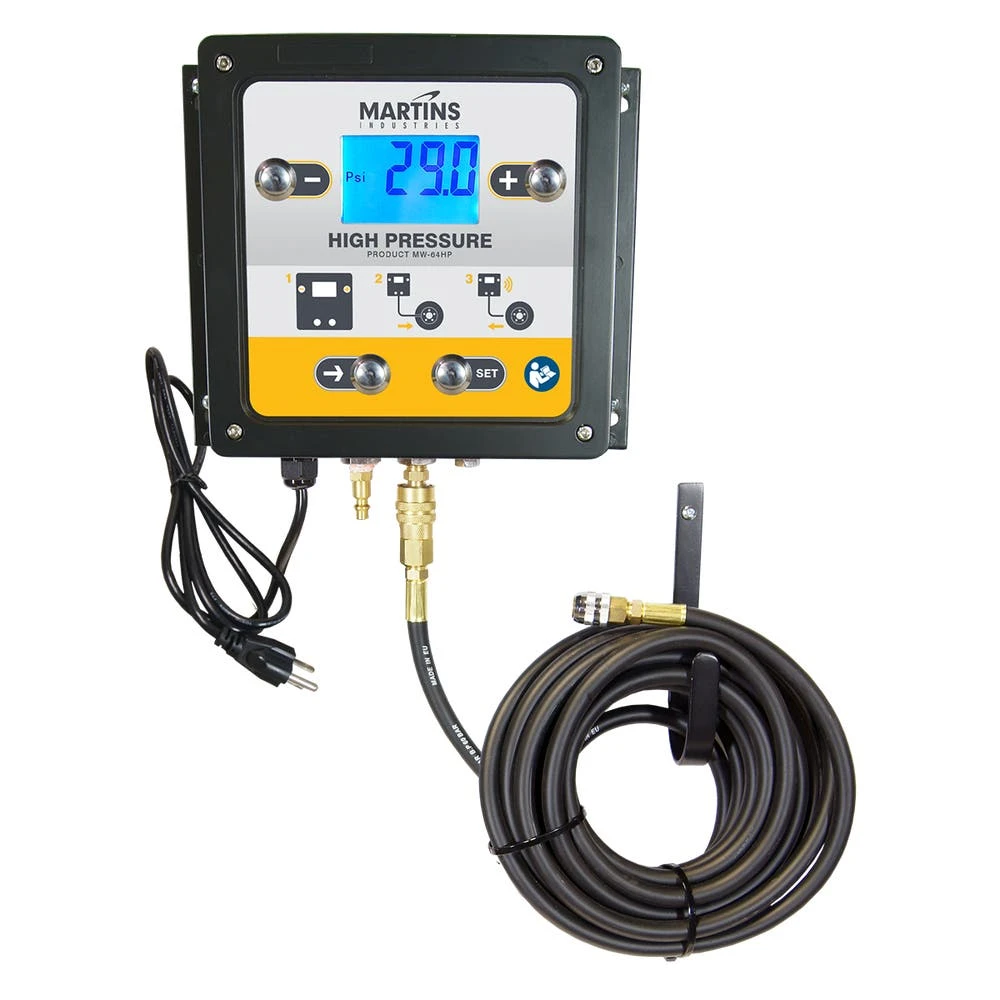

Martins Industries Flatematic High Pressure Automatic Tire Inflator (MW-64HP)
Martins Industries Flatematic High Pressure Automatic Tire Inflator (MW-64HP) allows you to inflate high-pressure tires automatically up to 232 psi while keeping your hands free. This wall-mounted unit comes with a 25’ air hose to easily reach all tires on the vehicle and can inflate an 11R22.5 tire from 0 to 100 psi in just 2 minutes and 20 seconds.
Designed for high-pressure tires, the Flatematic High Pressure starts inflation or deflation automatically once connected to the tire. Its clip-on chuck secures the connection, making tire inflation more productive by allowing you to work away from the tire.
Specifications and Dimensions
Air pressure – max. outlet (psi): 232
Air pressure – max. inlet (psi): 261
Reading accuracy (psi): 0.29
Airflow – max. (l/min): 2500
Airflow – max. (CFM): 92
Hose quantity: 1
Hose length (inches): 300
Chuck type: Open
Autocalibration: Yes, on every unit start
Degree of protection: IP66
Supply voltage: 110
Temperature range: -10 °C ~ 50 °C / 14 °F ~ 122°F
Product dimensions – LxWxH (inches): 9 x 10 1/2 x 3 1/2
Net weight (lb): 14

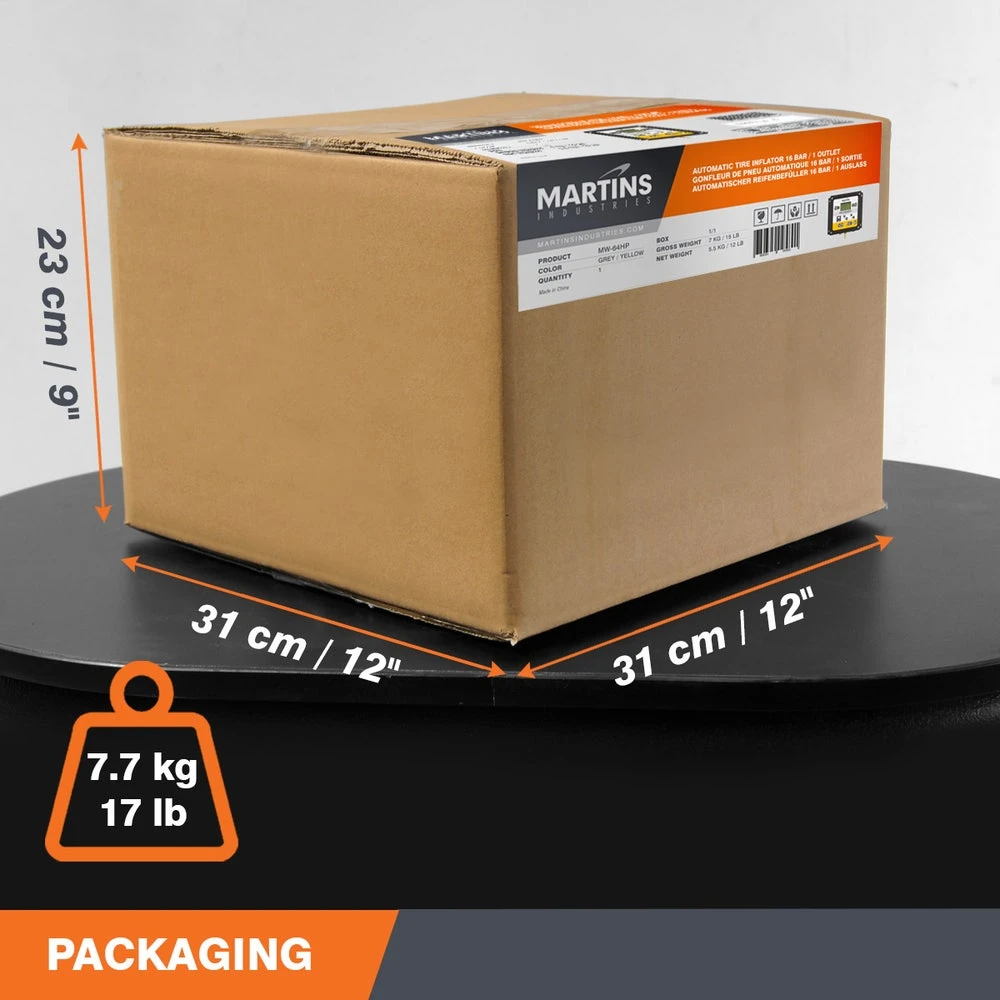

Package dimensions – LxWxH (inches): 12 x 12 x 9
Gross weight (lb): 17
Key Features and Benefits
Automatic inflation and deflation up to 232 psi
Wall-mounted unit with a 25’ air hose for easy reach
Inflates an 11R22.5 tire from 0 to 100 psi in 2 minutes 20 seconds
Loud audible signal indicates desired pressure reached
4 measurement units and nitrogen purge cycles
LCD screen with backlight for easy reading
25’/7.6 m air hose with 1/4” NPT open chuck
Quick coupling 1/4'' industrial
Air hose support hook
M6x38 screws (5x)
Product identification
- Brand: Martins Industries
- Model / MPN: MW-64HP
