Martins Flatematic MW-60-4WAY Four-Outlet Tire Inflator

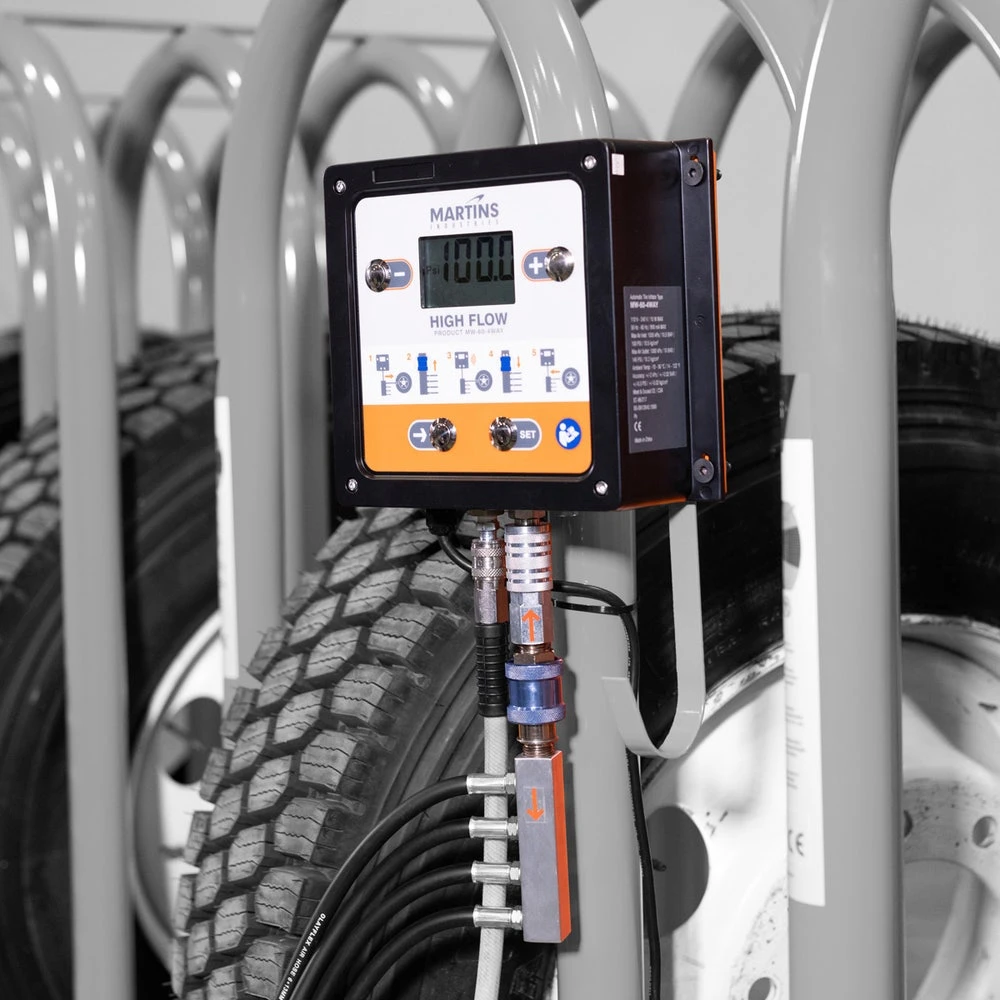

Martins Flatematic MW-60-4WAY is a wall-mounted automatic tire inflator/deflator with four outlets. It uses an external compressed-air supply and electrical power; the four hoses allow multiple tire connections without making it a standalone air compressor.
Specifications and included details
- Automatically inflates or deflates up to four connected tires.
- Maximum outlet pressure: 145 PSI; maximum inlet: 150 PSI.
- Four 8-foot hoses with 1/4-inch NPT closed chucks listed.
- 110V supply voltage, backlit LCD and IP66 protection rating.
- PSI, bar, kPa and kg/cm2 display units; overpressure system described.
Before ordering
Provide the specified electrical and compressed-air supplies and confirm connector compatibility. Use the vehicle/tire manufacturer's required pressure rather than the inflator's maximum. The published multi-tire timing example depends on air supply and test conditions.
Product questions and answers
Does this create its own compressed air?
No compressor is established as included. The unit has a compressed-air inlet and requires an appropriate external supply.
Are 150 PSI and 145 PSI interchangeable limits?
No. 150 PSI is the stated maximum inlet pressure, while 145 PSI is the maximum outlet pressure.
Are four hoses included?
Yes. Four 8-foot hoses with closed chucks are listed.
Does it inflate only, or can it deflate too?
Both automatic inflation and deflation are described for up to four tires.
