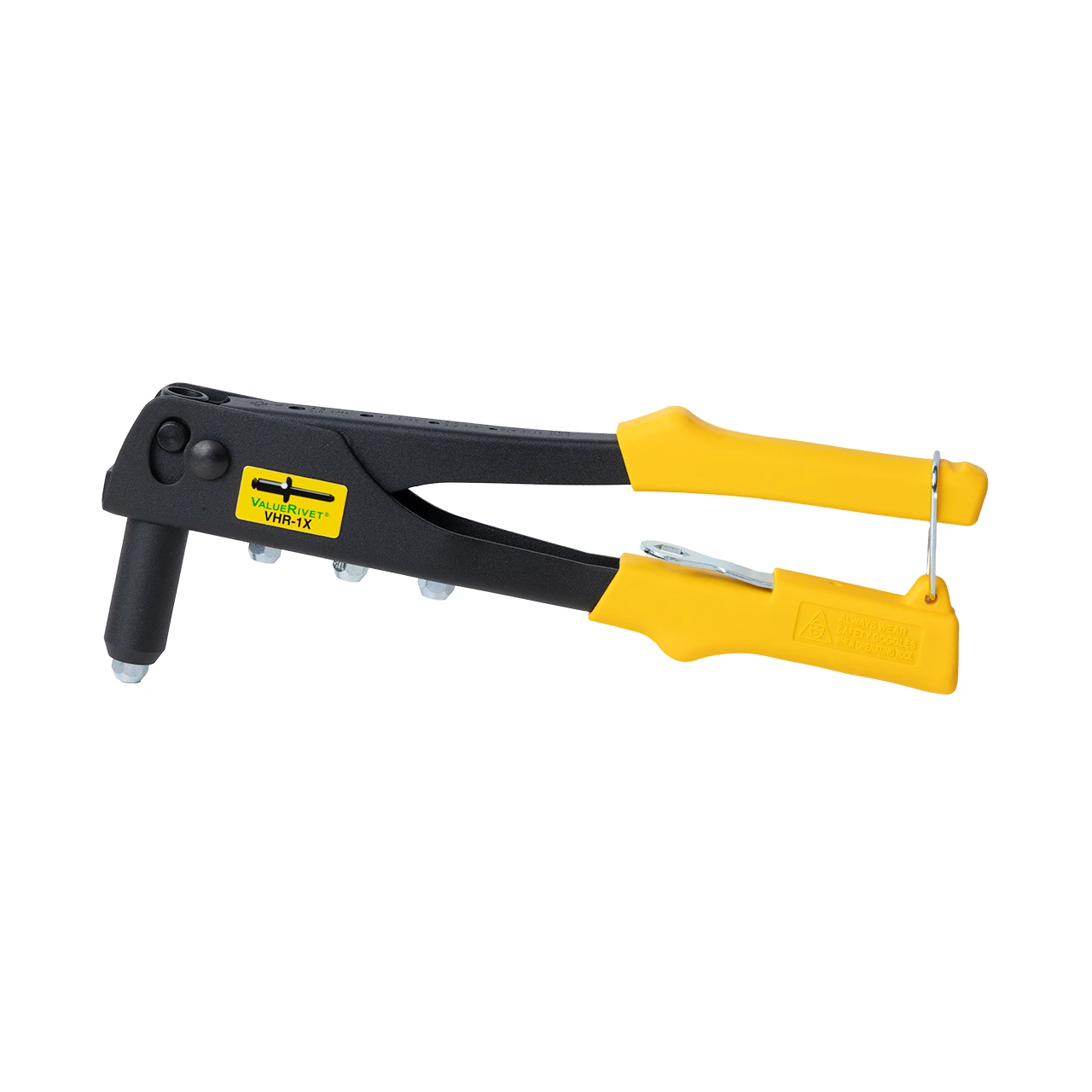

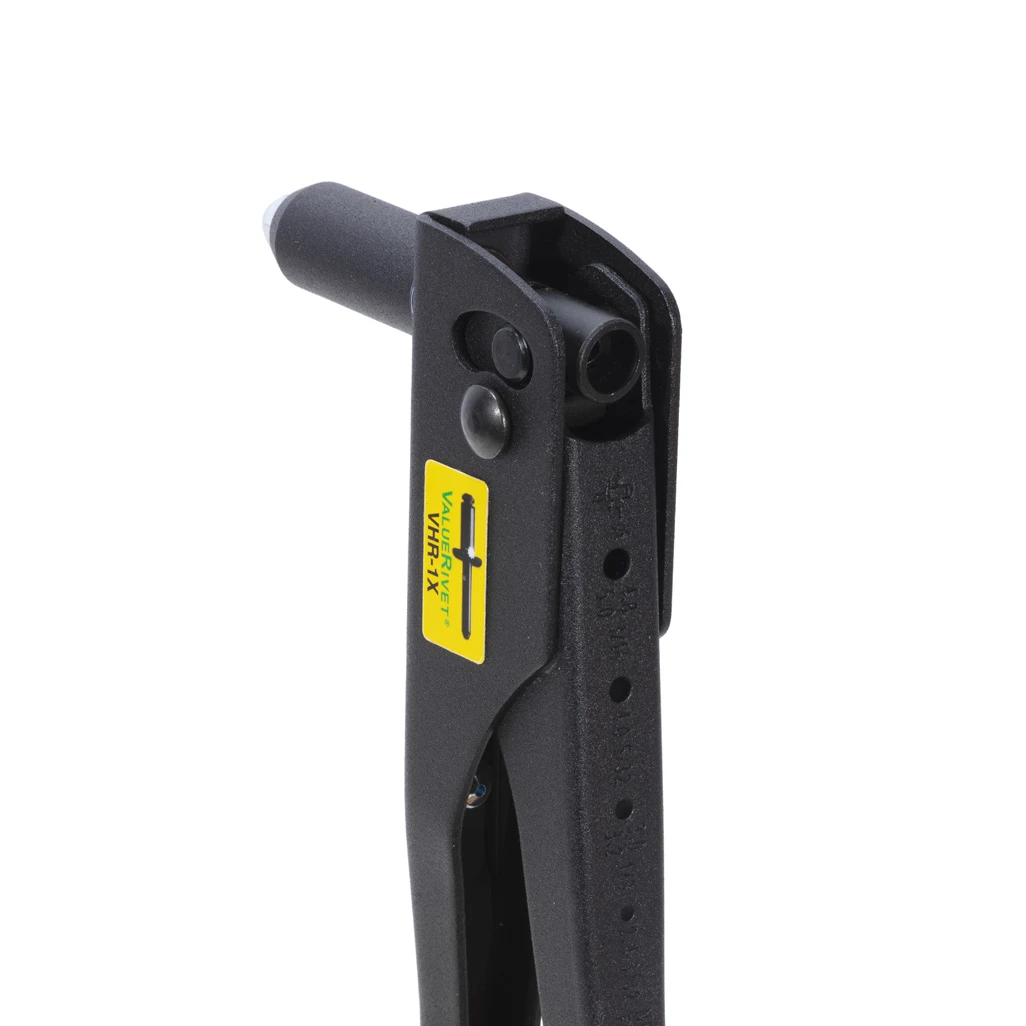

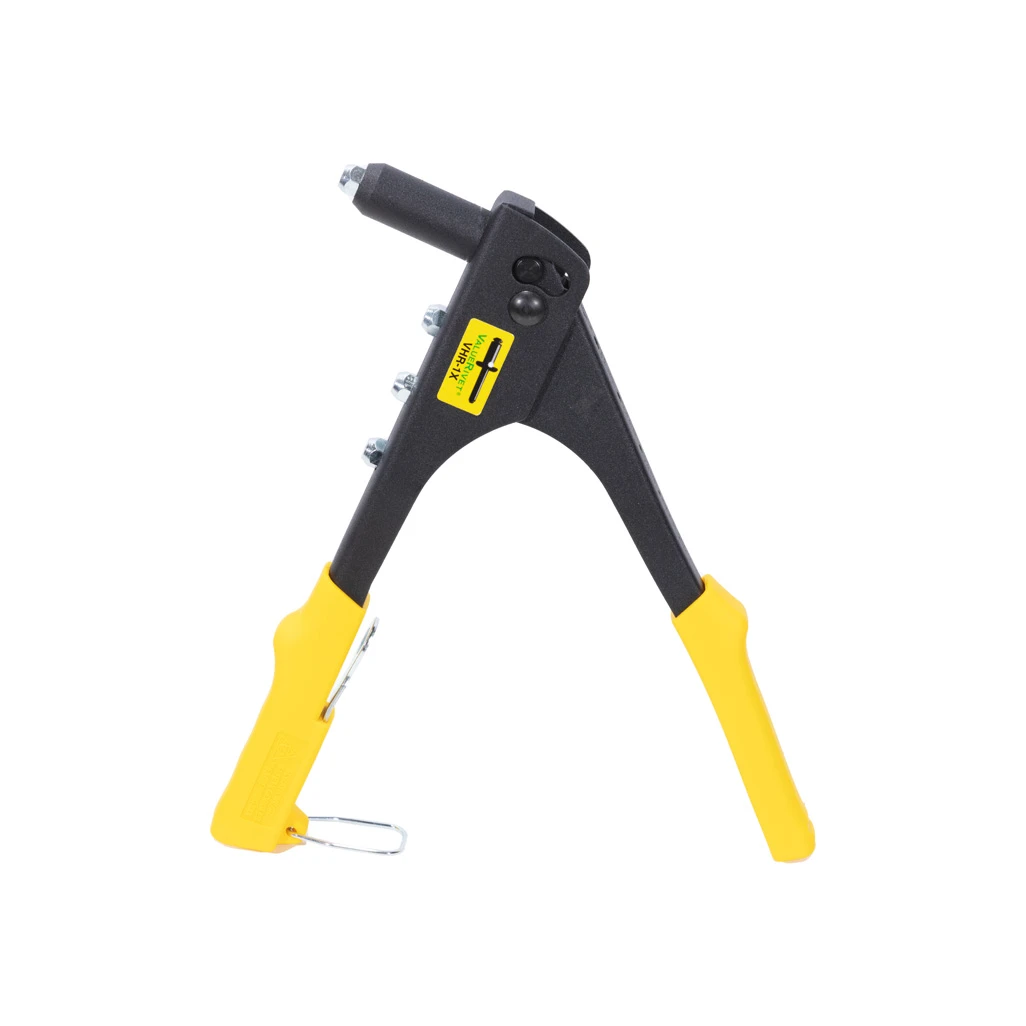

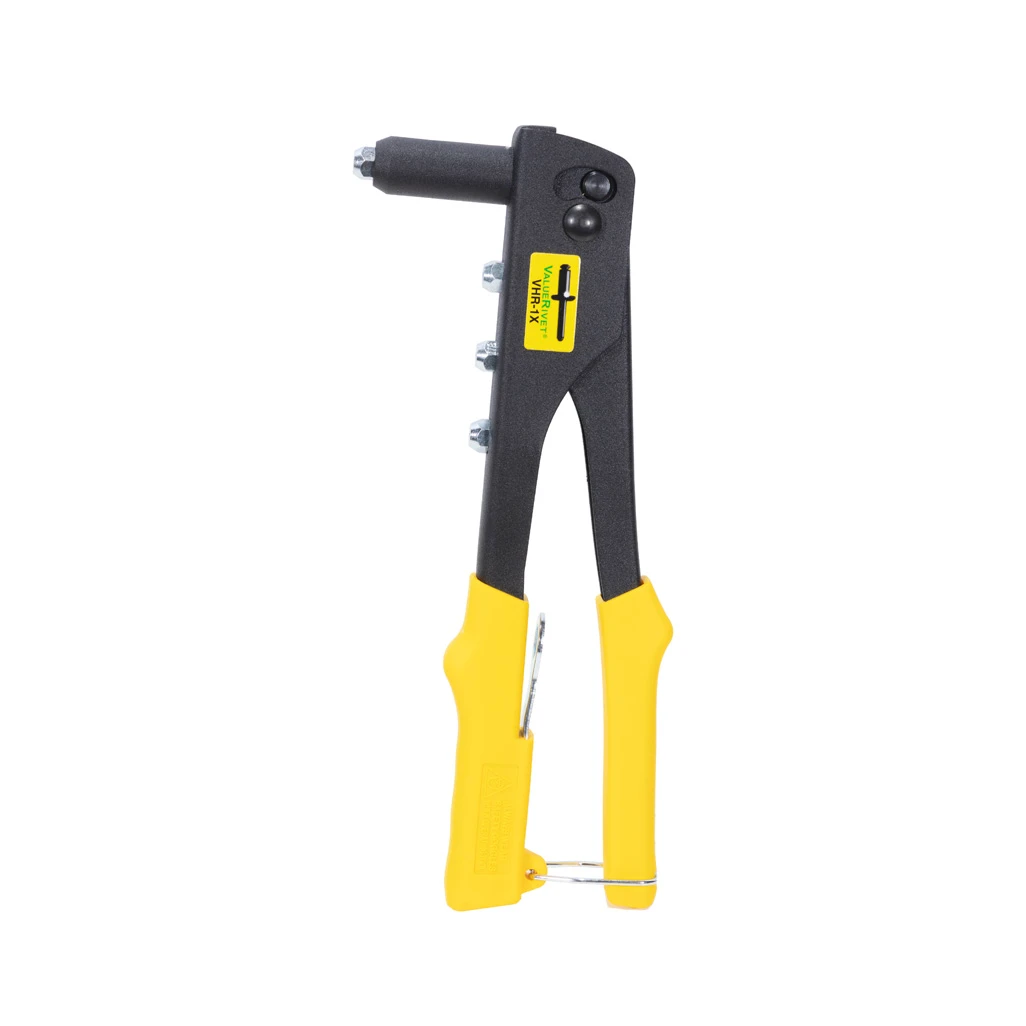

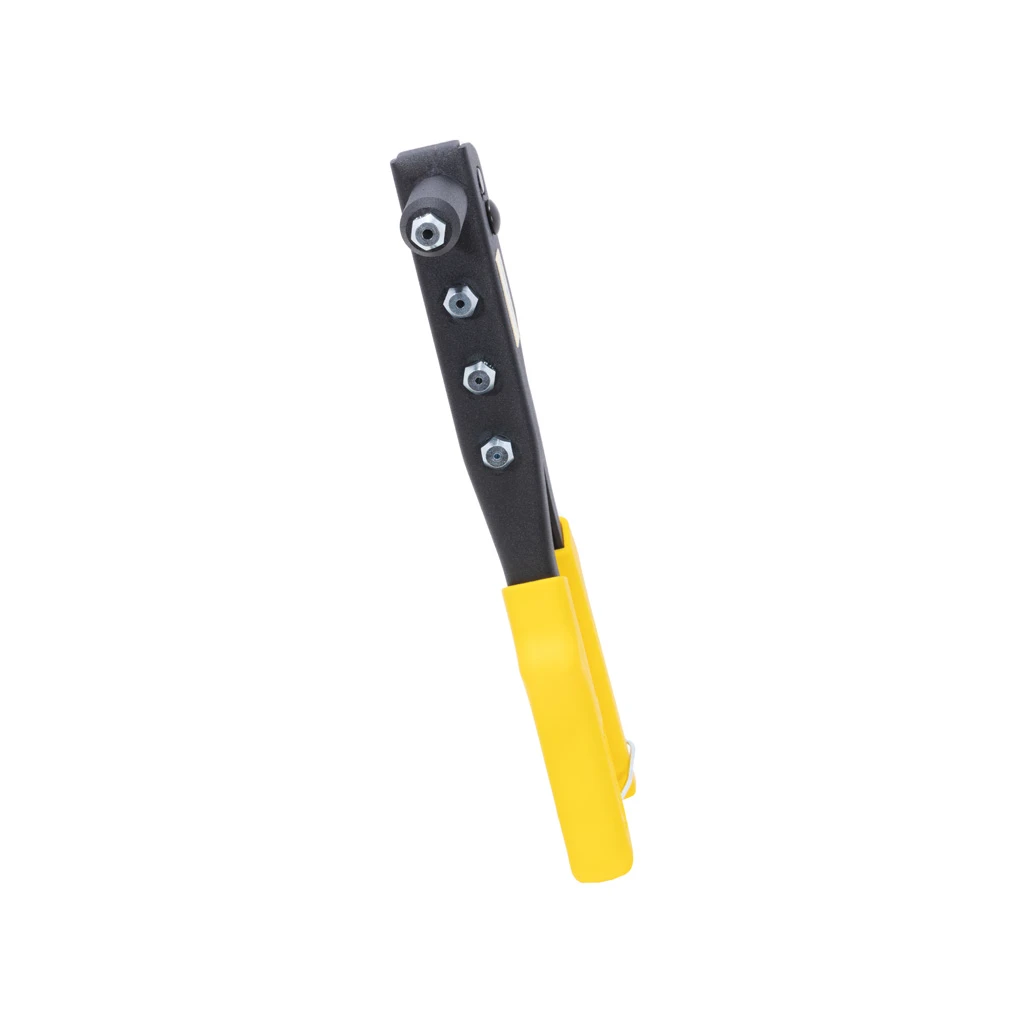

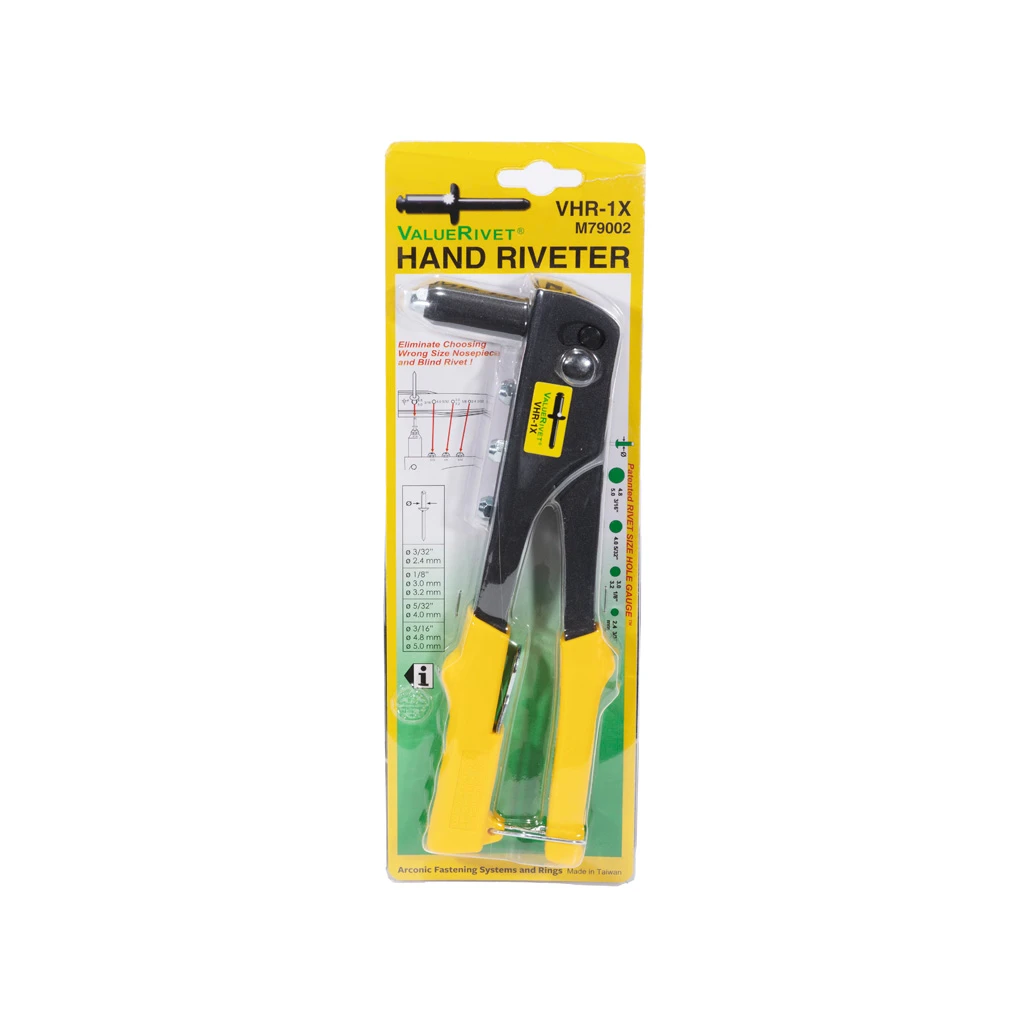

Marson VHR-1 ValueRivet Hand Riveter (79000)
The Marson VHR-1 ValueRivet Hand Riveter (79000) is a manual fastening tool designed for automotive repair, construction, maintenance, fabrication, and general assembly applications. Its all-steel body provides a stable frame for joining thin materials using compatible blind rivets. The riveter features a spring-loaded handle mechanism that assists with rivet loading and spent mandrel ejection, while the built-in handle gauge helps users identify suitable rivet sizes. Its compact construction, interchangeable nosepieces, and locking handle tab make it a practical addition to workshop and field toolkits.
Key Features and Benefits:
Versatile Rivet Capacity: Sets 3/32-inch, 1/8-inch, and 5/32-inch rivets in compatible alloys, plus steel rivets up to 3/16 inch.
Spring-Loaded Operation: Handle mechanism assists with rivet loading, tool reopening, and spent mandrel ejection.
Built-In Size Gauge: Integrated handle gauge helps identify the appropriate rivet diameter for the application.
Secure Storage: Locking handle tab keeps the riveter closed during transport and storage.
Durable Steel Construction: All-steel body provides structural support during repeated manual fastening operations.
Multiple Nosepiece Options: Four interchangeable nosepieces allow the tool to accommodate several common rivet diameters.
Product Name: Marson VHR-1 ValueRivet Hand Riveter (79000)
Model Number: 79000
Tool Type: Manual blind riveter
Rivet Capacity for Compatible Alloys: 3/32 inch, 1/8 inch, and 5/32 inch
Steel Rivet Capacity: Up to 3/16 inch
Construction Material: Steel
Handle Mechanism: Spring-loaded
Storage Mechanism: Handle locking tab
Included Nosepieces: Four interchangeable nosepieces
Package Contents: One Marson VHR-1 ValueRivet hand riveter, four nosepieces, and one service wrench
Select the Nosepiece: Choose the nosepiece that matches the diameter of the blind rivet being installed.
Install the Nosepiece: Use the supplied service wrench to attach and securely tighten the selected nosepiece.
Unlock the Handles: Release the locking tab so the riveter handles can open fully.
Prepare the Workpiece: Align the materials and create a correctly sized mounting hole for the selected rivet.
Load the Rivet: Insert the rivet mandrel into the nosepiece until the rivet body reaches the front of the tool.
Position the Fastener: Place the rivet body completely through the aligned holes in the materials.
Set the Rivet: Squeeze the handles together firmly to pull the mandrel and expand the rivet body behind the workpiece.
Repeat the Pull if Necessary: Reopen and squeeze the handles again until the mandrel separates from the installed rivet.
Eject the Mandrel: Release the handles and allow the spring-loaded mechanism to help clear the spent mandrel.
Store the Tool: Close the handles and engage the locking tab after use.
Benefits of Using Marson VHR-1 ValueRivet Hand Riveter (79000):
Supports Blind Fastening: Joins materials securely when access is available from only one side of the workpiece.
Reduces Tool Requirements: Multiple nosepiece sizes allow one riveter to handle several common fastener diameters.
Improves Workflow Efficiency: Spring-assisted handle movement supports faster loading and mandrel removal.
Provides Portable Operation: Manual design requires no batteries, electricity, or compressed air.
Simplifies Rivet Selection: Built-in sizing gauge helps users match rivets to compatible tool settings.
Conserves Storage Space: Locking handle configuration keeps the tool compact inside toolboxes and work bags.
Slim Tool Profile: Compact head and body design provide improved access to narrow or restricted work areas.
Interchangeable Head Components: Replaceable nosepieces support transitions between different blind rivet sizes.
Mandrel Release Assistance: Internal spring action helps clear broken mandrels after fastening.
Force-Distributing Handles: Handle shape supports controlled two-handed pressure during larger rivet installations.
Multi-Material Fastener Support: Compatible with suitable aluminum, steel, and stainless steel rivets within the specified size limits.
Workshop-Ready Design: Steel construction and serviceable nosepieces support routine repair and assembly work.
Product identification
- Brand: Marson
- Model / MPN: 79000
