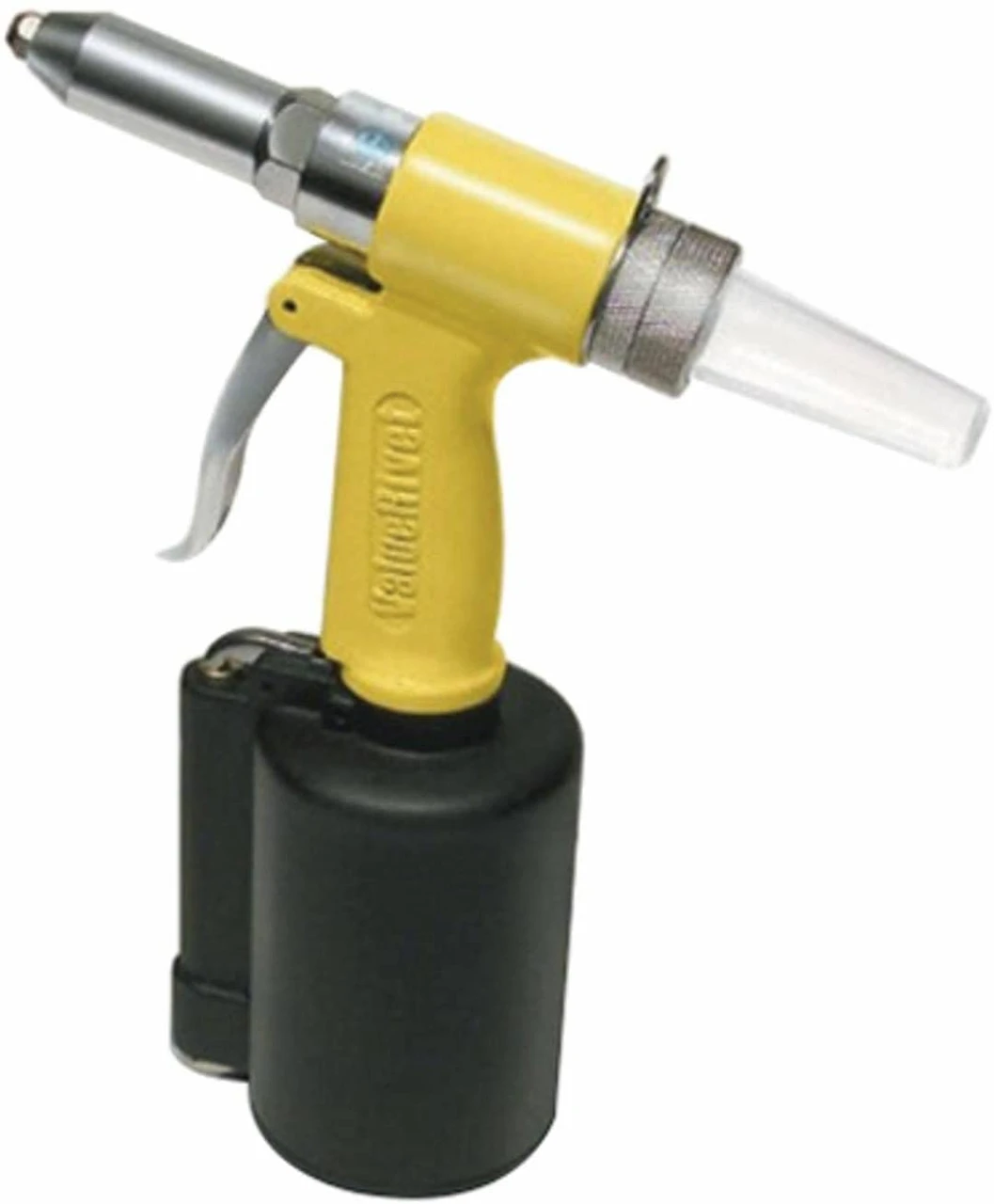

Marson 3/32-3/16" V-2 Pneumatic Rivet Tool (79014) (Model M79014)
The Marson 3/32-3/16" V-2 Pneumatic Rivet Tool (79014) is an air-hydraulic fastening tool designed to install non-structural blind rivets in automotive repair, metal fabrication, industrial maintenance, and production assembly applications. Powered by compressed air, the tool delivers consistent pulling force while reducing the physical effort associated with manual riveting. It accommodates rivet diameters from 3/32 inch to 3/16 inch and includes interchangeable nosepieces, a rear-mounted mandrel collector, and service accessories. Its compact design and repeatable operating cycle make it suitable for frequent fastening work in professional workshop environments.
Key Features and Benefits:
Pneumatic Operation: Uses compressed air to install blind rivets with less manual effort than conventional hand riveters.
Versatile Rivet Capacity: Supports compatible non-structural blind rivets ranging from 3/32 inch to 3/16 inch in diameter.
Consistent Pulling Force: Generates up to 1,940 lb of pulling force for repeatable fastener installation.
Integrated Mandrel Collection: Rear-mounted collector captures spent mandrels to maintain a cleaner and safer workspace.
Efficient Fastening Cycle: Air-hydraulic operation supports faster repetitive installation in production and repair environments.
Serviceable Configuration: Includes a spanner gauge and service wrenches for routine adjustment and maintenance.
Product Name: Marson 3/32-3/16" V-2 Pneumatic Rivet Tool (79014)
Model Number: 79014
Tool Type: Air-hydraulic pneumatic blind riveter
Rivet Capacity: 3/32 inch to 3/16 inch non-structural blind rivets
Pulling Force: 1,940 lb or approximately 8.62 kN
Stroke Length: 0.551 inch or approximately 14mm
Operating Air Pressure: 85 to 95 PSI
Air Inlet Size: 1/4-inch NPT
Overall Height: 11.5 inches
Net Weight: 3 lb
Noise Level: 70.3 dB(A)
Installed Nosepiece: 3/16 inch
Additional Nosepieces: 3/32 inch, 1/8 inch, and 5/32 inch
Package Contents: One Marson V-2 pneumatic rivet tool, four nosepieces, one mandrel collector, one spanner gauge, service wrenches, and one storage container
Prepare the Air Supply: Regulate the compressed air source to between 85 and 95 PSI.
Connect the Tool: Attach a compatible air hose to the tool’s 1/4-inch NPT inlet and check the connection for leaks.
Select the Nosepiece: Choose the nosepiece that matches the diameter of the blind rivet being installed.
Install the Nosepiece: Use the supplied wrenches to remove the existing nosepiece and securely attach the required size.
Attach the Mandrel Collector: Secure the collector or safety cap to the rear of the tool before operation.
Prepare the Workpiece: Align the materials and create a correctly sized mounting hole for the selected rivet.
Load the Rivet: Insert the rivet mandrel into the nosepiece until the rivet body reaches the front of the tool.
Position the Fastener: Place the rivet body completely through the aligned mounting holes while keeping the tool perpendicular to the work surface.
Set the Rivet: Press the trigger to pull the mandrel and expand the rivet body behind the material.
Clear the Mandrel: Allow the spent mandrel to move into the rear collector after the installation cycle.
Inspect the Joint: Confirm that the rivet head is seated correctly and that the materials are securely fastened.
Benefits of Using Marson 3/32-3/16" V-2 Pneumatic Rivet Tool (79014):
Reduces Operator Fatigue: Pneumatic power minimizes the hand and arm strain associated with repetitive manual riveting.
Improves Productivity: Rapid air-hydraulic cycling enables faster installation during high-volume fastening work.
Promotes Installation Consistency: Stable pulling force helps produce repeatable rivet setting across multiple assemblies.
Maintains Workspace Cleanliness: Integrated collector prevents broken mandrels from scattering around the work area.
Supports Multiple Rivet Materials: Suitable for compatible aluminum, steel, and stainless steel blind rivets within the specified capacity.
Improves Restricted-Area Access: Compact tool profile helps reach fastening points in confined workspaces.
Air-Hydraulic Drive System: Converts compressed air into controlled pulling force for blind rivet installation.
Four-Nosepiece Configuration: Includes components for common rivet diameters from 3/32 inch through 3/16 inch.
Rear Safety Collector: Captures separated mandrels and helps shield the rear of the tool during operation.
Calibration Accessories: Supplied spanner gauge and wrenches support accurate setup and routine servicing.
Compact Three-Pound Body: Balances tool stability with manageable weight during extended operation.
Standard Pneumatic Connection: A 1/4-inch NPT inlet integrates with compatible shop air systems and hoses.
Organized Storage: Dedicated container keeps the tool, nosepieces, collector, and maintenance accessories together.
Product identification
- Brand: Marson
- Model / MPN: M79014
