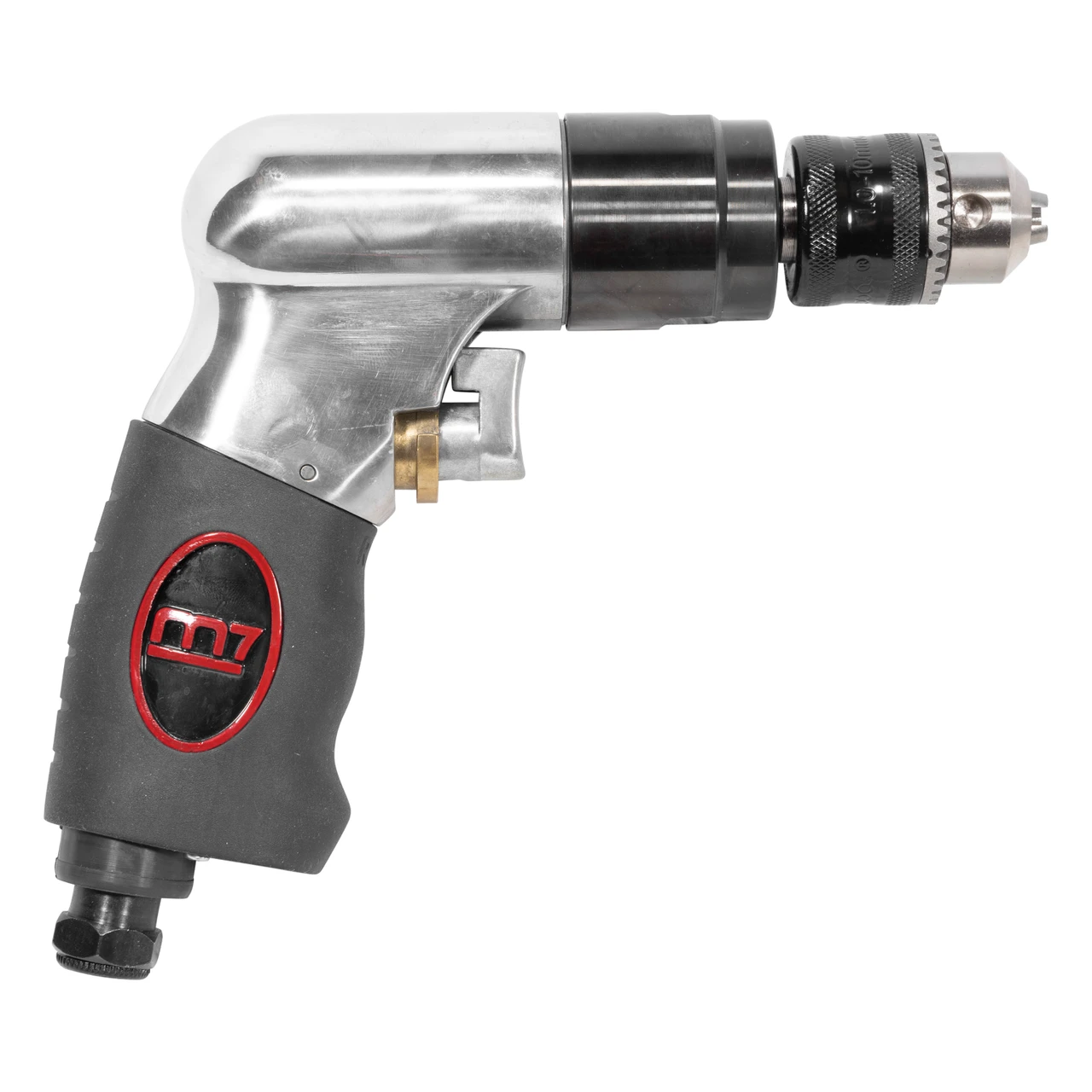

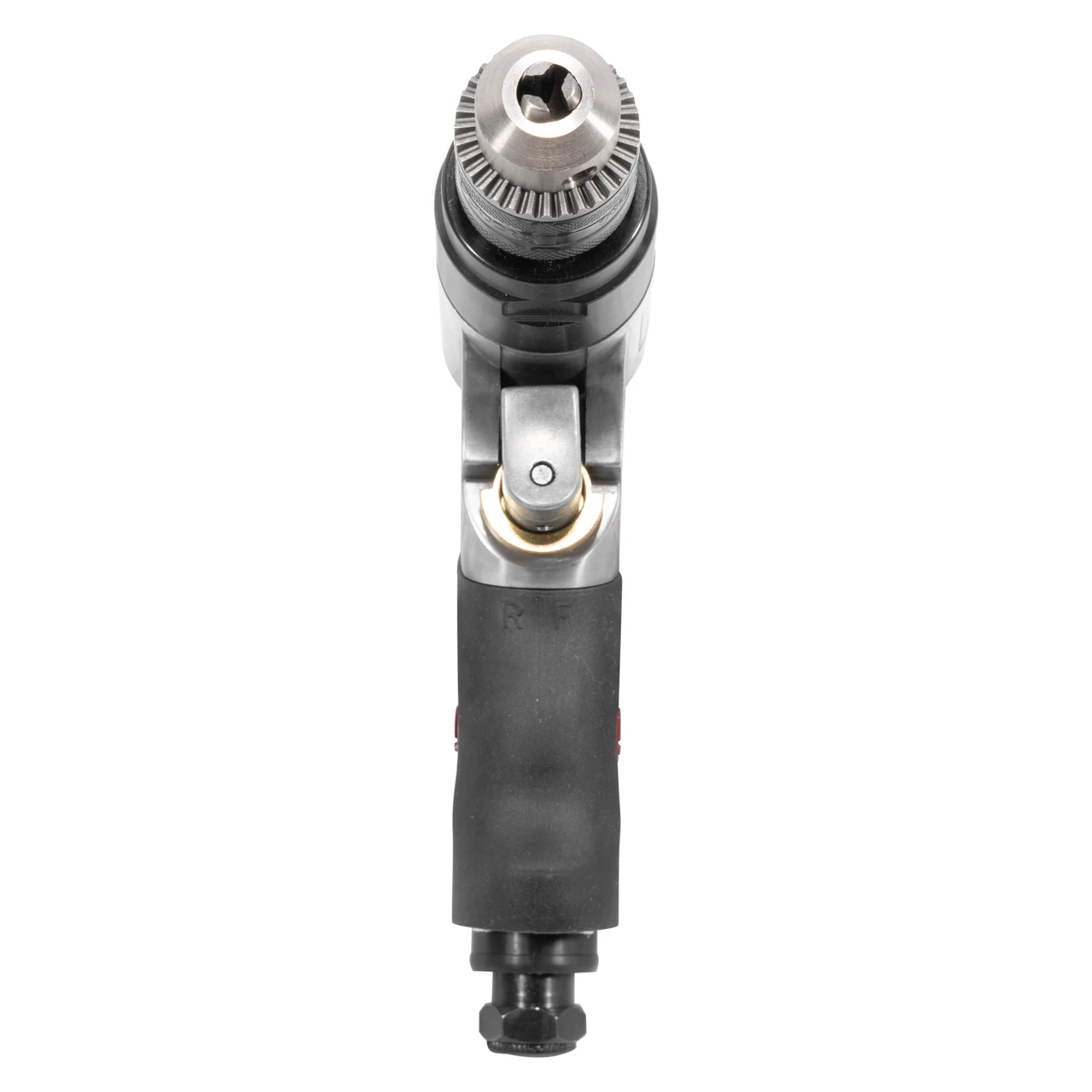

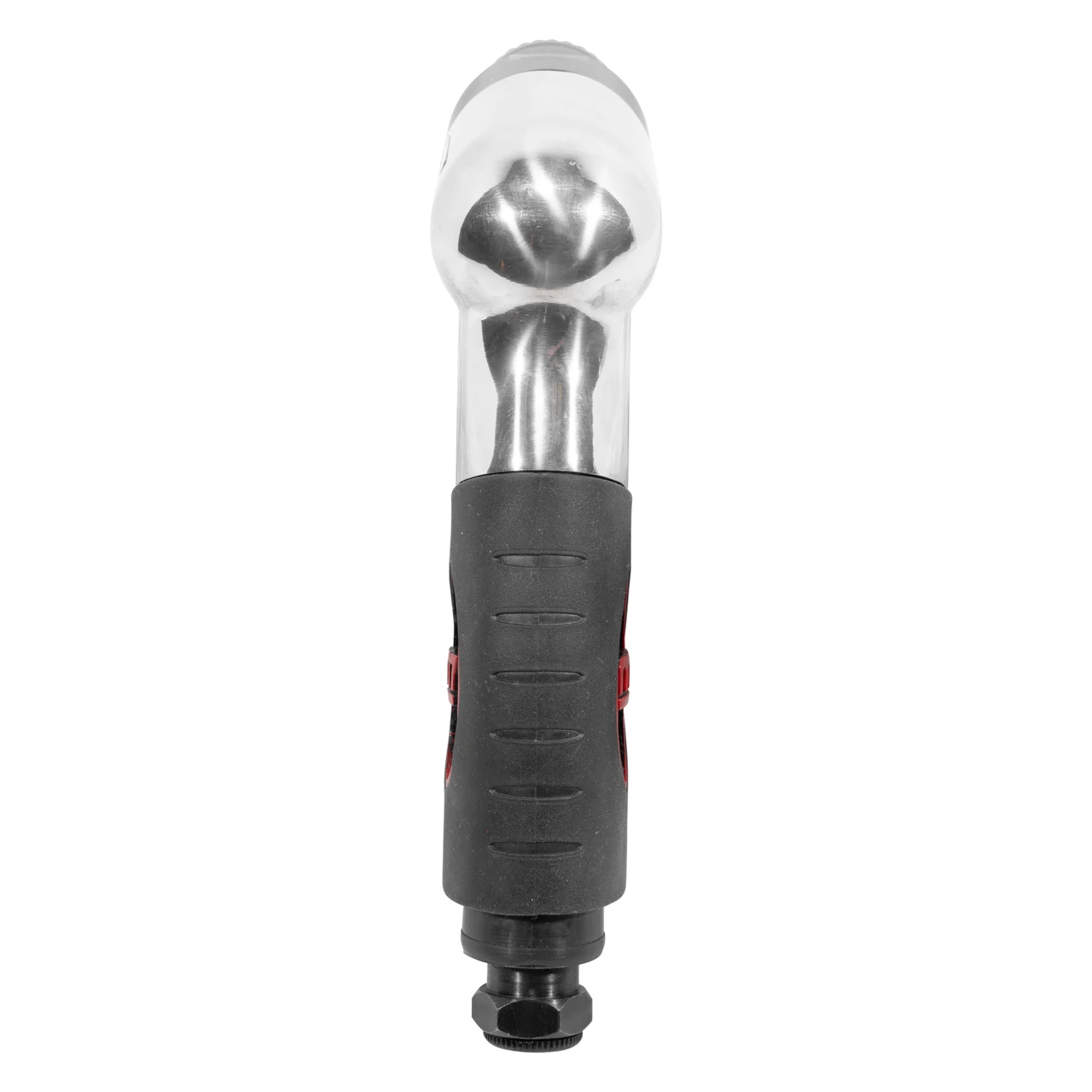

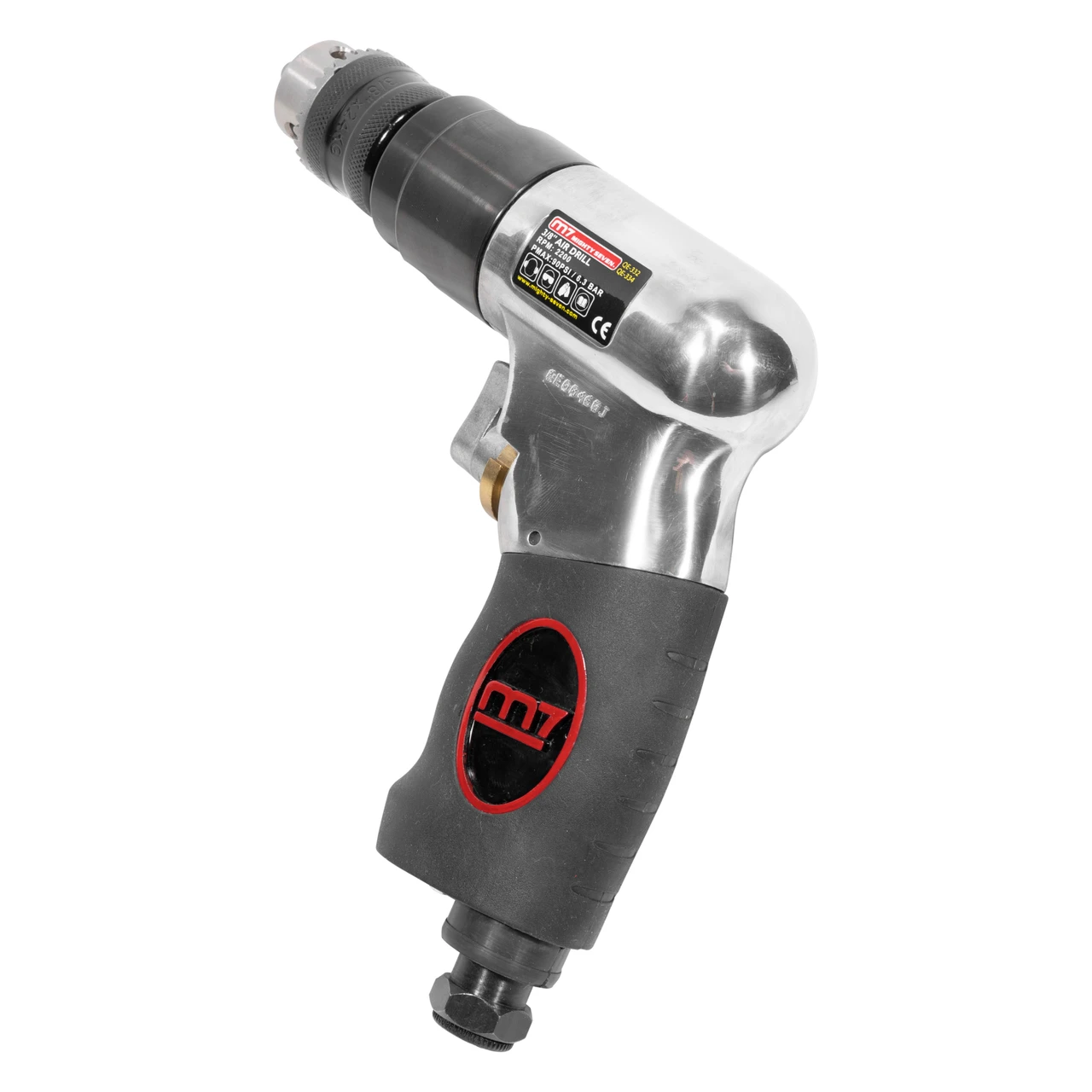

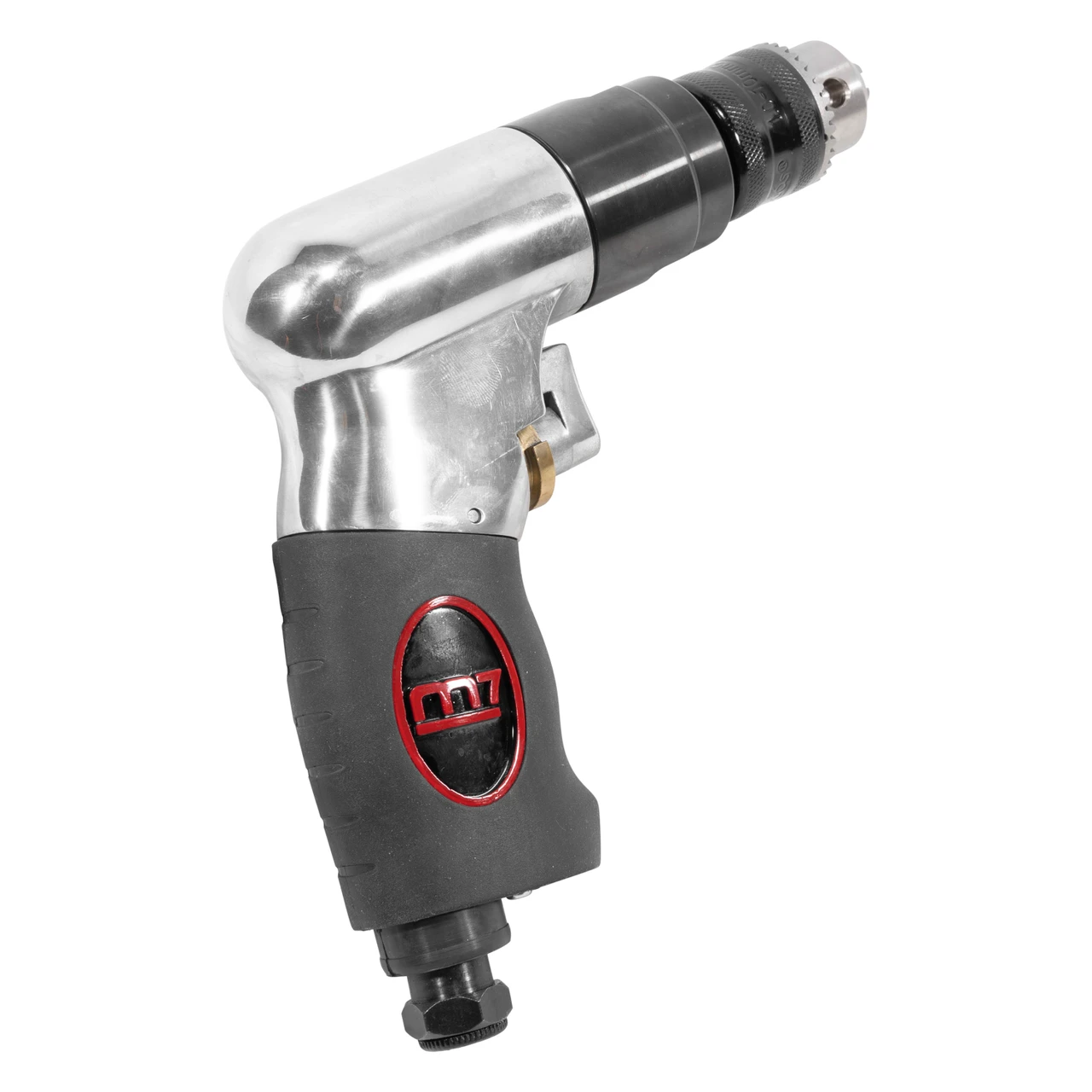

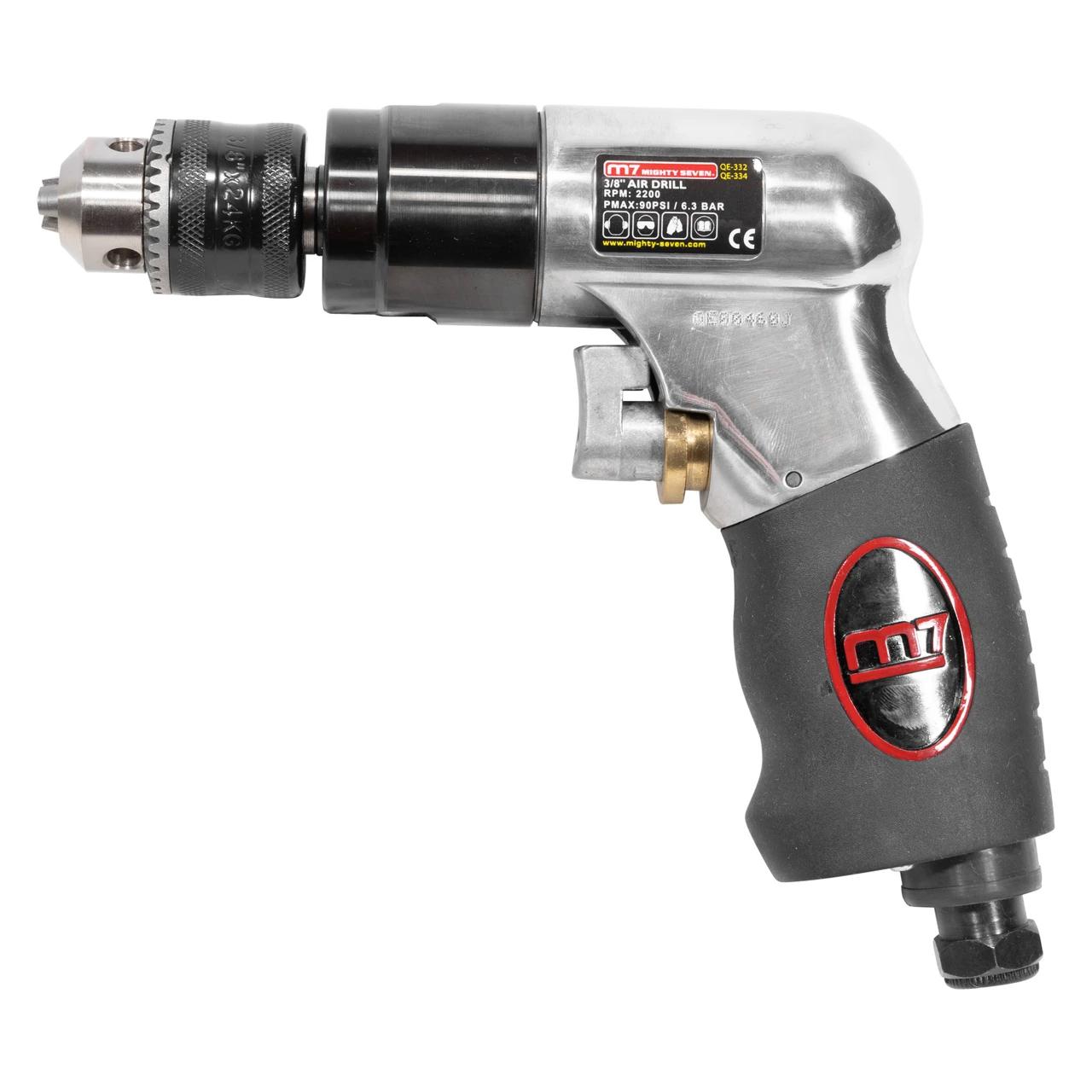

M7 Reversible Air Drill with 3/8" Keyed Chuck and Planetary Gear Motor (QE-334)

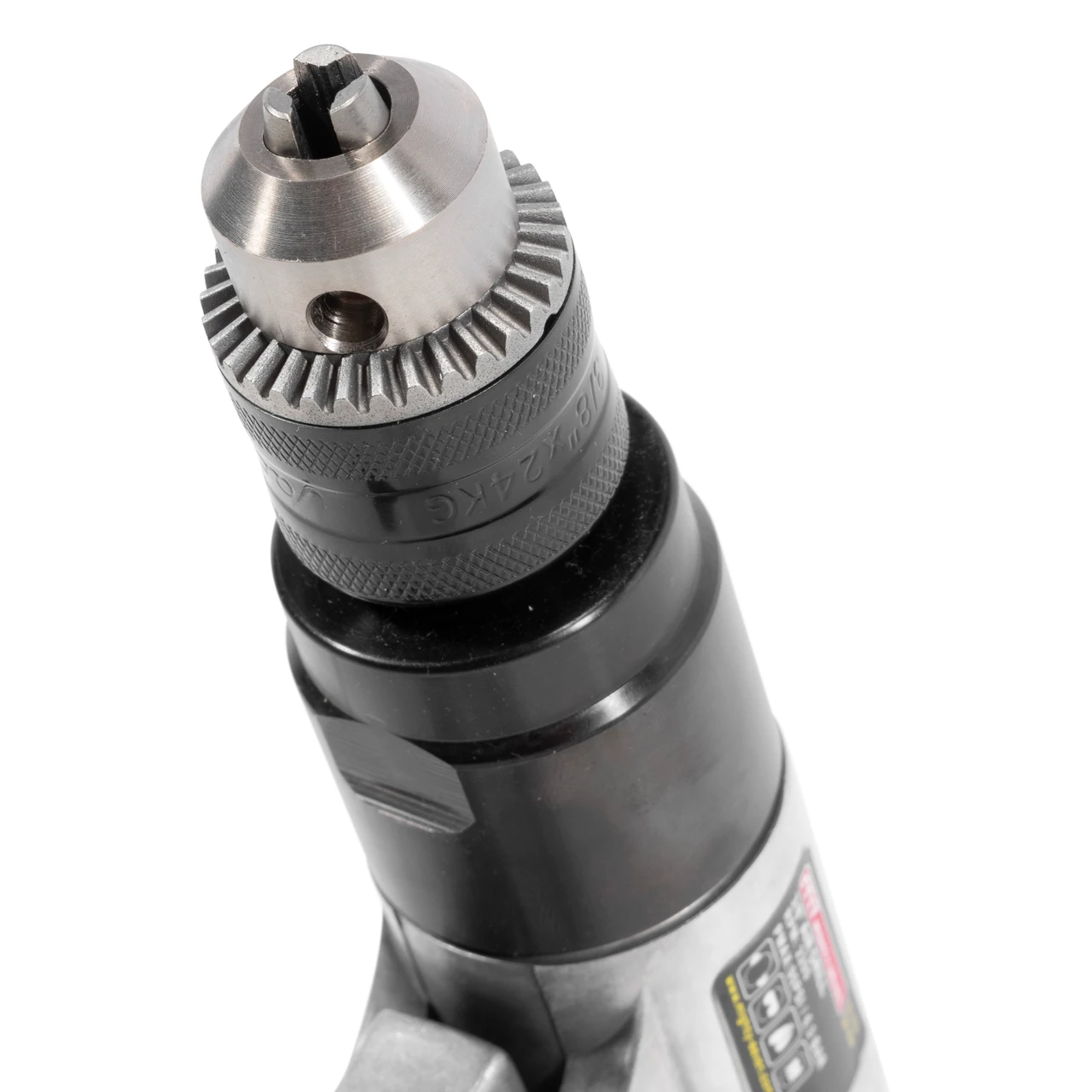

This pneumatic drill features a keyed chuck, also known as a chuck wrench. This tool tightens and loosens the tool’s grip upon the drill bit. This mechanism is ideal for heavy-duty drills because it helps prevent slippage. Keyed chucks also add more torque to the bit. Keyed chucks rotate in clockwise and counterclockwise directions. These benefits make the 3/8" keyed chuck the perfect complement to this powerful M7 air tool.
This tool also features a planetary gear motor. This means that the gears are mounted in a way that allows the center of one gear to revolve around the center of the other. This happens much in the same way planets rotate around the sun. (It is where the gearset gets its name.) This rotation pattern lets each gear’s pitch circles roll without slipping. The result is that these planetary gears increase the tool’s torque to balance the load.
KEY FEATURES & BENEFITS:
M7 QE-334 reversible air drill for heavy-duty drilling tasks
3/8” keyed chuck helps prevent slippage and adds torque to the bit
The planetary gear motor increases torque to balance the load

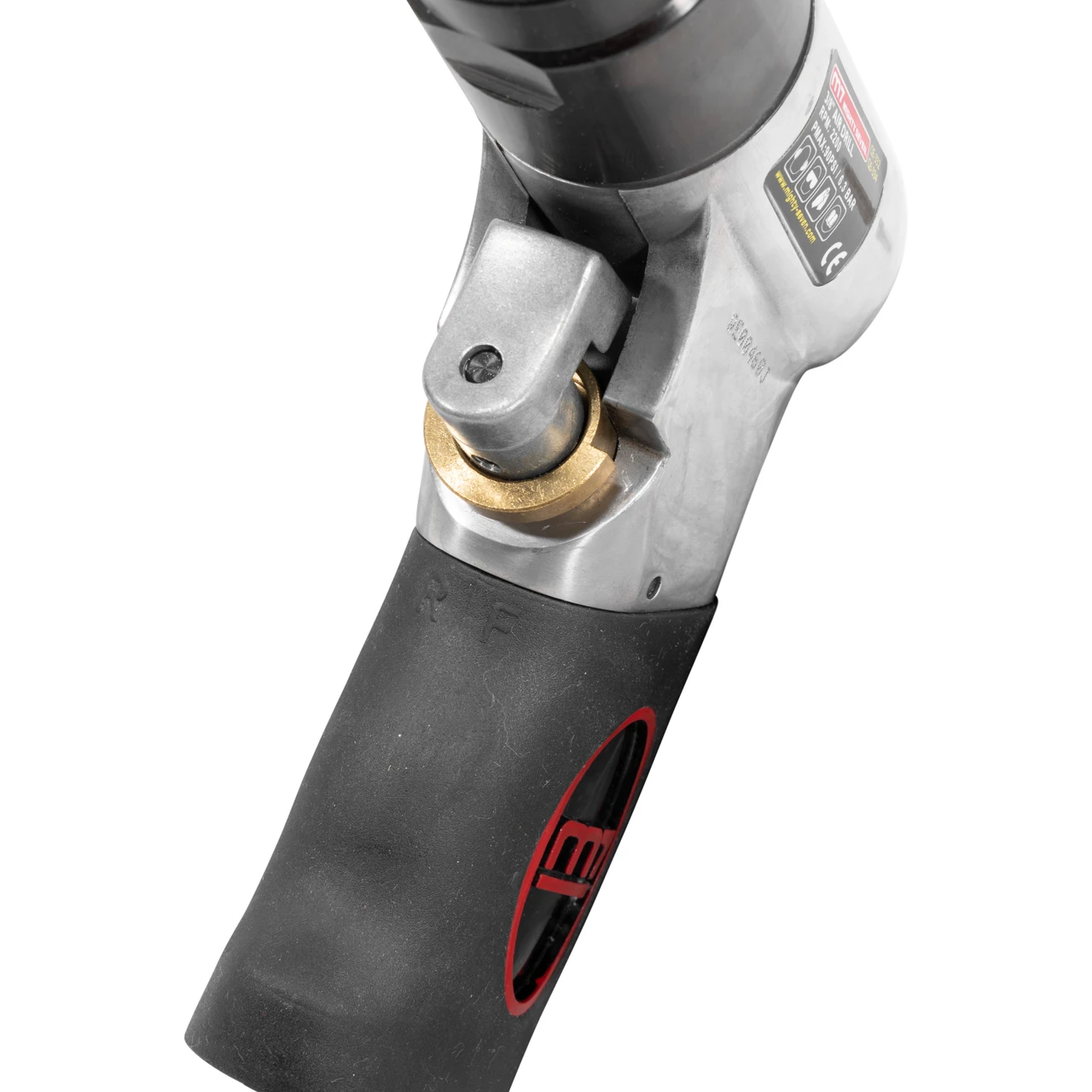

Convenient forward reverse switch allows for quick direction change

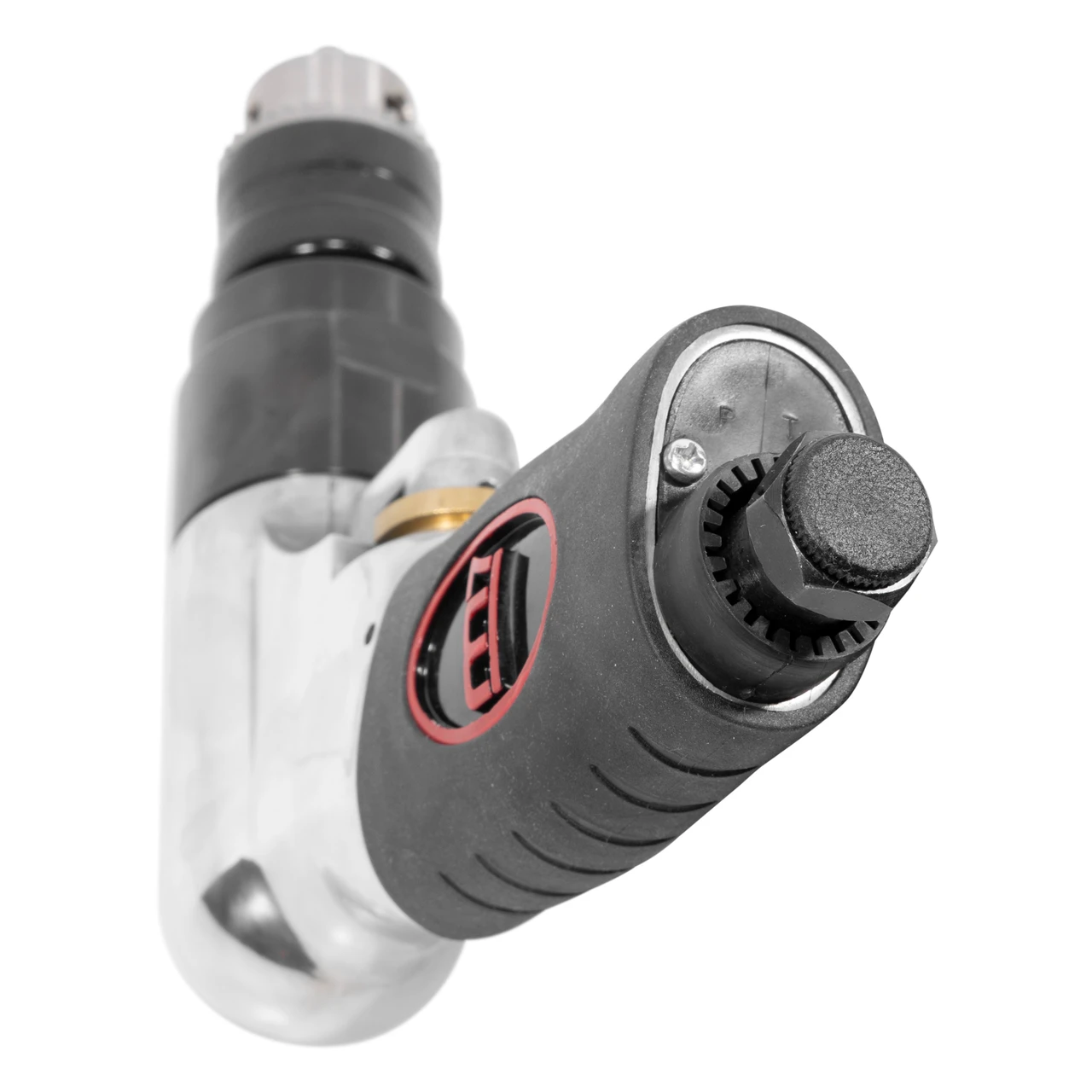

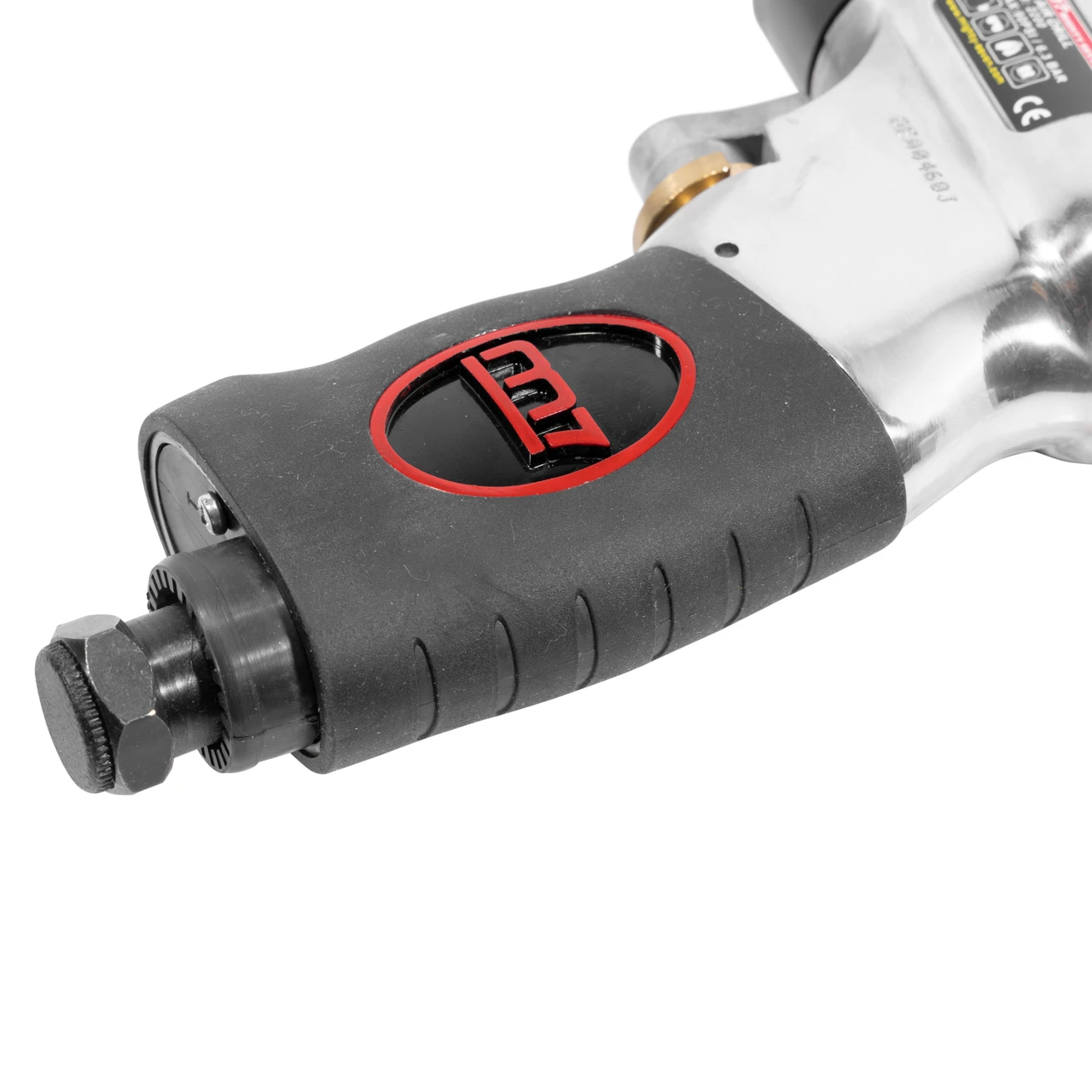

Exhaust port in the handle helps reduce noise and direct air away from working area
Compact size and light tool weight helps reduce user fatigue and lets you work longer
TECHNICAL SPECS:
Tool Type: Air drill
Manufacturer: M7
Tool Length: 7.5”
Tool Weight: 2.20 Lb
Chuck Size: 3/8” keyed
Air Inlet: 1/4''
Forward Torque: 10-35 ft-lb
Max. Reverse Torque: 37 ft-lb
Free Speed: 2,200 RPM
Average Air Consumption: 4.6 CFM
Air Pressure: 90 PSI
Sound Pressure: 88 dBA
Vibration Level: 3.0 m/s²
Product identification
- Brand: M7
- Model / MPN: QE-334
