M7 air screwdriver details

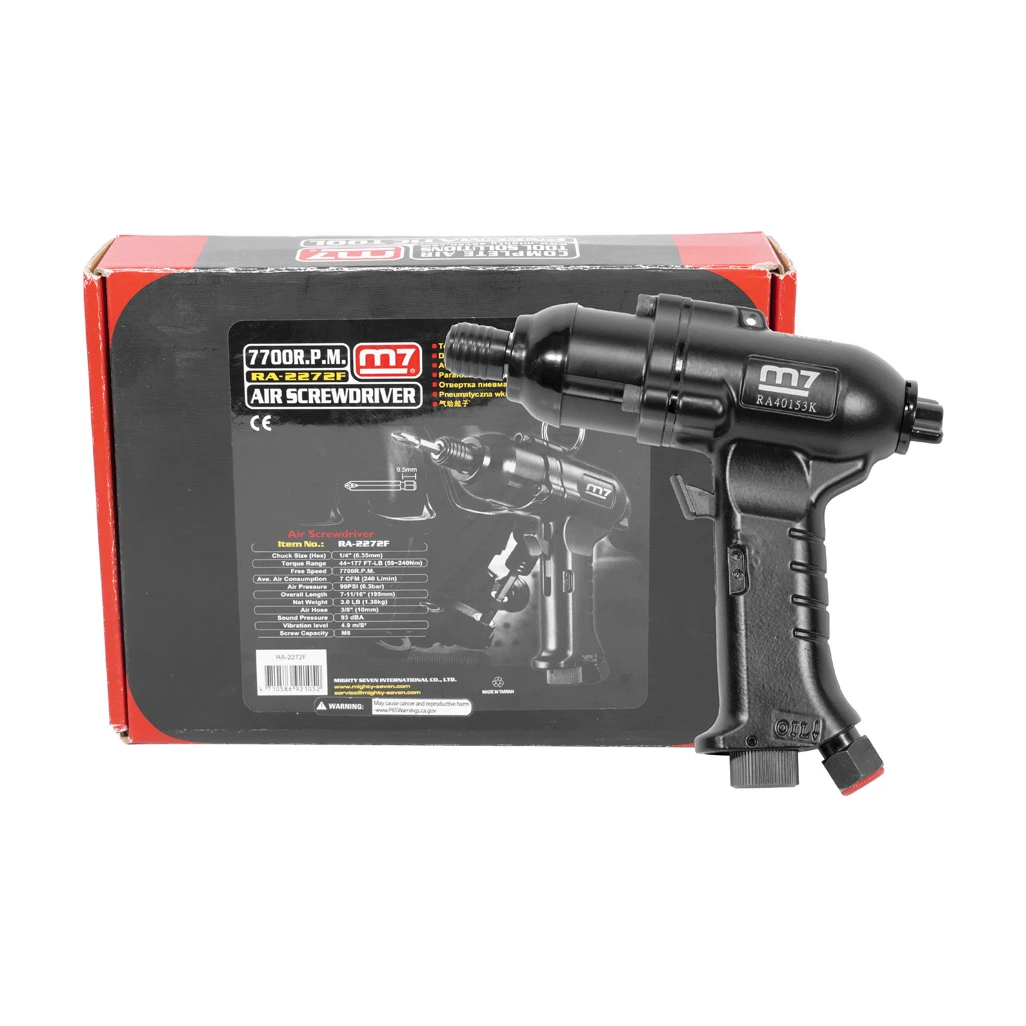

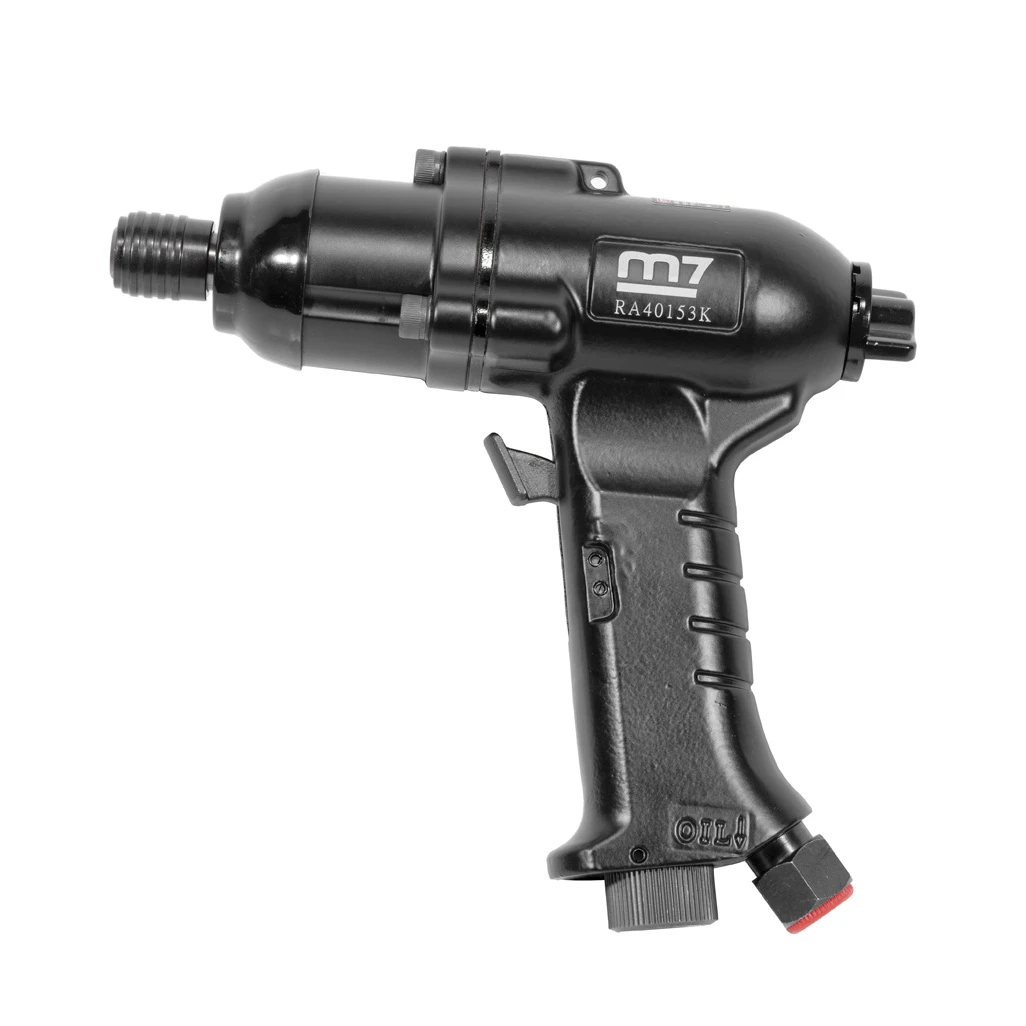

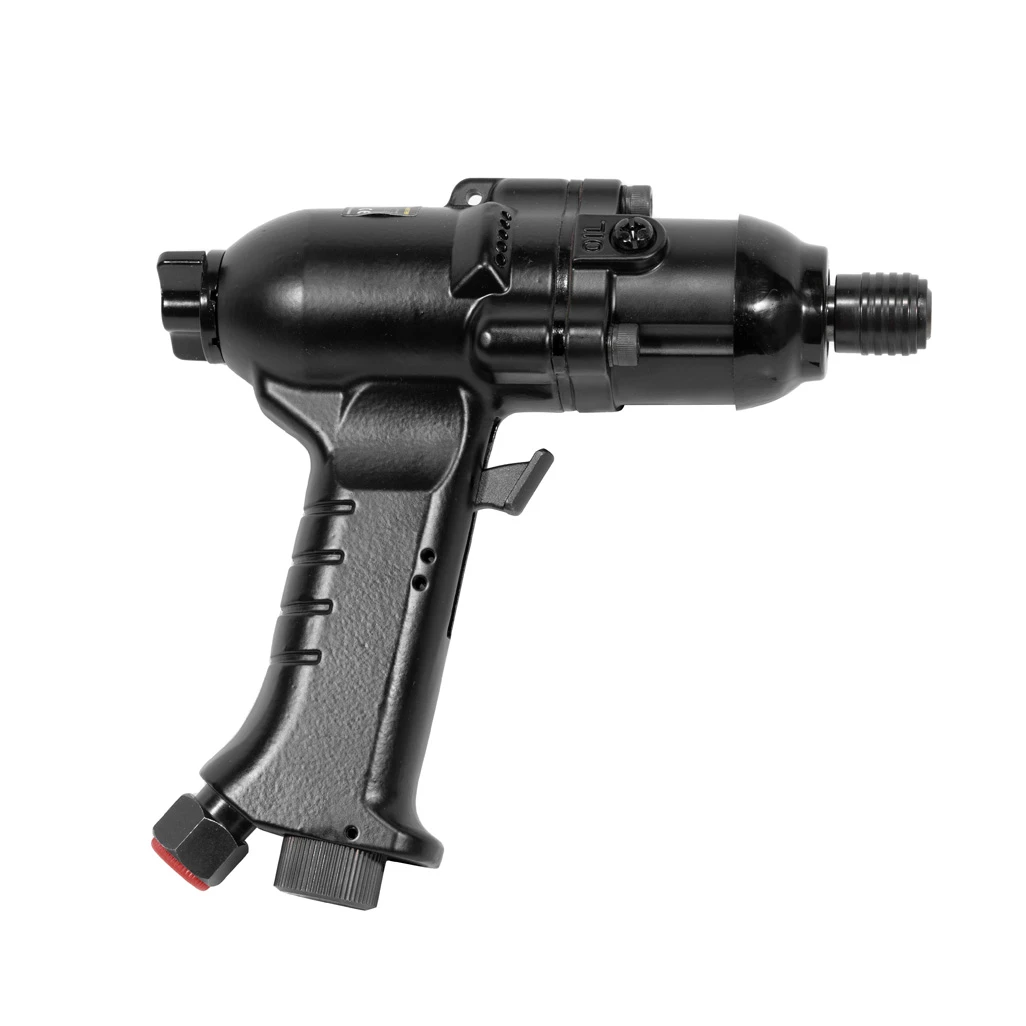

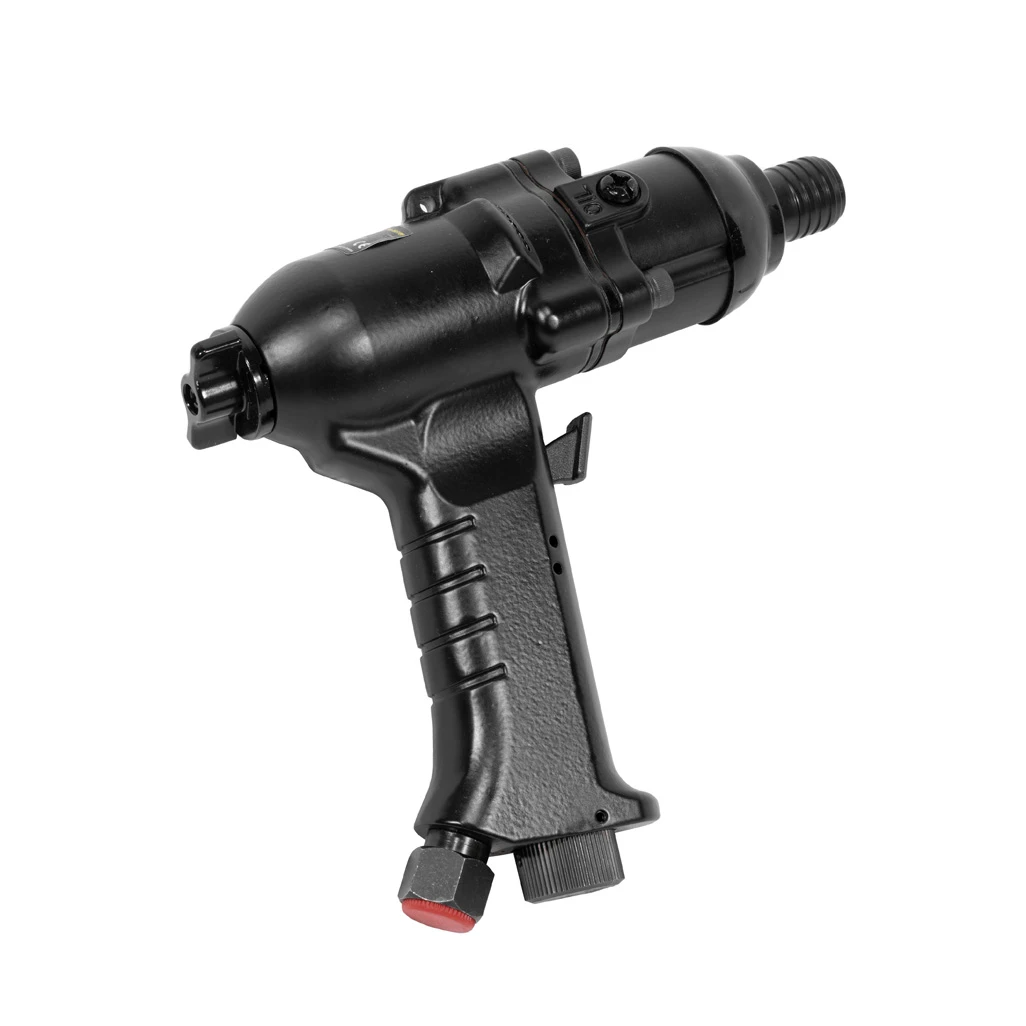

M7 Air Screwdriver M7 with 1/4"" Hex Chuck Dog Clutch for M8 Screws (RA-2272F)
This M7 air tool features a positive clutch mechanism. It connects two rotating shafts with interlocking teeth or “dogs.” This is why this clutch type is also called a “dog clutch” or “twin dog clutch.” These two clutch shafts push against each other and rotate at the same speed. This helps prevent slippage and reduces wear and tear. Positive clutches do not control the tool’s torque.
KEY FEATURES & BENEFITS:
M7 RA-2272F air screwdriver fastens and loosens M8 screws

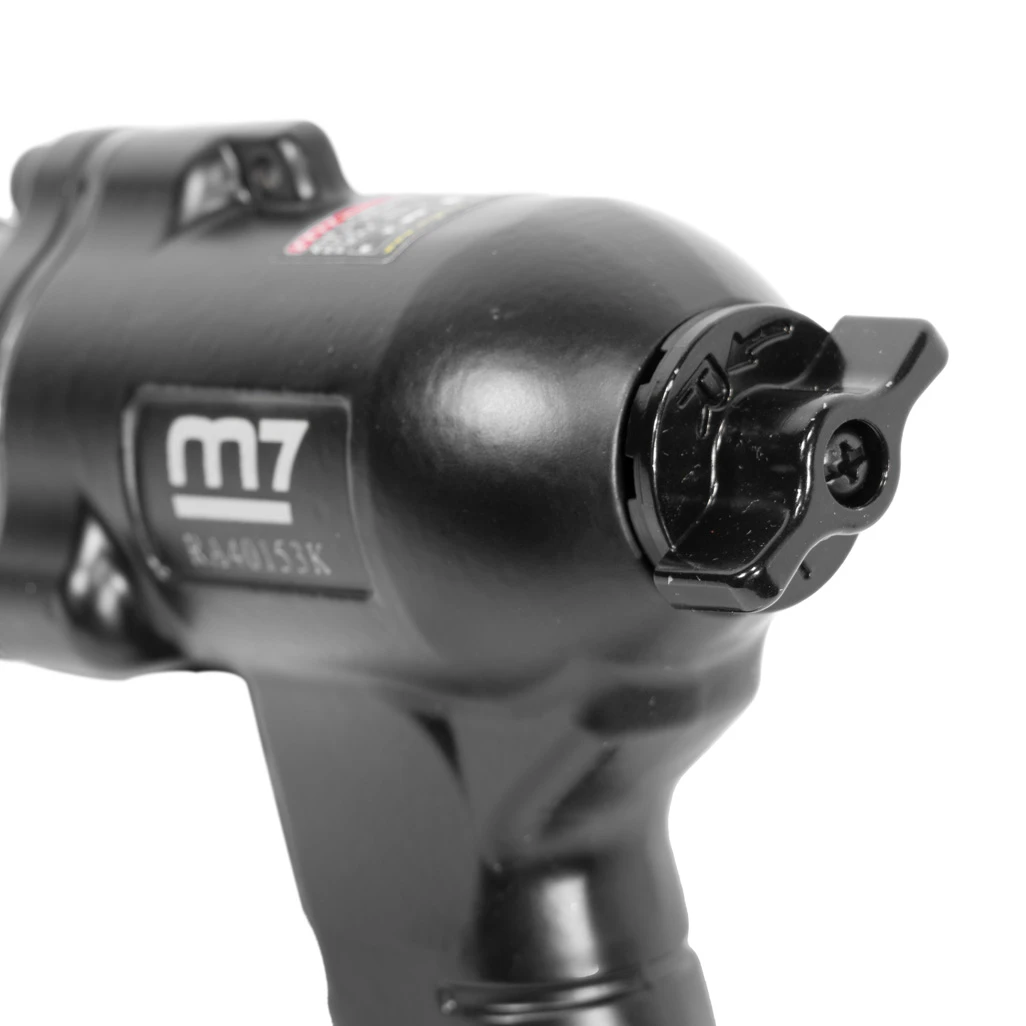

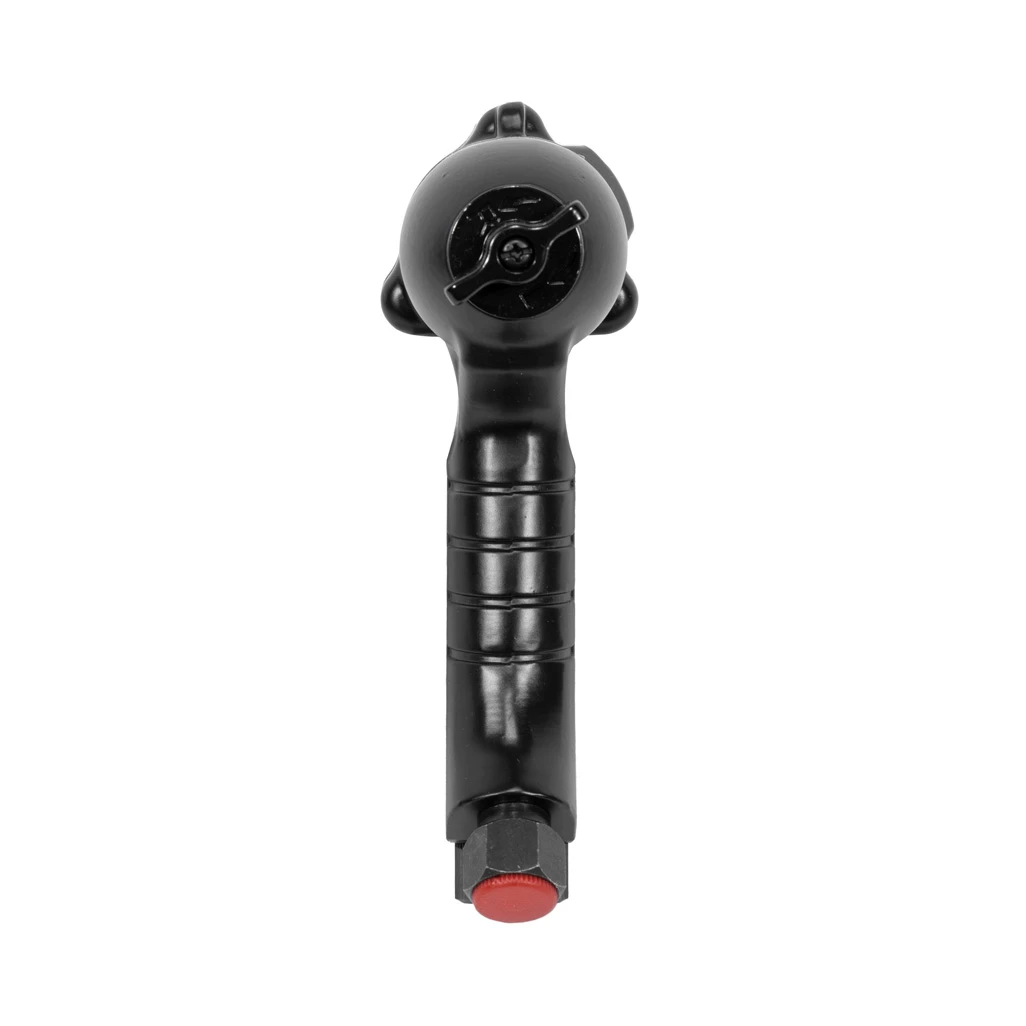

Convenient forward reverse switch found at rear end of the tool

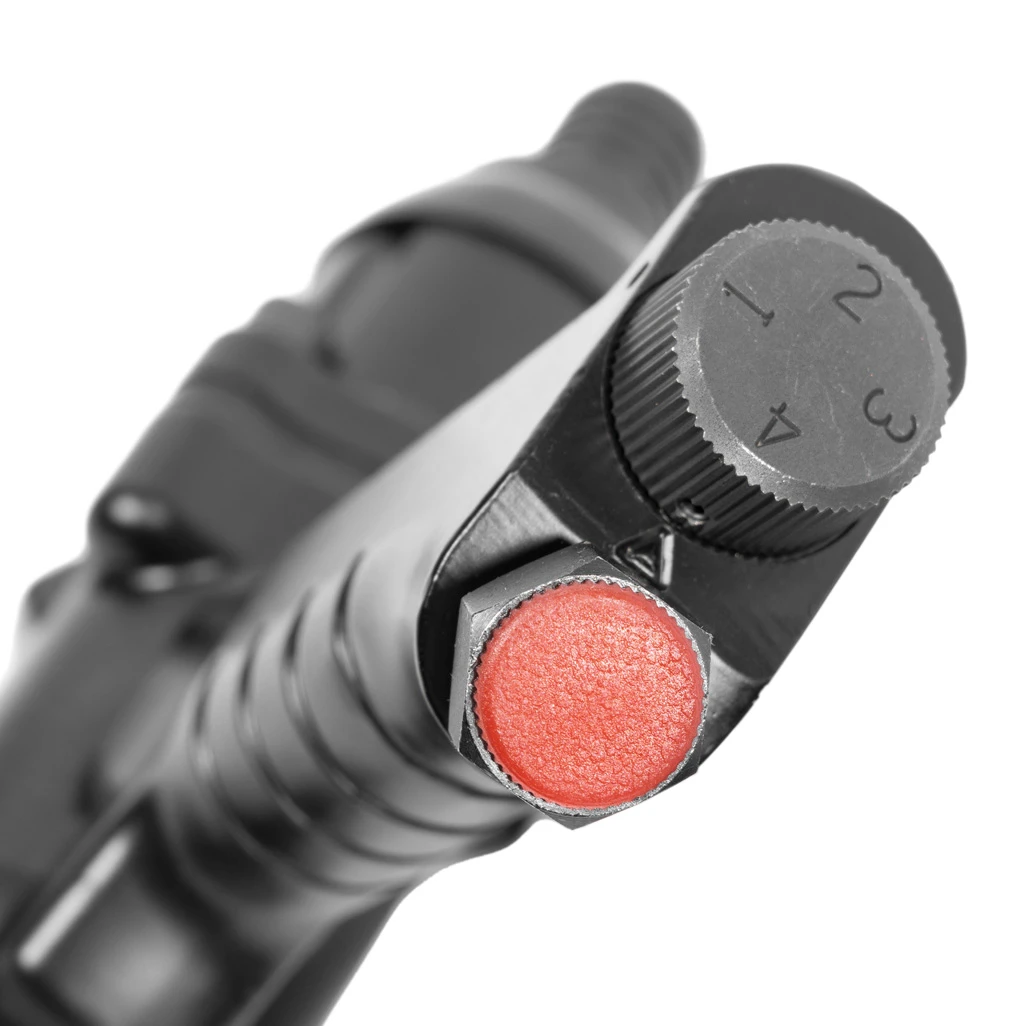

Easy-to-use four speed control dial located at bottom of the tool’s handle

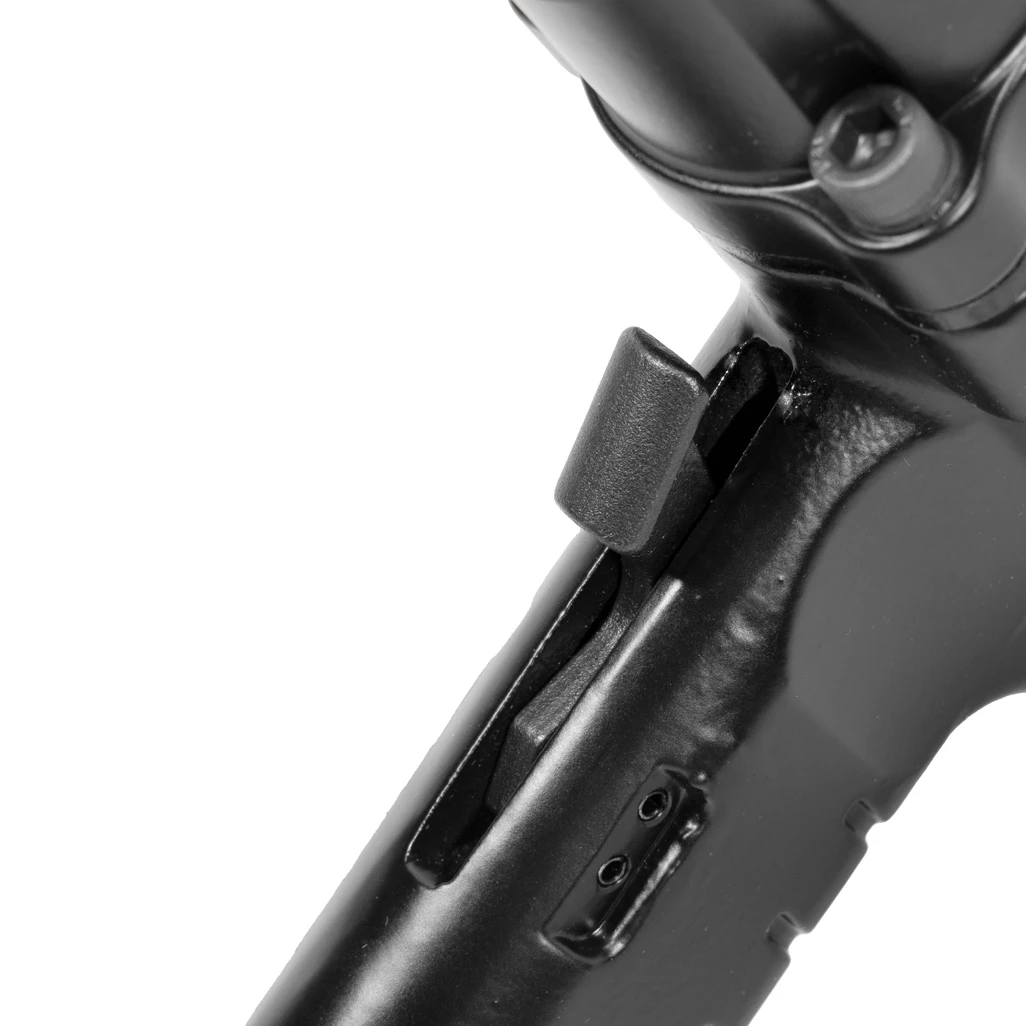

Comfortable pistol grip shape and trigger design for easy use during long jobs
Rubber-coated ergonomic handle reduces user fatigue to get more work done
Comes with one (1) 1/4” hex bit
TECHNICAL SPECS:
Tool Type: Air screwdriver
Manufacturer: M7
Tool Length: 7.69”
Tool Weight: 3.0 Lb
Chuck Size: 1/4” hex
Air Inlet: 1/4''
Forward Torque: 44-177 ft-lb
Free Speed: 7,700 RPM
Average Air Consumption: 7 CFM
Air Pressure: 90 PSI
Sound Pressure: 93 dBA
Vibration Level: 4.9 m/s²
Product identification
- Brand: M7
- Model / MPN: RA-2272F
