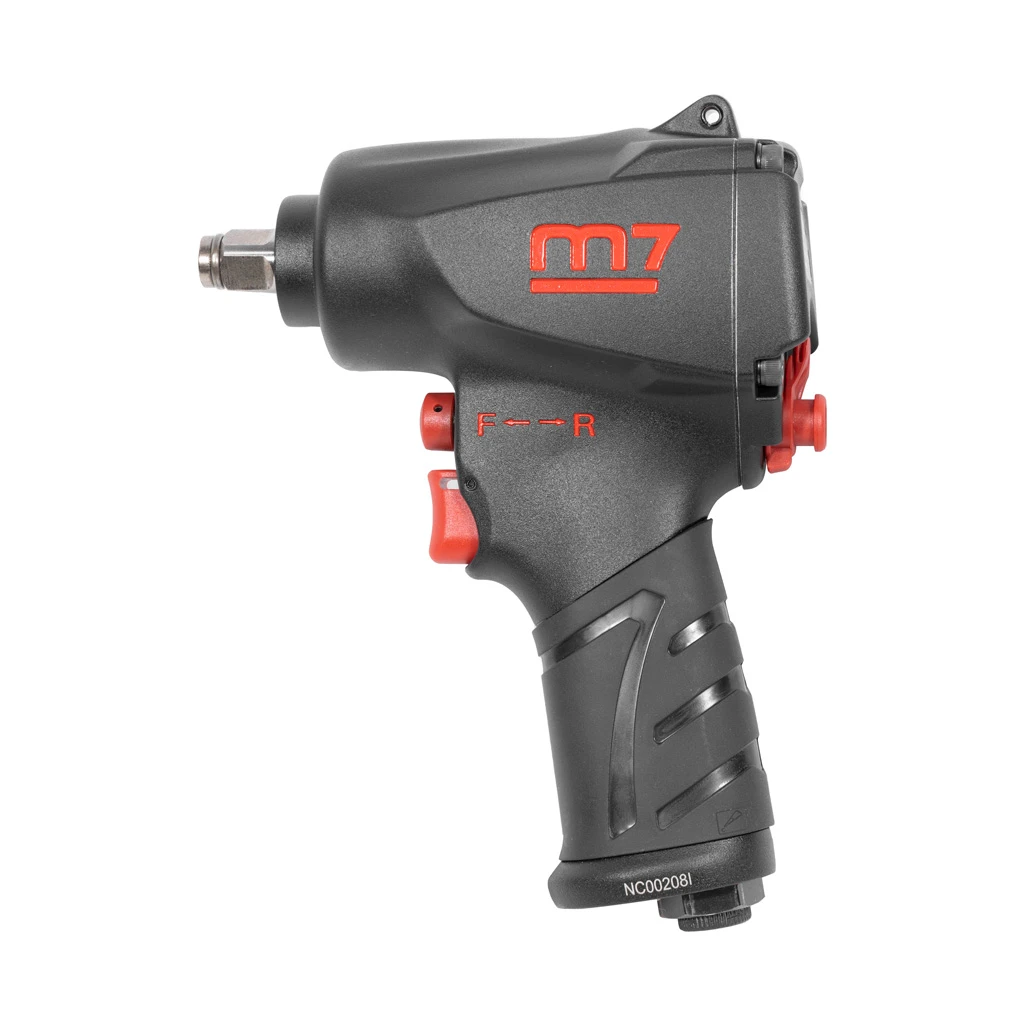

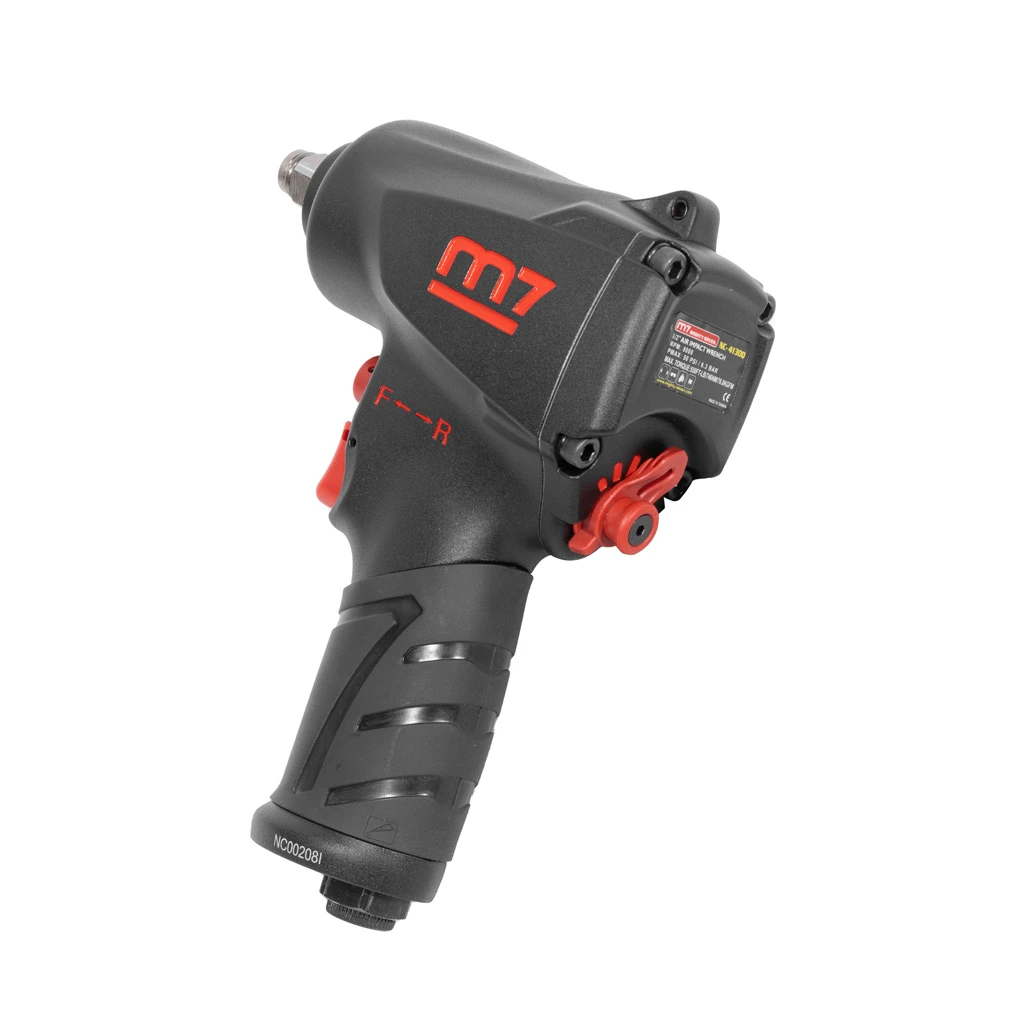

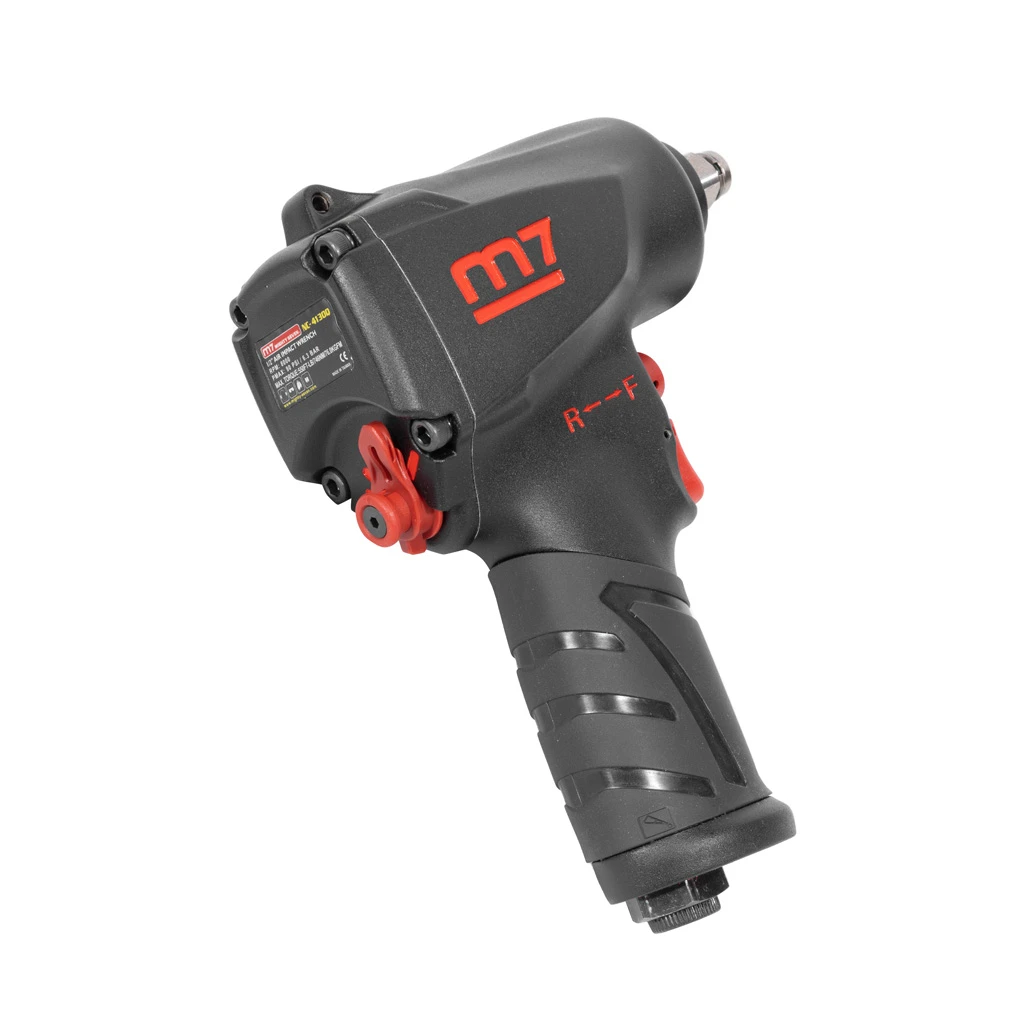

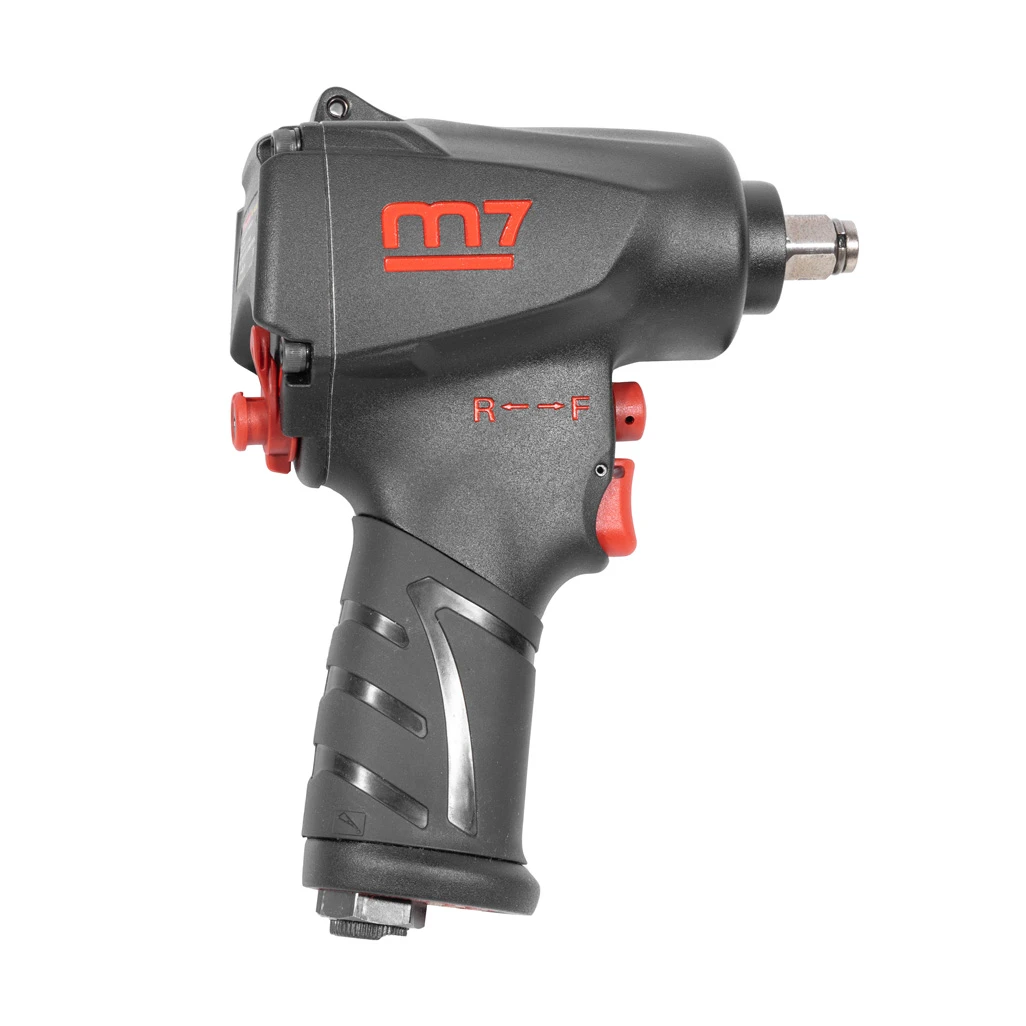

M7 NC-4130Q 1/2-Inch Pin-Clutch Air Impact
The M7 NC-4130Q pairs a pin-clutch impact mechanism with a 5-9/16-inch body and 1/2-inch drive. These details make it a distinct option when comparing compact impacts by working space, torque direction and storage arrangements.
Specifications and included details

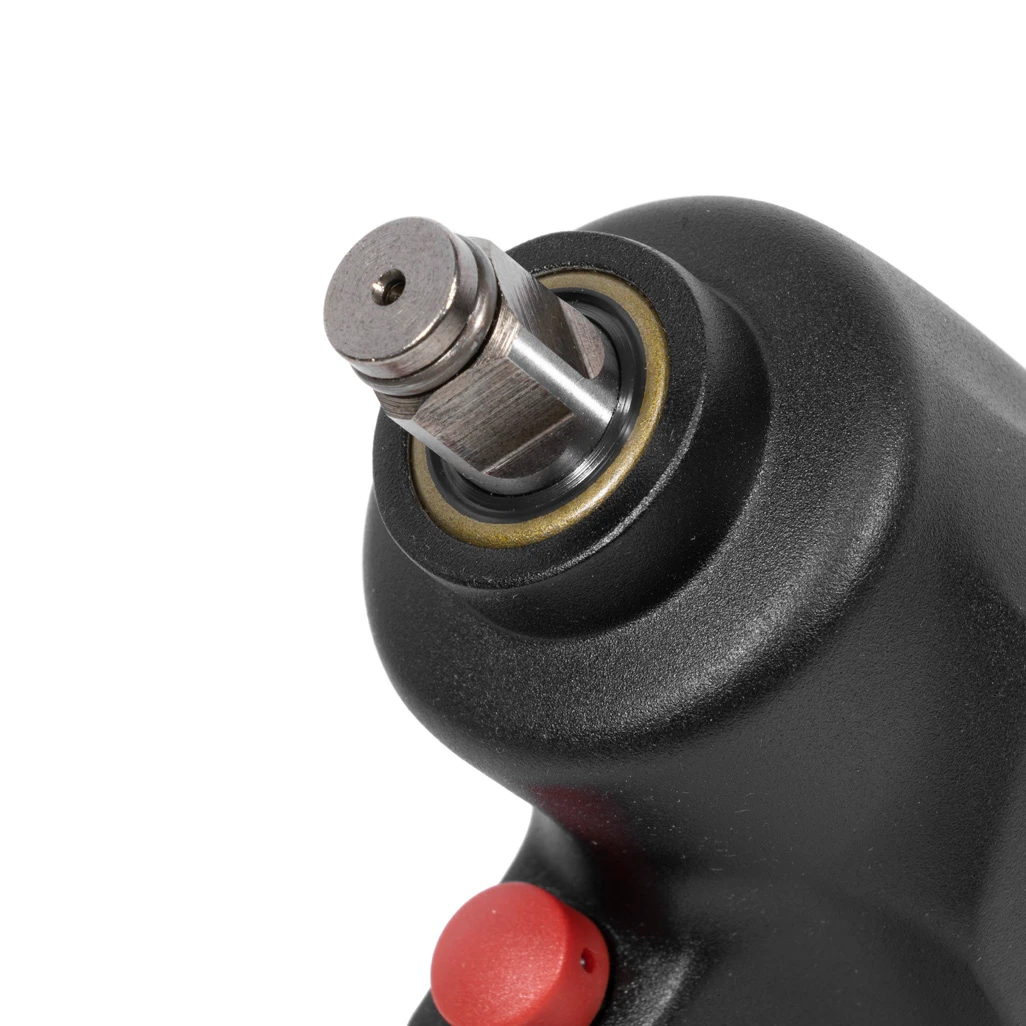

- 1/2-inch square drive with pin-clutch mechanism and insertable hanging ring.
- 100–400 ft-lb forward torque; 550 ft-lb maximum reverse torque.
- 5-9/16-inch tool length, 3.55 lb weight and listed 5/8-inch bolt capacity.
- 8,000 RPM free speed, 4.5 CFM average air consumption and 90 PSI specification.
Before ordering
Allow clearance for the socket, air connection and grip in addition to the body length. Confirm compressor delivery and the required hose setup. A listed torque range and clutch type do not replace final torque verification on critical fasteners.
Product questions and answers
How does the reverse rating differ from forward?
The listing gives 550 ft-lb maximum reverse torque and a 100–400 ft-lb forward range. Use the direction-specific figures when comparing tools.
Is the hanging ring an air connection?

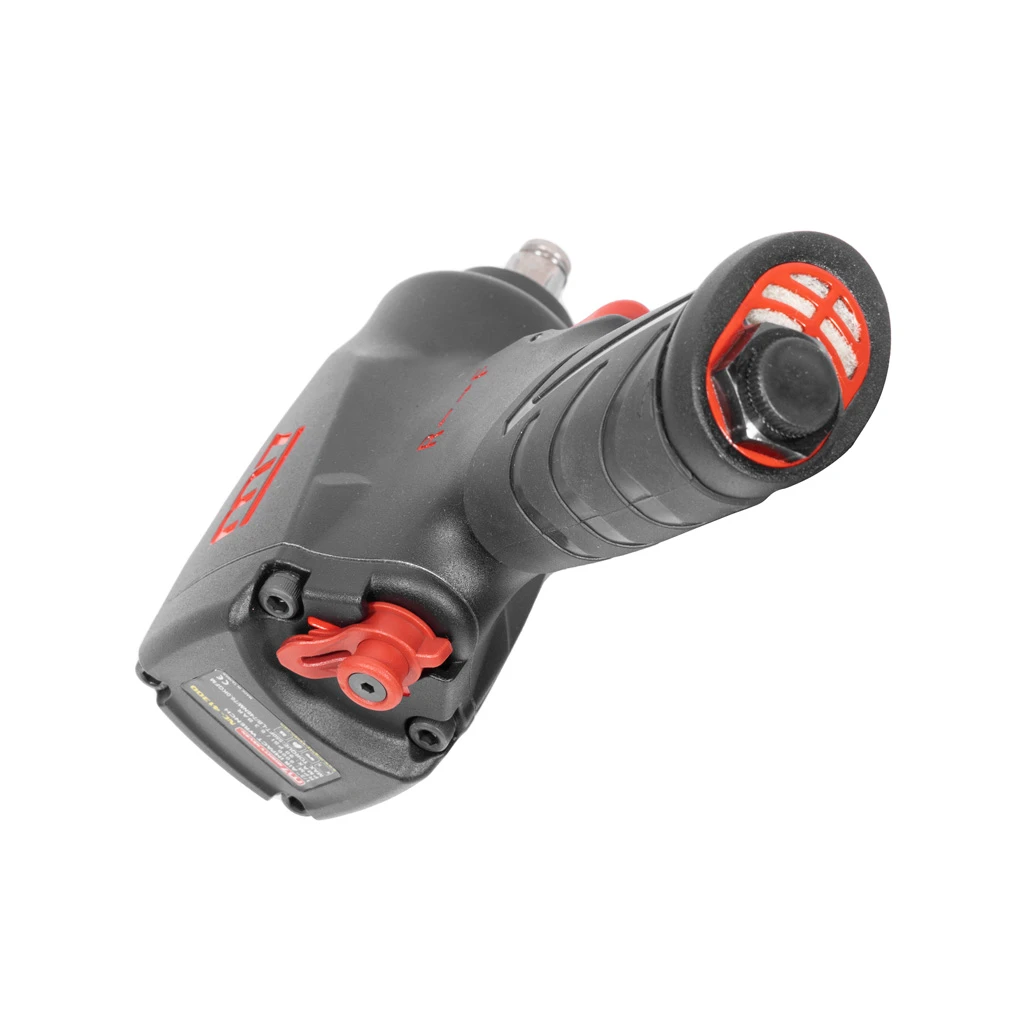

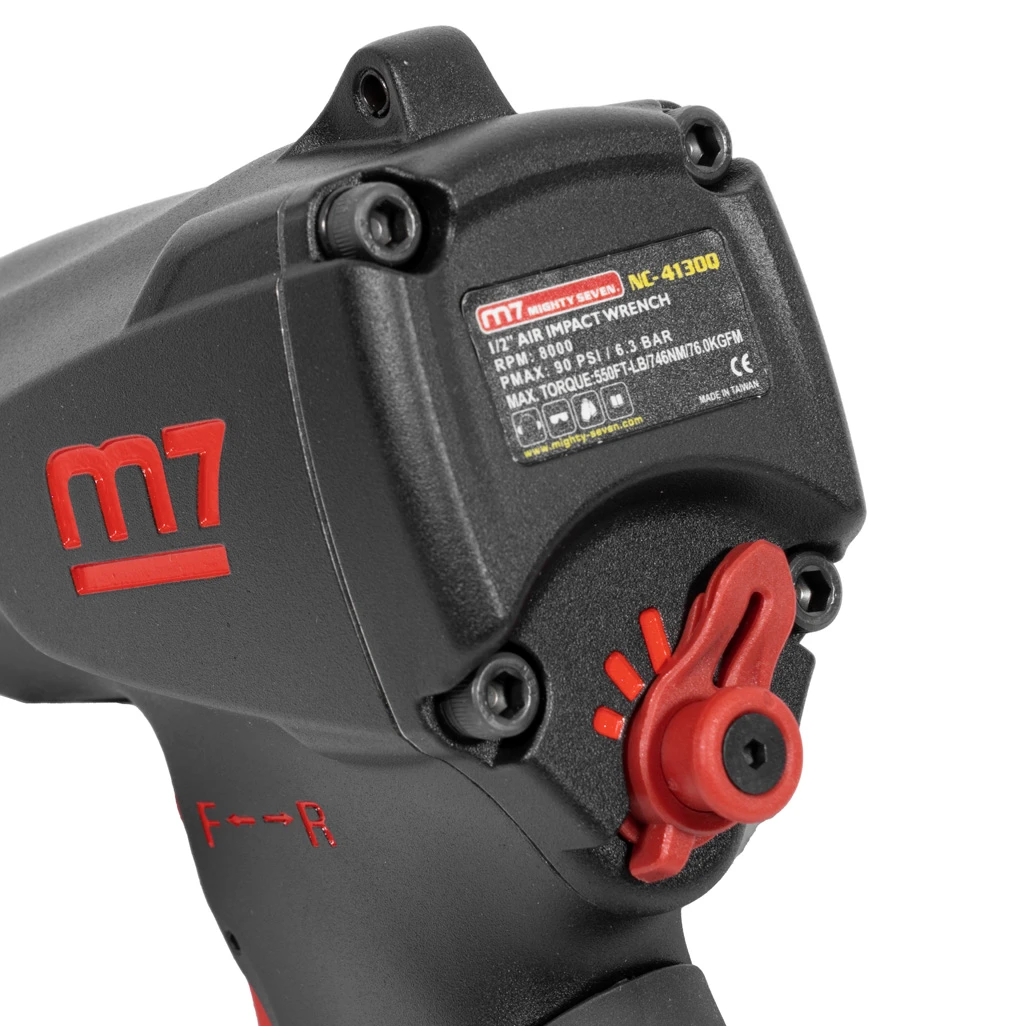

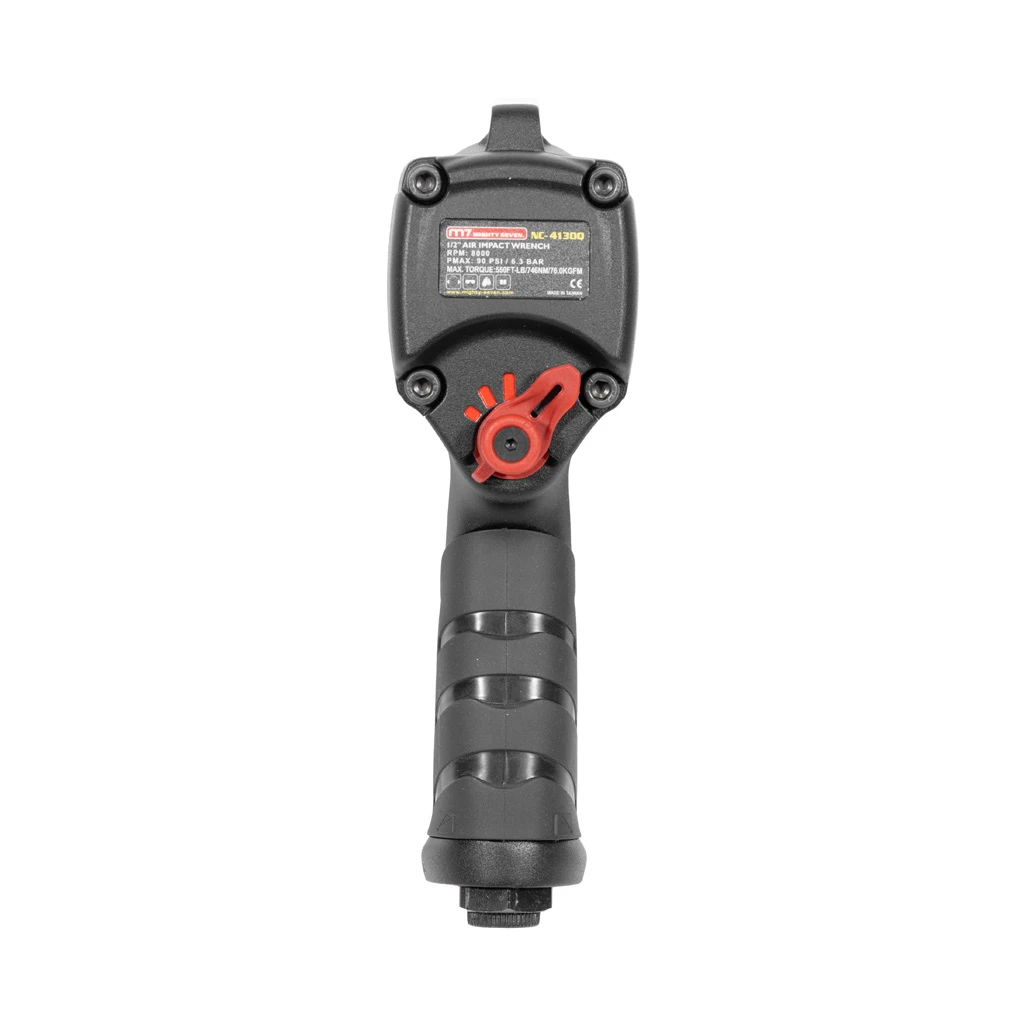

No. The insertable ring is a storage feature for hanging the tool when not in use; it is separate from the air supply connection.
Does average consumption of 4.5 CFM mean every 4.5 CFM compressor is adequate?
No. Average consumption alone does not establish sustained demand. Check the operating manual and compressor output at the required pressure, including hose and fitting losses.
