M7 NC-8382-8 1-Inch Impact with 8-Inch Anvil

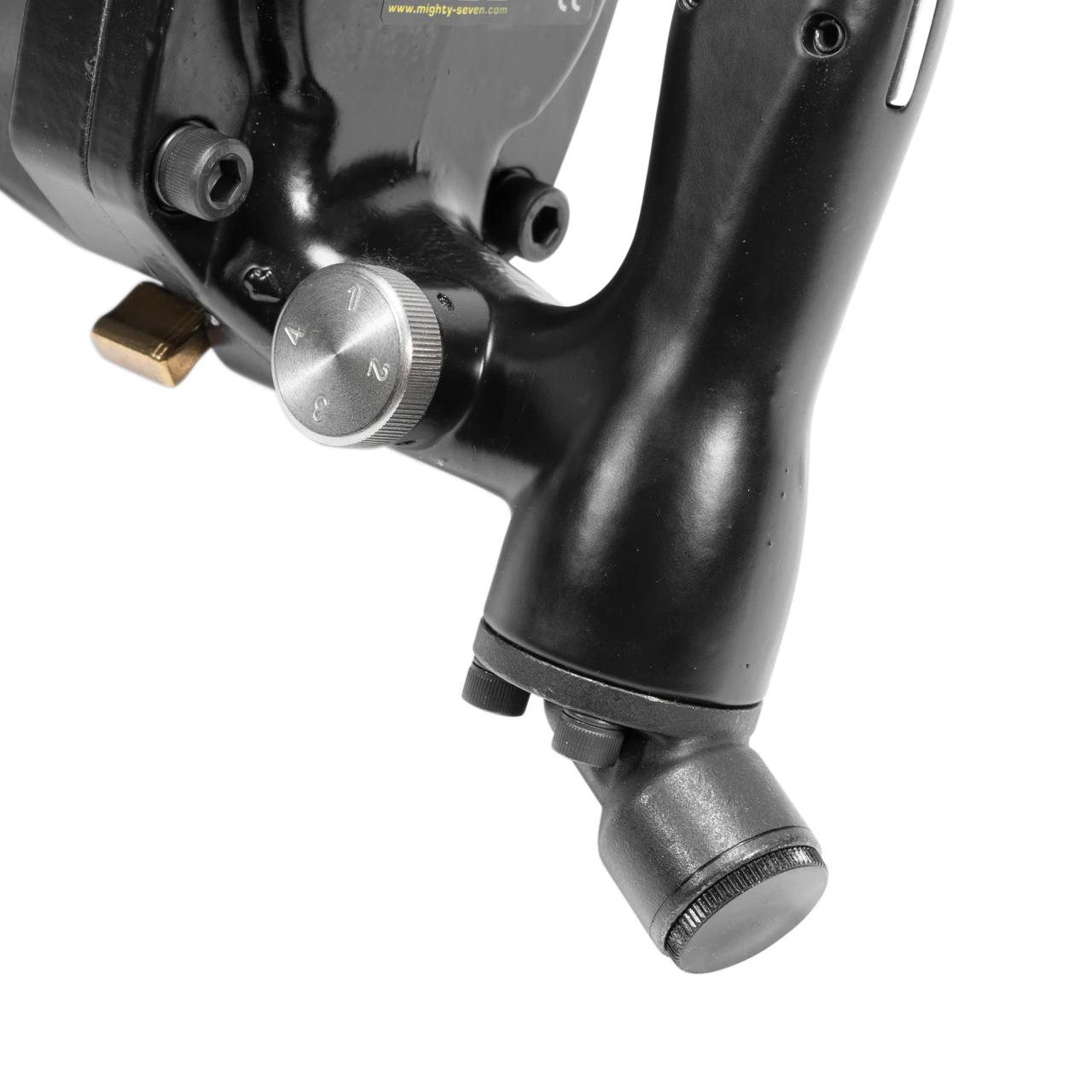

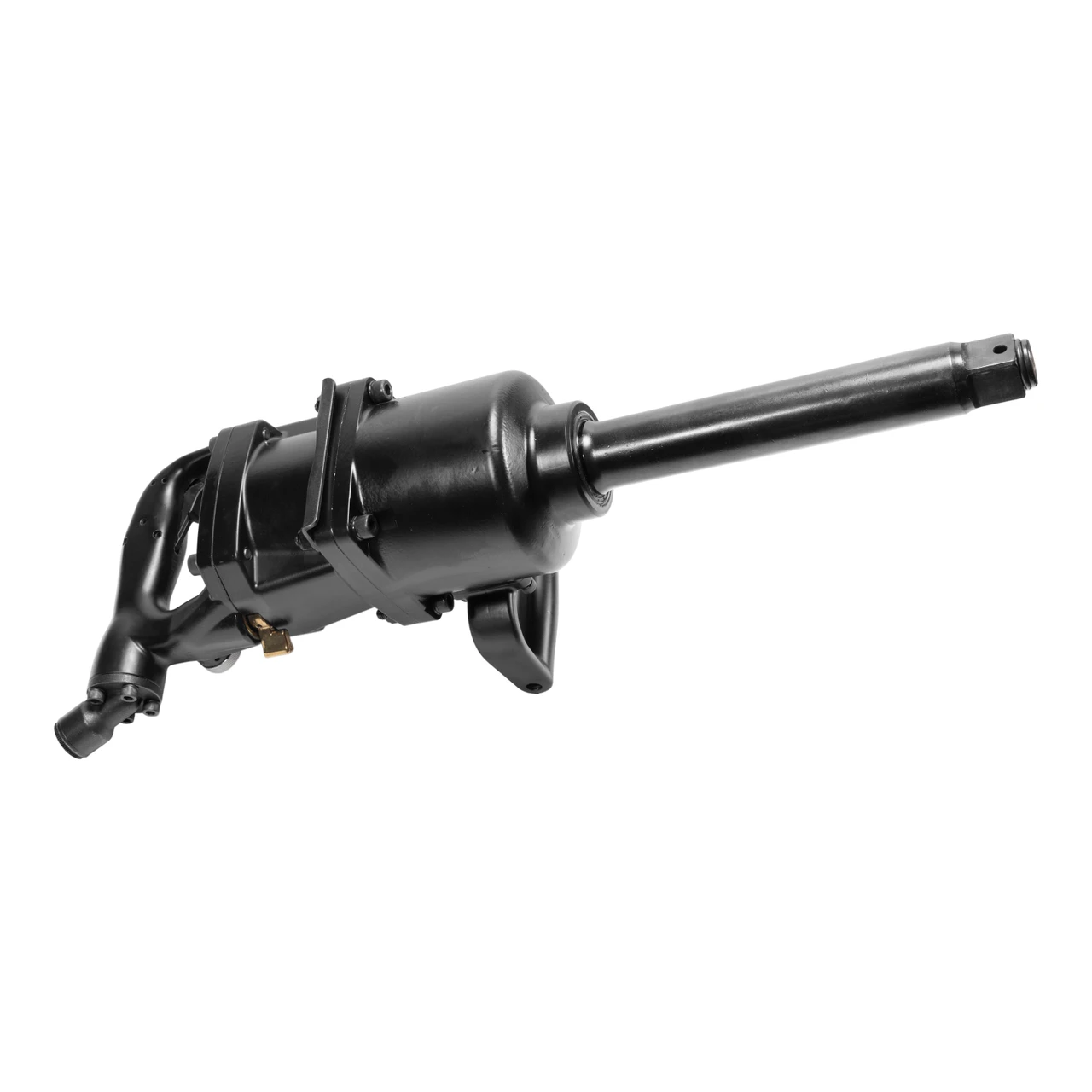

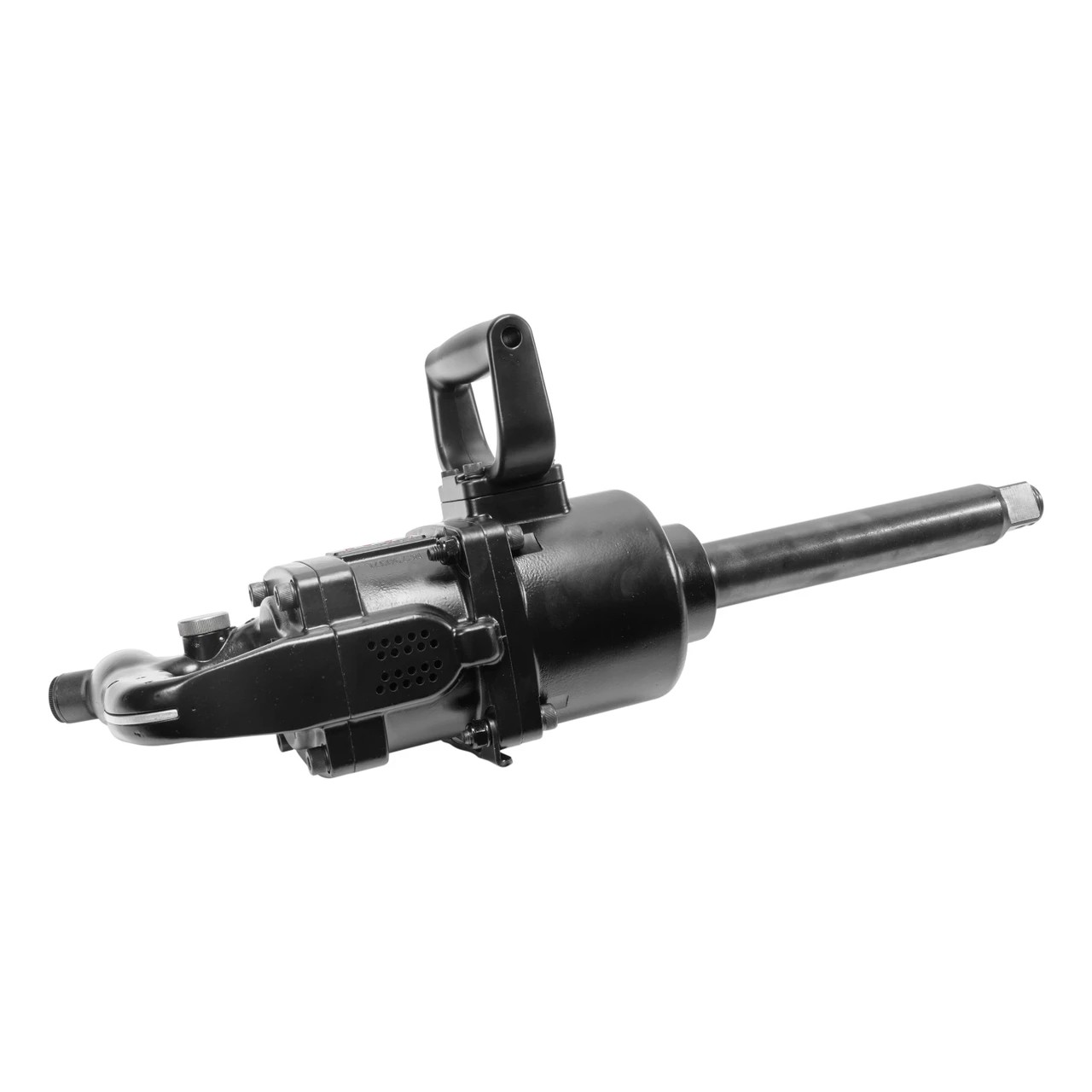

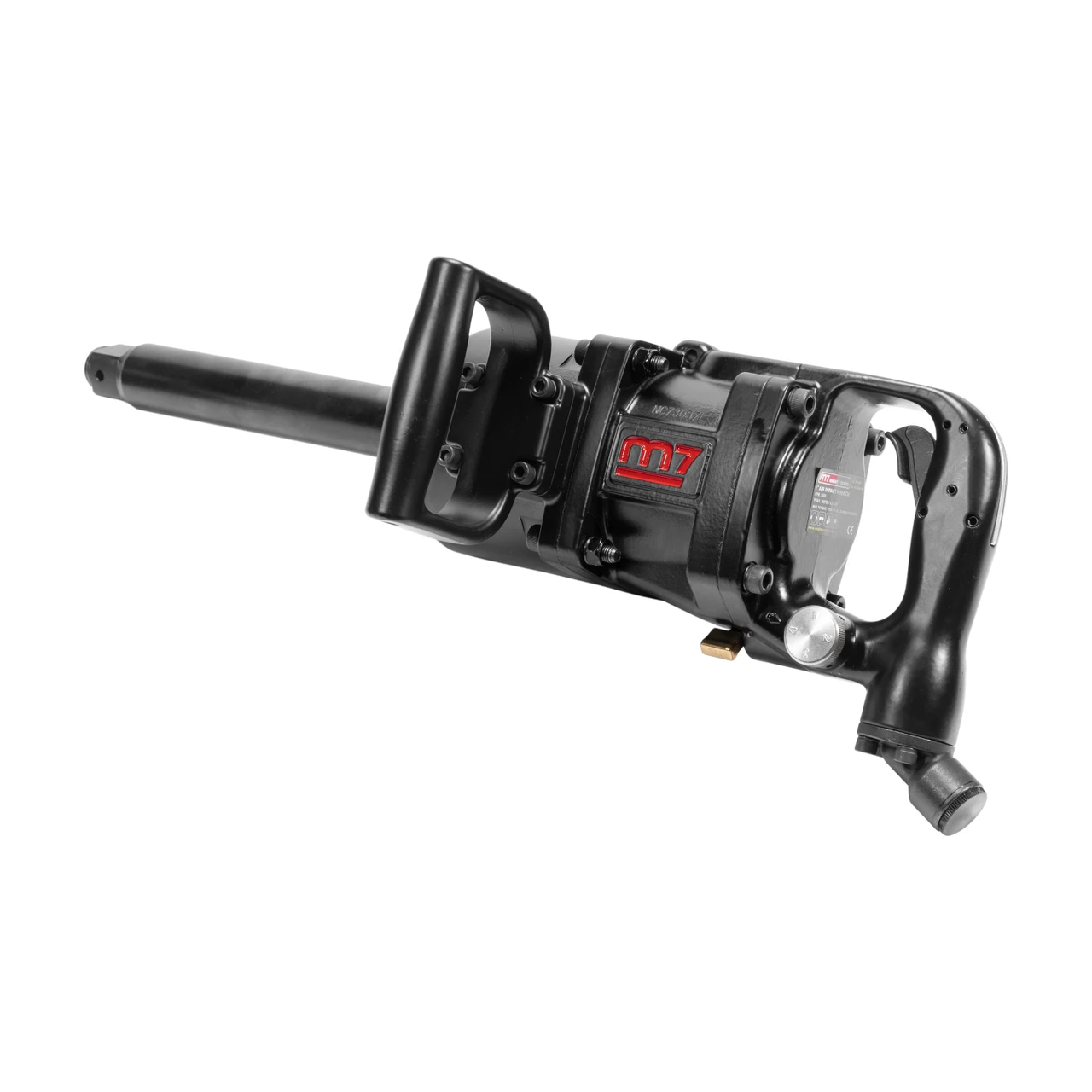

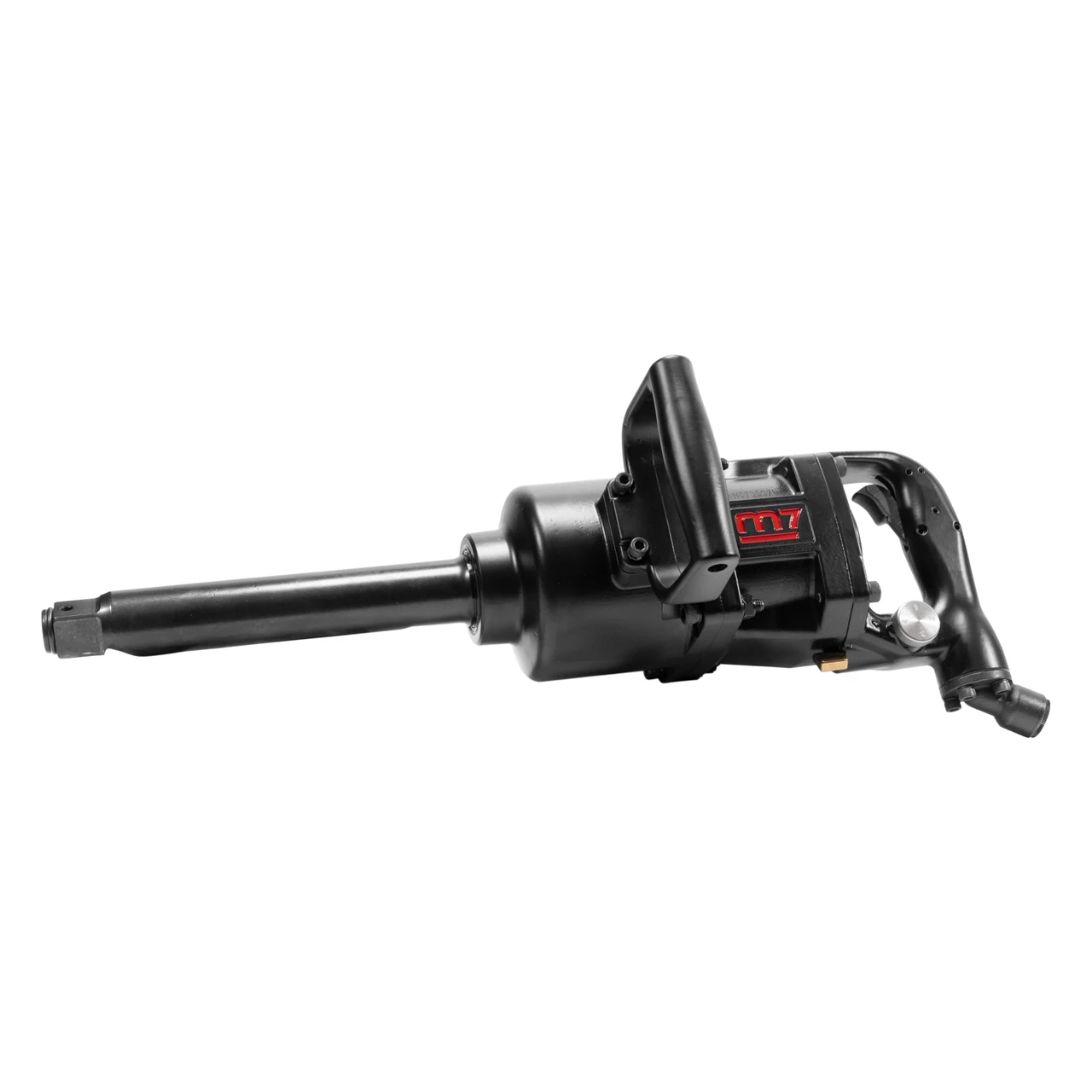

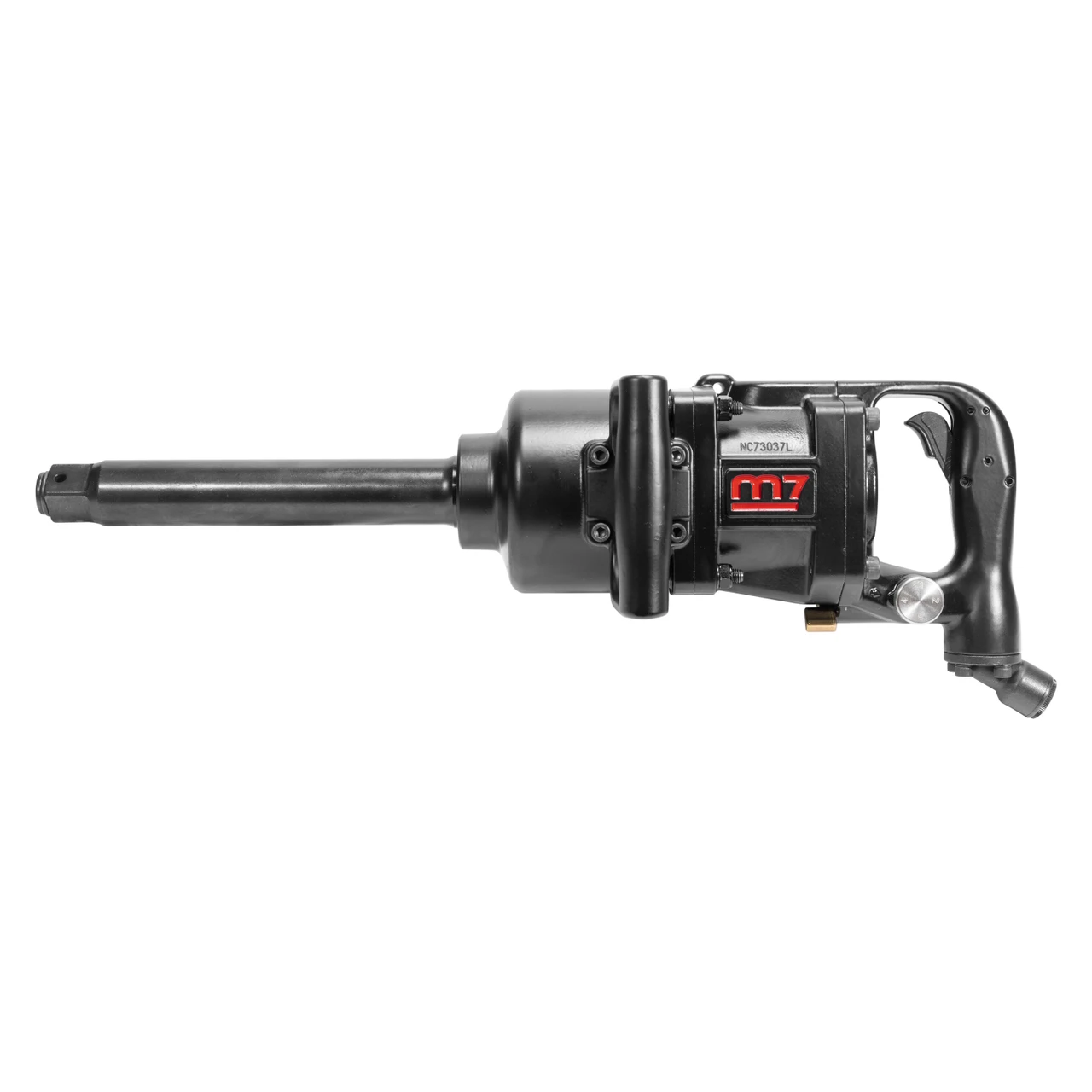

The M7 NC-8382-8 provides an 8-inch extended anvil on a 1-inch pneumatic impact. Compare its longer reach with the space around the fastener: the listed overall tool length is 22-15/32 inches, and the side-mounted handle also needs working clearance.
Specifications and included details

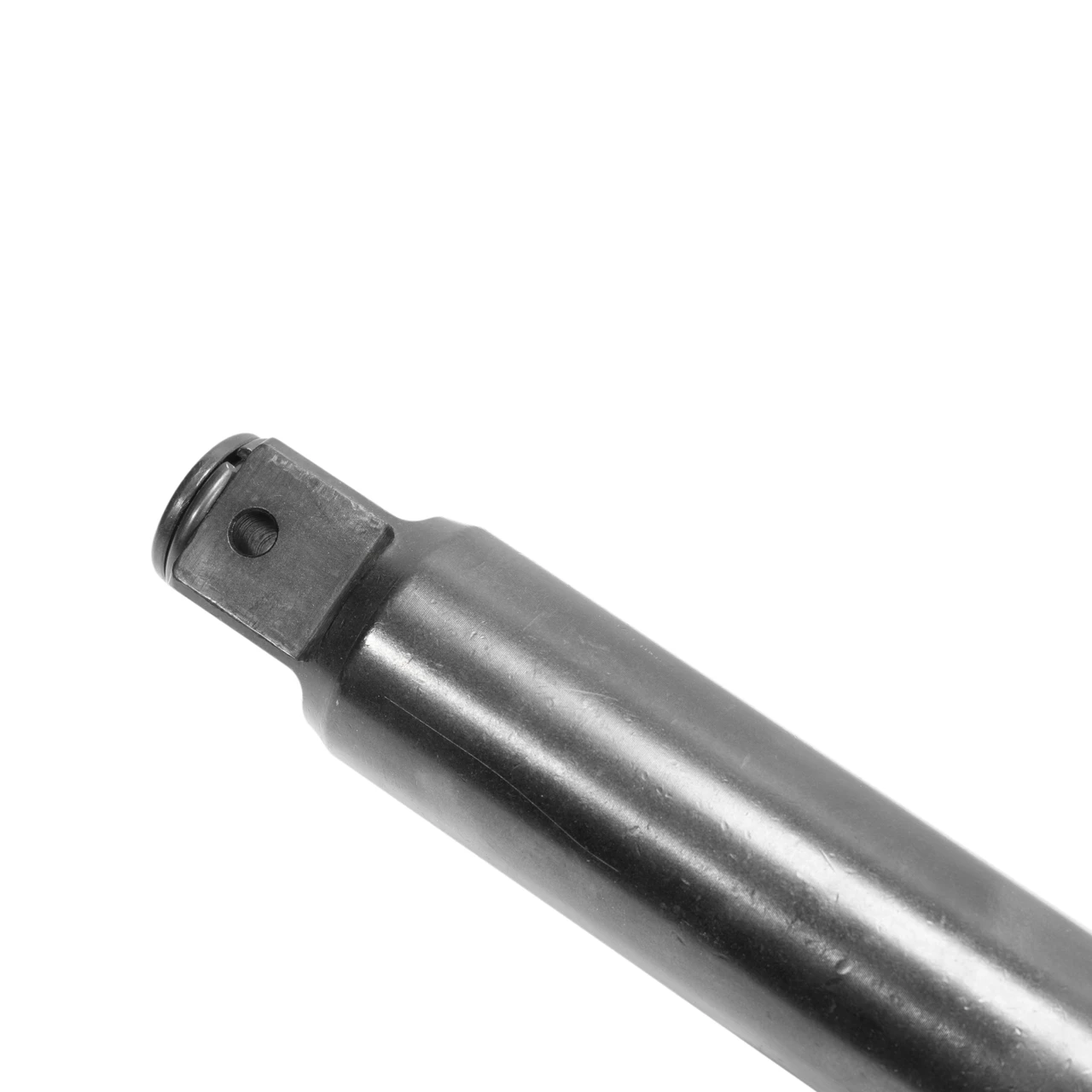

- 1-inch square drive, 8-inch extended anvil and pinless-hammer clutch.
- 200–1,600 ft-lb forward torque; 2,500 ft-lb maximum reverse torque.
- 22-15/32-inch tool length, 27.5 lb listed weight and 1-9/16-inch bolt capacity.
- 5,000 RPM free speed, 15.9 CFM average air consumption and 90 PSI specification.
Before ordering
Check the complete tool, socket and handle envelope against the job. The 8-inch anvil provides reach but does not establish higher torque than another model. Match compressor delivery to the actual operating requirements and verify specified final torque separately.
Product questions and answers
How is the NC-8382-8 different from the NC-8332X-6?
This model lists an 8-inch anvil rather than 6 inches, and 200–1,600 ft-lb forward torque rather than 200–2,000 ft-lb. Both list 2,500 ft-lb maximum reverse torque, so reach and direction-specific ratings need separate comparison.
Does the 1-9/16-inch bolt capacity describe the square drive?
No. The square drive is 1 inch. Bolt capacity is a separate fastener specification and does not tell you the required socket opening.
Is 15.9 CFM a continuous airflow requirement?
The listing calls it average air consumption. Confirm the model's full air requirements before matching a compressor for sustained use.
Browse Air Tools > Air Impact Wrenches to compare other options.
