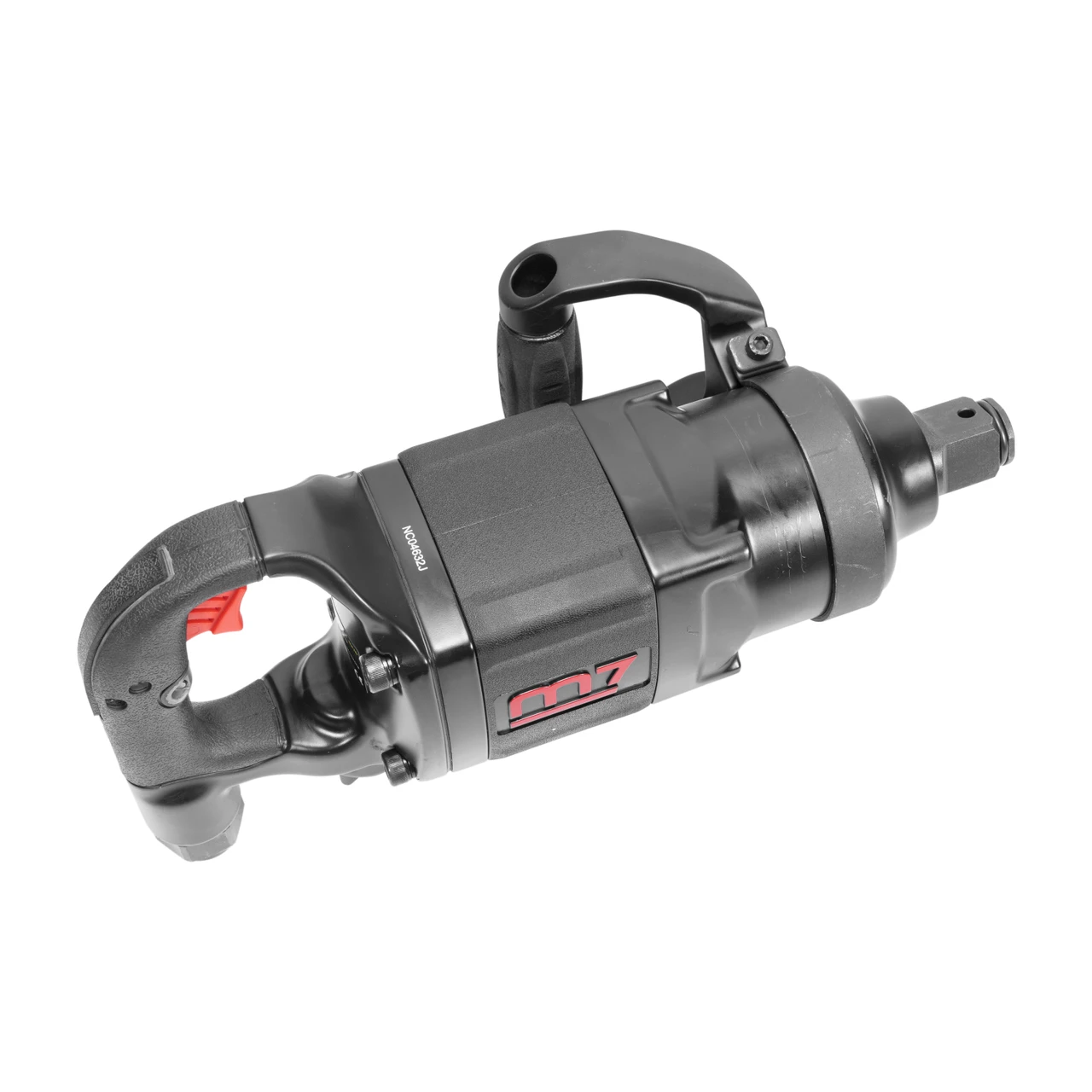

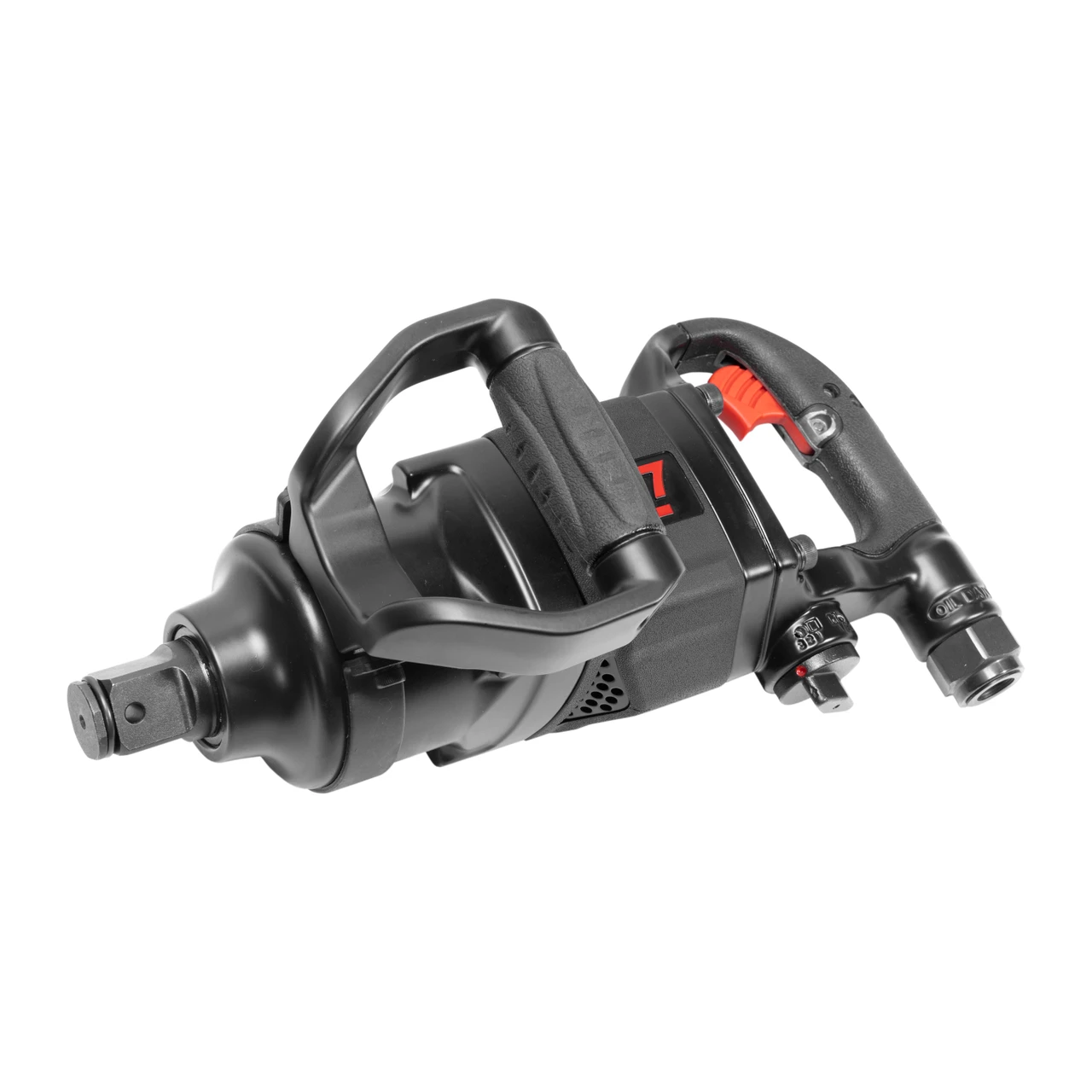

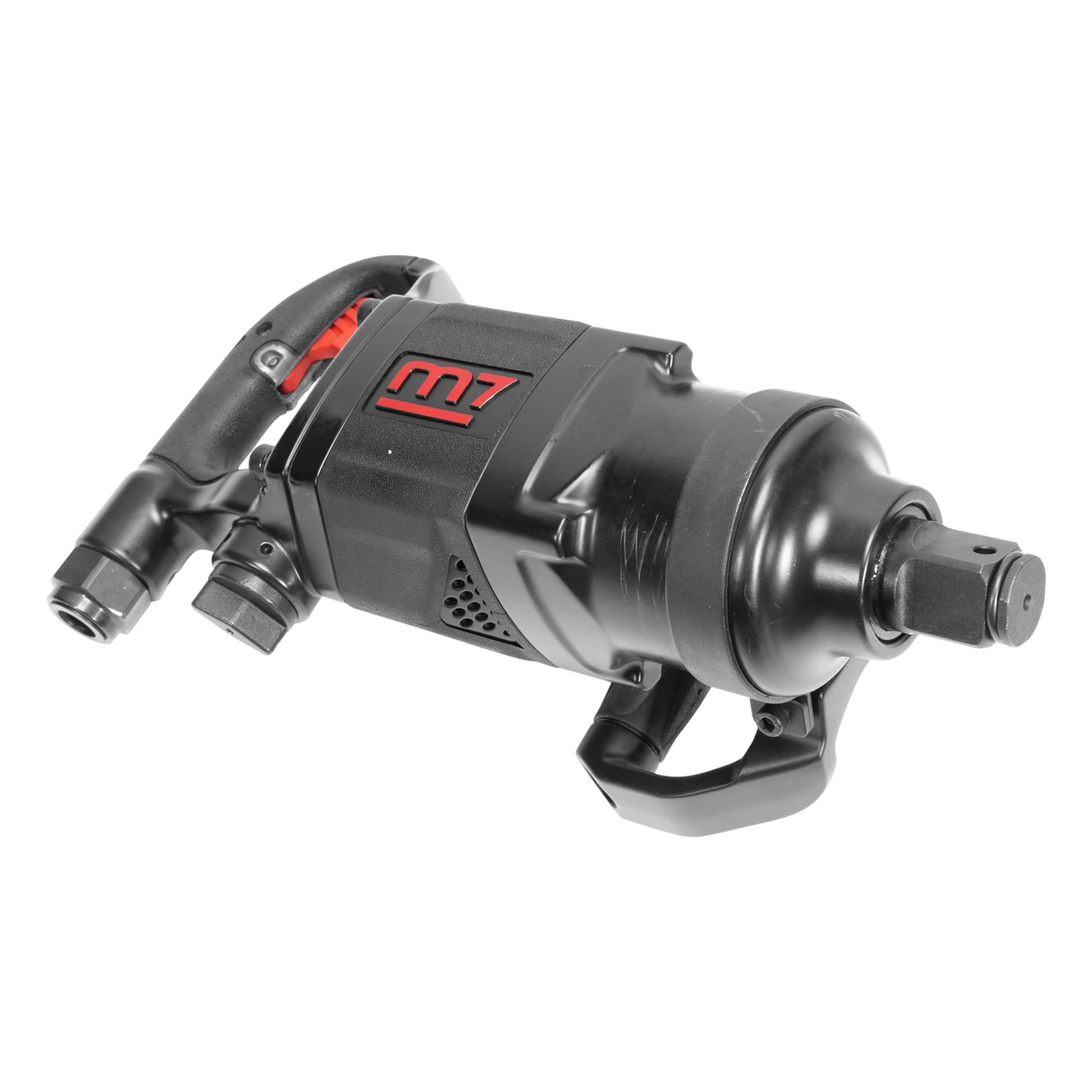

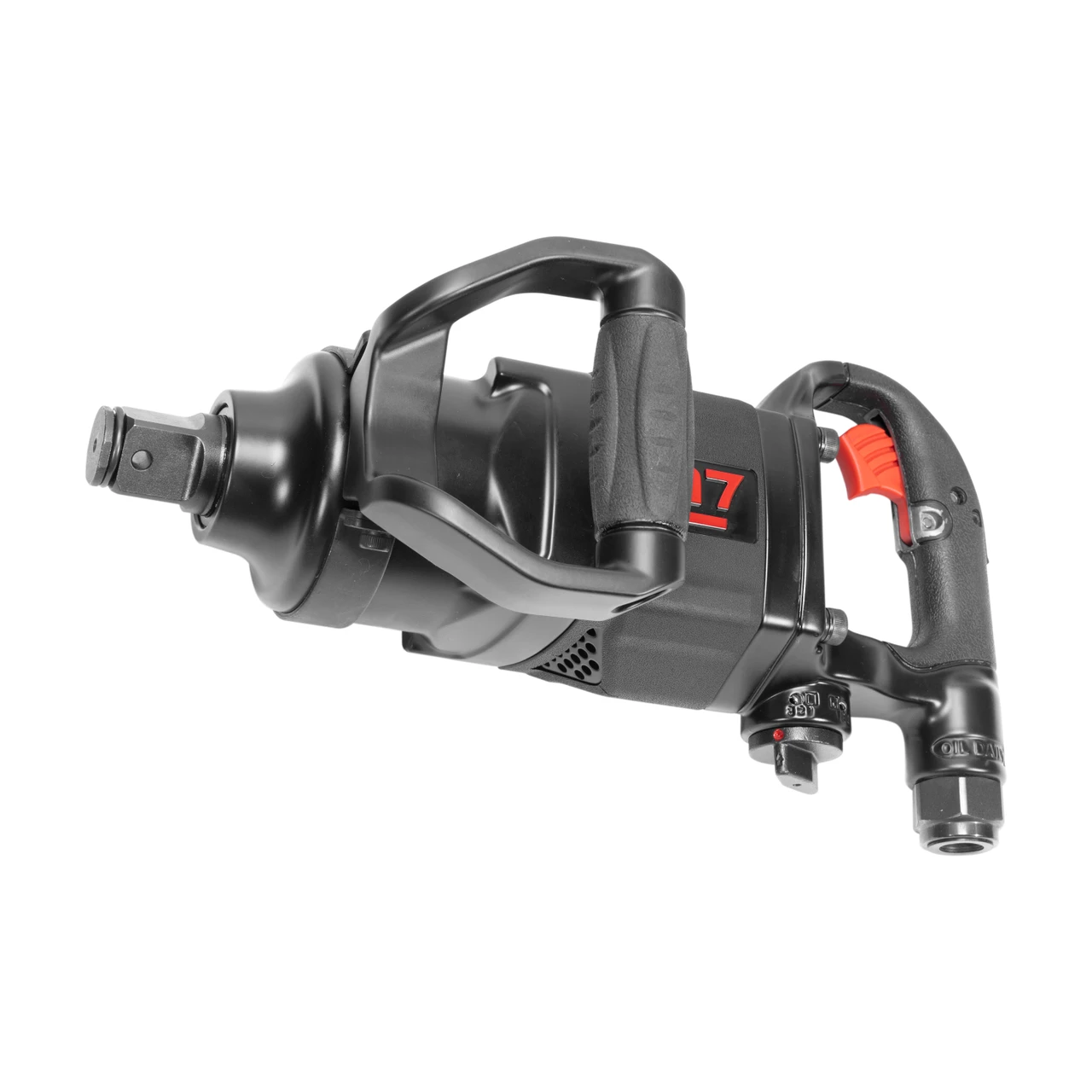

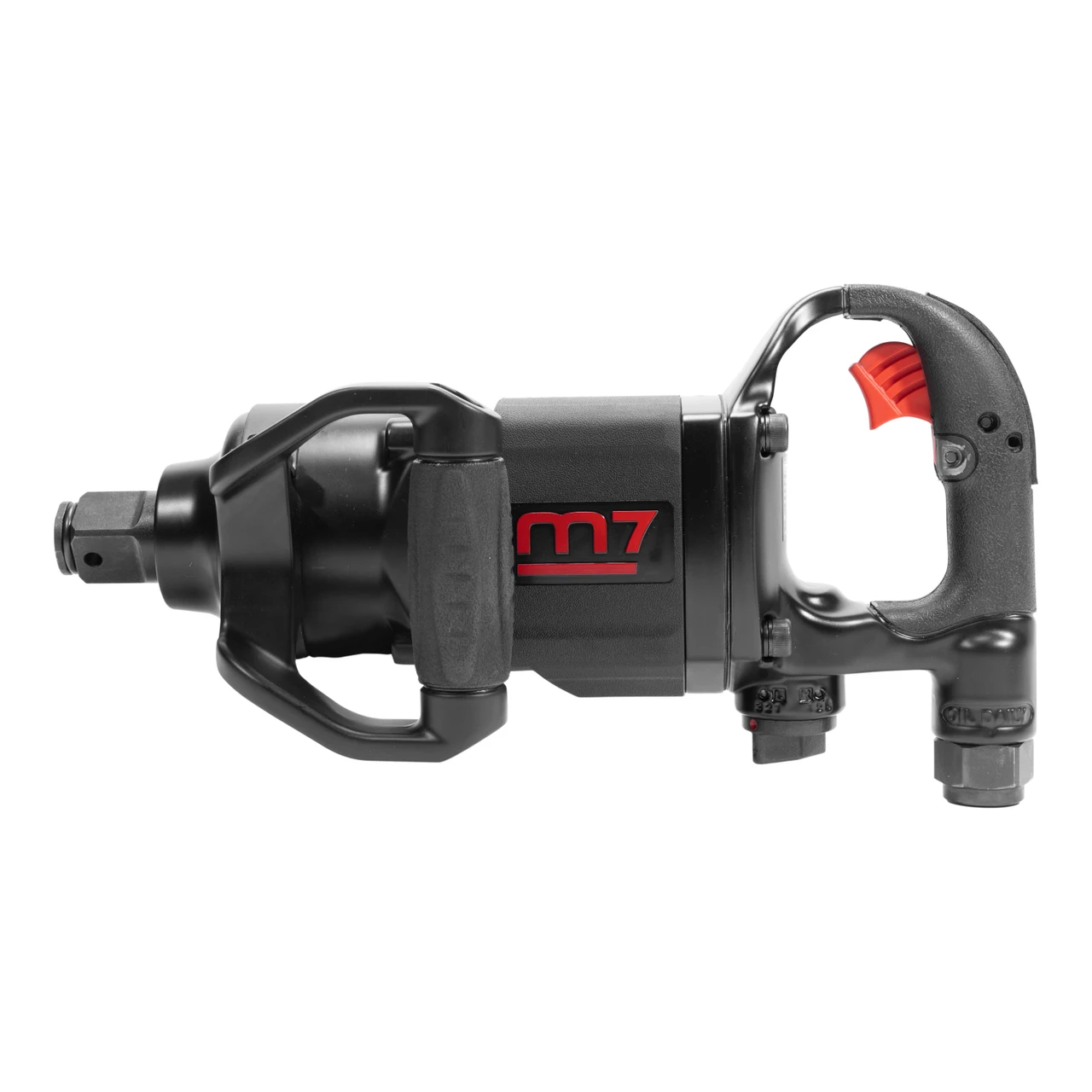

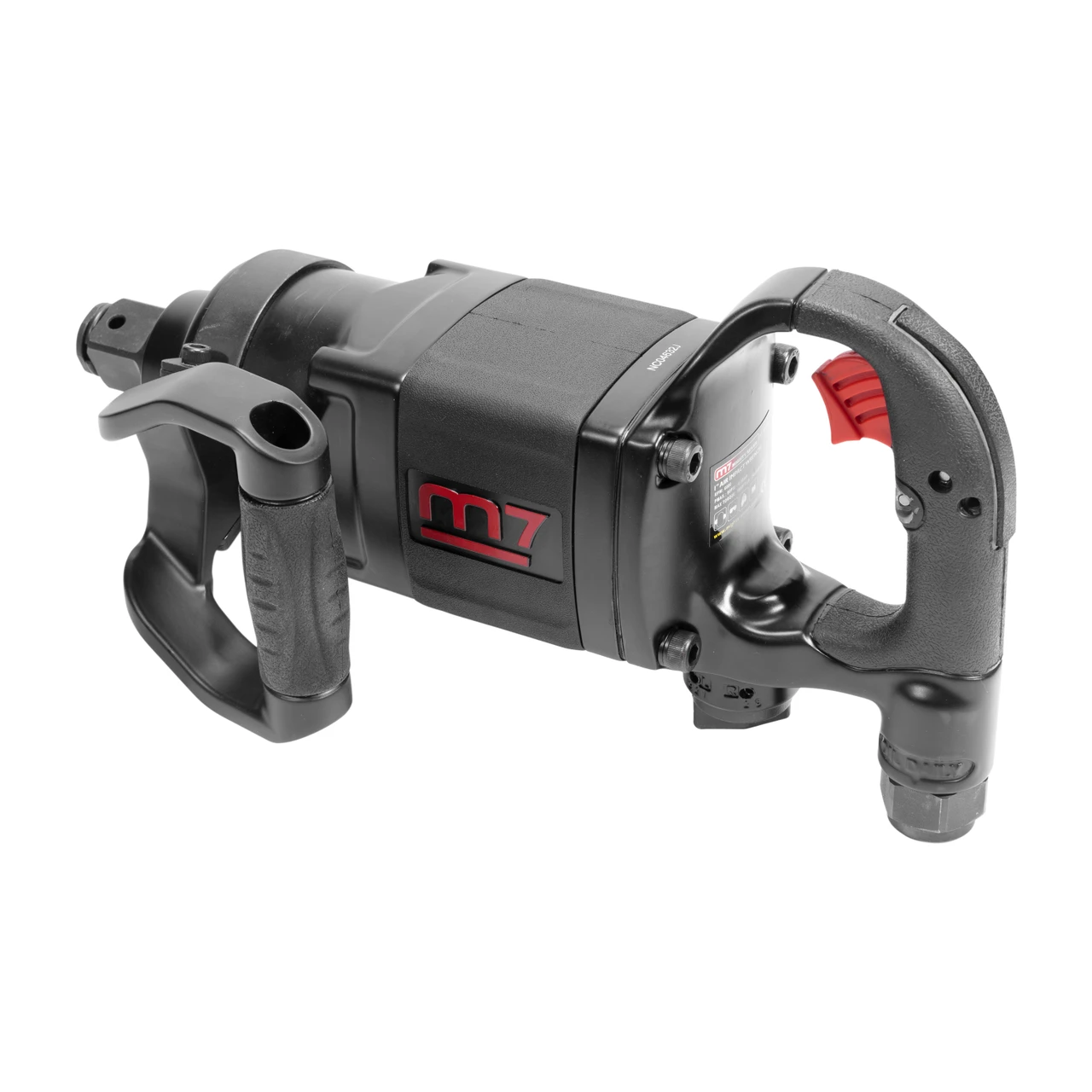

M7 NC-8216 1-Inch D-Handle Air Impact Wrench
The M7 NC-8216 combines a 1-inch drive with a rear D-handle and auxiliary holding point. Its 13.5-inch listed length and 15.5 lb weight help assess handling and working space before comparing the maximum reverse torque with the fastener-removal task.
Specifications and included details

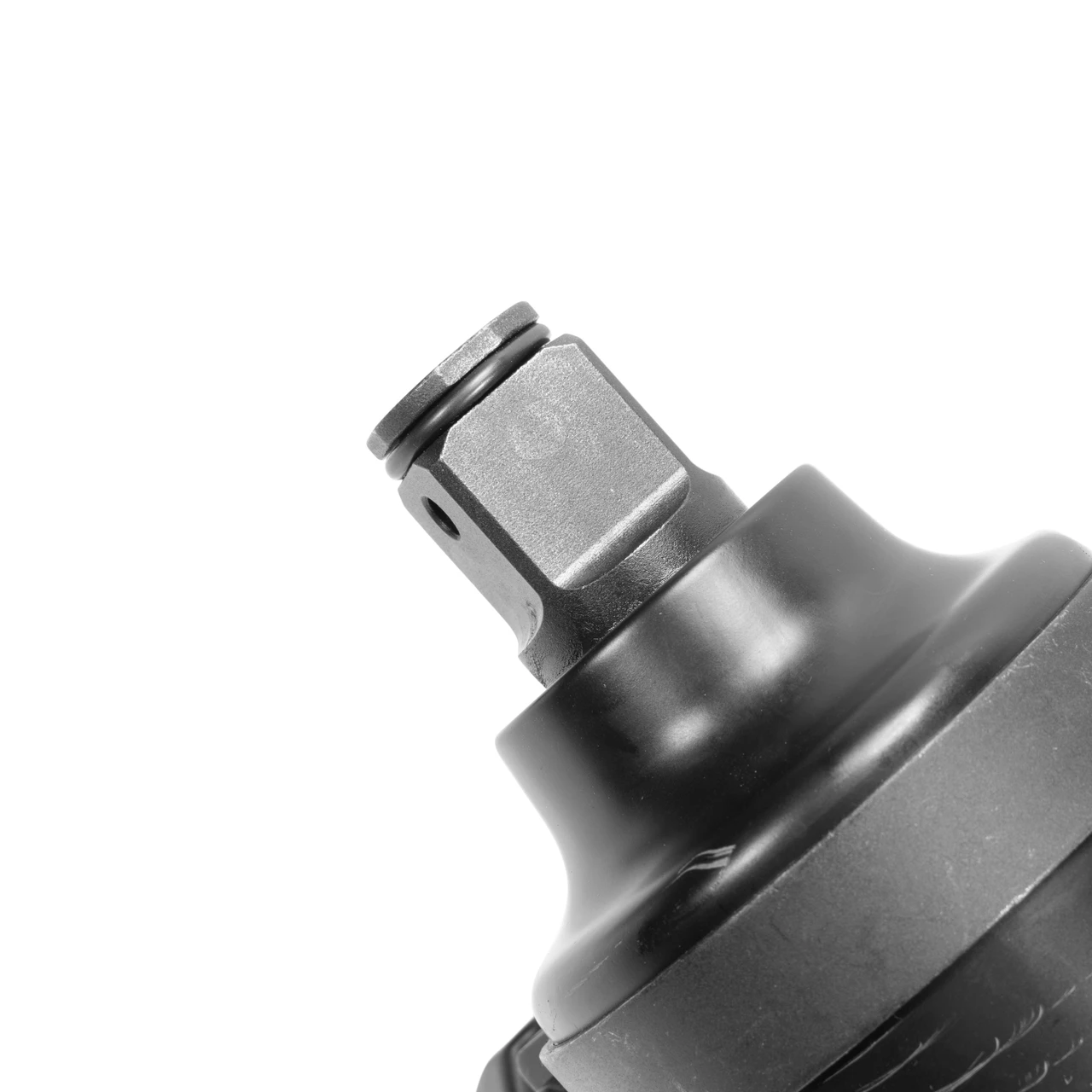

- 1-inch square drive, D-handle layout and twin-hammer design.
- 200–1,600 ft-lb forward torque; 1,800 ft-lb maximum reverse torque.
- 13.5-inch tool length, 15.5 lb weight and listed 1-3/8-inch bolt capacity.
- 6,000 RPM free speed, 9.0 CFM average consumption and 90 PSI specification.
Before ordering
Check the tool, socket and both holding positions against available clearance. Confirm hose and supply requirements in the model manual. A high reverse maximum does not guarantee removal of every corroded fastener or provide calibrated forward tightening.
Product questions and answers
Does this list an extended anvil length?
The supplied specifications identify drive and overall tool length but do not establish a separate extension length. Do not assume the long-anvil configuration of another M7 model.
Is 1,800 ft-lb available as a forward setting?
It is the listed maximum reverse torque. The forward range is 200–1,600 ft-lb, without calibrated per-setting torque values.
Is 9.0 CFM enough information to choose a compressor?
It is listed as average consumption. Check full operating demand, pressure and the hose arrangement for the intended work schedule.
