M7 NC-8266P 1-Inch Impact with Auxiliary D-Grip

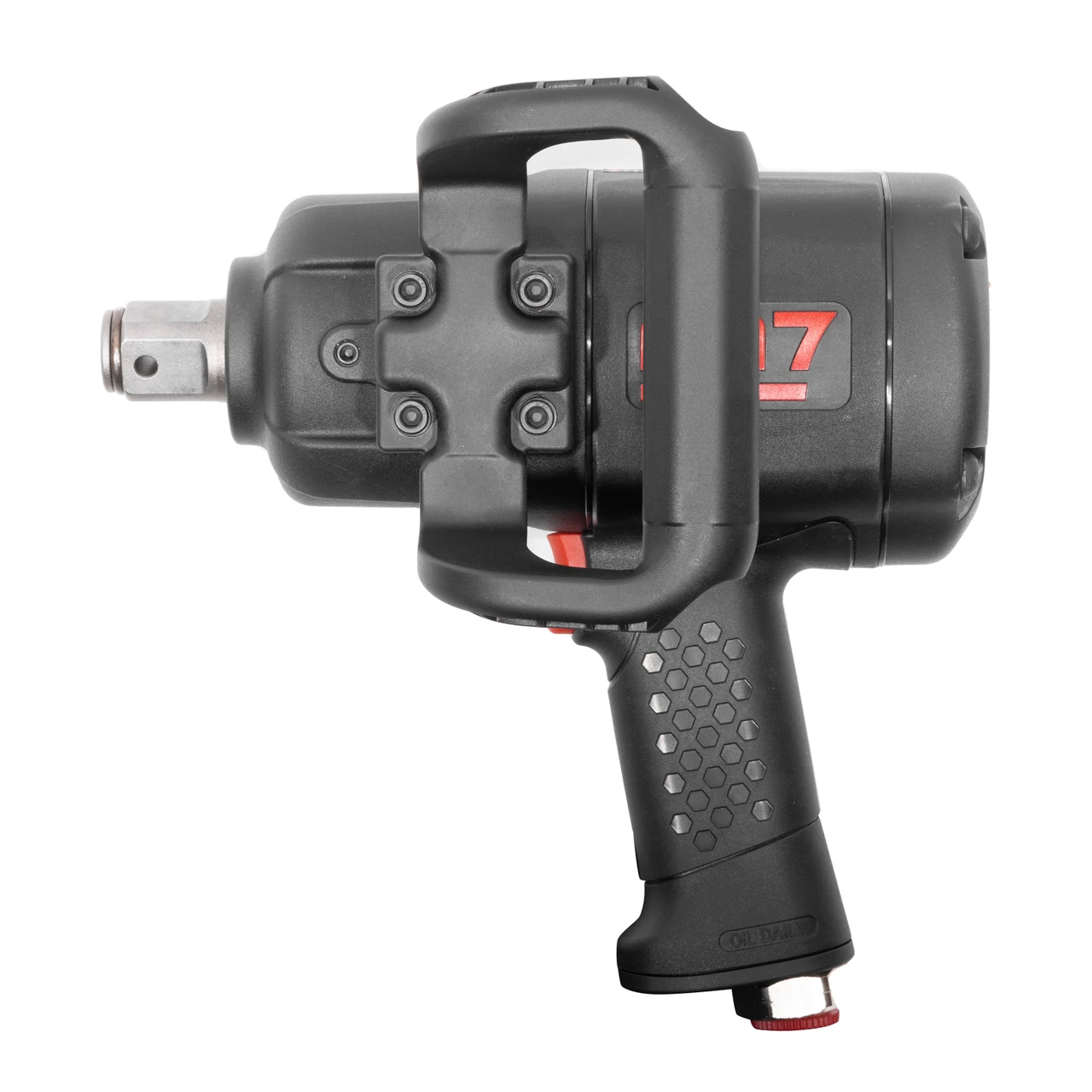

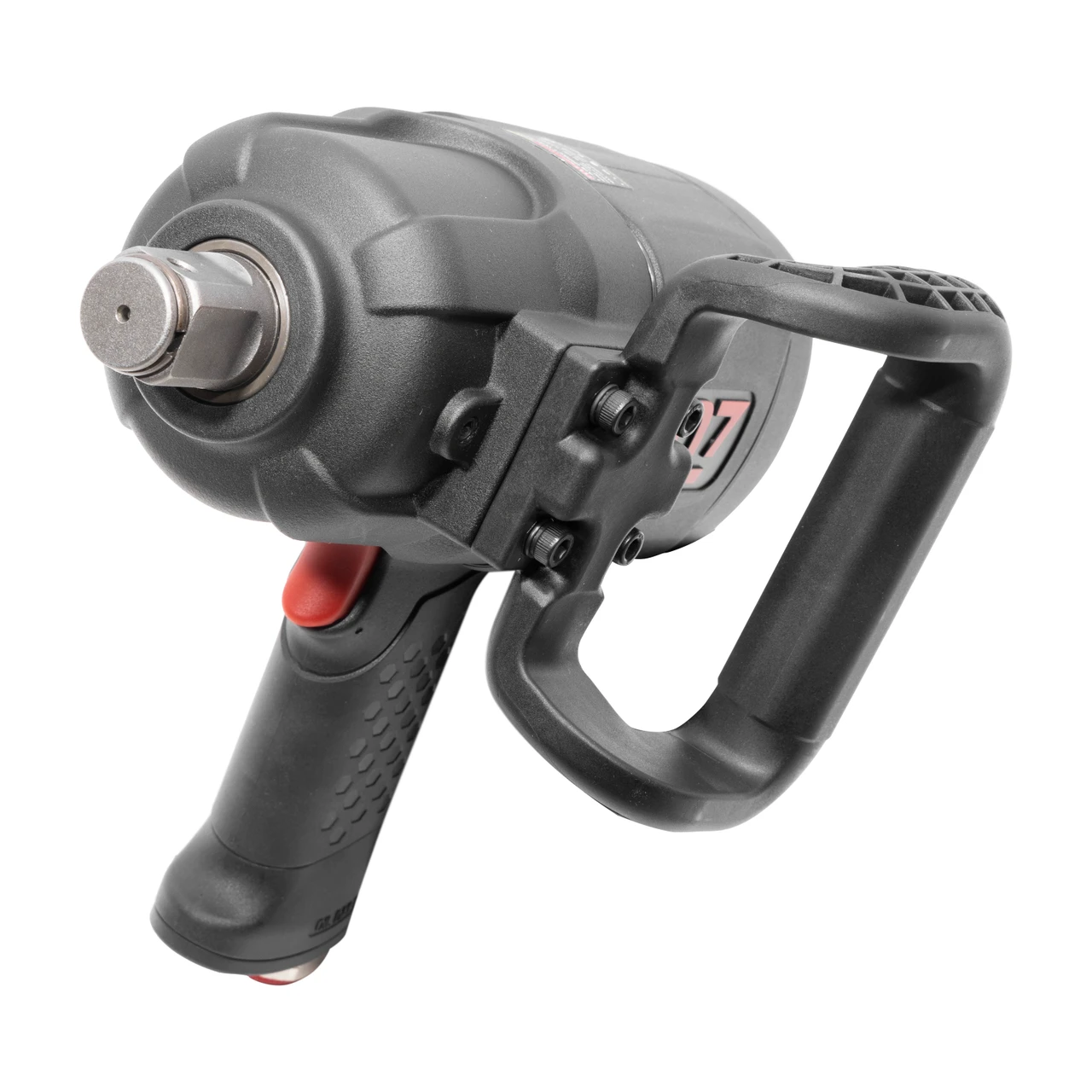

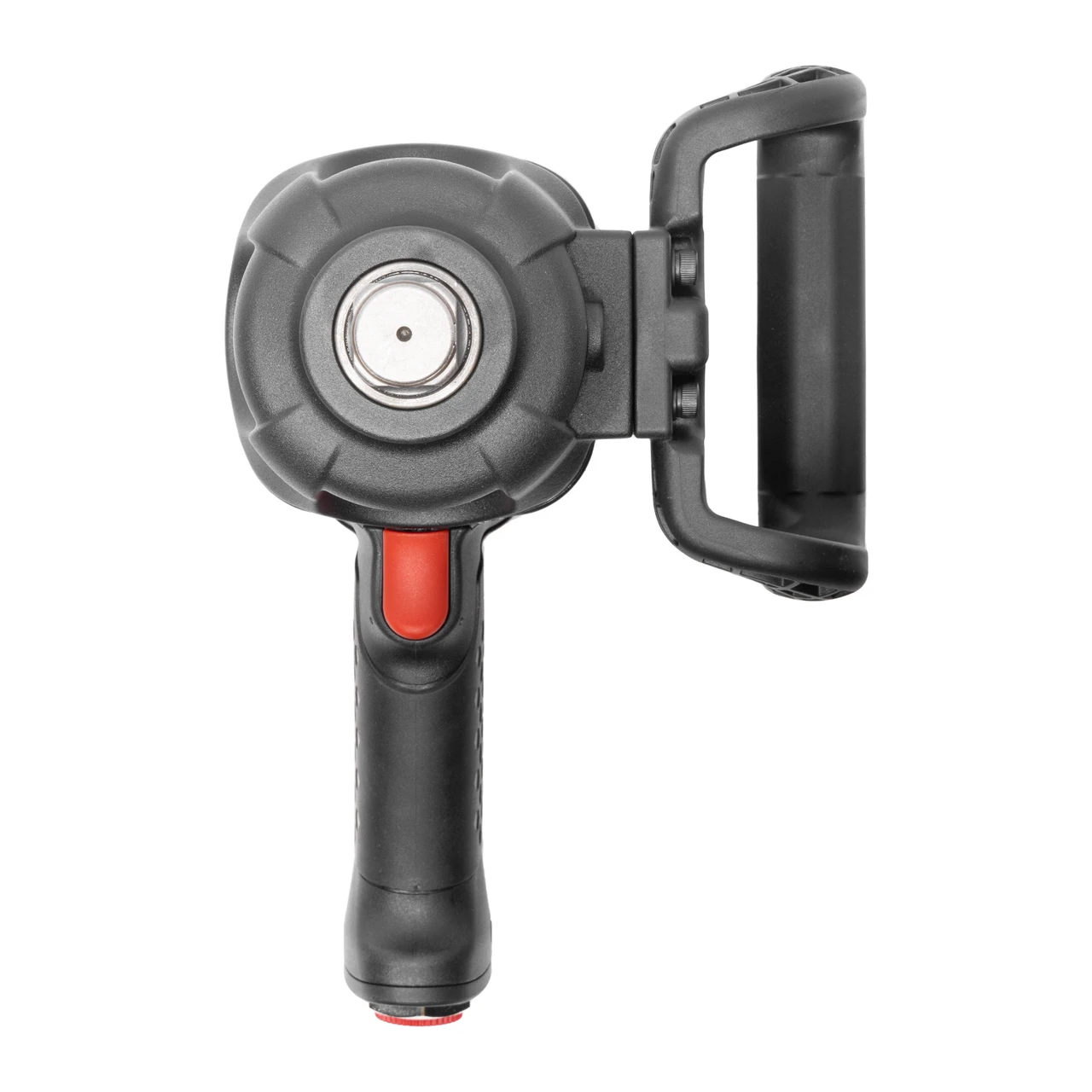

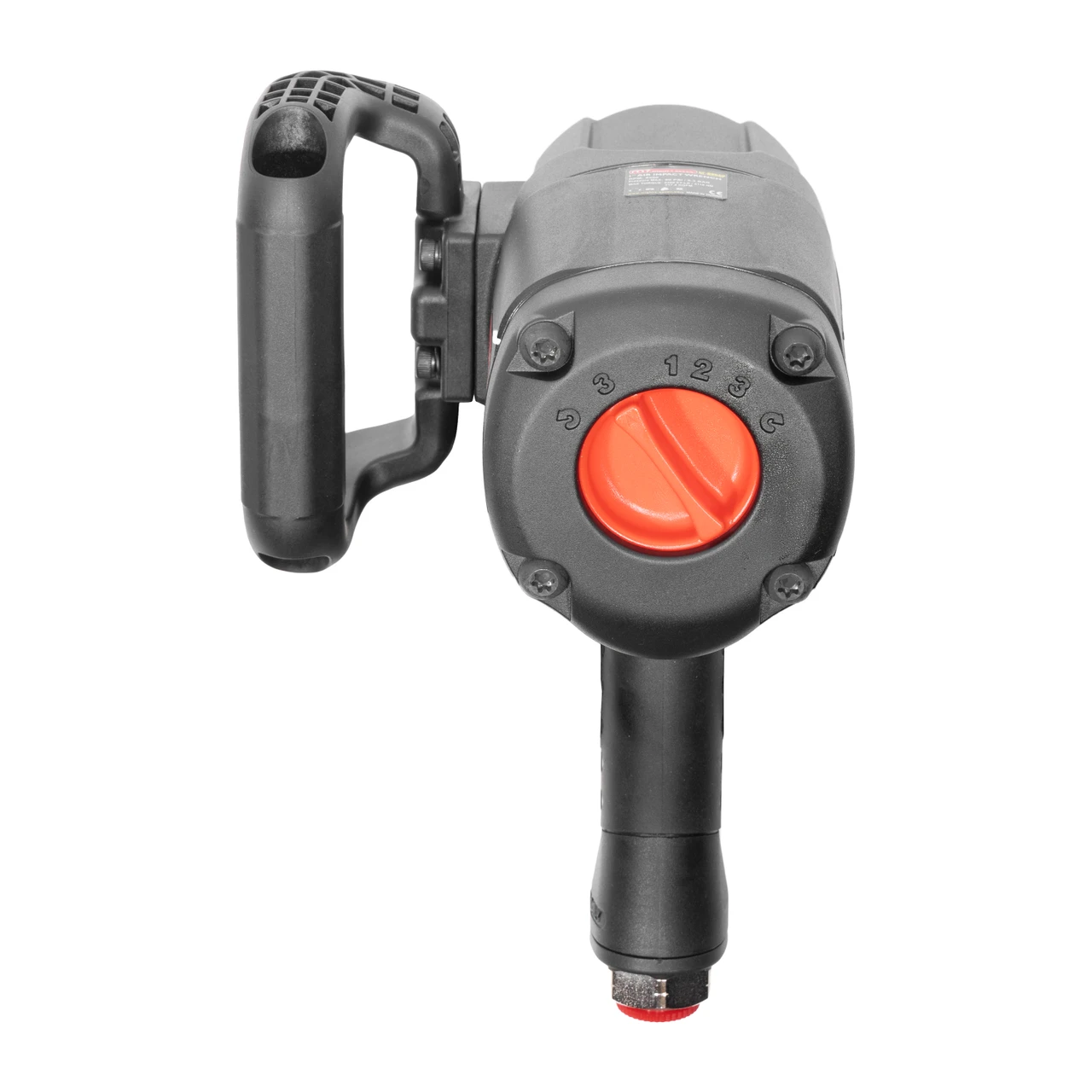

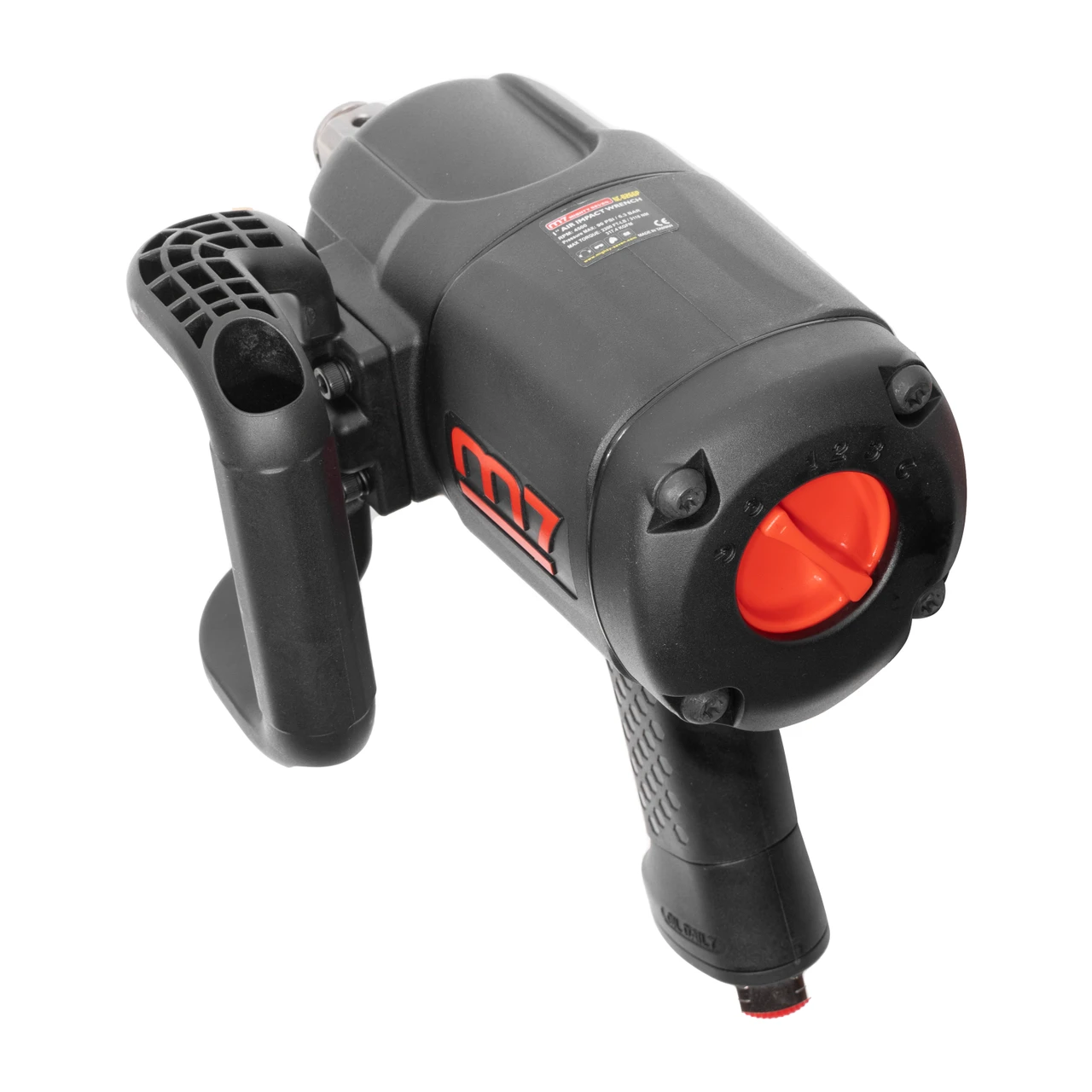

The M7 NC-8266P uses an auxiliary D-grip around a 1-inch-drive impact body to provide another holding position. Its 10-inch listed length and 13 lb weight matter when planning clearance and support for larger-drive work.
Specifications and included details
- 1-inch square drive, twin-hammer mechanism and auxiliary D-grip.
- 200–2,000 ft-lb forward torque; 2,300 ft-lb maximum reverse torque.
- 10-inch length, 13 lb weight, 9 CFM average consumption and 90 PSI specification.
Before ordering
Check socket and both grip positions against available space. Confirm sustained air demand and hose setup in the manual. Use a torque wrench to verify prescribed final tightening rather than relying on the impact maximum.
Product questions and answers
Does 2,300 ft-lb describe forward tightening?
No. It is listed as maximum reverse torque. Forward torque is given separately as 200–2,000 ft-lb.
Is an extended anvil included?

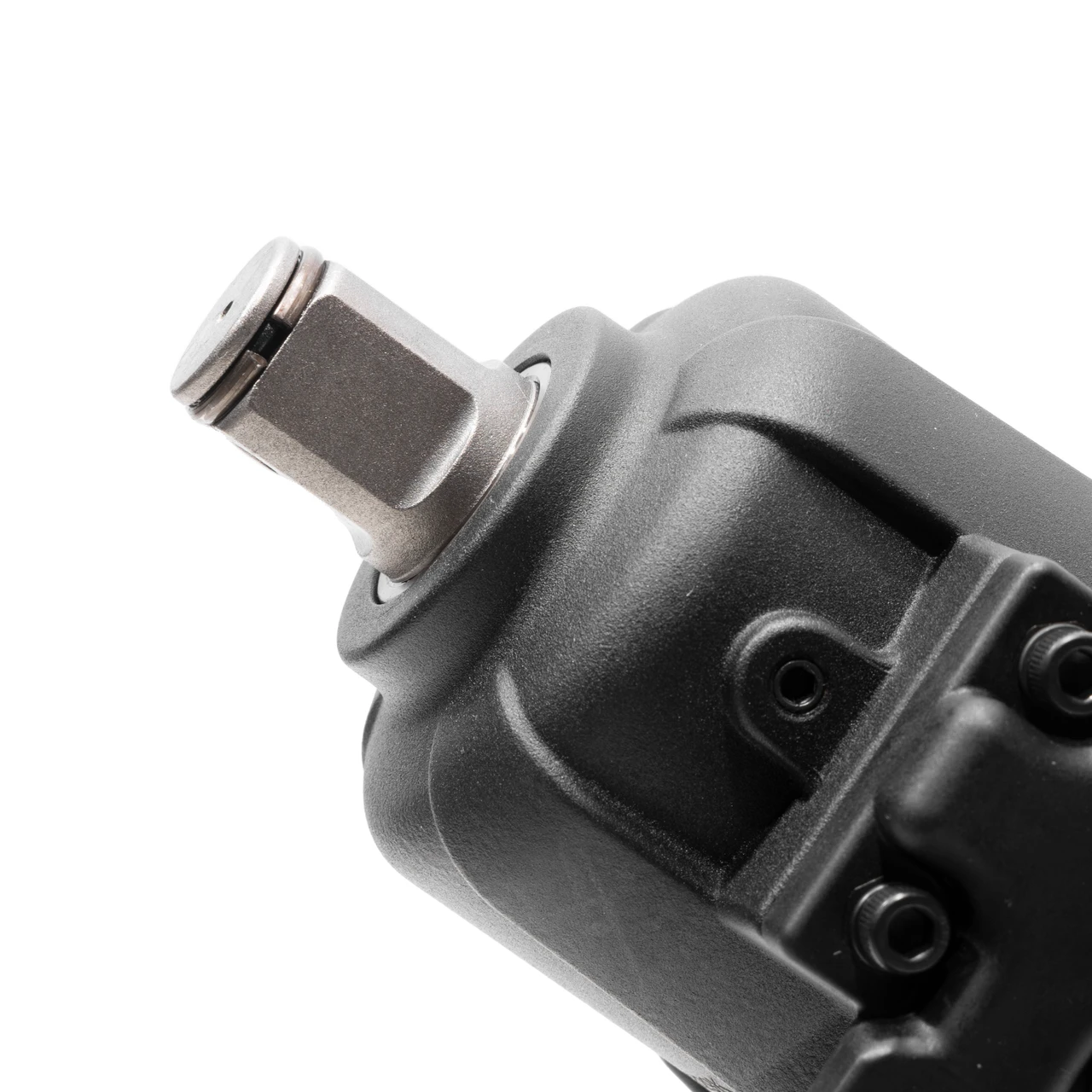

The listing establishes a 1-inch drive but does not specify an extended-anvil length. Do not transfer that configuration from another model.
