M7 1/4"" Pneumatic Impact Wrench 2 Extension Bars And 6 Metric Sockets (NC-2210N)

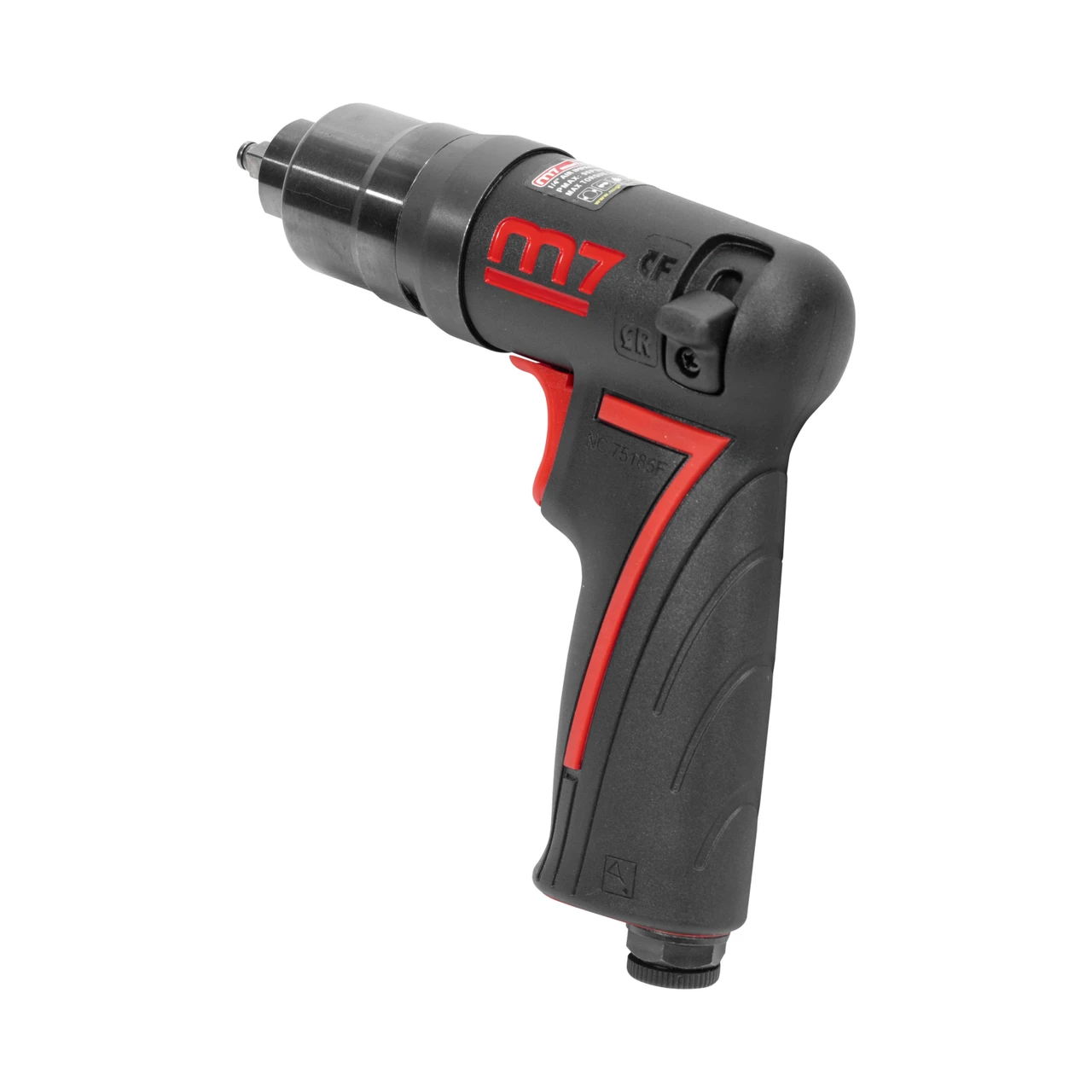

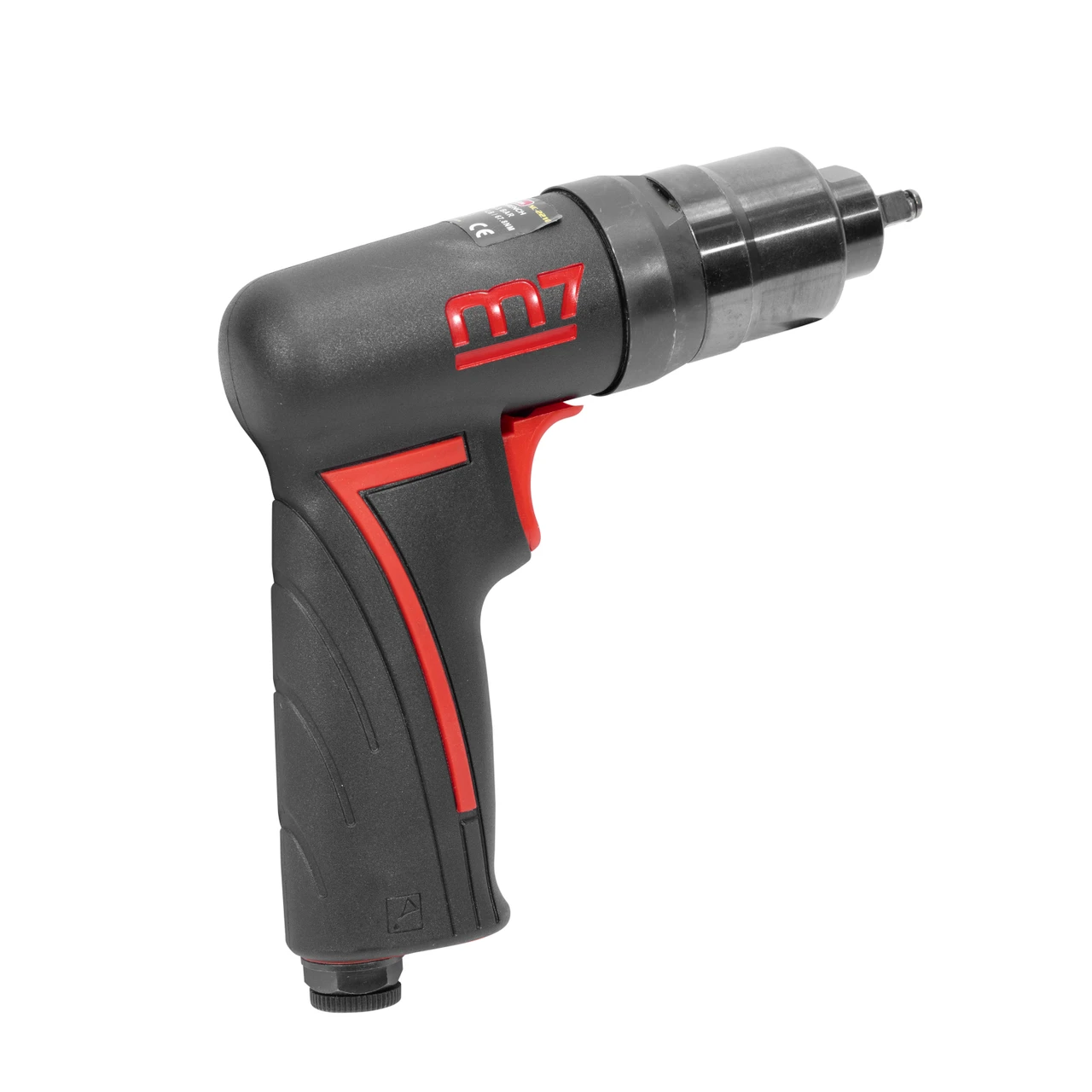

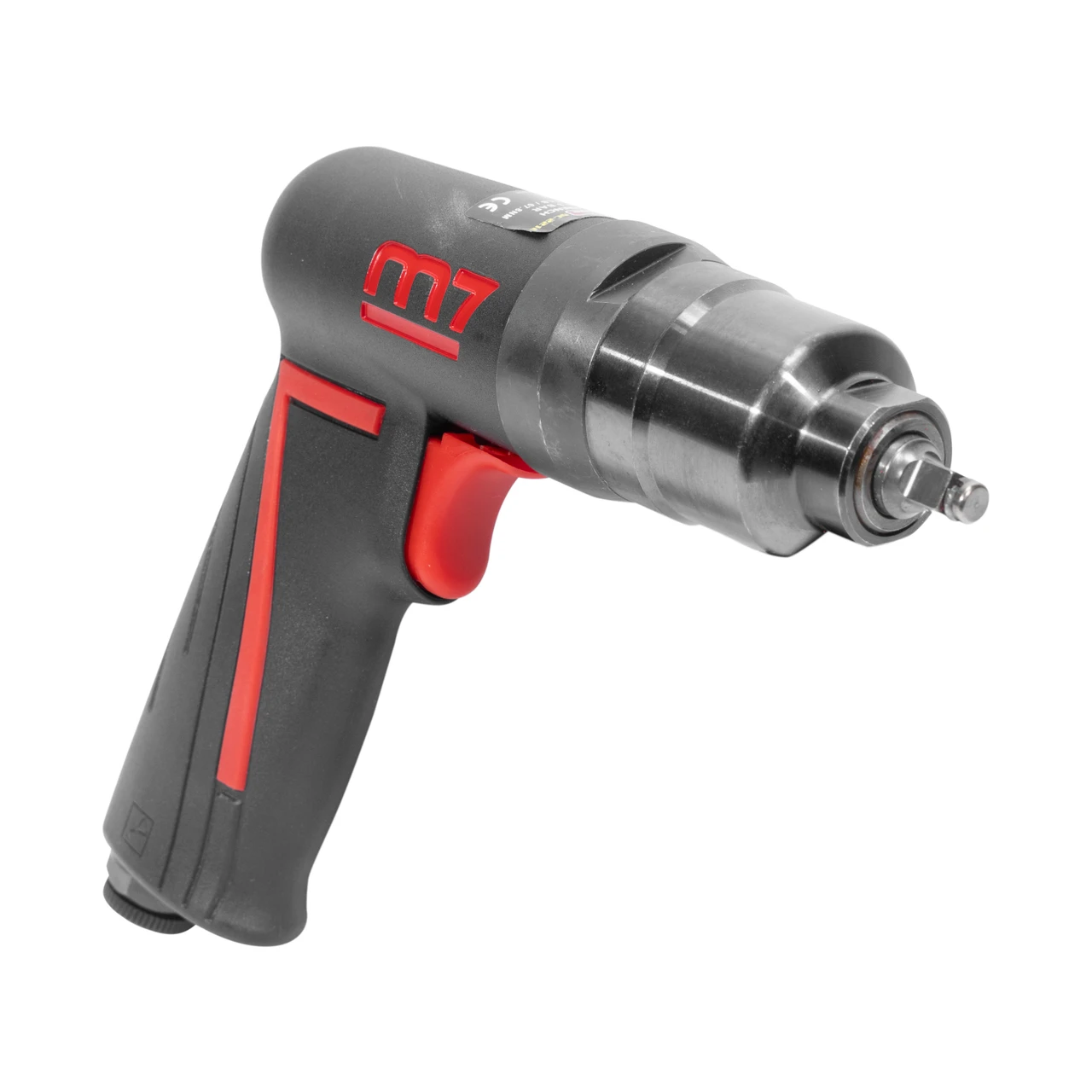

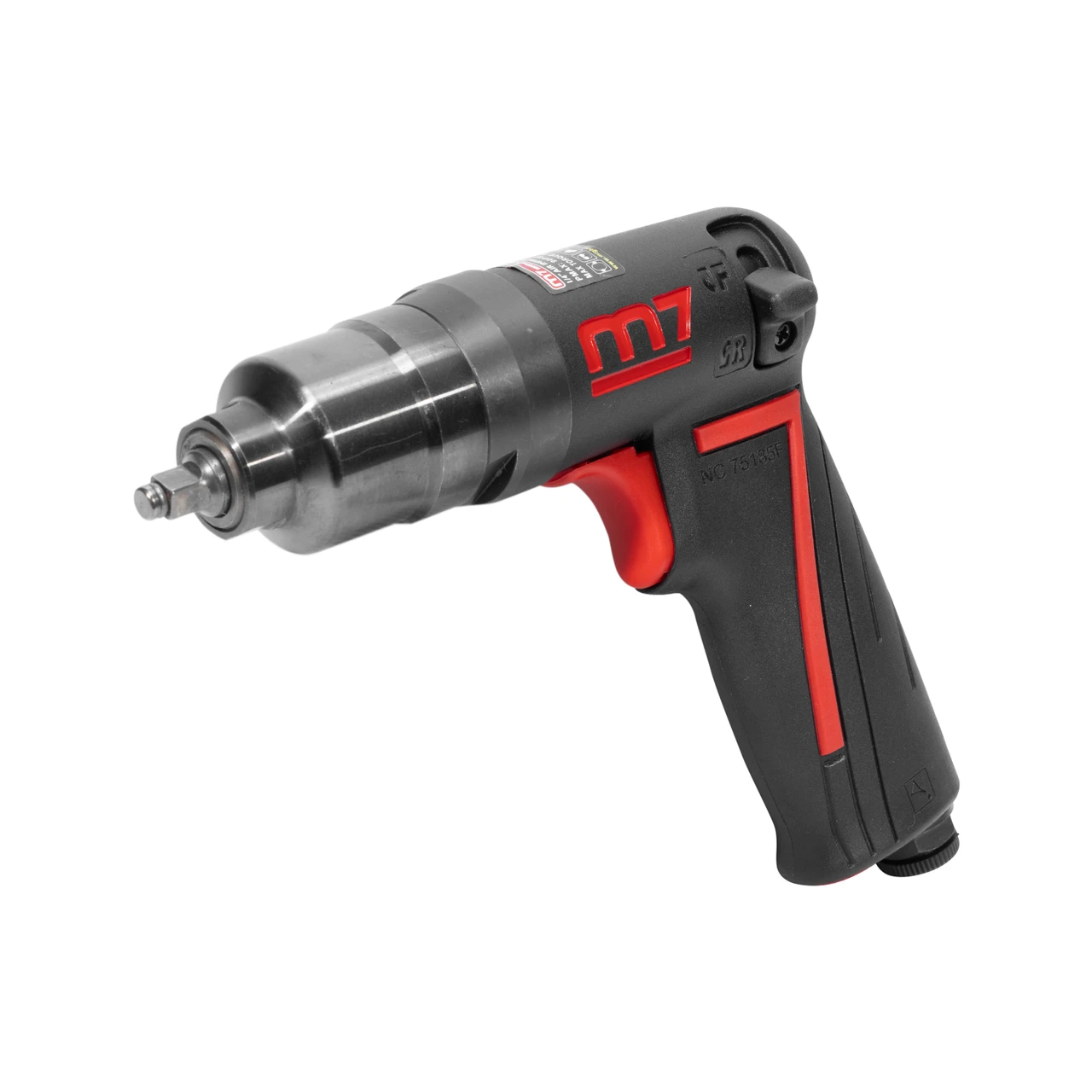

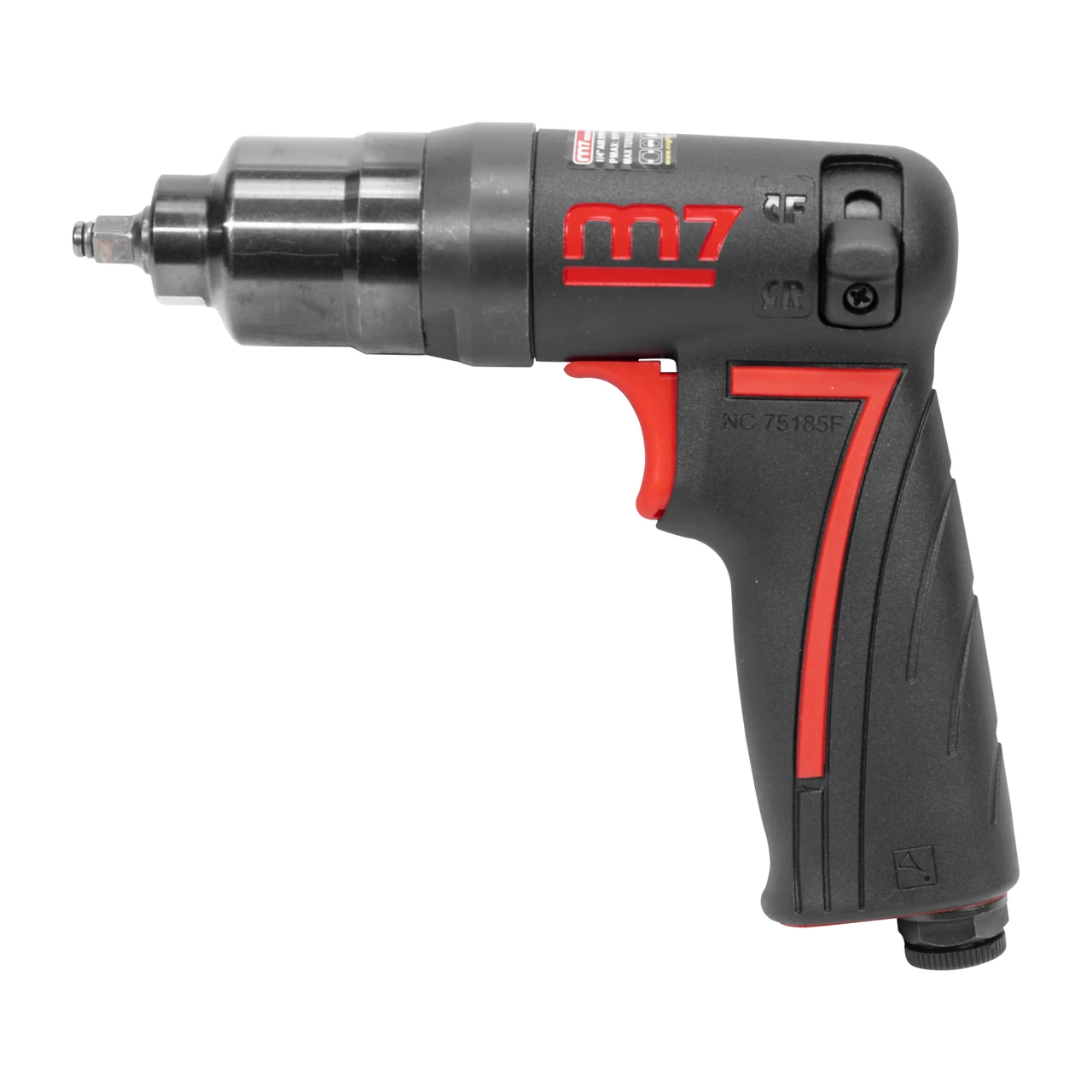

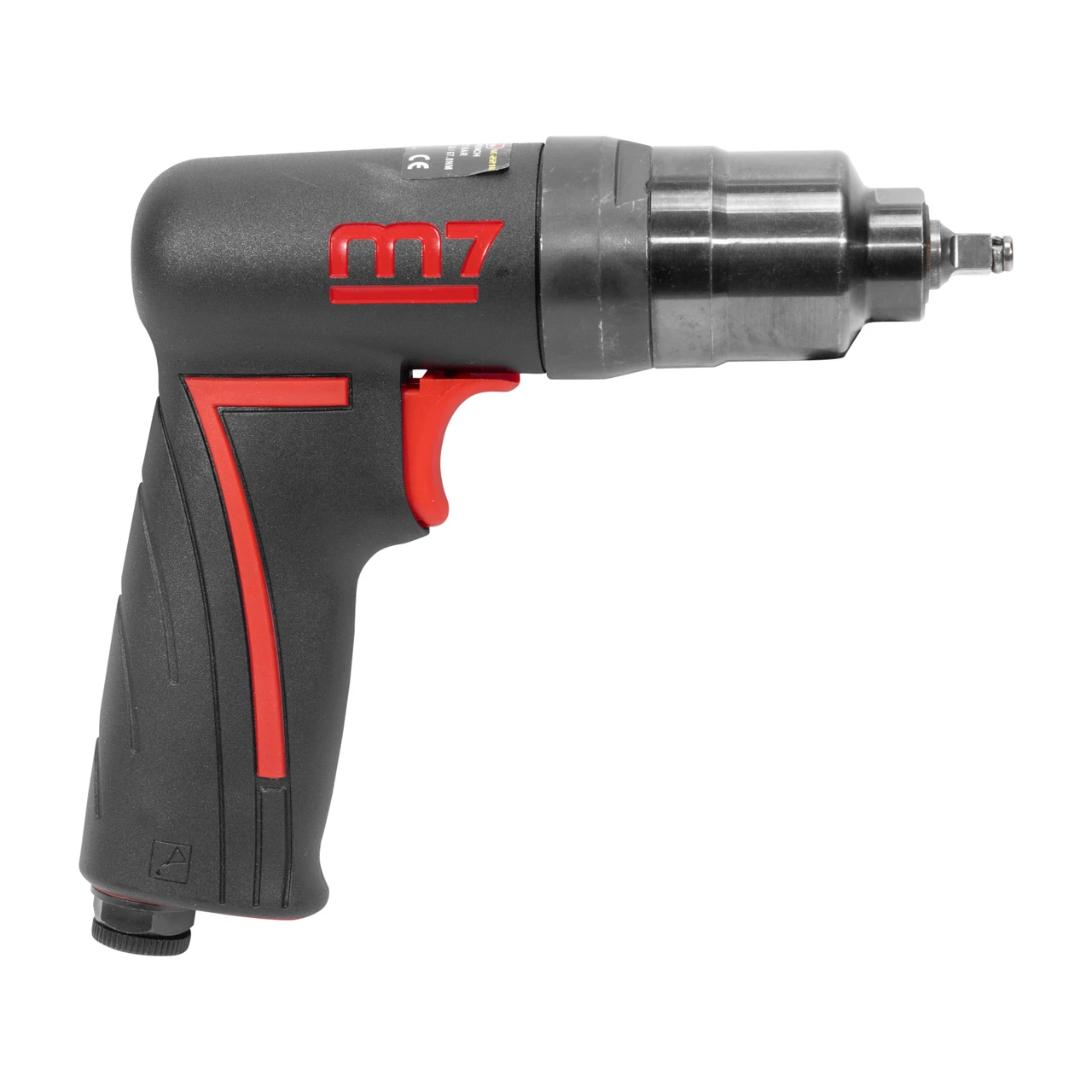

The M7 NC-2210N air impact wrench has a 1/4” drive. It is part of a product kit with six metric impact sockets from 9mm to 13mm. This air tool has a maximum forward torque of 45 ft-lb and a reverse torque of 50 ft-lb. This pneumatic impact wrench is great for attaching and loosening fasteners in various repair and maintenance settings.
A twin dog clutch helps drive the NC-2210N. This mechanism couples two rotating shafts that use interlocking teeth, aka “dogs.” With one pushing the other, these shafts rotate at the same speed without slipping. This prevents the twin dog clutch from wearing the way that friction clutches do. This quality has made these clutch mechanisms known for their strength and durability.
KEY FEATURES & BENEFITS:
M7 NC-2210N air impact wrench with 1/4” drive and tool kit
Used for various repair and maintenance tasks

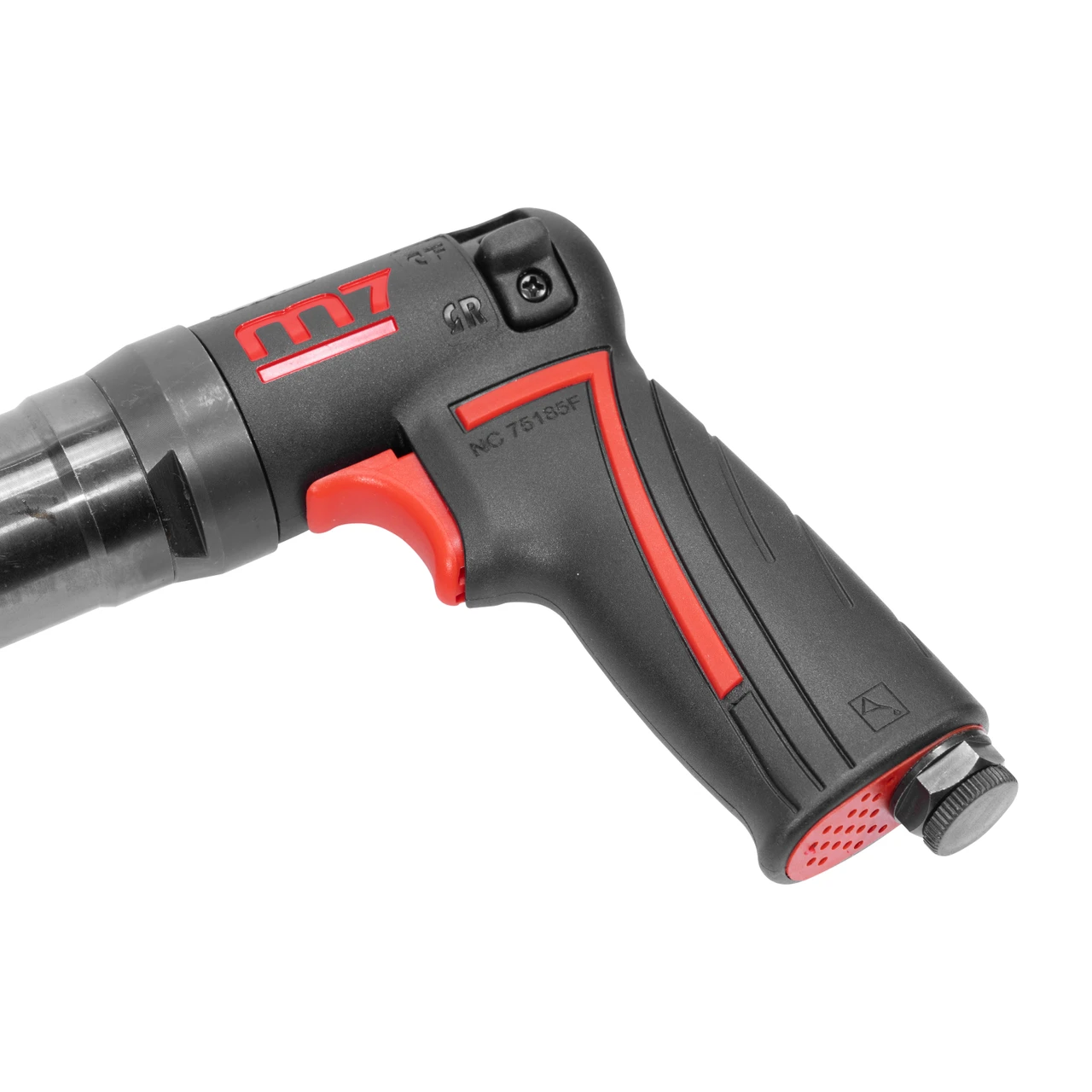

Thumb-operated forward reverse switch on rear left side of tool
Forward/Reverse Max. Torque: 45 ft-lb/50 ft-lb
Twin dog clutch eliminates slipping for smooth operation
Rubber grip reduces vibration and increases user comfort

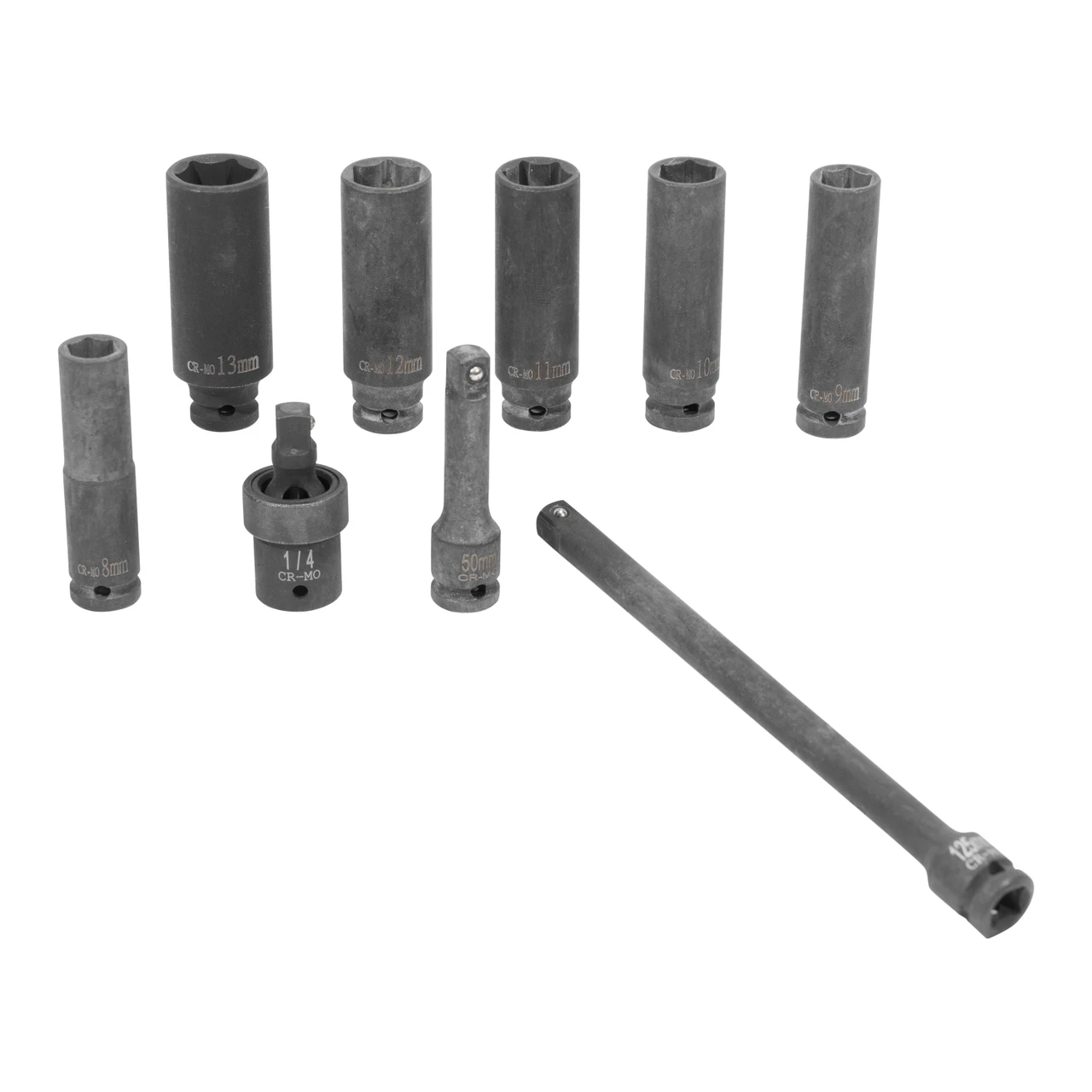

One (1) Air impact wrench
One (1) 8mm impact socket
One (1) 9mm impact socket
One (1) 10mm impact socket
One (1) 11mm impact socket
One (1) 12mm impact socket
One (1) 13mm impact socket
One (1) 50mm extension bar
One (1) 125mm extension bar
One (1) universal joint
One (1) 1/4" air inlet

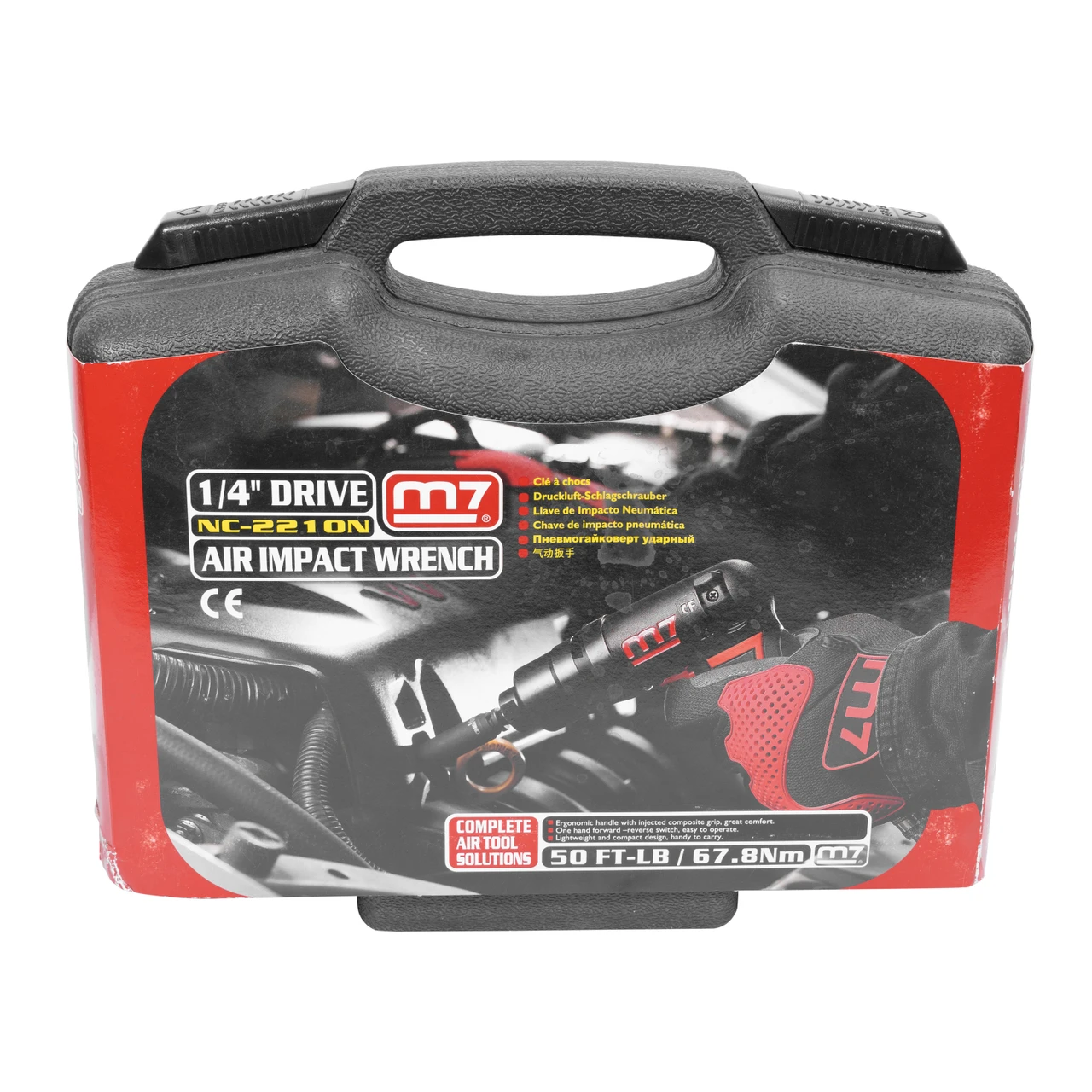

One (1) plastic tool case
TECHNICAL SPECS:
Tool Type: Air impact wrench
Manufacturer: M7
Tool Length: 6.53” (166 mm)
Tool Weight: 1.4 lb (0.65kg)
Drive: 1/4” square
Bolt Capacity: M5
Forward Torque: 4-45 ft-lb (6-61Nm)
Max. Reverse Torque: 50 ft-lb (67.8 Nm)
Free Speed: 11,000 RPM
Average Air Consumption: 1.8 CFM (51 L/min)
Air Pressure: 90 PSI (6.3 bar)
Sound Pressure: 77.0 dBA
Vibration Level: 1.8 m/s²
Product identification
- Brand: M7
- Model / MPN: NC-2210N
