Lisle Manifold Drill Template for Duramax 6.6L Diesel (72400)
The Lisle Manifold Drill Template for Duramax 6.6L Diesel (72400) is a specialized tool designed to efficiently and safely remove broken exhaust manifold bolts on Duramax 6.6L diesel engines. This tool is essential for mechanics and DIY enthusiasts who encounter this common issue.
KEY FEATURES AND BENEFITS:
Precision Drilling: The template ensures accurate drilling to extract broken bolt fragments without damaging the cylinder head.
Easy-to-Use Design: Tapered bolts and a slip-fit bushing simplify the positioning and alignment of the template over the bolt holes.
Safety First: The included drill depth gauge prevents accidental drilling into the water jacket, safeguarding the engine's integrity.
Comprehensive Solution: The tool comes with a screw extractor for removing broken bolts and a bushing for drilling to tap size when the extractor is insufficient.
Compatibility: Duramax 6.6L diesel engines
Material: High-quality steel

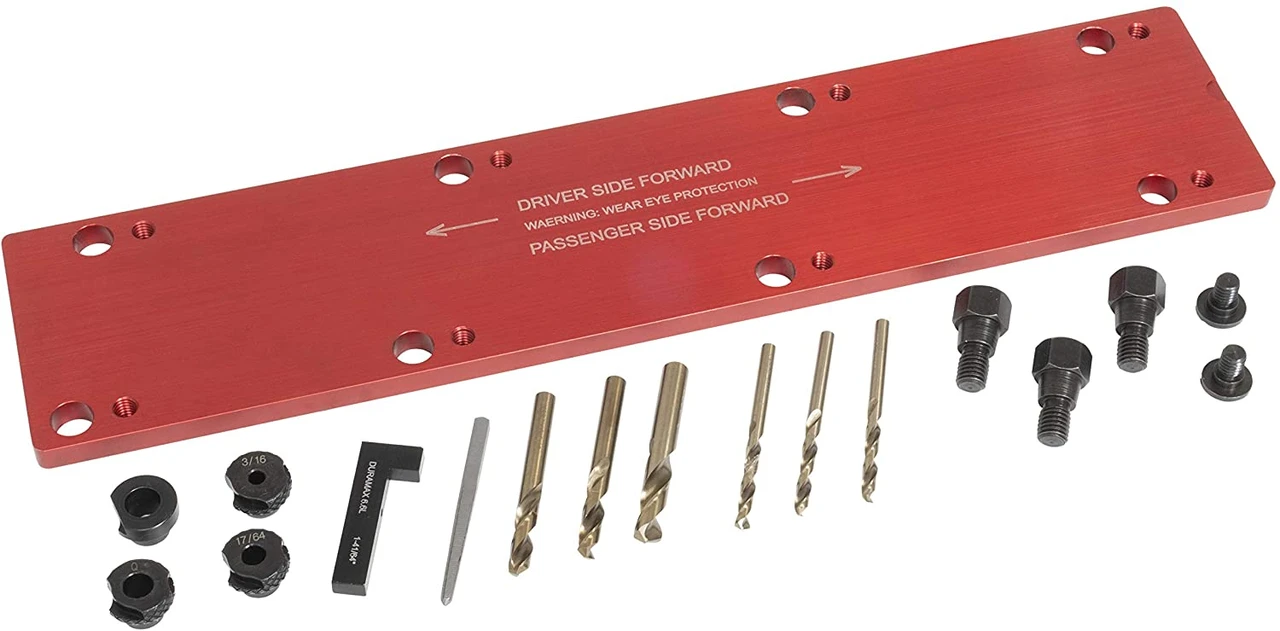

Includes: Drill template, tapered bolts, slip-fit bushing, drill depth gauge, screw extractor, and tap size bushing

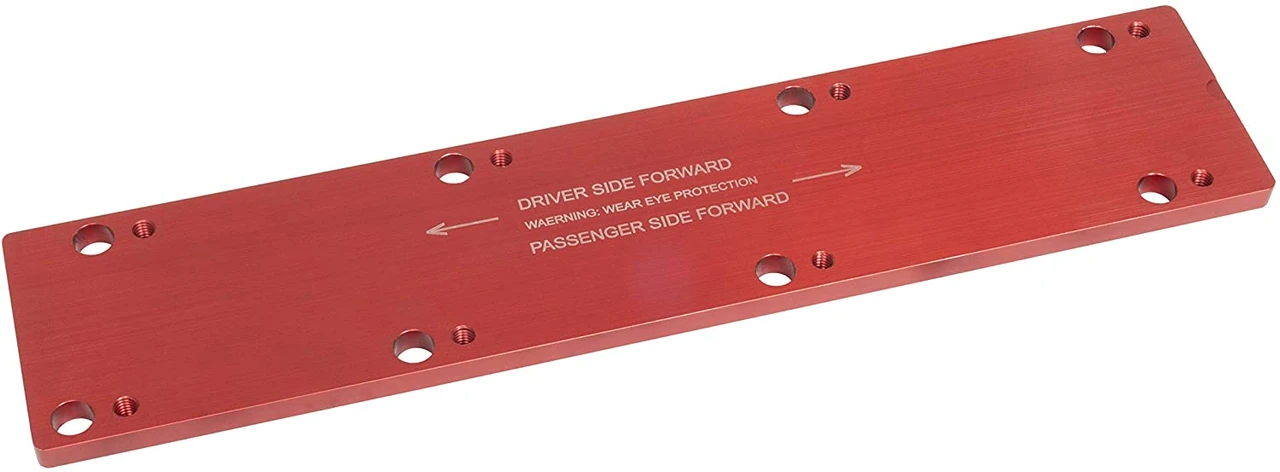

Position the Template: Align the tapered bolts with the damaged bolt holes and secure the base plate.

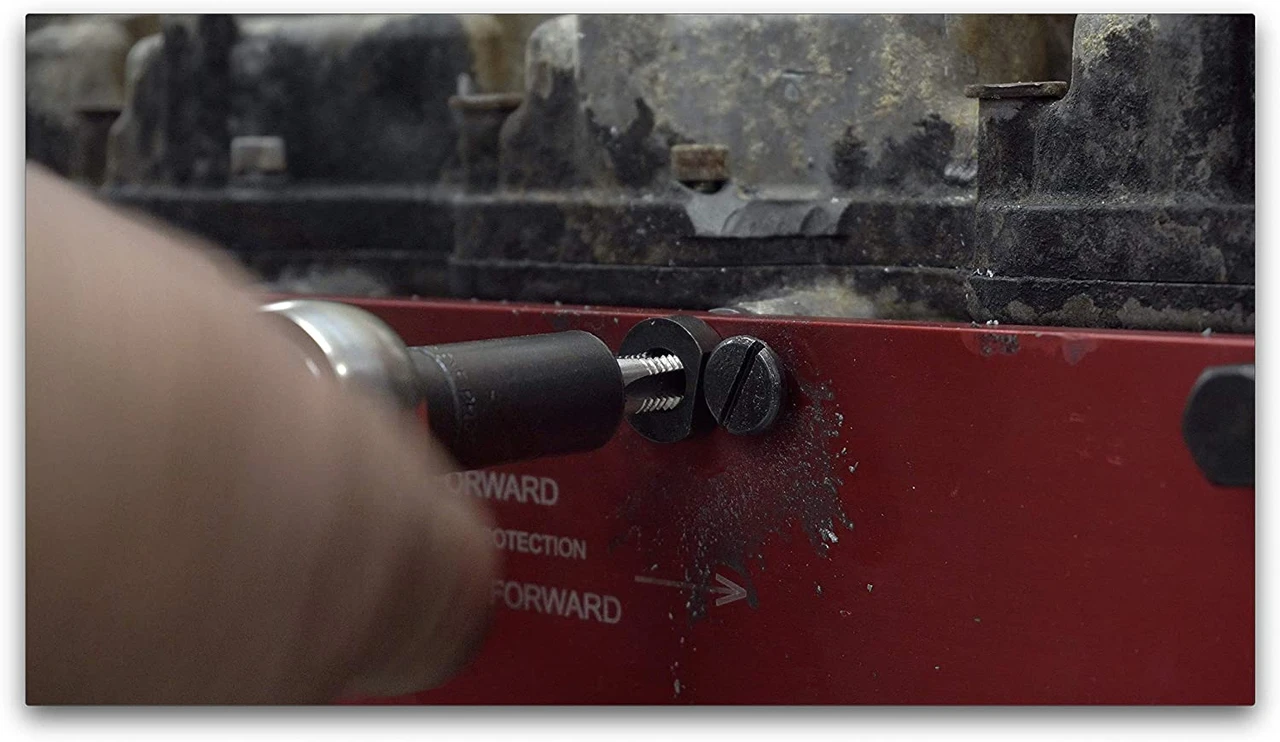

Drill Accurately: Use the drill depth gauge to ensure controlled drilling, preventing damage to the water jacket.
Extract Broken Bolts: Employ the screw extractor to remove the broken bolt fragments.
Drill for Tapping (if necessary): If the extractor is ineffective, use the included bushing to drill to the appropriate tap size.
BENEFITS OF USING LISLE MANIFOLD DRILL TEMPLATE FOR DURAMAX 6.6L DIESEL (72400):
Efficient Repair: Saves time and labor by providing a streamlined solution for removing broken bolts.
Prevents Damage: Protects the cylinder head from costly damage during the repair process.
Professional-Grade Tool: Ensures accurate and precise results, meeting the standards of professional mechanics.
Tapered bolts for precise alignment.
Slip-fit bushing for easy positioning.

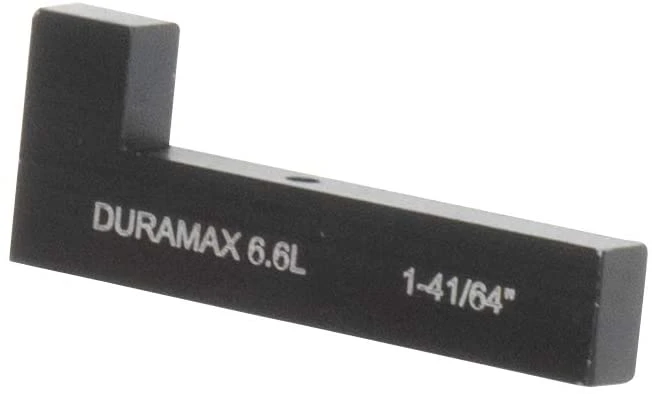

Drill depth gauge for controlled drilling.
Screw extractor for removing broken bolts.
Tap size bushing for additional repair options.
Product identification
- Brand: Lisle
- Model / MPN: 72400
