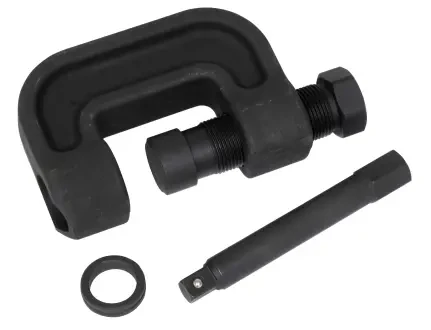

LISLE Brake Anchor Pin Press (30110)
Brake Anchor Pin & Bushing Remover Tool for 16-1/2” S-Cam “Q” Brake Systems

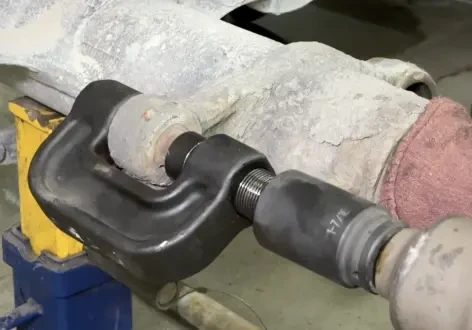

Easily and safely remove brake anchor pins and bushings at the same time on most 16-1/2” S-Cam “Q” brake systems found on Class 6–8 trucks and trailers.

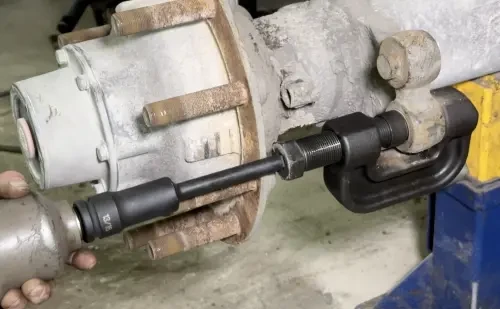

Built for strength and durability, this tool features a rigid C-frame made from high-grade steel and delivers up to 10 tons of force. The included 5-3/4” extension allows for use without removing the hub or dust shield, saving time on the job.
For most 16-1/2” S-Cam “Q” brake systems (Class 6–8 vehicles)
Heavy-duty steel C-frame with 10-ton capacity
5-3/4” extension for in-place operation
1-7/16” hex drive on pusher rod
13/16” hex drive on extension
Perfect for professional mechanics working on heavy-duty brake systems.
Product identification
- Brand: Lisle
