Launch TPMS sensor tool details

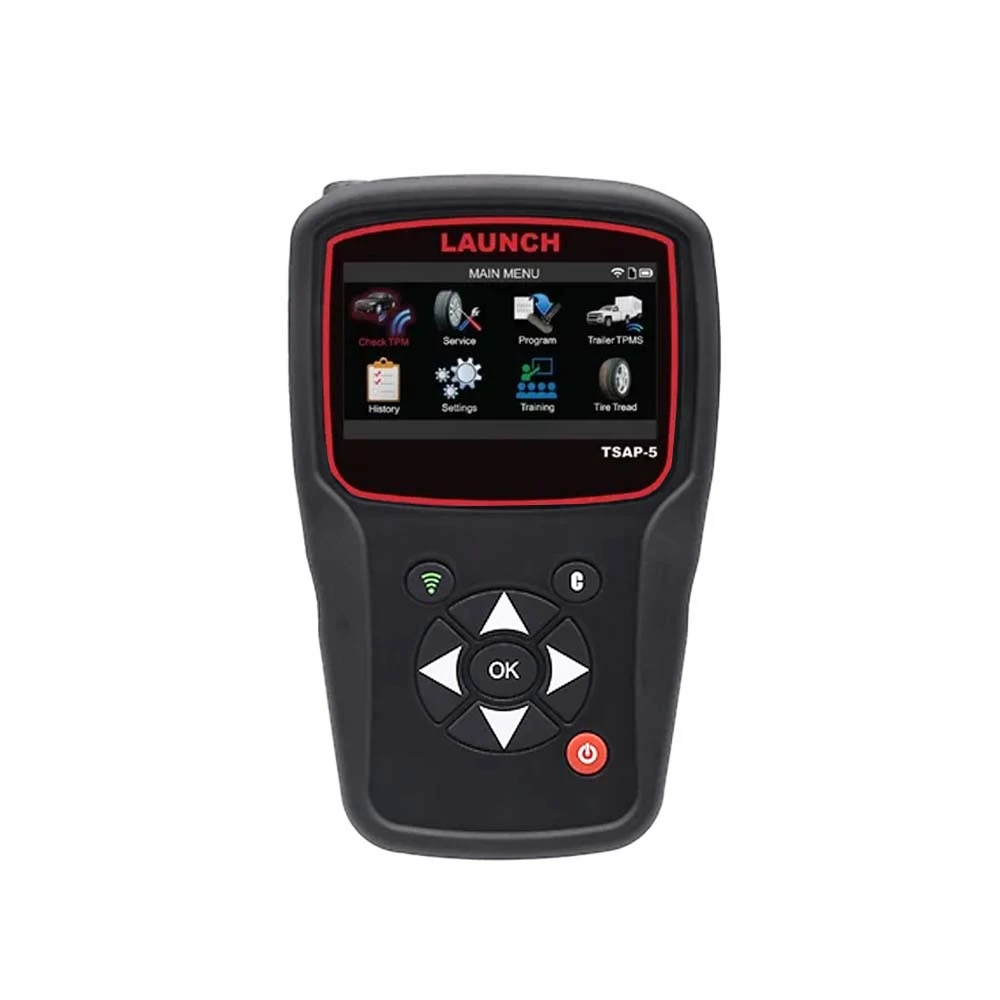

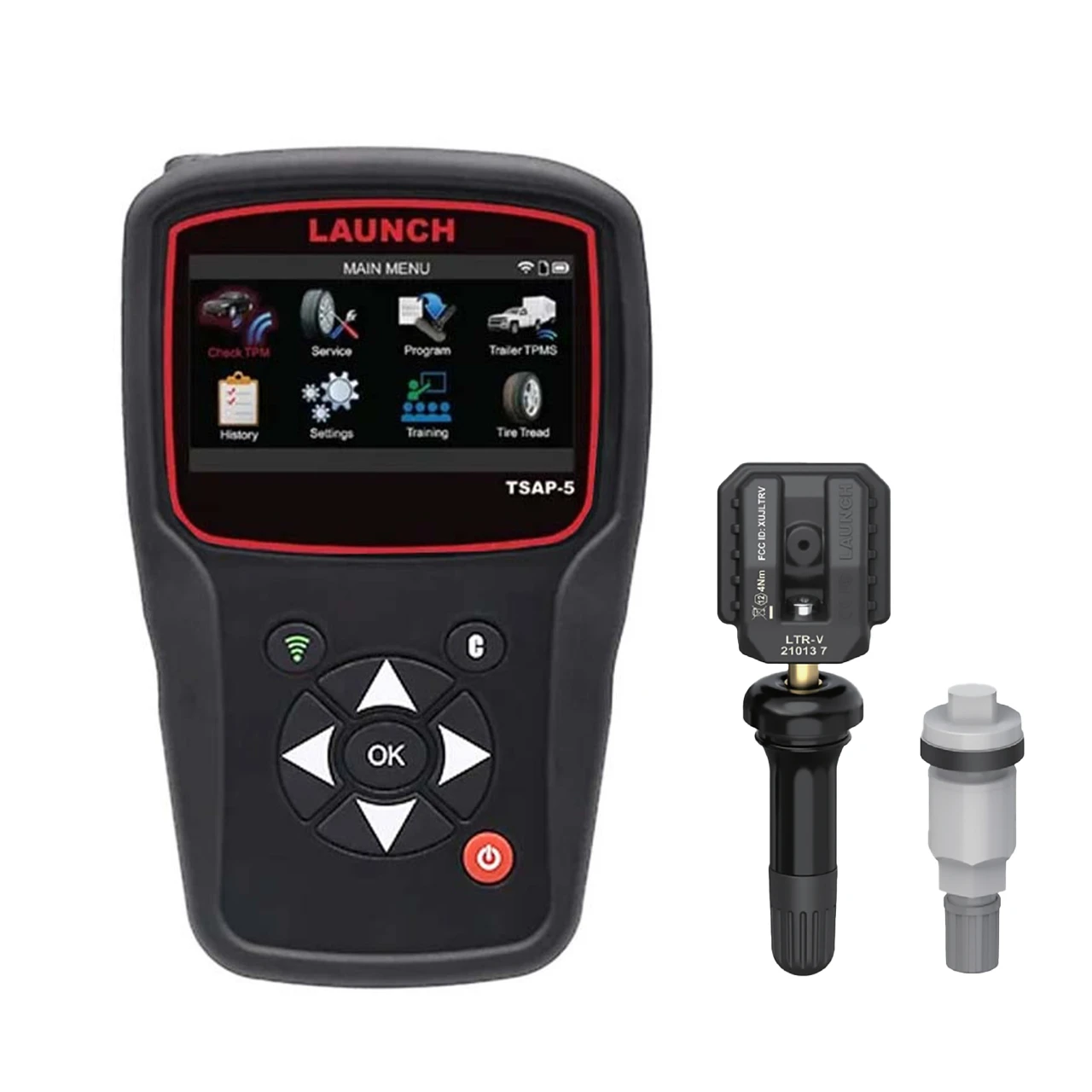

Launch TSAP-5 TPMS Tool with Advanced Diagnostic Capabilities (302020533) + Free 10 LTR TPMS Sensors (TSAP5-10KIT)
The Launch TSAP-5 Touchscreen TPMS Tool is a comprehensive solution designed for technicians who need reliable and accurate tire pressure monitoring service. With its user-friendly touchscreen interface, wide vehicle coverage, and strong diagnostic capabilities, the TSAP-5 ensures technicians can perform service right the first time, every time.
Free Tool: (10) LTR TPMS Sensors
Touchscreen interface for easy operation
Make, Model, Year lookup via VIN scan
Activates all OEM sensors and displays complete sensor data
Worldwide vehicle coverage with regular updates
Supports both manual and OBDII relearn resets
Programs all leading aftermarket sensor brands
On-screen TPMS relearn procedures
Indicates OE sensor and service kit part numbers
Displays TPMS data for up to 7 tires simultaneously
Placard adjustment support
Wi-Fi updating capability
DOT manual recording
Read/Clear TPMS DTC codes
Tire tread depth functionality (accessory sold separately)
Battery Type: Rechargeable Li-Po 4.2V 3000mAh
Battery Life: Approximately 1,000 activations per full charge
Dimensions (L x W x D): 20.0 cm x 12.0 cm x 4.0 cm (7.9" x 4.7" x 1.6")
Case Material: High impact ABS
Response Frequency: 315 MHz and 433.92 MHz (supports most specific frequencies)
Low Battery Indication: LCD bar graph display
Weight: Approx. 2 lbs.
Operating Temperature: -20°C to +45°C (-4°F to 131°F)
Storage Temperature: -20°C to +45°C (-4°F to 131°F)
Maximum Operating Altitude: 3000 m (10,000 ft)
Environment: Indoor/Outdoor use, <80% humidity
Product identification
- Brand: Launch
- Model / MPN: TSAP5-10KIT
TPMS tool kit: see the listed specifications for this model.
