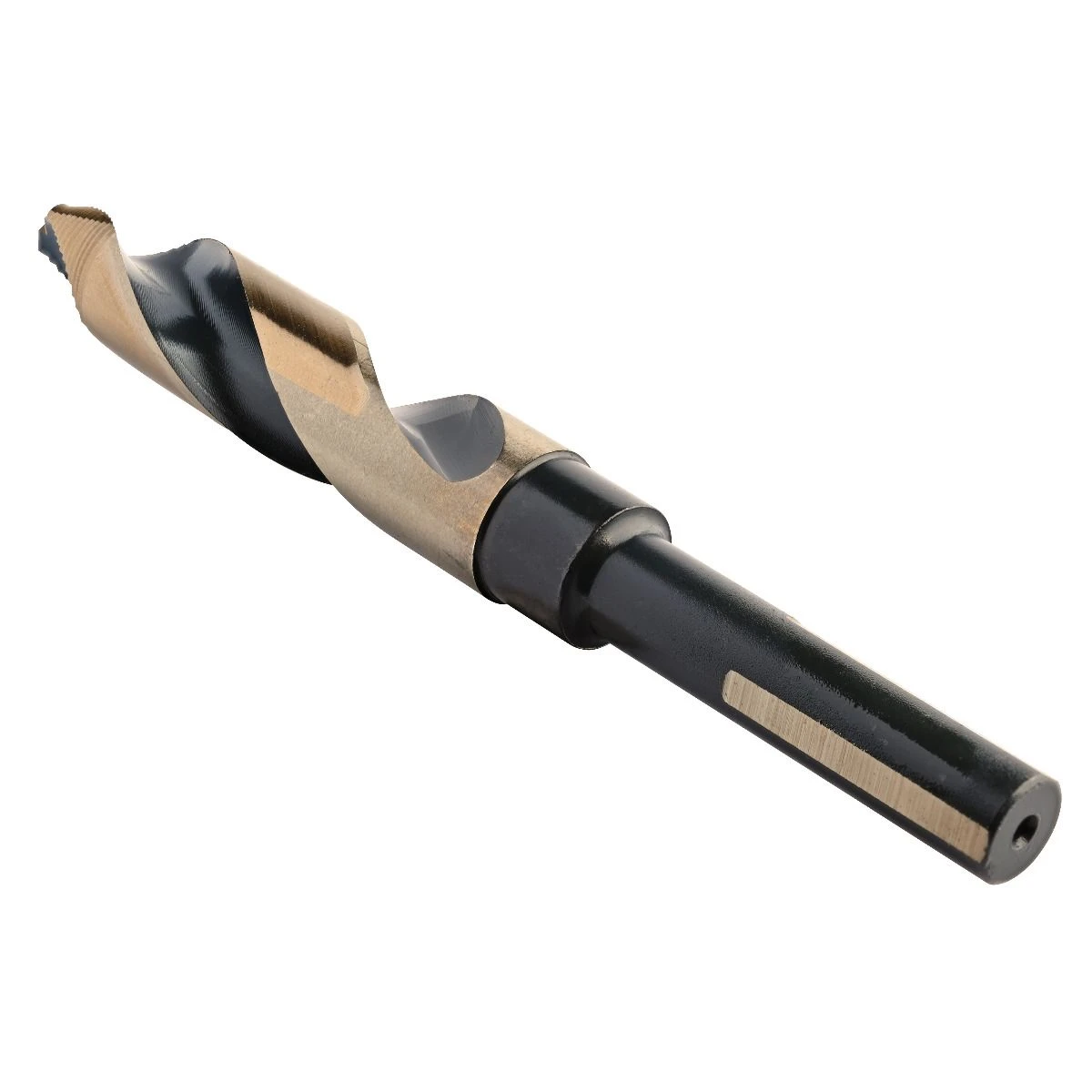

KnKut 7/8" Fractional SP 1/2" Reduced Shank Drill Bit (KK12SP-7/8)
The KnKut 7/8" Fractional SP 1/2" Reduced Shank Drill Bit (KK12SP-7/8) is an advanced cutting tool engineered for precision and durability. Designed and manufactured in the USA, this drill bit combines innovative features to deliver exceptional performance across a variety of challenging materials. Its unique step point design allows for accurate starts without the need for a center punch, significantly reducing bit walking and ensuring clean, precise holes from the first contact.
KEY FEATURES AND BENEFITS:
Accurate Hole Starting: Features a split tip point that enables precise drilling without a center punch, preventing the bit from "walking" on the workpiece surface.
Extended Tool Life: The step drill design significantly reduces heat generation during drilling, which helps to preserve the cutting edge and prolong the lifespan of the drill bit.
Enlarges Existing Holes Safely: Specifically designed to enlarge previously drilled holes without causing damage to the drill bit's tip.
Secure Chuck Grip: Equipped with 3-flats on the shank to prevent slippage in the drill chuck, ensuring stable and reliable operation.
Versatile Material Application: Performs effectively on a wide range of materials including hard steel, brass, sheet metal, and acrylics, making it a versatile addition to any toolkit.
USA Made Quality: Manufactured in the United States, ensuring high standards of quality control and material integrity from raw materials to the finished product.
Drill Bit Diameter: 7/8" Fractional
Shank Diameter: 1/2" Reduced
Overall Length: Jobber Length
Material: Molybdenum High-Speed Steel (HSS) with high Vanadium content, Salt Nitride Treated
Point Type: Step Point with Split Tip
Shank Features: 3-Flats
Prepare Your Workpiece: Securely clamp the material you intend to drill to a stable surface to prevent movement during operation.
Select Your Drill: Insert the 1/2" reduced shank of the KnKut KK12SP-7/8 drill bit into your drill chuck. Tighten the chuck firmly around the three flats on the shank to ensure it's securely held and won't slip.
Set Drill Speed: Choose an appropriate drill speed based on the material you are drilling. Slower speeds are generally recommended for harder materials to reduce heat and maintain control.
Initiate Drilling: Position the drill bit directly over the desired drilling location. Apply steady, moderate pressure as you begin drilling. The split tip point will help the bit start accurately without needing a pilot hole or center punch.
Maintain Pressure and Lubrication: Continue to apply consistent pressure. For optimal performance and to further reduce heat and friction, especially when drilling hard materials, apply a suitable cutting fluid or lubricant as you drill.
Clear Chips: Periodically withdraw the drill bit slightly from the hole to clear chips, particularly when drilling deep holes. This prevents chip buildup, reduces heat, and improves cutting efficiency.
Complete Hole: Continue drilling until the desired hole depth or through-hole is achieved. Once finished, slowly withdraw the drill bit from the workpiece.
BENEFITS OF USING KNKUT 7/8" FRACTIONAL SP 1/2" REDUCED SHANK DRILL BIT (KK12SP-7/8):
Saves time by eliminating the need for pre-punching or pilot drilling.
Minimizes operational downtime due to less frequent bit replacements.
Offers greater flexibility by fitting into commonly available drill chucks.
Reduces the risk of tool slippage during demanding applications.
Provides consistent and clean results across various material types.
Contributes to a safer drilling experience through enhanced stability.
Represents a reliable, long-term investment in quality tooling.
Precision-ground edges ensure smooth and efficient material removal.
Flute design optimized for improved chip ejection.
High-speed steel with Molybdenum and Vanadium provides superior toughness.
Salt nitride coating enhances hardness and resists wear.
Maintains sharpness and performance over prolonged use.
Built to withstand high-demand drilling tasks with consistent results.
Product identification
- Brand: KnKut
- Model / MPN: KK12SP-7/8
