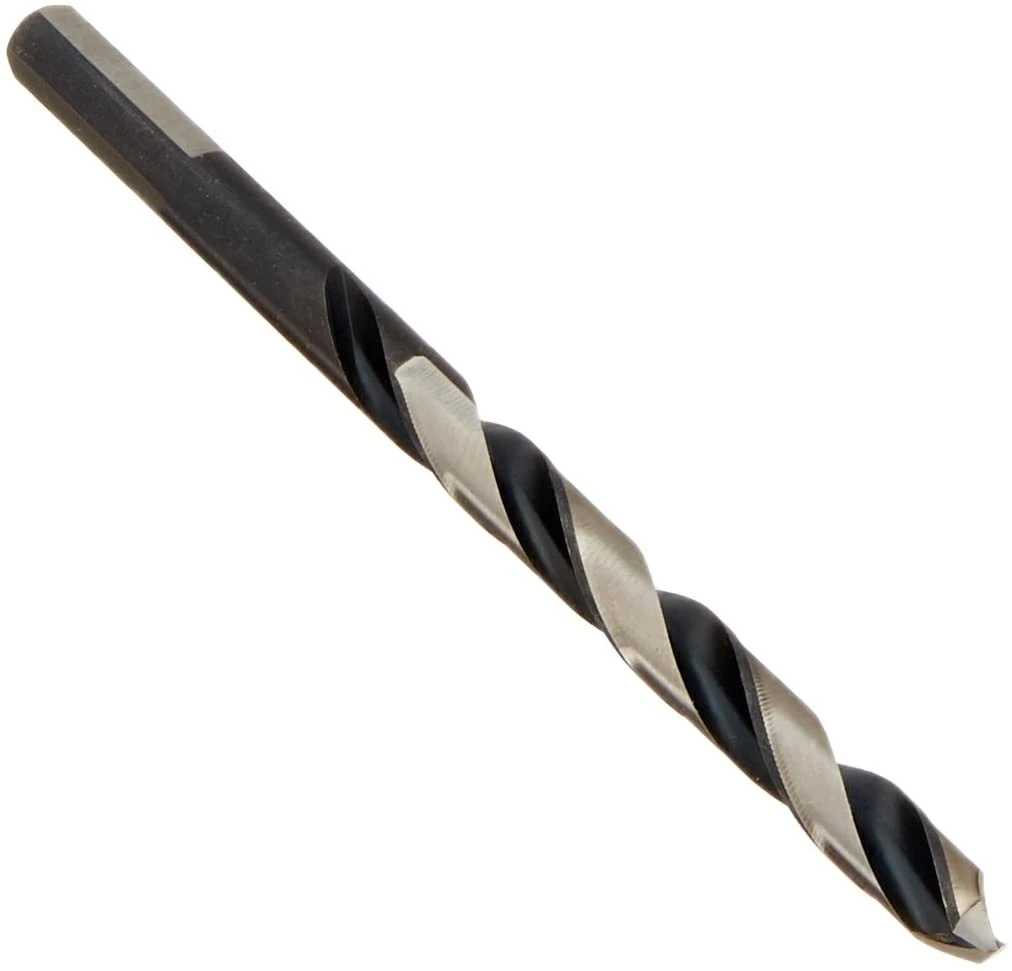

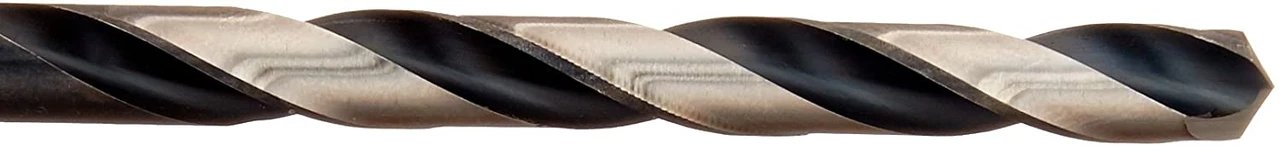

KnKut KK5-1/4 1/4-Inch M7 HSS Jobber Drill Bit
KnKut KK5-1/4 is a quarter-inch jobber drill with a conventional split-point cutting end, distinct from the larger reduced-shank step-point models in the catalog. Its listed M7 molybdenum HSS and salt nitride treatment describe the tool material and surface process for selecting a size-specific metal drill.
Specifications and included details
- 1/4-inch nominal cutting diameter; one drill bit included.
- M7 molybdenum high-speed steel with listed high vanadium content.

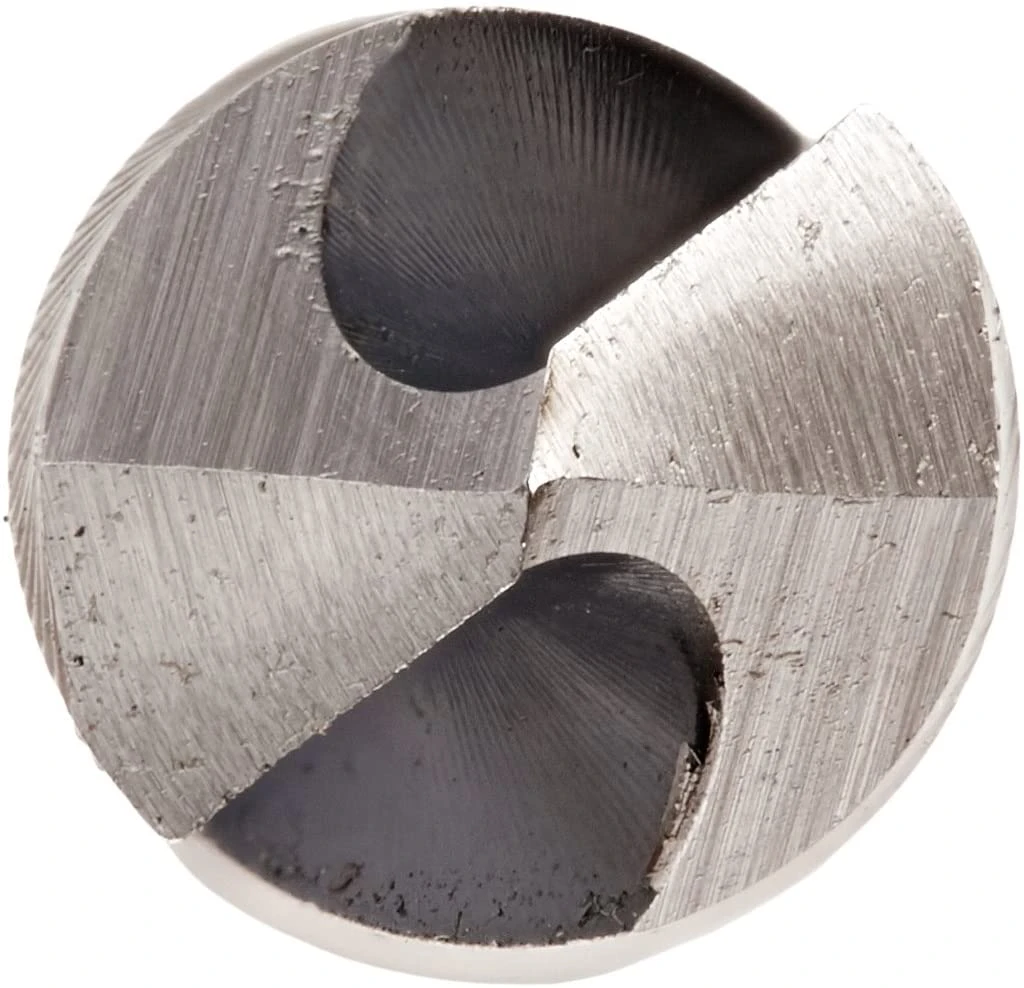

- Salt nitride treatment and 135-degree split point.
- Jobber-length designation; listed applications include stainless steel and titanium alloys.
Before ordering
Confirm the quarter-inch opening and verify actual shank, overall and flute dimensions for the setup; those dimensions are not itemized here. Choose cutting conditions for the metal and machine. A split point does not guarantee pilot-free drilling or a lower cost per hole in every application.
Product questions and answers
Is this the half-inch reduced-shank step-point model?
No. KK5-1/4 is a quarter-inch jobber bit with a 135-degree split point. The supplied record does not specify a half-inch reduced shank.
Does M7 identify a cobalt alloy grade?
The supplied specification identifies M7 molybdenum HSS. No cobalt percentage is listed for this model.
Is an exact jobber length provided?
No numeric overall or flute length is supplied. Confirm those dimensions when clearance or reach matters.
