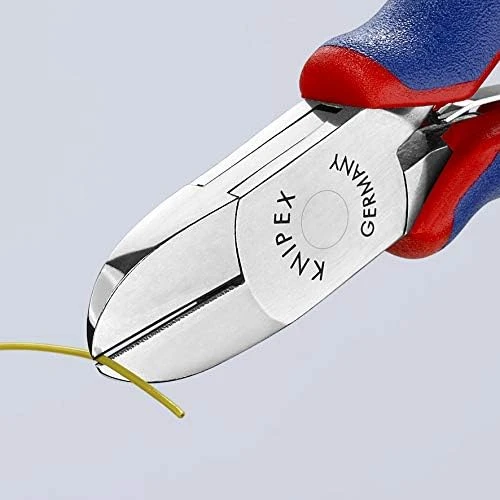

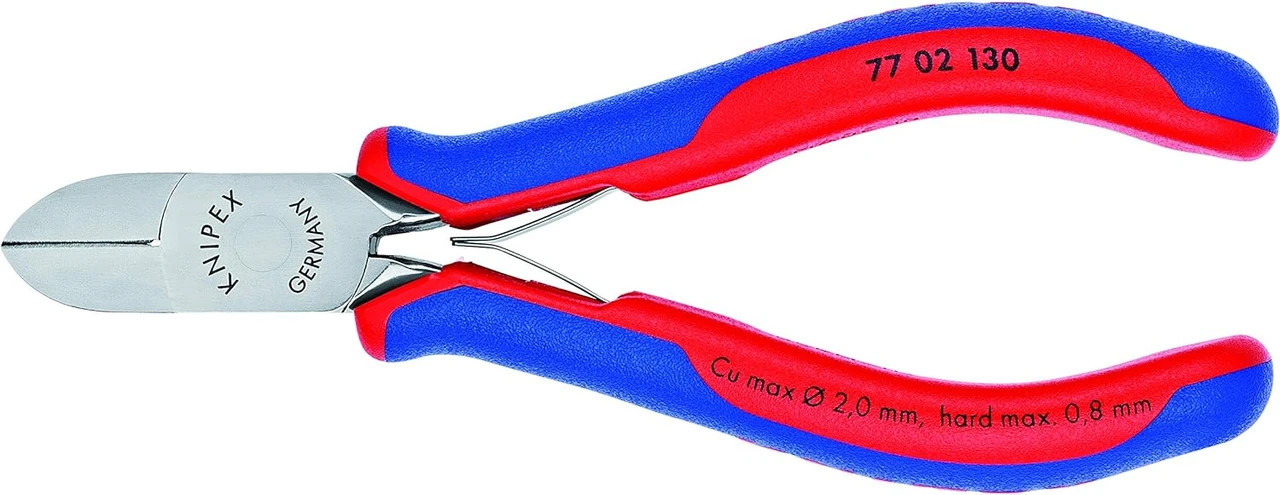

Knipex Electronics Diagonal Cutters Multi-Component (7702130)
The Knipex Electronics Diagonal Cutter (77 02 130) is an essential tool for precision work in electronics and mechanics. Its durable box-joint design ensures long-lasting performance with minimal backlash, providing enhanced stability during fine-cutting tasks. The multi-component grips offer a comfortable, ergonomic hold, even for extended use. With cutting-edge hardness, this tool delivers precise cuts through soft, medium-hard, and hard wires. The mirror-polished head with a fine oil film protects against rust and ensures no peeling chrome, making it ideal for sensitive environments.
Durable box joint for enhanced stability and minimal backlash.
High, slim sleeves for comfortable fine gripping.
Rust protection with mirror-polished head and oil film.
Induction-hardened cutting edges with a hardness of at least 62 HRC.
Low-friction double spring for smooth operation.
Provides precise and reliable cuts for electronics and precision mechanics.
Ergonomic design reduces fatigue during prolonged use.
Enhanced rust resistance ensures long-term durability.
Compact size (130 mm) allows for easy handling in tight spaces.
Technical Specifications:
Article No.: 77 02 130
Cutting capacities:
Soft wire: Ø 0.3–2.0 mm
Medium-hard wire: Ø 1.5 mm
Hard wire: Ø 0.8 mm
Head: Mirror polished
Handles: Multi-component grips
Standards: DIN ISO 9654
REACH and RoHS compliant
Product identification
- Brand: Knipex
- Model / MPN: 7702130
