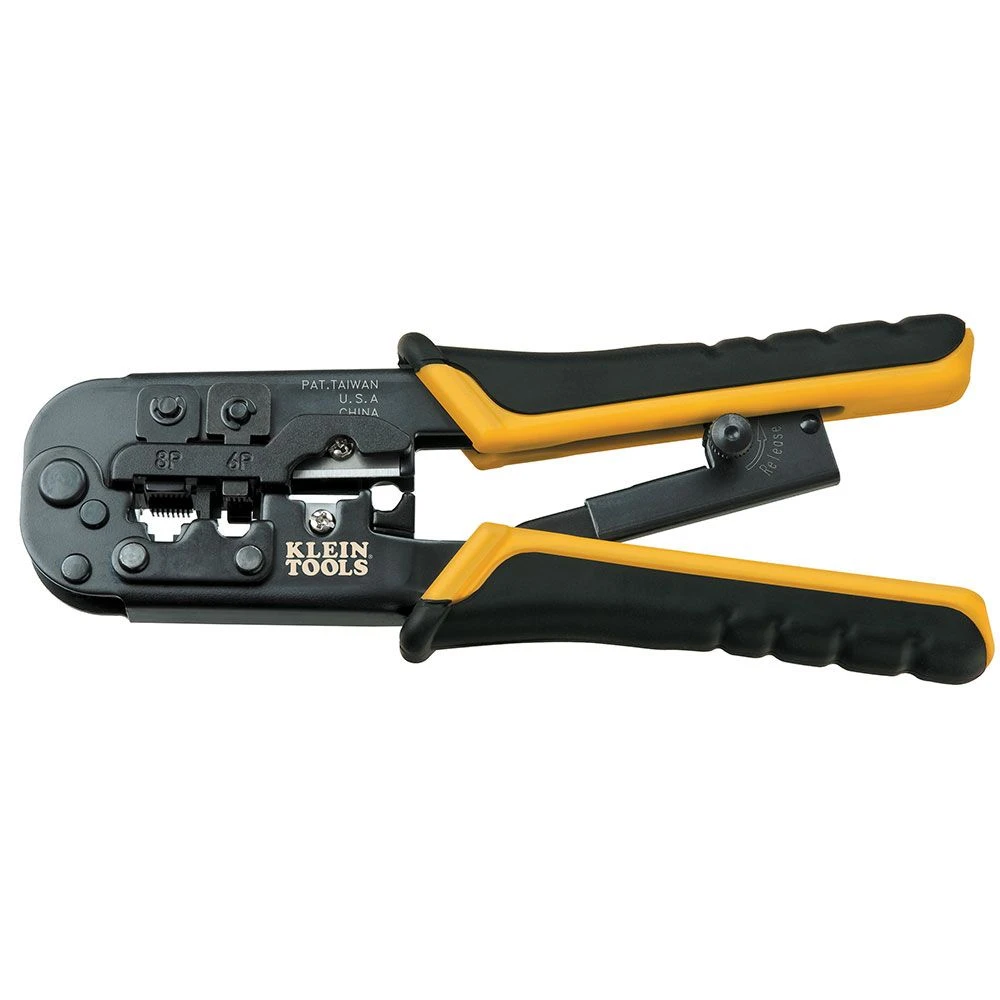

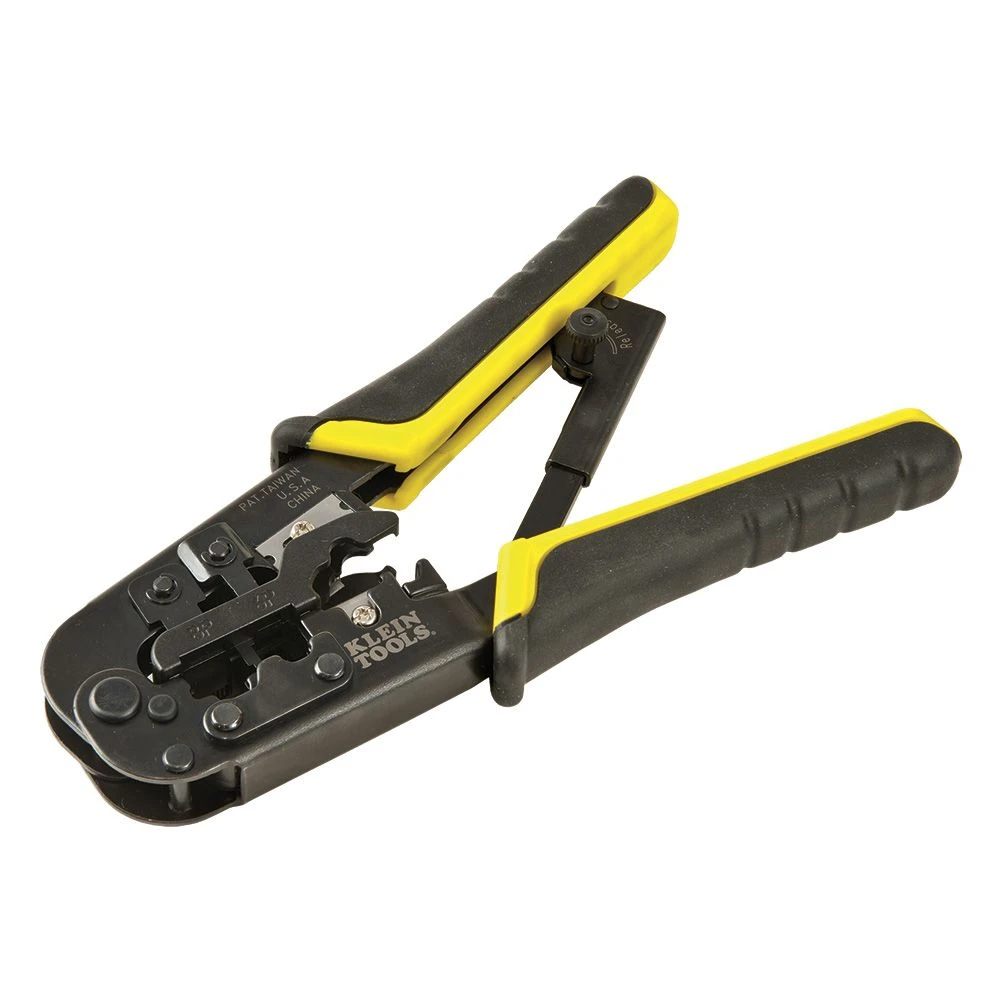

Klein VDV226011SEN Ratcheting Data Cable Crimper / Stripper / Cutter

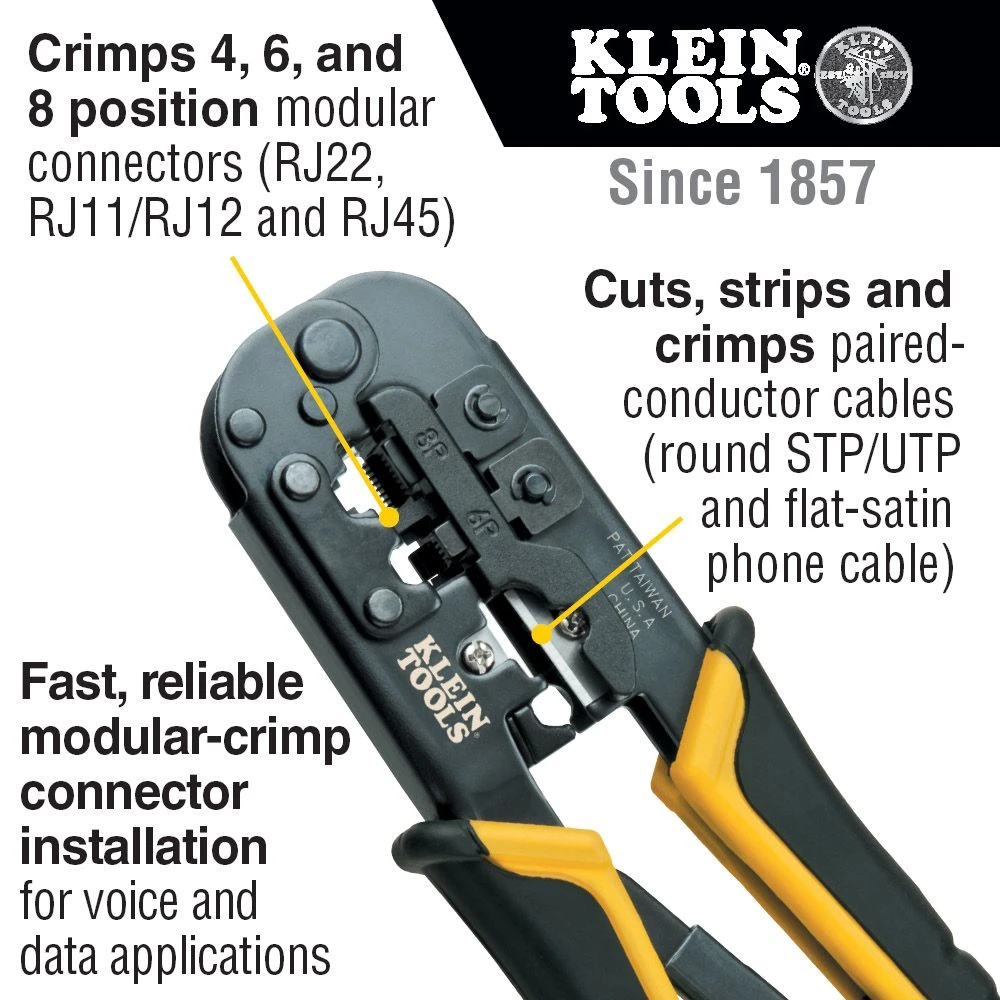

Ratcheting crimper provides fast, reliable modular-crimp connector installation for voice and data applications
Cuts, strips, and crimps pair-conductor cables (round STP/UTP and flat-satin phone cable) all in one tool
Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
Steel body with black-oxide finish for excellent performance and durability
Crimping dies are precision ground from high-carbon steel
Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
Yellow and black grips enhance comfort, visibility, and allow quick identification
Three crimping dies (8-position, 6-position and 4-position)
Cable parameters: 28-22 AWG (.08 – .34 mm²) flat or round; solid or stranded telephone and data
Not for use with AMP® connectors
AMP® is a registered trademark of TYCO, Inc.
Replacement blade set available (Cat. No. VDV999-064)
Additional safety features to protect fingers
Application: Cable Connection
Material: Steel with Black Oxide
Handle Color: Yellow/Black
Cuts & Strips: STP/UTP, Flat-Satin Phone Cable, and 22-28 AWG
Cable Type: CAT3, CAT5e, CAT6/6A
Connector Type: RJ45, RJ11, RJ12 Standard
Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
Overall Length: 7.5'' (19.1 cm)
Weight: 1.6 oz (45 g)
UPC: 92644580147
Product identification
- Brand: Klein Tools
- Model / MPN: VDV226011SEN
