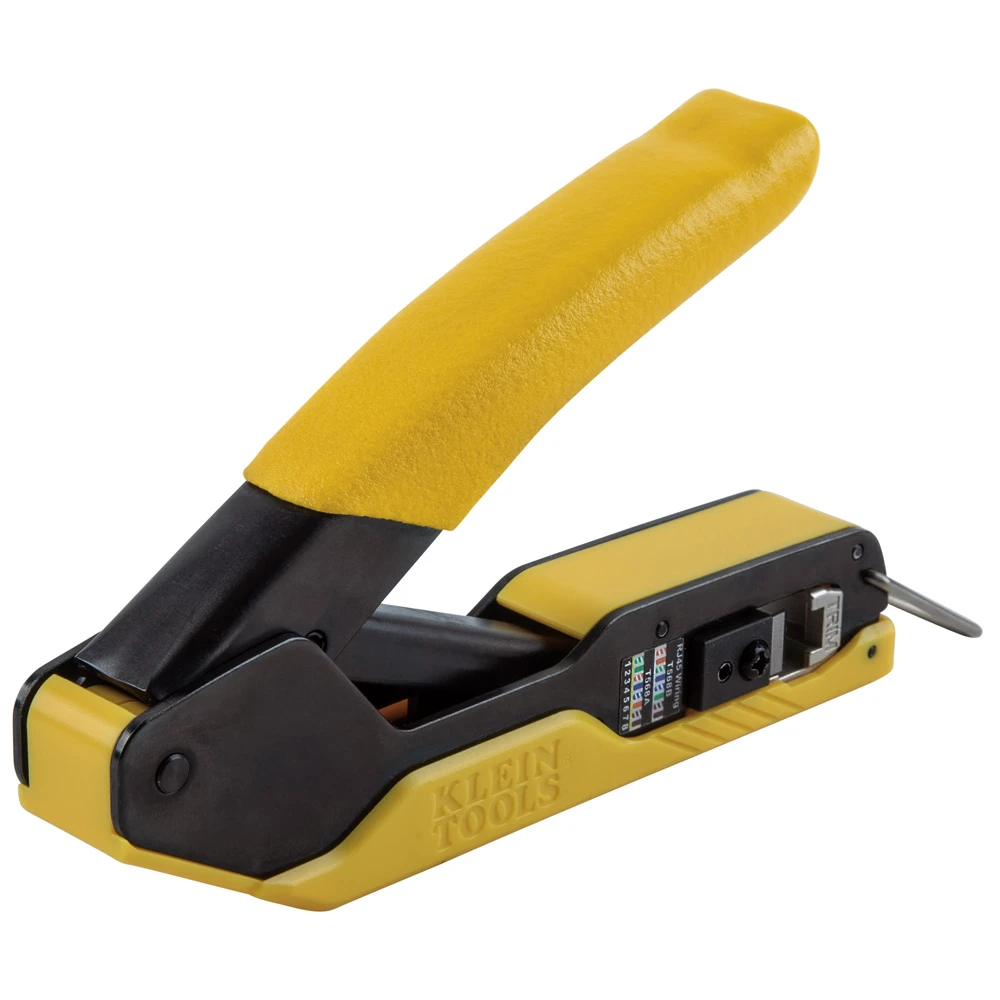

Klein Tools VDV226-005 Compact Pass-Thru Crimper, Modular Crimper for RJ45
Reduce prep time significantly with Pass-Thru™ technology. This compact tool crimps and trims paired-conductor wires in CAT5e/CAT6 cables. Wiring diagram on the tool helps eliminate rework and reduce wasted materials. For use with Pass-Thru™ connector plugs (in packs of 10, 50 or 200).

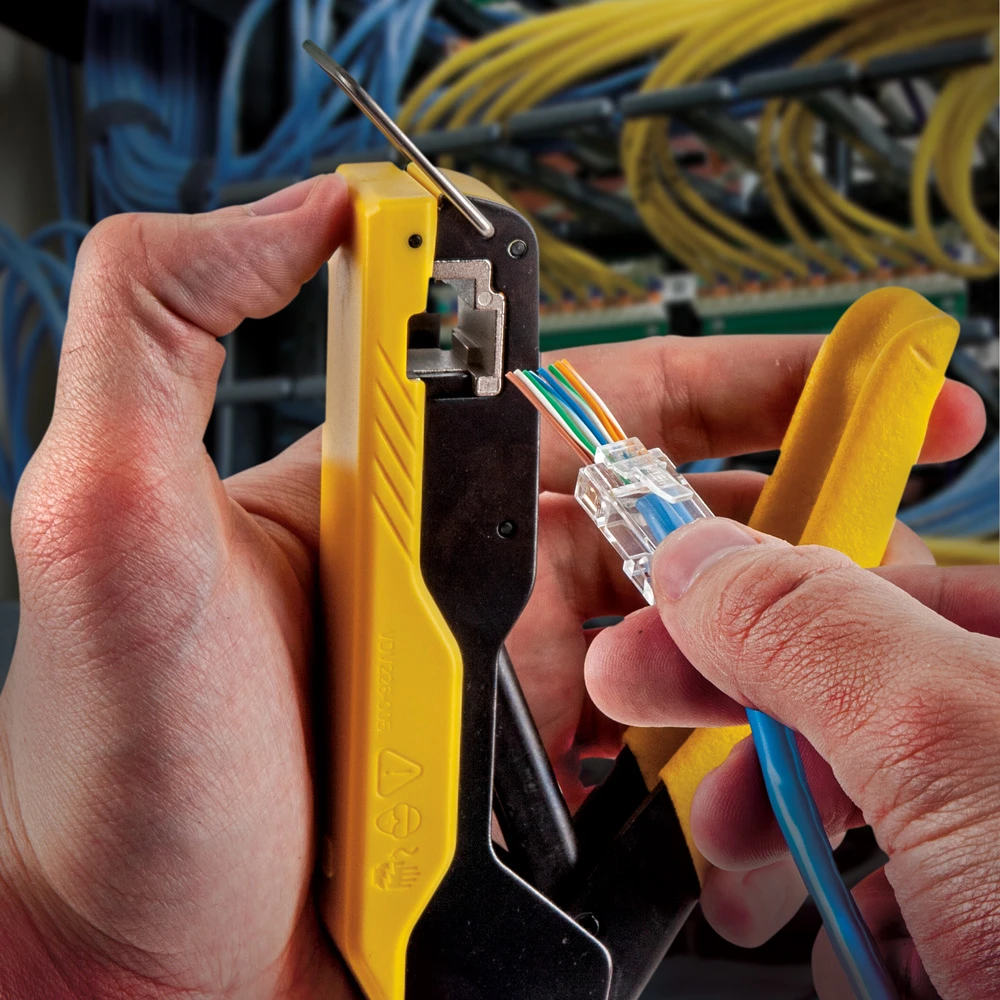

Crimps Klein Tools' RJ45 Pass-Thru™ connectors and trims conductor wires in one step
Trims flush to end face of connector eliminating unintended contact between conductor wires

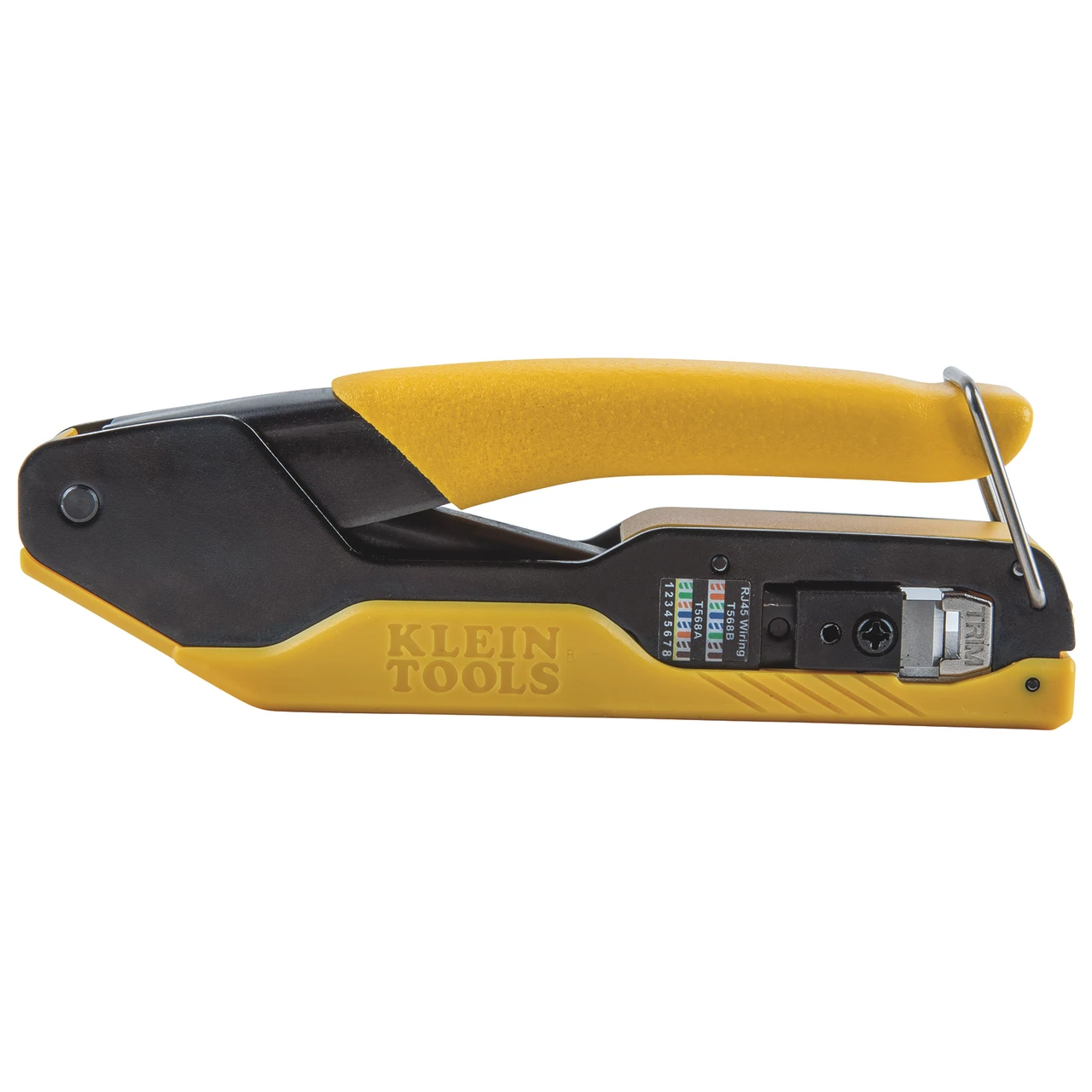

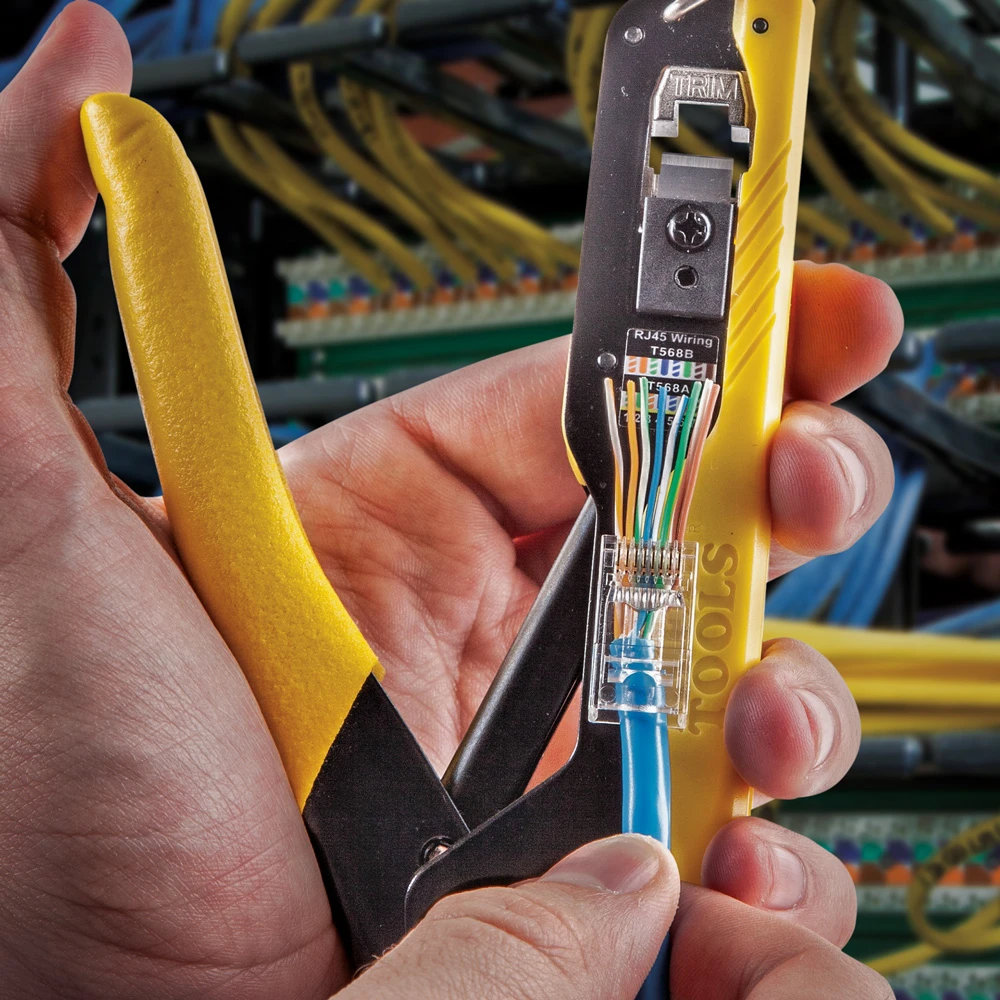

On-tool wiring guide helps minimize wiring errors
Fast, reliable RJ45 Pass-Thru™ modular crimper installs connectors for data applications
Use with Klein Tools Pass-Thru™ Connectors
Not for use with standard (non Pass-Thru™) connectors
Replacement blades available (Cat. No. VDV999-078)
Application: Cable Connection
Material: Steel with Chrome
Handle Color: Yellow/Black
Cable Size: CAT5e, CAT6
Connector Type: RJ45 Klein Tools Pass-Thru™
Position/Pair/Conductors: 8-Position, 4-Pair/8-Conductor
Overall Length: 5.5'' (139.7 mm)
Overall Width: 1.75'' (44.5 mm)
Weight: 0.61 lb (0.28 kg)
UPC: 092644582875
Always wear approved eye protection.
NOT insulated. Will NOT protect against electrical shock.
Never use on or near live electrical circuits.
Read carefully and understand instructions before using this tool.
Do NOT use the tool to pull the outer jacket off of the cable. Doing so may damage the conductors and the tool.
Product identification
- Brand: Klein Tools
- Model / MPN: VDV226-005
