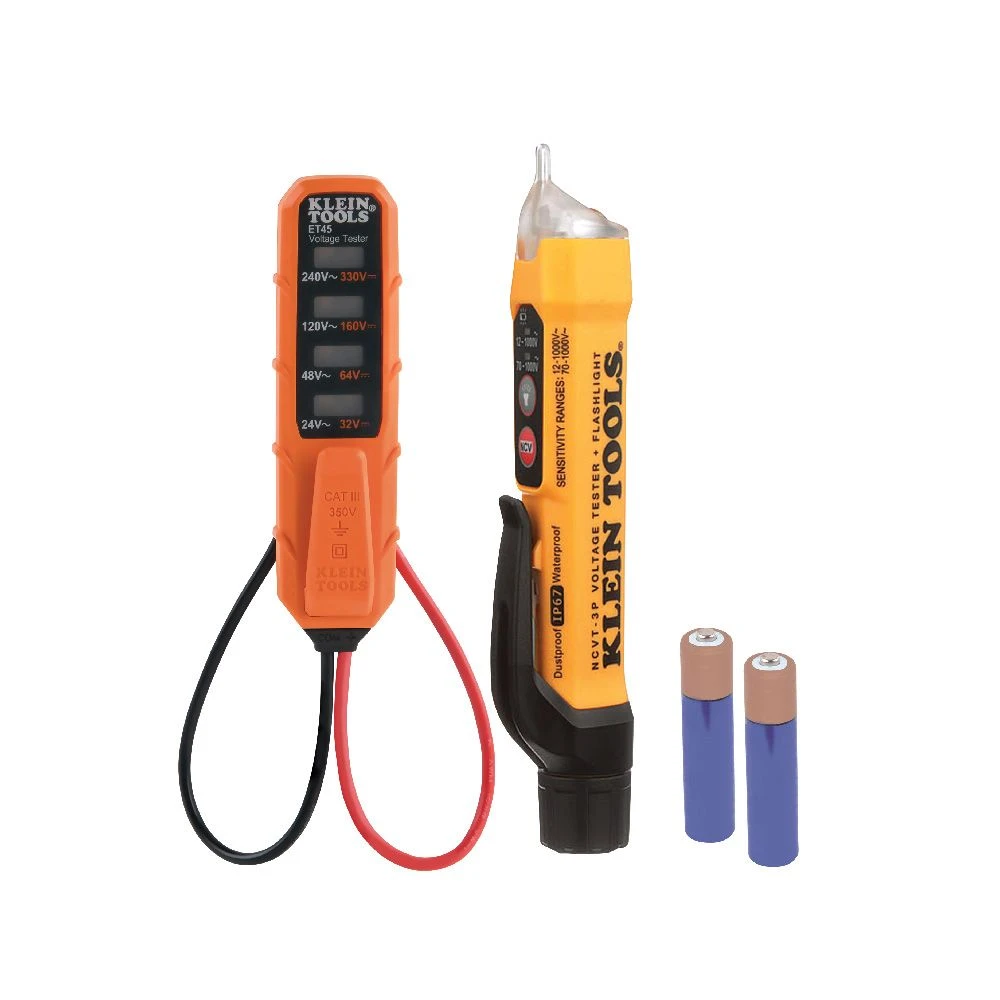

Klein NCVT3PKIT Electrical Test Kit
The NCVT3PKIT from Klein Tools includes a dual-range, non-contact voltage tester with integrated Flashlight, and an AC/DC Voltage Tester. The NCVT-3P with flashlight is a non-contact voltage tester that detects 12 to 1000V AC and 70 to 1000V AC, and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. The ET45 AC/DC Voltage Tester is designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical applications. This tester does not require batteries, and features a pocket clip for convenient carrying.
Electrical test kit contains a non-contact AC voltage tester with integrated flashlight and AC/DC voltage tester

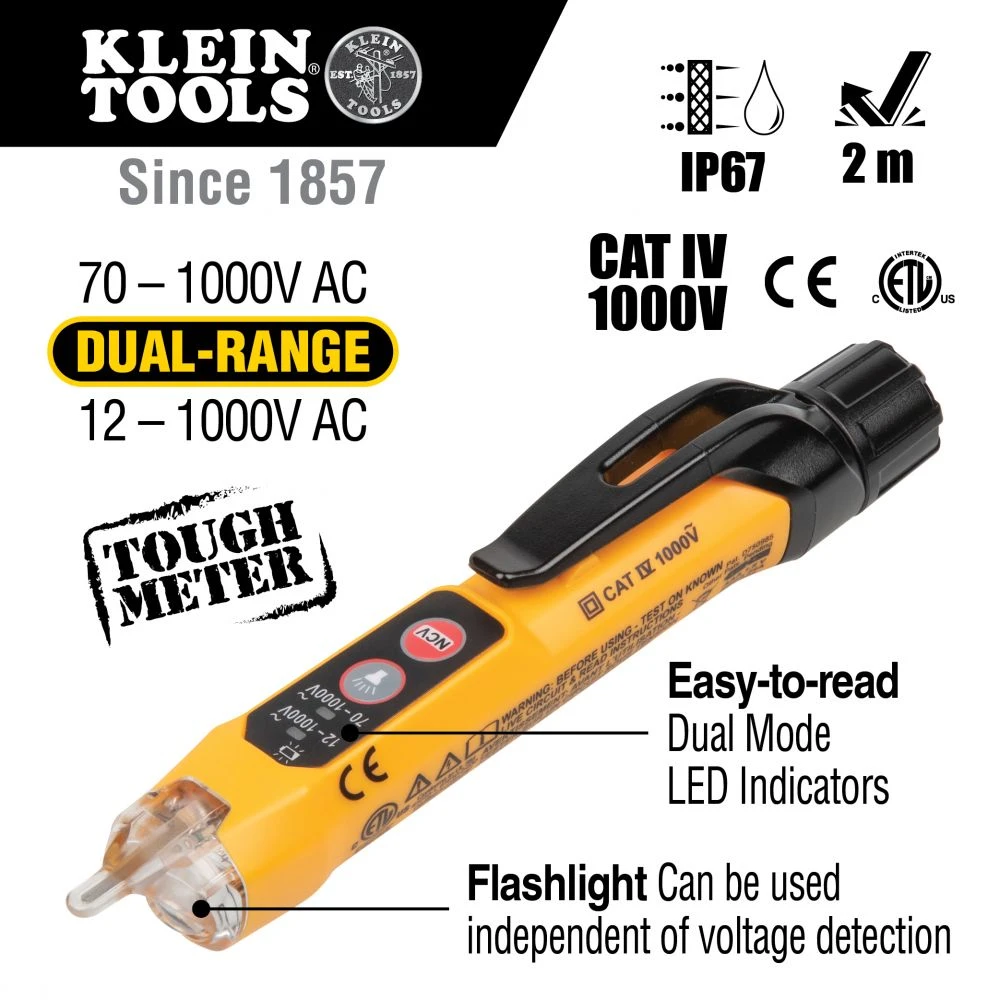

Dual range NCVT-3P with flashlight automatically detects and indicates low voltage (12-1000V) range and standard voltage (70-1000V AC)
NCVT-3P provides non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires
NCVT-3P is a lightweight, compact tool with pocket clip for convenient storage and quick access
Bright flashlight on the NCVT-3P illuminates work area and may be used independent of voltage detection function
NCVT-3P safety rating of CAT IV 1000V provides expanded operation and protection

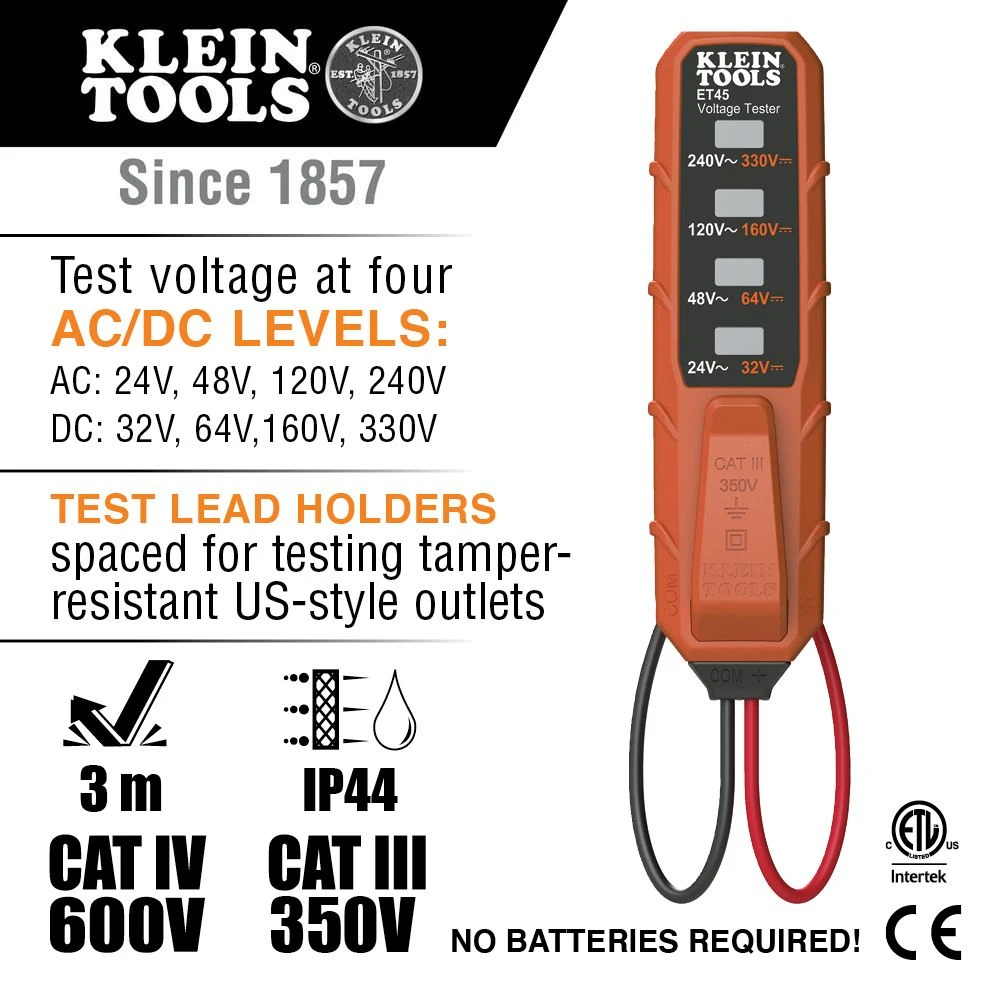

The ET45 tests AC voltages from 24V to 240V AC at four useful levels and DC voltages from 32V to 330V at four levels

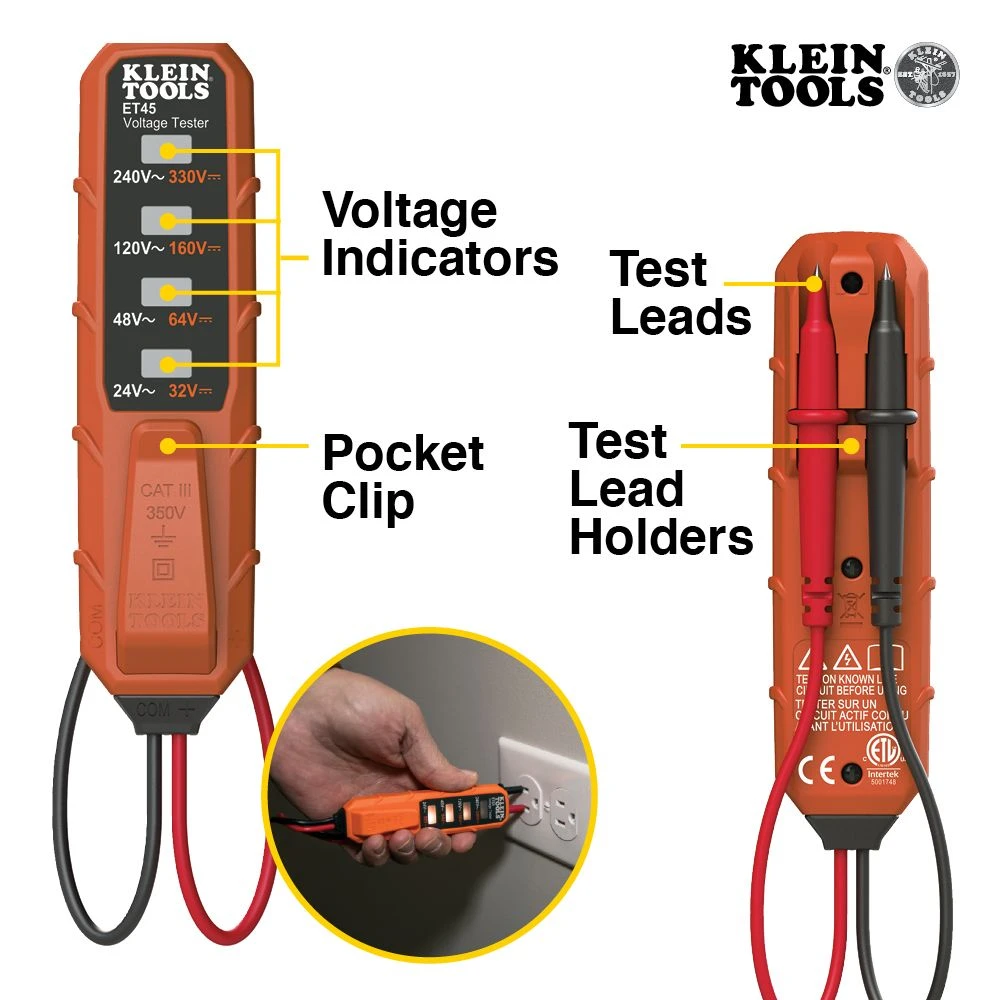

Built-in test lead holder on back of ET45 tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
ET45 has a safety rating of CATIII 350V, Class 2, Double insulation
Batteries not required for the ET45; tester is powered by the applied voltage
Type: Dual Range with Flashlight for NCVT-3P
Application: NCVT-3P: Non-Contact Detection and Testing of AC Voltage; ET45: Measures AC/DC Voltage
Special Features: Two Distinctive Modes on NCVT-3P: 70 to 1000V AC and 12 to 1000V AC; Flashlight
Material: Polycarbonate and Electrical Components
Drop Protection: NCVT3P: 6.6' (2 m); ET45: 9.9' (3 m)
Voltage: NCVT3P: 12 – 1000V AC; ET45: AC Level Indicators: 24V, 48V, 120V, 240V; DC
Level Indicators: 32V, 64V, 160V, 330V
Frequency: NCVT3P: 50 – 500 Hz; ET45: 50/60 Hz
Pollution Degree: 2
Ingress Protection: NCVT3P: IP67 Dustproof and Waterproof; ET45: IP44
Standard: NCVT3P: CAT IV 1000V; ET45: CATIII 350V
Included: Non-Contact AC Voltage Tester with Flashlight, 2 x AAA Batteries, and AC/DC Voltage Tester
Batteries: 2 x AAA Batteries
Battery Life: 125 hrs
Overall Length: 5.70'' (14.5 cm)
Overall Height: 1.09'' (2.8 cm)
Overall Width: 0.93'' (2.4 cm)
Weight: 1.9 oz (51.0 g)
UPC: 92644693304
Product identification
- Brand: Klein Tools
- Model / MPN: NCVT3PKIT
