Engine crane details

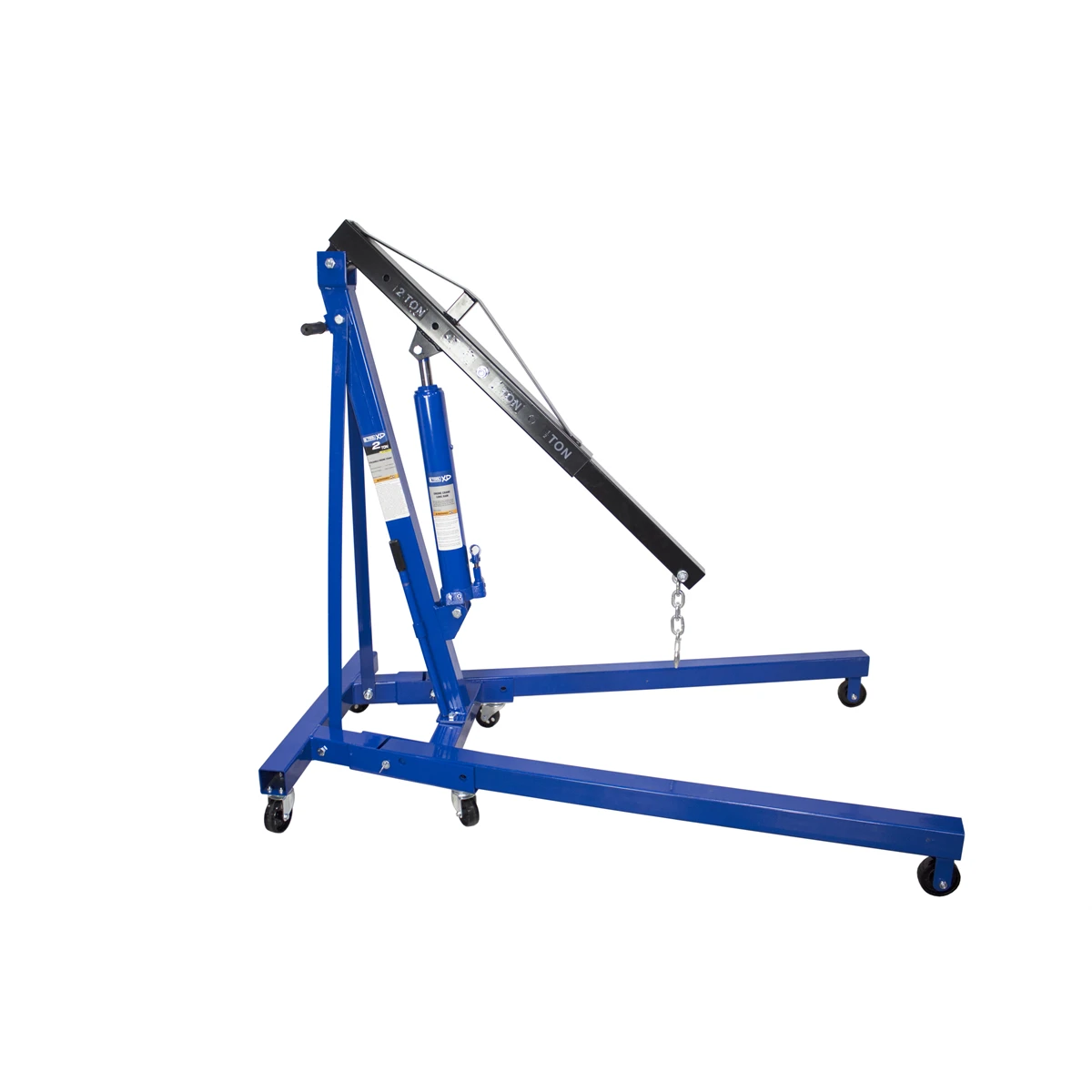

K Tool Foldable Engine Crane 2,000 Lbs Lift Range 86.5" (XD63421)
K Tool Foldable Engine Crane 2,000 Lbs Lift Range 86.5" (XD63421) is a durable hydraulic lifting solution for garages, repair shops, and DIY applications. Designed for lifting engines, differentials, and transmissions, this 2-ton crane offers a wide lift range up to 90.6" and folds easily for storage. It meets ASME PASE 2019 safety standards and is ideal for working with heavy automotive components while maximizing space efficiency.
2-ton capacity for lifting engines, transmissions, and differentials
Foldable design for compact storage when not in use
Blue finish and durable steel construction for long-term use

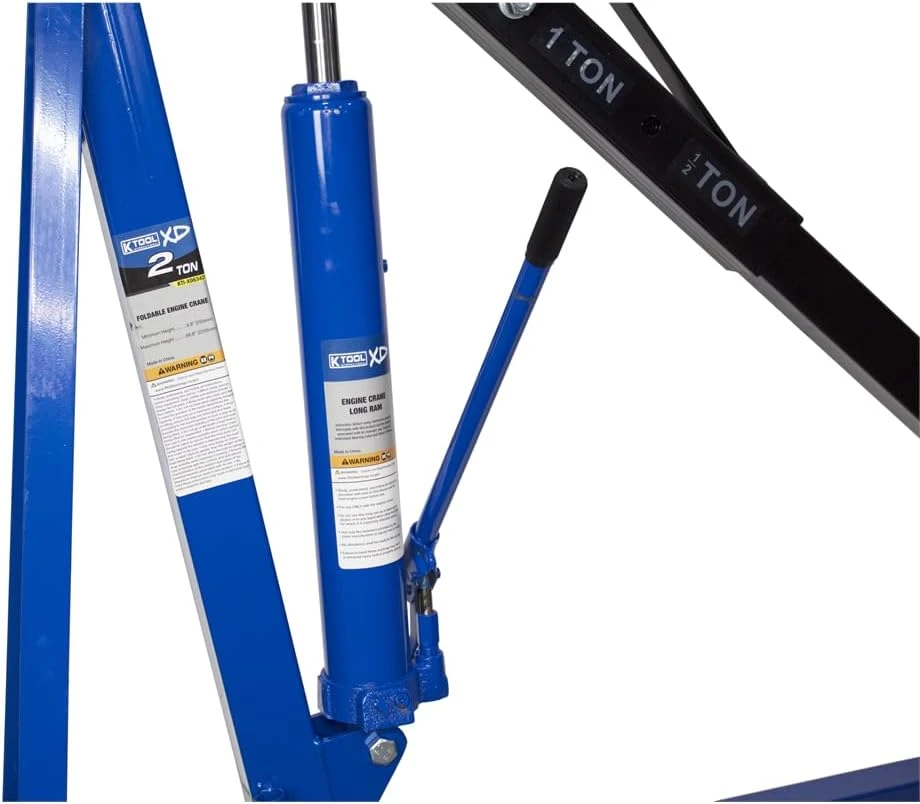

Hydraulic system enables controlled raising and lowering
Engineered for shops, garages, and DIY mechanical projects
Space-saving foldable frame simplifies storage
Supports multiple weight capacities and hook heights
Complies with ASME PASE 2019 for safety assurance
Efficiently lifts and moves heavy components with minimal effort
Versatile tool suitable for various vehicle maintenance tasks
Technical Specifications:
Lift Range: 86.5"
Overall Height: 59.1"; Folded Height: 55.5"
Base Length: 63.0"; Front Width: 39.4"; Rear Width: 31.5"
Hook Height Capacities:
2 Ton: 13.8" min – 71.7" max
1.5 Ton: 7.9" min – 87" max
1 Ton: 1.6" min – 84.3" max
0.5 Ton: 0" min – 90.6" max
Product Dimensions: 54.9" x 23.2" x 5.9"
Model Number: XD63421
Manufacturer: K Tool International
Country of Origin: China
Product identification
- Brand: K Tool
- Model / MPN: XD63421
