John Dow JDI-277EV Vacuum Fluid Extractor Pneumatic
John Dow JDI-277EV Vacuum Fluid Extractor – Pneumatic
A wide range of fluids can be efficiently extracted from tanks and reservoirs using compressed air and a venturi vacuum system. Fluids are extracted through filler ports and dipstick tubes using the included extractor tubes.
2.7 gal. (10.5l) reservoir
Compressed air/venturi vacuum operation
Heavy-duty polyethylene construction
Chemical resistant

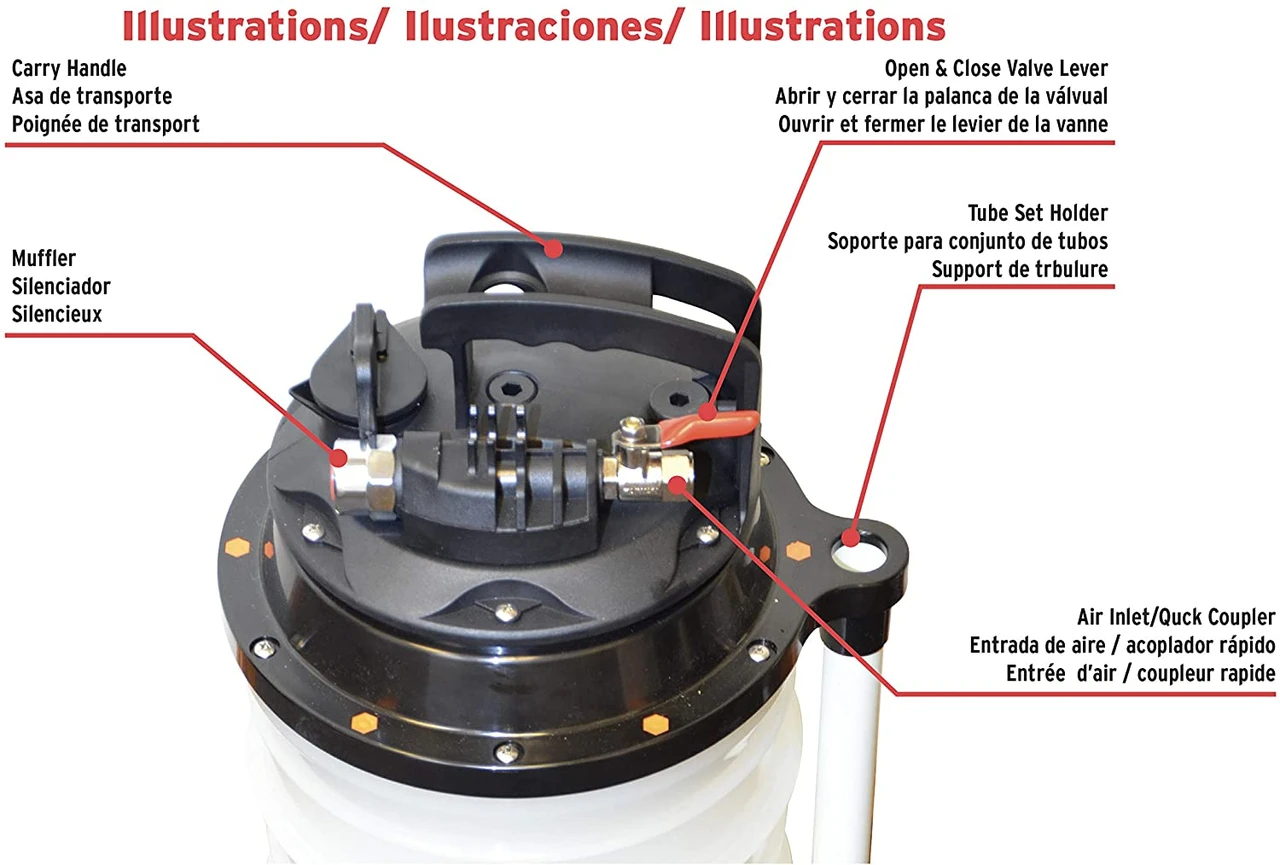

Convenient carry handle
Air inlet with quick coupler
Air on/off valve
Extractor tube holder’
Muffler – for quiet operation
Automatic stop to prevent overfill
Replacement tube set available (No. CJ-006)
Full color retail package
Extractor tubes included:
.23 in. OD x 2.9 ft. long (Dipstick tube) (5.8mm x .85 m)
.26 in. OD x 2,9ft long (Dipstick tube) (6.7mm x .85m)
.39 in OD x 3.2 ft. long (Main extraction tube) (9.8mm OD x 1m)
Reservoir capacity: 2.7 gal (10.5l)
Max operating temp: 212°F (100°C)
Air inlet size: 1/4″NPT
Weight: 6.2 lbs. (2.8 kgs.)
Size (packaged): 23.0”x 8.9” x 8.9”
Product Information
John Dow JDI-277EV Manual
Product identification
- Brand: John Dow
- Model / MPN: JDI-277EV
