John Dow JDI-172EV Vacuum Fluid Extractor Manual Pump
John Dow JDI-172EV Vacuum Fluid Extractor – Manual Pump

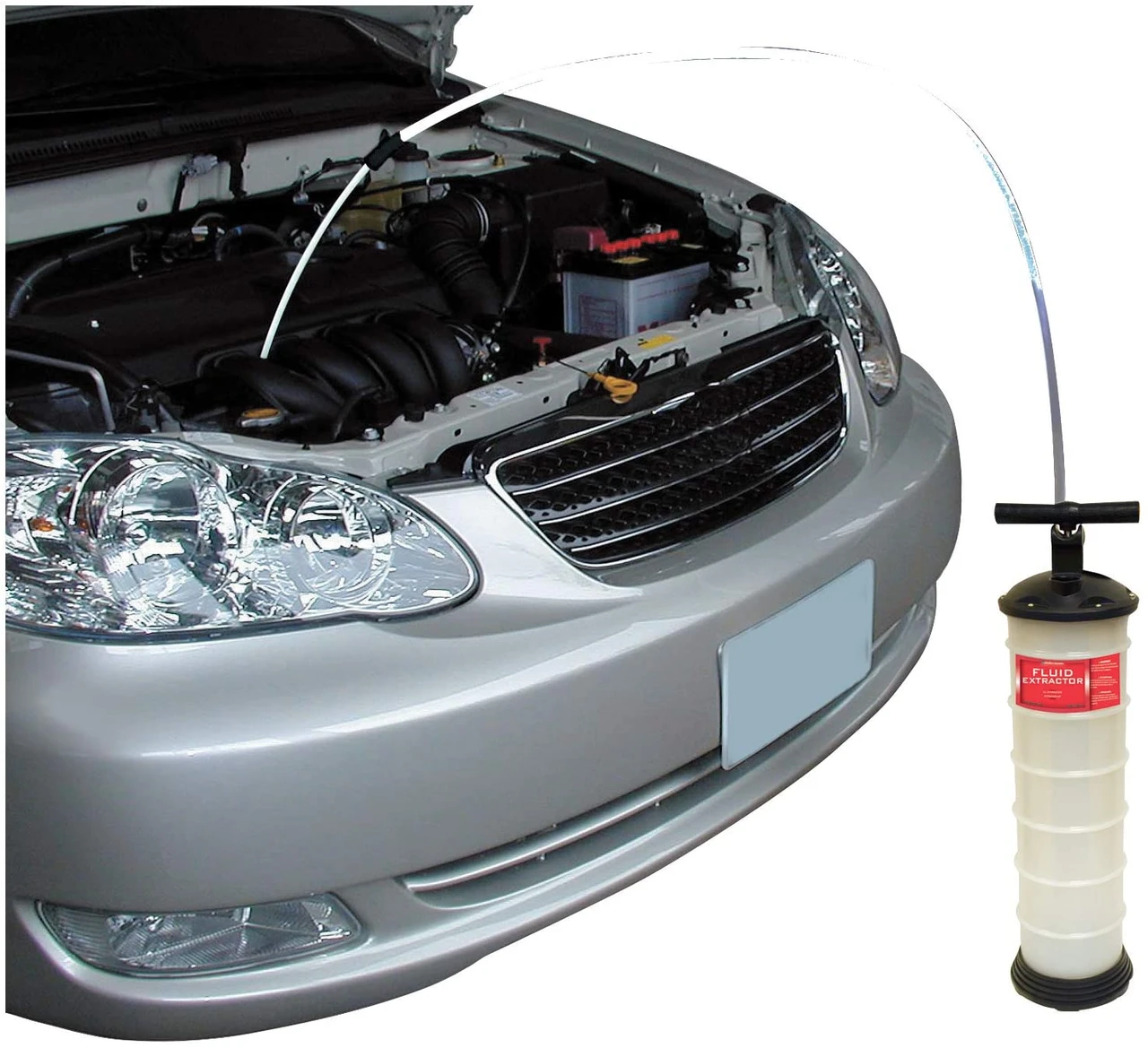

This manual pump activated vacuum extractor efficiently removes a variety of fluids from reservoirs on all types of vehicles and equipment. The manual pump vacuum operation eliminates the need for compressed air making it very portable and versatile. Fluids are extracted through filler ports and dipstick tubes using the included extractor tubes.
1.7 gal. (6.5l) reservoir
Hand pump activated vacuum operation
Heavy-duty polyethylene construction
Chemical resistant
Convenient carry handle
Extractor tube holder’
Sliding foot pedal for stability
Automatic stop to prevent overfill
Replacement tube set available (No. CJ-006)
Full color retail package
Extractor tubes included:
.23 in. OD x 2.9 ft. long (Dipstick tube) (5.8mm x .85 m)
.26 in. OD x 2,9ft long (Dipstick tube) (6.7mm x .85m)
.39 in OD x 3.2 ft. long (Main extraction tube) (9.8mm OD x 1m)
Reservoir capacity: 1.7 gal (6.5l)
Max operating temp: 212°F (100°C)
Weight: 6.6 lbs. (3.0 kgs.)
Size (packaged): 25.7”x7.0”x7.0”
Product Information
John Dow JDI-172EV Manual
Product identification
- Brand: John Dow
- Model / MPN: JDI-172EV
