John Dow AFT106 Auxiliary Diesel Fuel Tank, 106-Gallon (Model JDI-AFT106)
John Dow JDI-AFT106 Brochure

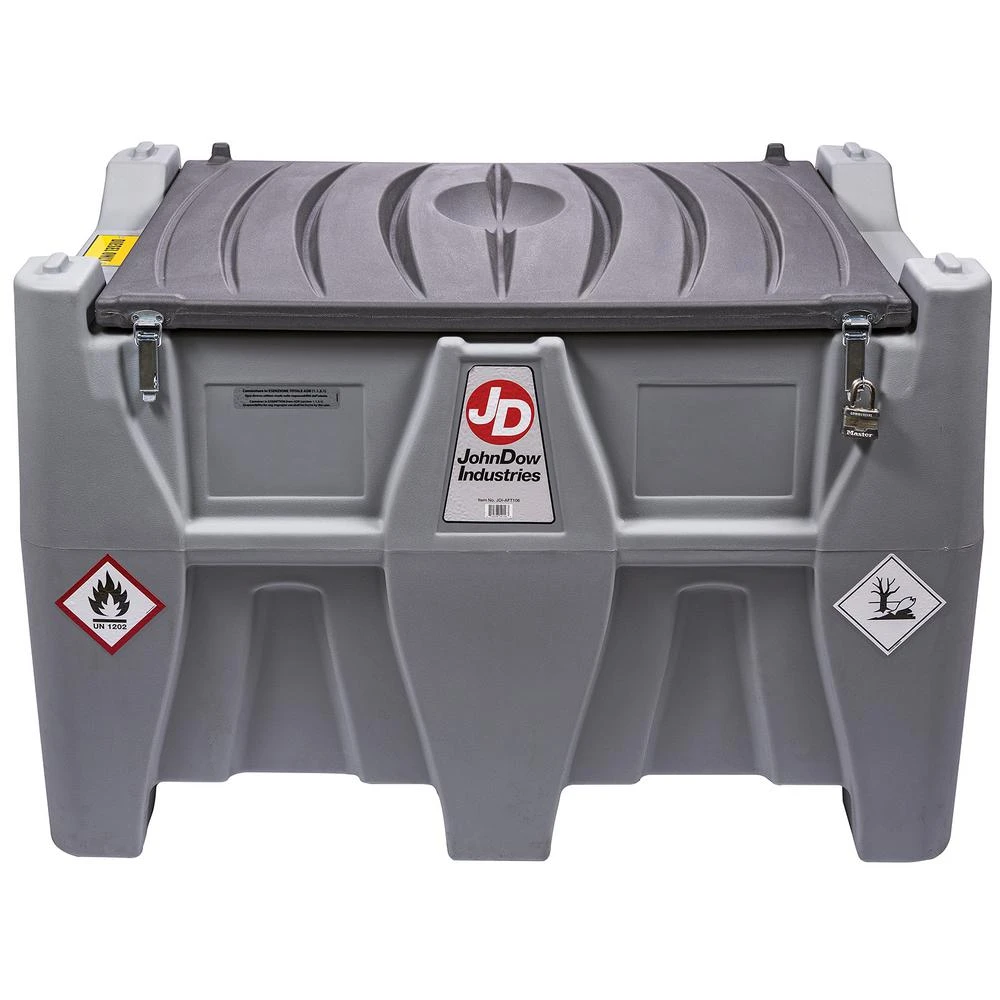

John Dow JDI-AFT106 Auxiliary Diesel Fuel Tank, 106-Gallon
JohnDow Diesel Carrytanks are designed to transport and transfer diesel fuel wherever it’s needed. These tanks provide the convenience of having a refueling station that goes wherever the job requires diesel fuel. Great for farm, construction, recreation, industrial, fleet and other markets.
These self-contained tanks come complete with a 12 volt pump, hose and automatic nozzle. Just hook-up to a 12 volt power source and start pumping. Strap the Carrytank to a vehicle for transport or leave it in a convenient spot on site.

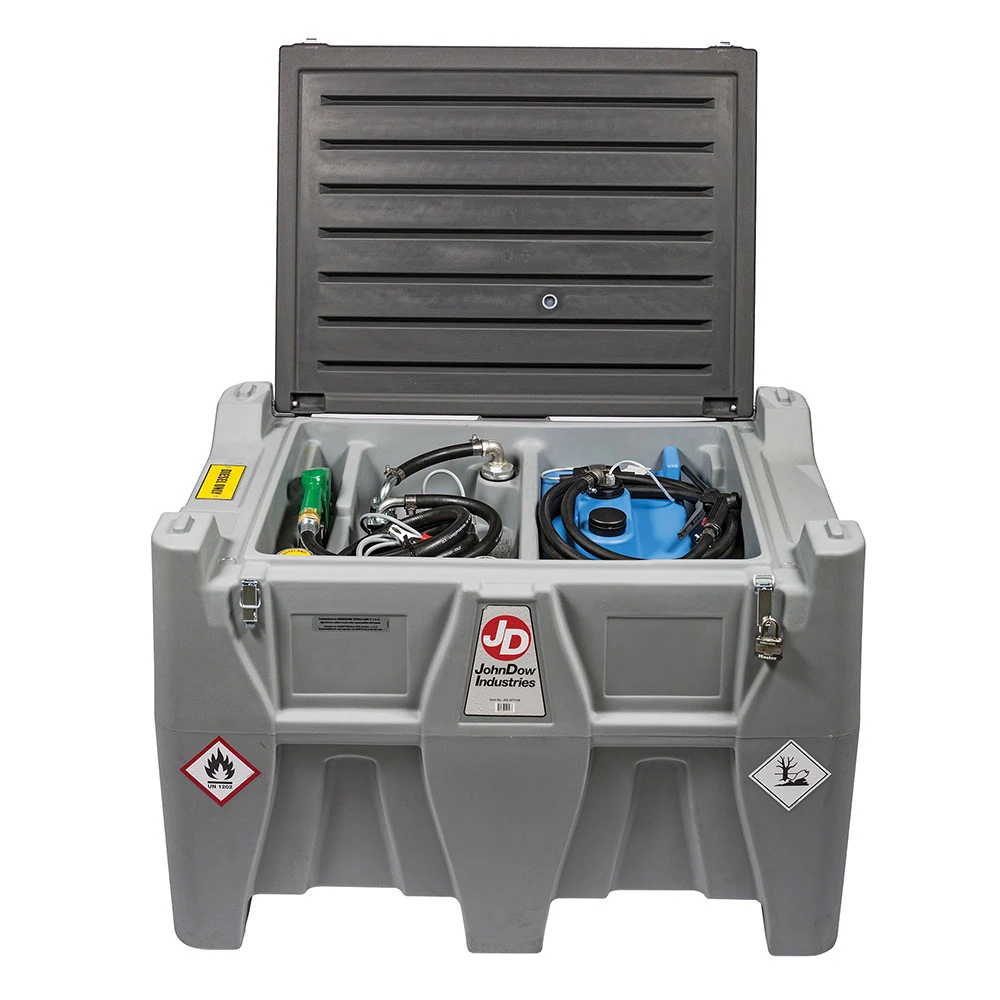

For vehicles requiring diesel exhaust fluid the 106-gallon Carrytank can be equipped with a separate DEF 10-gallon dispensing tank.
Features include:
Rugged linear polyethylene construction
Available in 58-gal and 106-gal capacities
12 volt transfer pump delivers fuel at 10 gallons per minute
Automatic dispensing nozzle
Integrated forklift pockets for moving the tank when full
Molded handles make it easy to lift and carry the tank when empty
Integrated recesses are provided for securing tanks with ratchet straps during transport
Equipped with protective and lockable cover
106-gallon model includes space for tool storage when DEF tank is not being utilized
Specifications:: JDI-AFT106
Capacity: 106-Gal
Weight-empty: 118 lbs.
Power Cable: 13’
IMPORTANT! Use with diesel fuel only
JohnDow Carrytanks are for use with diesel fuel only. DO NOT use with gasoline or other fuels or liquids. It is the user’s responsibility to comply with local, state and federal requirements pertaining to safe transportation, loading and discharging tank contents.

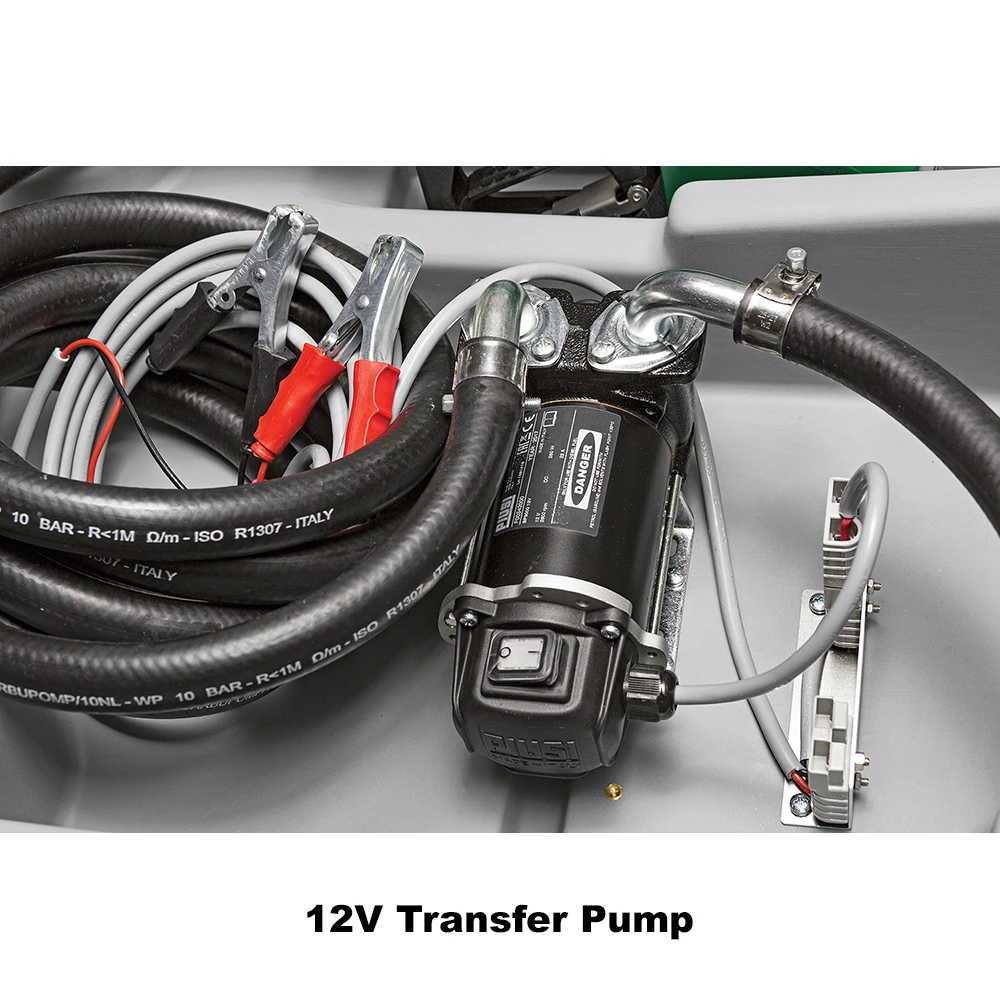

12 volt transfer pump delivers fuel at 10 gallons per minute.

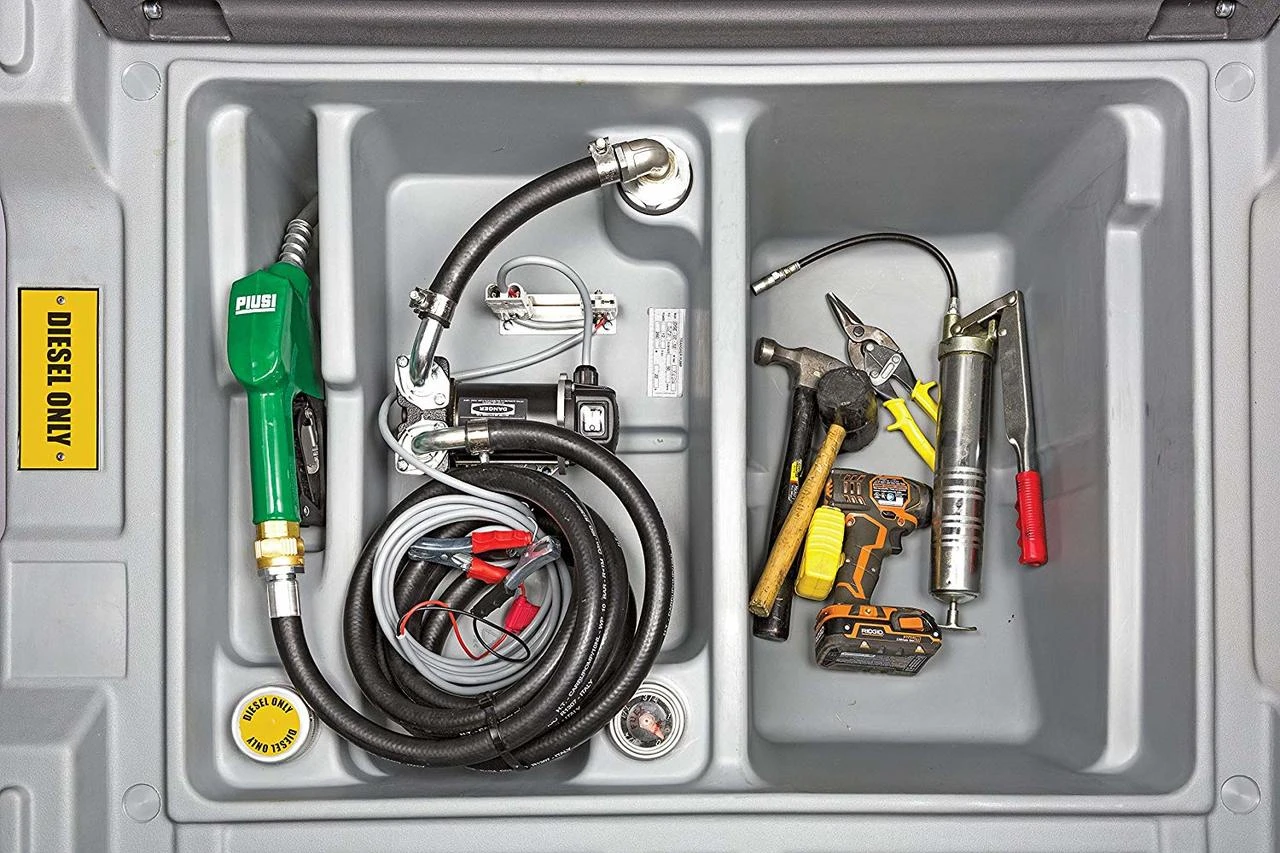

Tool Compartment
106-gallon has recessed are for tool storage or optional DEF tank.
Protective Cover
Protective cover can be locked for extra security.

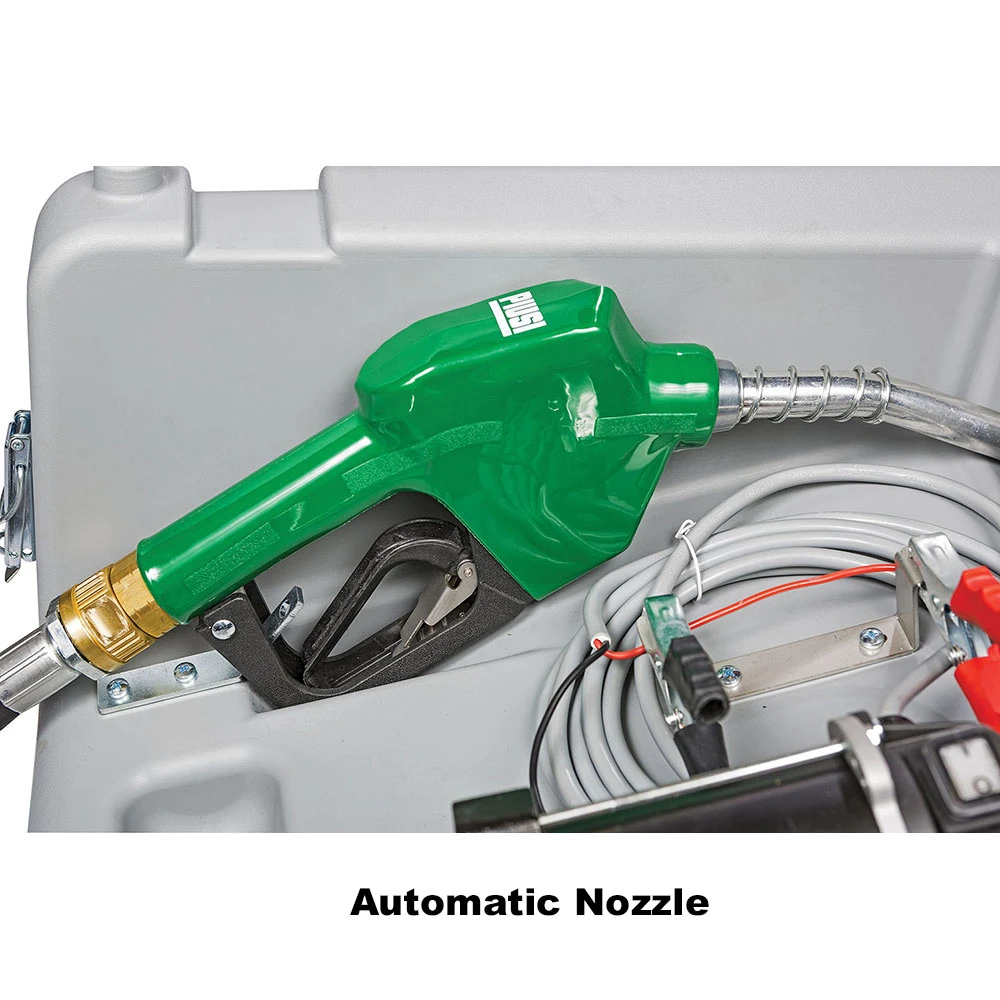

Automatic Nozzle
Automatic dispensing nozzle.
Forklift Pockets
Forklift pockets to lift and carry.
Recess for ratchet straps
Carrytanks can be strapped into any vehicle for transport
Product identification
- Brand: John Dow
- Model / MPN: JDI-AFT106
