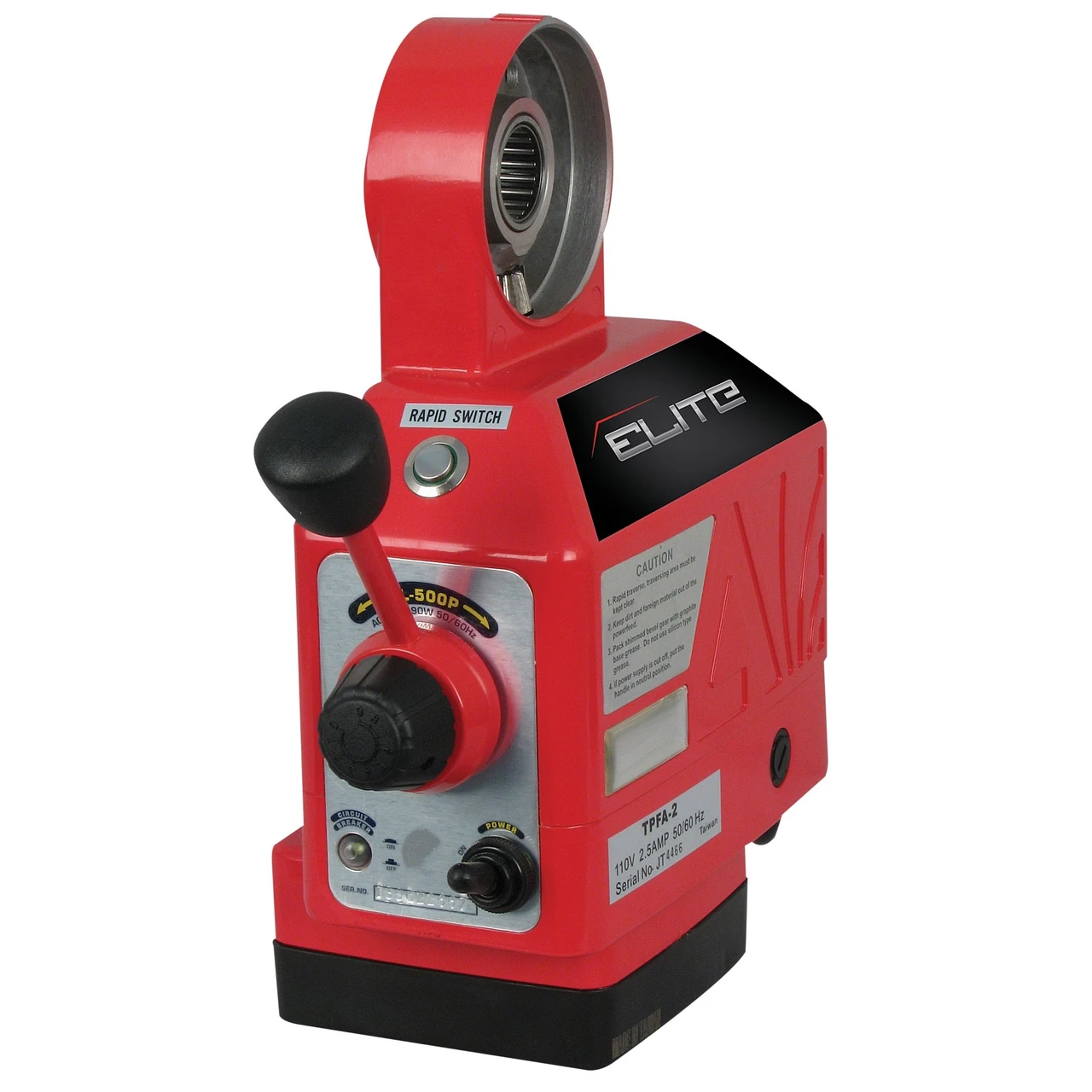

Jet Y-Axis Table Powerfeed w/780lb Torque for Milling Machine (350195)
Jet Y-Axis Table Powerfeed w/780lb Torque for Milling Machine (350195) is a precision tool designed to enhance the performance of your milling machine. This power feed attachment provides automated control over the table's movement along the Y-axis, significantly improving efficiency and accuracy in your milling operations.
KEY FEATURES AND BENEFITS:
Increased Productivity: Automate table movement for faster and more consistent results.
Improved Accuracy: Precise control over feed rate for enhanced part quality.
Versatile Application: Suitable for X, Y, and Z-axis use.
Operator Comfort: Reduce physical strain with automated table movement.
Durable Construction: Built-in clutch protects against overload damage.
Motor: 105W / 1AMP, 115V, 1 Ph
Torque Output: 780 in./lbs.
Speed Rate: Continuously variable, up to 32 IPM
Adjustable Stops: For automatic shut-off
Rapid Traverse Button: For quick positioning
Built-in Clutch: Protects against overload damage
Secure the Power Feed: Attach the power feed to your milling machine's Y-axis according to the manufacturer's instructions. Ensure it is securely fastened.
Adjust Feed Rate: Set the desired feed rate using the control dial. The feed rate can be adjusted from 0 to 32 inches per minute.
Set Adjustable Stops: Position the adjustable stops to determine the desired travel distance for the table.
Engage Power Feed: Activate the power feed to start the automated table movement.
Use Rapid Traverse: Quickly move the table to the starting position using the rapid traverse button.
Monitor Operation: Observe the milling process and make adjustments as needed.
BENEFITS OF USING JET Y-AXIS TABLE POWERFEED W/780LB TORQUE FOR MILLING MACHINE (350195):
Consistent part quality: Precise control over feed rate ensures accurate and repeatable results.
Increased production efficiency: Automate table movement to reduce cycle times and increase output.
Reduced operator fatigue: Minimize physical strain by allowing the power feed to handle table movement.
Improved safety: Built-in clutch helps prevent damage to the machine and workpiece.
Versatility: Use with X, Y, or Z-axis for a wide range of applications.
Continuously variable feed rate up to 32 in/min
Adjustable stops for automatic shut-off
Rapid traverse button for quick positioning
Built-in clutch protects against overload damage
Factory installation available
Reduces table travel
Product identification
- Brand: Jet
- Model / MPN: 350195
