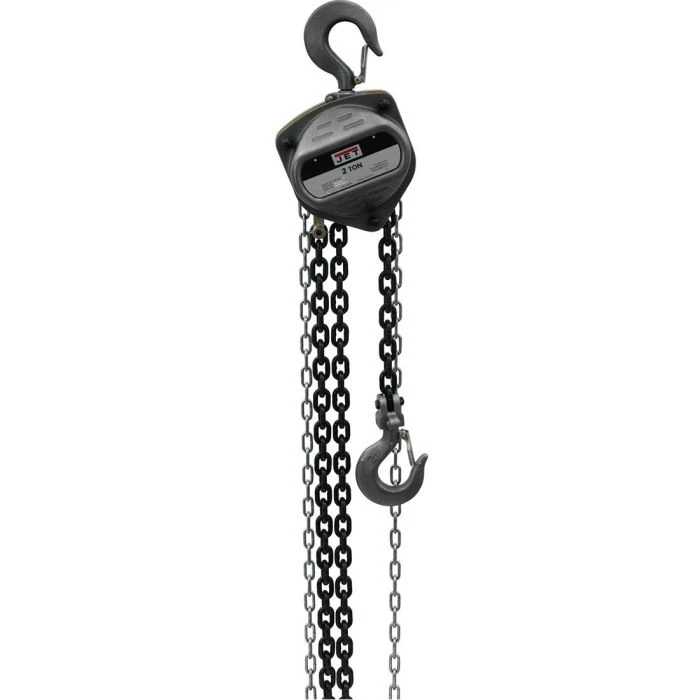

JET S90-200-50 101937 2 Ton Chain Hoist, 50 ft Lift
The JET S90-200-50 101937 is the 50 ft lift version of this 2 ton hand chain hoist. Its Grade 80 load chain and manual operating chain identify a different configuration from L100 models; choose by the complete part number and required lift.
Specifications and included details
- S90-200-50, part 101937: 2 ton capacity and 50 ft lift.
- Grade 80 black-oxide-coated load chain.
- Weston-style double-ratchet-pawl brake and alloy steel hooks with overload indication are listed.
- All-steel construction with heat-treated load plates and case-hardened internal parts.
- Needle-bearing support and cast steel hook latches are listed.
Before ordering
Confirm supplied hand-chain length and installed headroom for the operating position. Use the manufacturer's rating, support requirements and inspection instructions. Hook overload indication is not evidence that an overload clutch is fitted or that exceeding the rating is acceptable.
Product questions and answers
Does the 50 ft lift mean a 50 ft operating-chain drop?
No operating-chain length is specified here. Confirm the supplied hand-chain drop separately from the 50 ft load-hook lift configuration.
Is the S90-200-50 an L100 Grade 100 chain model?
No. This listing identifies the S90 series and Grade 80 black-oxide-coated load chain. Do not transfer L100 chain specifications to this part.
Do overload-indicating hooks mean this has a slip clutch?
That conclusion is not established. The product lists overload indication on the hooks, not a model-specific slip-clutch feature. Follow the rated load and manufacturer instructions.
