1.5 ton chain hoist details

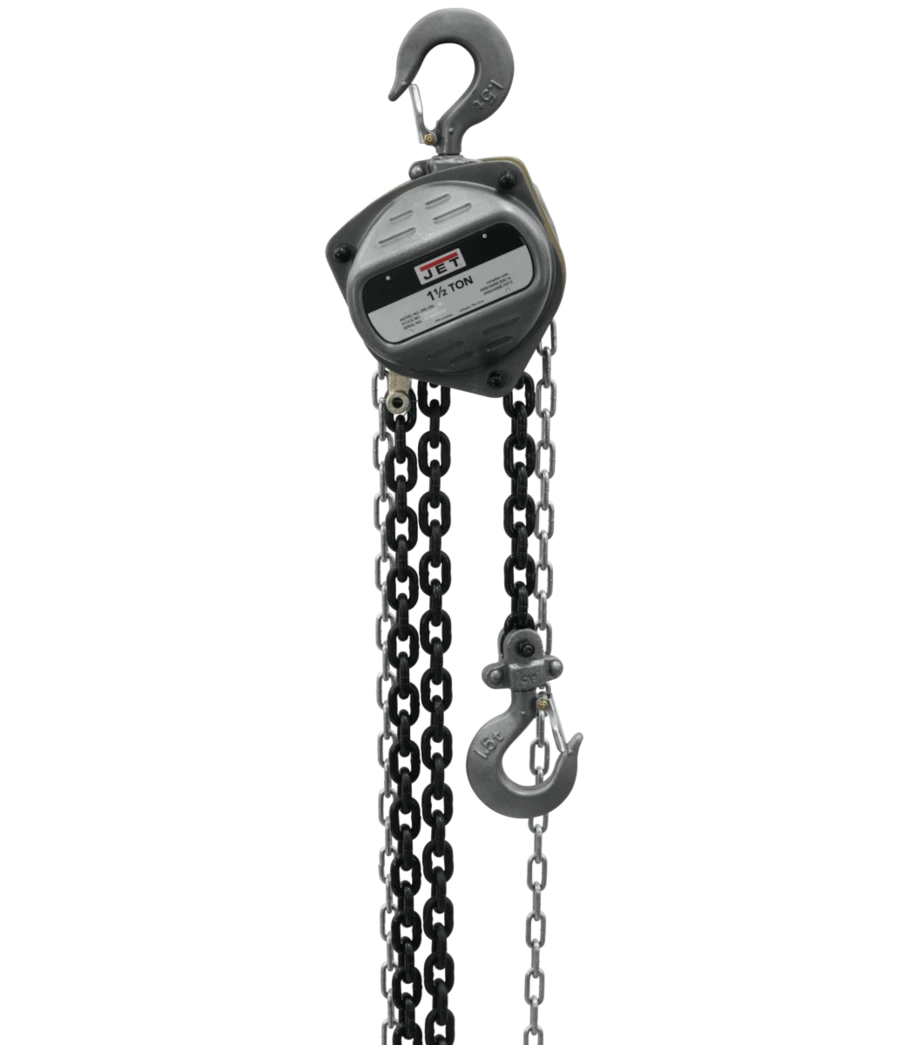

Jet S90-150-20 1.5 Ton Chain Hoist With 20 Foot Lift (101922)
The Jet S90-150-20 1.5 Ton Chain Hoist With 20 Foot Lift (101922) is a robust hand chain hoist designed for efficient lifting in various industrial settings. Built with durability in mind, this hoist is constructed entirely of steel, ensuring long-lasting performance even in demanding conditions.
KEY FEATURES AND BENEFITS:
Safety: Weston-style dual pawl brake system for reliable load holding, alloy steel hooks for secure lifting, and overload protection through hook stretching.
Durability: All-steel construction, heat-treated load plates for corrosion resistance, and grade 100 load chain for exceptional strength.
Efficiency: Needle bearing design for smooth operation and reduced wear, compact size for use in confined spaces.
Ease of Use: Simple hand chain operation, clear load indicators.
Capacity: 1-1/2 ton (3300 lbs)
Headroom: 17-1/2 inches
Number of falls: 1
Load chain diameter: 7 mm
Required hand chain to lift load 1': 58 ft
Required pounds of pull to lift capacity: 82 lbs
Dimensions: 8.5" H x 11" W x 15" L
Net weight: 55 lbs
Inspect: Before use, carefully inspect the hoist for any damage or wear. Check the brake system, load chain, and hooks for proper function.
Attach Load: Securely hook the load to the hoist's hook, ensuring the load is balanced and centered.
Operate Hand Chain: Pull the hand chain to lift the load. The hoist is equipped with a self-locking mechanism, so the load will remain stationary when the hand chain is released.
Lower Load: To lower the load, gradually release the hand chain. Control the lowering speed by adjusting the hand chain release rate.
Release Load: Once the load is safely on the ground, detach the hook from the load.
BENEFITS OF USING Jet S90-150-20 1.5 Ton Chain Hoist With 20 Foot Lift (101922):
Increased productivity through efficient lifting operations.
Improved worker safety with reliable braking and overload protection.
Reduced downtime due to the hoist's durability and easy maintenance.
Cost-effective solution for various lifting tasks.
Weston-style dual pawl brake system
Alloy steel hooks
Needle bearing design
Heat-treated load plates
Grade 100 load chain
All-steel construction
Meets OSHA regulations and industry standards
Product identification
- Brand: Jet
- Model / MPN: 101922
Jet chain hoist: see the listed specifications for this model.
