1/2 ton chain hoist details

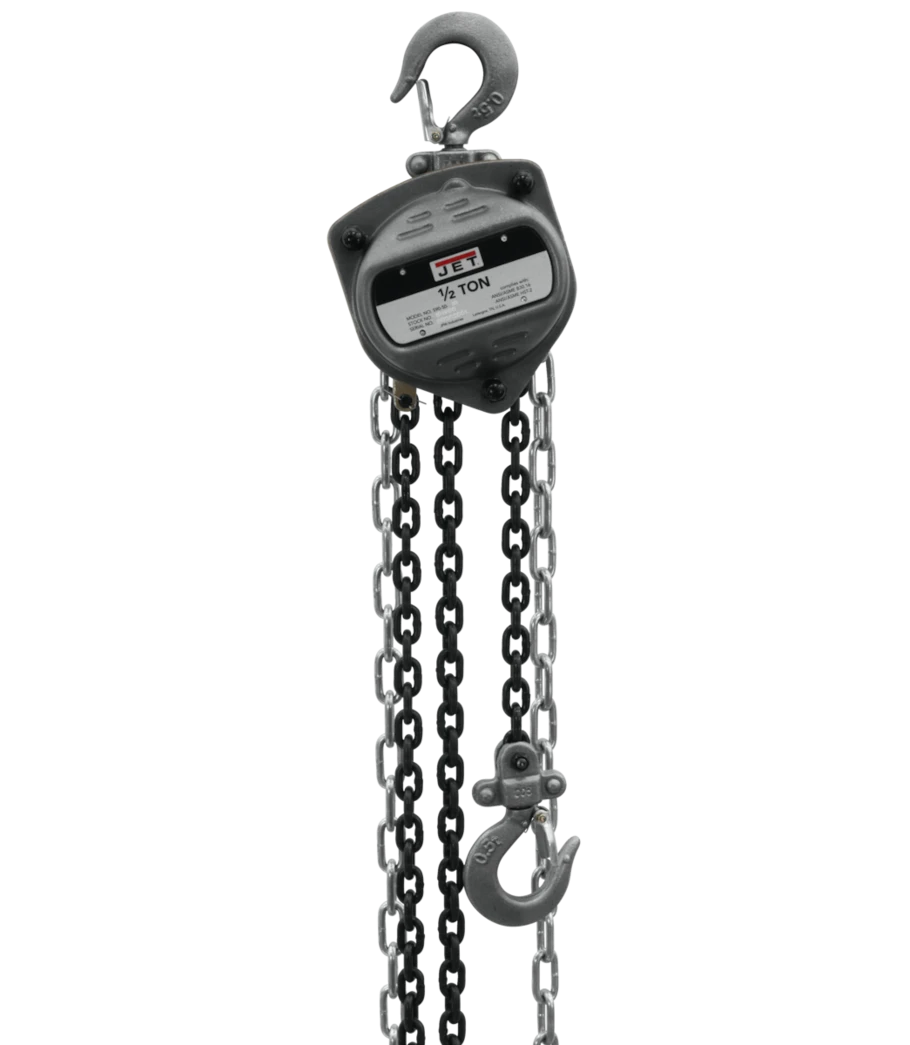

Jet S90-050-10 1/2 Ton Chain Hoist With 10 Foot Lift (101900)
Jet S90-050-10 1/2 Ton Chain Hoist With 10 Foot Lift (101900) is a reliable and efficient tool designed for light-duty industrial tasks. Built with durability in mind, this hoist features all-steel construction and a grade 80 load chain for long-lasting performance. Its compact design makes it suitable for confined spaces and low headroom applications.
KEY FEATURES AND BENEFITS
Safety: Equipped with a Weston-style dual pawl brake system for enhanced load security and overload protection indicated by stretching hooks.
Durability: All-steel construction, heat-treated load plates, and grade 80 load chain ensure long-lasting performance in harsh environments.
Efficiency: Needle bearing design for smooth operation and reduced wear.
Convenience: Compact size and lightweight design for easy handling and use in confined spaces.
Capacity: 1/2 ton (1100 lbs)
Lift height: 10 feet
Headroom: 11 inches
Load chain: 5 x 15mm
Number of falls: 1
Pull to lift capacity: 58 lbs
Required hand chain to lift load 1 ft: 32 ft
Inspect the hoist: Before use, carefully examine the hoist for any signs of damage or wear. Check the load chain for kinks, wear, or damage.
Attach the load: Securely hook the load to the hoist's hook, ensuring it is centered and balanced.
Operate the hand chain: Pull the hand chain to lift the load. The hoist is equipped with a brake that engages automatically when the hand chain is released.
Lower the load: To lower the load, gently pull the lowering lever while controlling the descent with the hand chain.
Release the load: Once the load is safely lowered, detach it from the hoist's hook.
BENEFITS OF USING JET S90-050-10 1/2 TON CHAIN HOIST WITH 10 FOOT LIFT (101900)
Enhanced safety with dual pawl brake system and overload protection.
Increased efficiency due to smooth operation and compact design.
Improved productivity through reliable and durable performance.
Cost-effective solution for light-duty lifting tasks.
All-steel construction
Grade 80 load chain
Heat-treated load plates
Needle bearing design
Weston-style dual pawl brake system
Overload protection
Industrial-rated alloy steel hooks
Product identification
- Brand: Jet
- Model / MPN: 101900
Jet chain hoist: see the listed specifications for this model.
