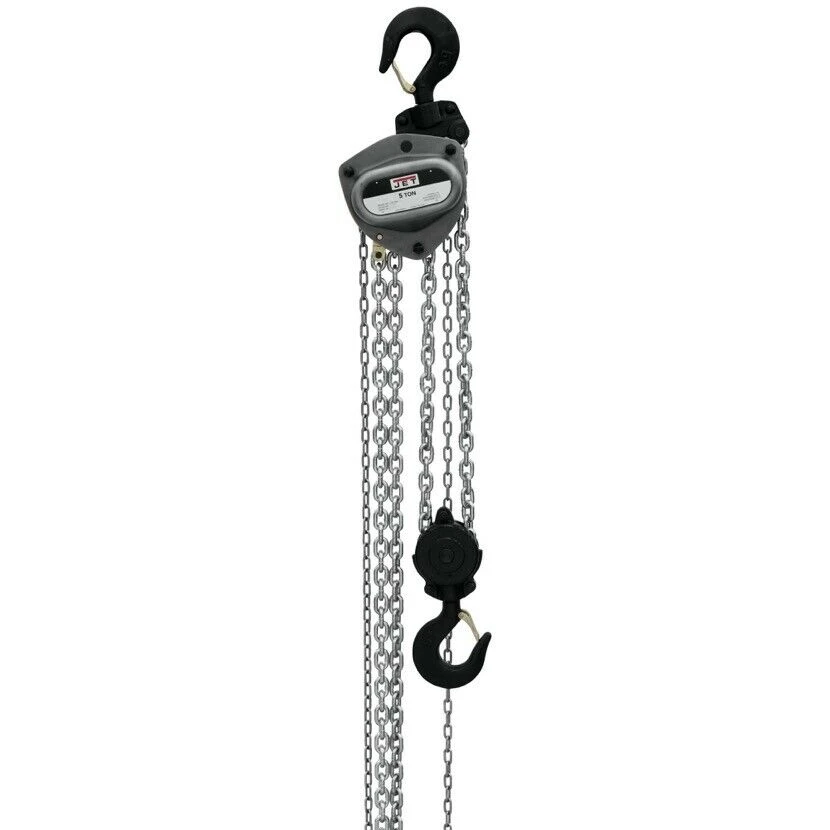

Jet L100-500WO-30 5 Ton Hoist 30'Lift & Overload Protection (208130)
Jet L100-500WO-30 5 Ton Hoist 30'Lift & Overload Protection (208130) is a robust, industrial-grade manual chain hoist designed for lifting heavy loads. Built with durability and safety in mind, this hoist is a reliable tool for various applications.
KEY FEATURES AND BENEFITS:
All-steel construction: Ensures long-lasting performance and can withstand demanding work environments.
Double sealed ball bearings: Provide smooth and efficient operation, reducing user effort.
Grade 100 load chain: Offers superior strength compared to standard grade 80 chains, enhancing safety.
Heat-treated load plates: Extend the hoist's lifespan and resistance to wear.
Patented fused brake system: Minimizes maintenance requirements and downtime.
Overload protection: Prevents equipment damage and accidents through hook stretching.
Weston-style double pawl brake: Provides added safety and security during lifting operations.
Compact design: Ideal for areas with limited headroom.
Triple spur gear drive: Delivers efficient power transfer.
Industrial-rated alloy steel hooks: Offer 360-degree rotation for easy rigging.
Capacity: 5 tons (11,023 pounds)
Lift height: 30 feet
Headroom: 23-5/8 inches
Load chain diameter: 9 mm
Required hand chain to lift load 1 ft.: 198
Required pounds of pull to lift capacity: 75
Weight: 149 pounds
Gross weight: 168 pounds
Inspect the hoist: Check for any visible damage before use.
Attach securely: Fasten the hoist to a fixed overhead point.
Inspect the load chain: Ensure it is free from wear and damage.
Attach the load hook: Securely fasten it to the load.
Use the hand chain: Pull steadily to lift the load.
Lower the load: Slowly release the hand chain to lower the load.
Detach and inspect: After lowering, detach the load hook and inspect the hoist.
BENEFITS OF USING Jet L100-500WO-30 5 Ton Hoist 30'Lift & Overload Protection (208130):
Increased productivity: Efficient design and powerful lifting capacity.
Improved safety: Built-in safety features protect operators and equipment.
Reduced downtime: Low-maintenance design minimizes work interruptions.
Durability: High-quality materials ensure long-term use in demanding environments.
Versatility: Suitable for various lifting tasks in industrial settings.
All-steel construction
Double sealed ball bearings
Grade 100 load chain
Heat-treated load plates
Patented fused brake system
Overload protection
Weston-style double pawl brake
Triple spur gear drive
Industrial-rated alloy steel hooks
Product identification
- Brand: Jet
- Model / MPN: 208130
