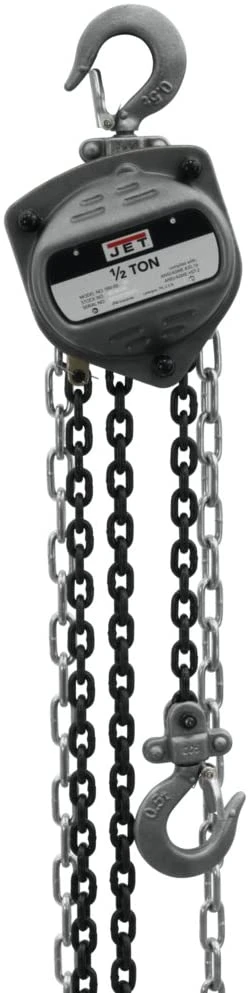

Jet L100-50-90 1/2 Ton 90" Lift & Overload Protection (205190)
The Jet L100-50-90 1/2 Ton 90" Lift & Overload Protection (205190) is a ½ ton capacity hand chain hoist designed for lifting heavy objects in demanding industrial environments. With a remarkable 90-foot lifting height and robust all-steel construction, this hoist offers exceptional functionality and long-lasting performance.
KEY FEATURES AND BENEFITS:
Superior Lifting Capacity and Height: Effortlessly lift loads up to 1,000 lbs (½ ton) to a height of 90 feet, ideal for various industrial applications.
Durable Construction: Built with high-quality steel for maximum strength and impact resistance, ensuring long-lasting use.
Smooth Operation: Double sealed ball bearings on the load sheave provide smooth and efficient operation.
Enhanced Safety Features: Heat-treated load plates, industrial-rated hooks with overload indication, and secured cast-steel safety latches guarantee safe lifting practices.
Grade 100 Load Chain: The hoist utilizes a Grade 100, corrosive-resistant plated load chain, offering 20% greater strength than a standard Grade 80 chain.
Lightweight Design and Compact Size: The lightweight and compact design allows for easy maneuverability and use in confined spaces.
Capacity: ½ ton (1,000 lbs)
Lift Height: 90 feet
Construction: All Steel
Load Chain: Grade 100, Corrosive Resistant Plated
Brake System: Patented Fused Brake
Safety Features: Overload Protection, Heat-Treated Load Plates, Industrial Hooks, Secured Safety Latches
Secure the hoist: Attach the hoist securely to a stable overhead support structure that can handle the weight of the load you intend to lift. Ensure the chosen anchor point is rated for the load capacity.
Inspect the hoist: Before each use, thoroughly inspect the hoist for any signs of damage or wear. Check the chain, hooks, latches, and brake system for proper functionality.
Position the load: Hook the hoist onto the object you want to lift, ensuring the hook is securely fastened to a designated lifting point.
Operate the chain: Pull the hand chain to raise the load. The Weston style double ratchet pawl brake ensures the load remains secure when the chain is not in motion.
Lower the load: Slowly release the hand chain to lower the load in a controlled manner. The brake system automatically engages when the chain is not pulled, preventing accidental lowering.
Stop use: Once the load is lowered to the desired position, secure it in place and detach the hoist.
BENEFITS OF USING JET L100-50-90 1/2 TON 90" LIFT & OVERLOAD PROTECTION (205190):
Increased Efficiency: The high lifting capacity and 90-foot lift height allow for efficient lifting of heavy objects in various industrial settings.
Enhanced Safety: Overload protection, secure latches, and a dependable brake system ensure safe lifting practices and protect against overloading.
Durability and Reliability: The robust steel construction and high-quality components guarantee long-lasting performance in demanding environments.
Smooth Operation: Double sealed ball bearings provide smooth chain operation for user comfort and efficient lifting.
Compact and Maneuverable: The lightweight and compact design allows for easy setup and use in confined spaces.
½ ton lifting capacity (1,000 lbs)
90-foot lifting height
All steel construction for durability
Patented fused brake system for reduced maintenance
Overload protection for safety
Double sealed ball bearings for smooth operation
Grade 100, corrosive-resistant plated load chain (20% stronger than Grade 80)
Heat-treated load plates and industrial-rated hooks
Secured cast-steel safety latches
Lightweight and compact design
Weston style double ratchet pawl brake for load security
ANSI / ASME B30.16 and HST-2 compliant
Load tested to 125% of capacity
Product identification
- Brand: Jet
- Model / MPN: 205190
