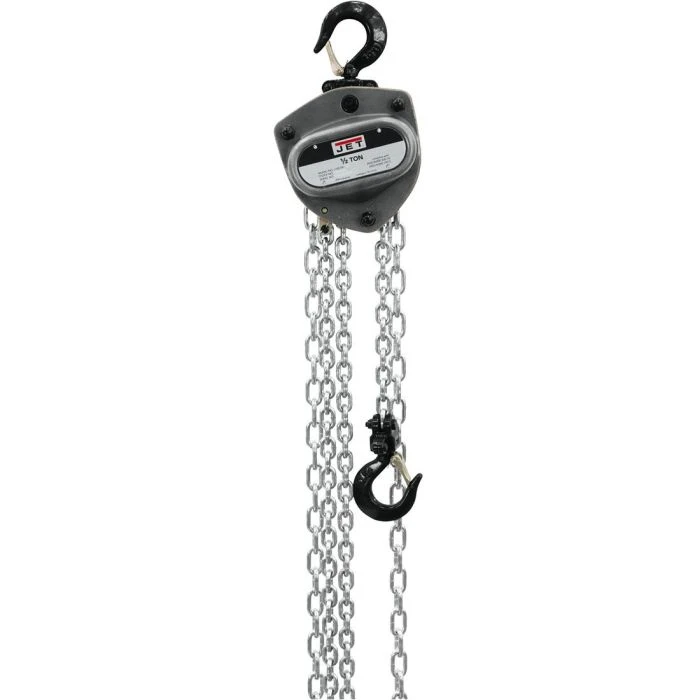

Jet L100-50-40 1/2 Ton 40' Lift with Overload Protection (205140)
The Jet L100-50-40 1/2 Ton 40' Lift with Overload Protection (205140) is a professional-grade lifting solution for industrial applications. This workhorse hoist boasts a 1/2 ton (1,000 lbs) capacity and a lift height of 40 feet, making it ideal for various heavy-duty lifting tasks.
KEY FEATURES AND BENEFITS:
Built to Last: Engineered for harsh environments, the L205140 features a robust all-steel construction, heat-treated load plates, and case-hardened internal parts for exceptional durability. Grade 100 load chain (20% stronger than Grade 80) and cast-steel safety latches with Allen screws ensure reliable operation.
Smooth Operation: Double-sealed ball bearings contribute to smooth lifting action, while the lightweight and compact design makes the hoist maneuverable even in confined spaces.
Industry Standards: The L205140 complies with ANSI/ASME B30.16 and HST-2 standards and is load-tested to 125% of its capacity for guaranteed safety and performance.
Capacity: 1/2 ton (1,000 lbs)
Lift Height: 40 feet
Overload Protection: Yes (resettable)
Load Chain: Grade 100, corrosive resistant plated
Hooks: Industrial-rated alloy steel, 360° rotation, slow-stretch overload indicator
Construction: All-steel with heat-treated components
Standards: ANSI/ASME B30.16 & HST-2
Preparation: Ensure the hoist is secured to a stable overhead mounting point with a rated capacity exceeding the load. Inspect the hoist for any damage and ensure the chain is properly lubricated.
Lifting: Pull the hand chain to raise the load. The chain should move freely without binding. Never exceed the rated capacity of the hoist.
Lowering: Slowly release the hand chain to lower the load. Engage the brake by pushing the lever on the hoist body to secure the load in position.
Overload Protection: If the overload protection mechanism activates, stop lifting immediately and reset it following the manufacturer's instructions.
BENEFITS OF USING Jet L100-50-40 1/2 Ton 40' Lift with Overload Protection (205140):
Safely lifts heavy loads (up to 1,000 lbs) in various industrial applications.
Offers a significant lifting height of 40 feet, ideal for high-reaching tasks.
Prioritizes safety with overload protection and a reliable brake system.
Delivers exceptional durability for long-lasting performance in harsh environments.
Provides smooth operation and easy maneuverability.
Meets industry standards for safe and reliable lifting operations.
1/2 ton capacity (1,000 lbs)
40-foot lift height
Overload protection with on-site reset
Double ratchet pawl brake for secure load control
Grade 100 load chain (stronger and more compact)
Cast-steel safety latches with Allen screws for secure fastening
Heat-treated components for extended life
Double-sealed ball bearings for smooth operation
Impact-resistant all-steel construction
360° rotating hooks with slow-stretch overload indication
Lightweight and compact design for confined spaces
Meets ANSI/ASME B30.16 and HST-2 standards
Load tested to 125% of capacity
Product identification
- Brand: Jet
- Model / MPN: 205140
