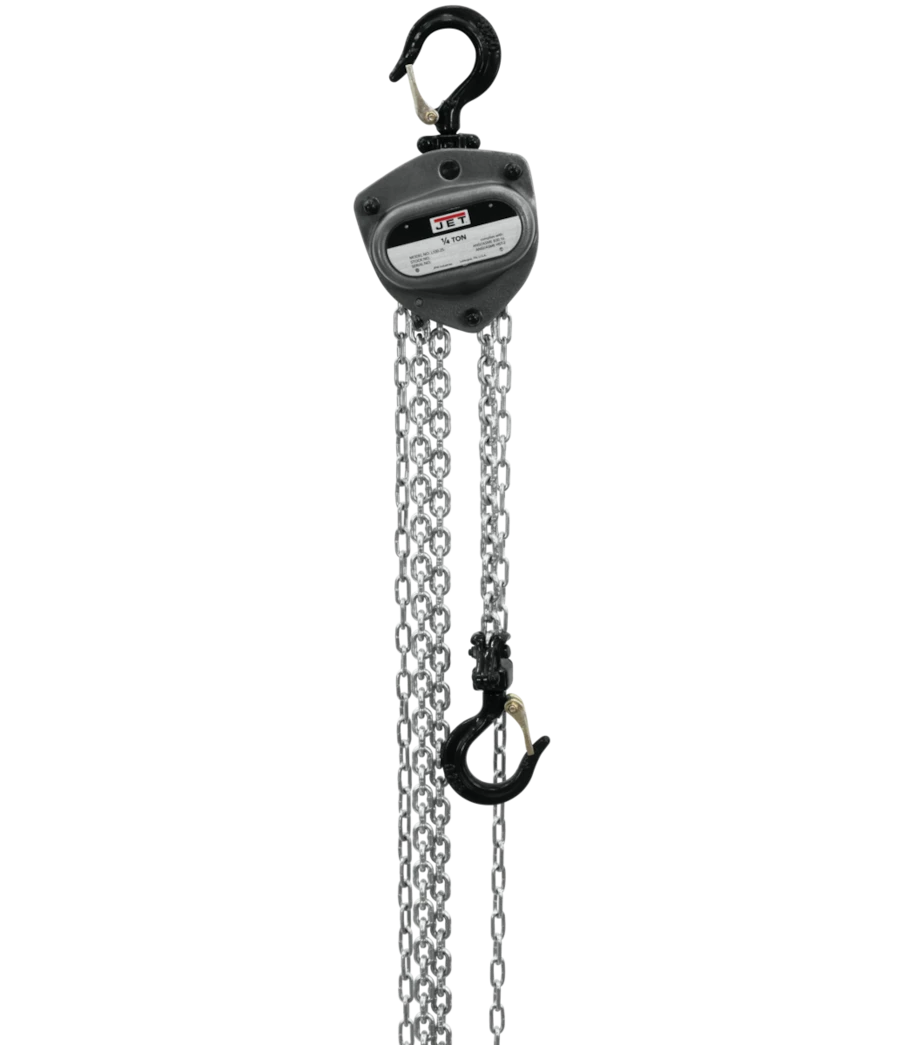

Jet L100-250WO-20 1/4T Hoist w/20' Lift & Overload Protection (101250)
Jet L100-250WO-20 1/4T Hoist w/20' Lift & Overload Protection (101250) is a rugged and reliable lifting solution designed for demanding industrial environments. Built with durable materials and innovative features, this hoist is engineered to provide years of dependable service.
KEY FEATURES AND BENEFITS
1/4 Ton Capacity: Safely lift loads up to 550 lbs.
20-Foot Lift: Offers ample lifting height for various applications.
Overload Protection: Prevents lifting damaging loads beyond its rated capacity, ensuring safety and prolonging hoist life.
Patented Fused Brake System: Reduces maintenance needs and minimizes downtime, enhancing productivity.
Durable Construction: Made with high-quality materials and components, ensuring longevity and reliability.
Grade 100 Load Chain: Stronger and more durable than standard grade 80 chains.
Easy to Operate: Smooth and efficient operation with minimal effort.
Stock Number: JT9-101250
Capacity: 550 lbs (1/4 ton)
Load Chain Dimensions: 4 x 12 mm
Model Number: L-100-250WO-20
Pull to Lift Capacity: 42 lbs
Gross Weight: 16 lbs
Headroom: 9-13/16 inches
Inspect: Before each use, inspect the hoist for any damage or wear.
Attach: Securely attach the hoist to a suitable support structure.
Rig the Load: Properly rig the load to the hoist's hooks, ensuring a balanced and secure connection.
Lift: Slowly and steadily pull the hand chain to lift the load.
Lower: Gently pull the other side of the hand chain to lower the load.
Store: After use, clean and store the hoist in a dry and safe location.
BENEFITS OF USING THE JET L100-250WO-20 1/4T HOIST W/20' LIFT & OVERLOAD PROTECTION (101250)
Increased Safety: Overload protection prevents accidents and injuries.
Reduced Downtime: Durable construction and low-maintenance design minimize costly repairs and delays.
Improved Productivity: Efficient operation and reliable performance enhance workflow efficiency.
Triple spur gear drive train with heat-treated alloy steel gears
Drop forged, quenched, and tempered carbon steel hooks
Cast steel safety latches with Allen head screws and lock nuts
Double enclosed brake cover for added protection
Sealed ball bearing supported load sheave
Investment cast anchor plate and heat-treated internal parts
Zinc coating on internal parts for corrosion resistance
Product identification
- Brand: Jet
- Model / MPN: 101250
