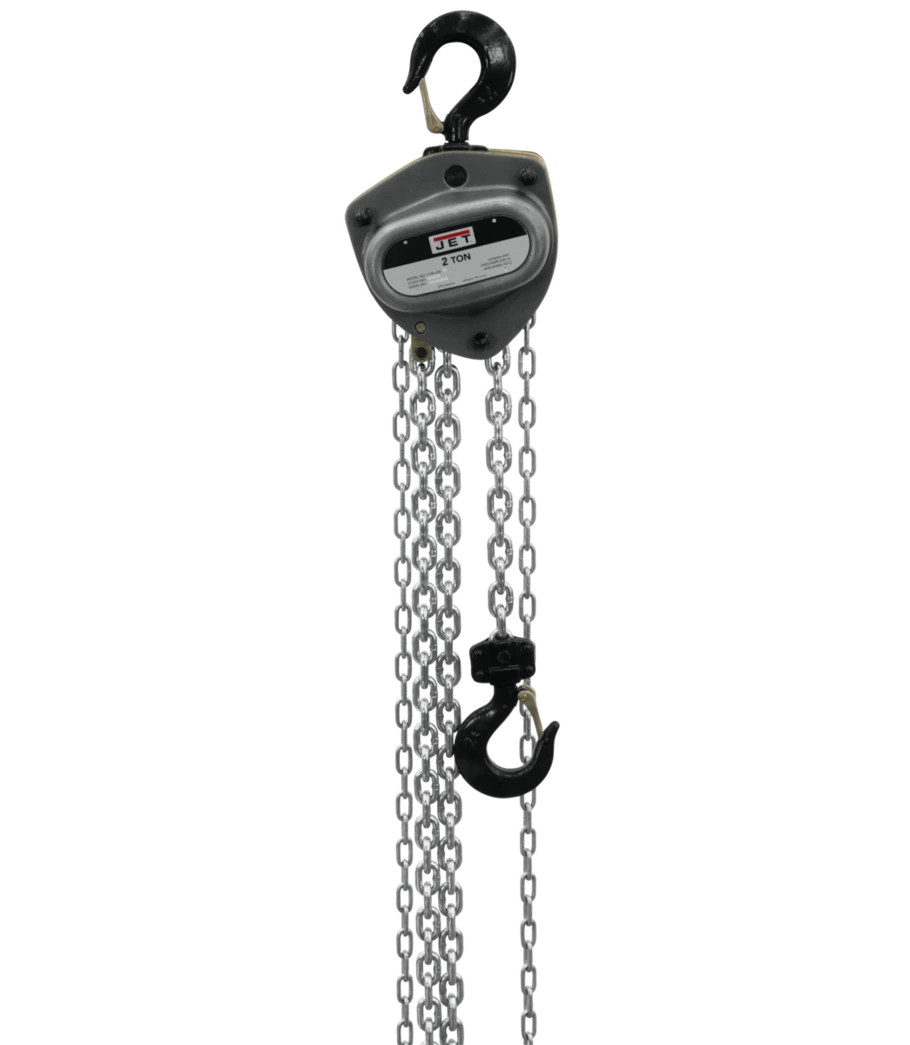

Jet L100-200WO-10 2Ton Hoist w/10' Lift & Overload Protection (105100)
The Jet L100-200WO-10 2Ton Hoist w/10' Lift & Overload Protection (105100) is a robust, 2-ton capacity manual chain hoist designed for heavy-duty lifting applications. Built with safety and durability in mind, this hoist features a patented fused brake system, overload protection, and a double pawl brake. It's ideal for industrial, construction, and warehouse environments.
KEY FEATURES AND BENEFITS:
Safety: Patented fused brake system, overload protection, and double pawl brake ensure secure lifting.
Durability: All-steel construction, heat-treated components, and grade 100 load chain provide long-lasting performance.
Efficiency: Sealed ball bearings, triple spur gears, and smooth operation minimize effort.
Versatility: Ideal for various lifting tasks in industrial and construction settings.
Capacity: 2 tons (4400 lbs)
Lift height: 10 feet
Load chain: Grade 100, 3/8" diameter
Overload protection: Slip clutch
Brake: Double pawl Weston-type
Gear ratio: 4.5:1
Dimensions: 14.5" x 6.5" x 13"
Inspect the hoist: Check for any damage before use.
Attach the load hook: Securely attach the load hook to the desired lifting point.
Engage the brake: Pull the handle down to engage the brake.
Pull the hand chain: Use the hand chain to lift the load.
Lower the load: Gradually release the hand chain while controlling the descent with the brake.
Secure the load: Once lowered, fully engage the brake to secure the load.
BENEFITS OF USING Jet L100-200WO-10 2Ton Hoist w/10' Lift & Overload Protection (105100):
Increased productivity: Through efficient lifting capabilities.
Improved safety: With overload protection and reliable braking.
Reduced downtime: Due to durable construction and minimal maintenance.
Cost-effective solution: For heavy-duty lifting needs.
All-steel construction
Patented fused brake system
Overload protection
Double pawl Weston-type brake
Grade 100 load chain
Sealed ball bearings
Triple spur gears
Drop forged alloy steel hooks
Cast steel safety latches
Heat-treated load plates
Product identification
- Brand: Jet
- Model / MPN: 105100
