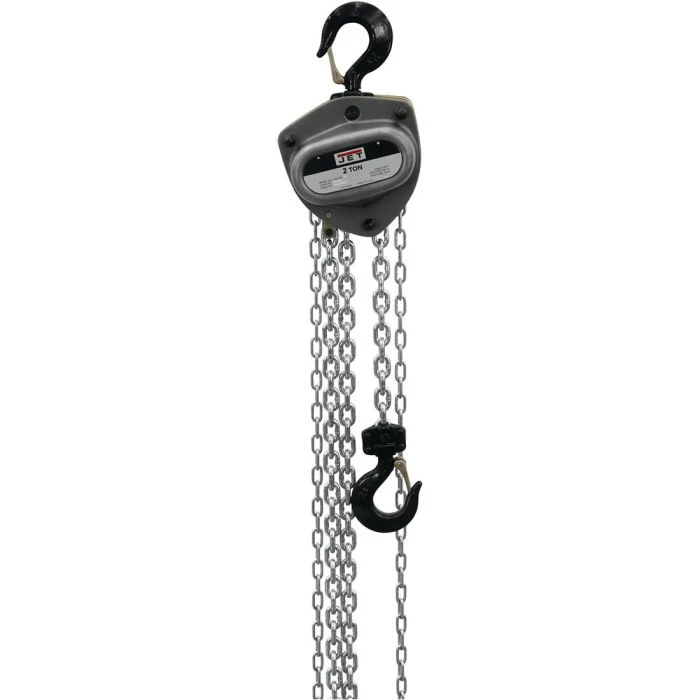

JET L100-200-40 203240 2 Ton Chain Hoist, 40 ft Lift
The JET L100-200-40 203240 is a manual hand chain hoist configured for a 40 ft lift and 2 ton capacity. Compare its long-lift configuration with the installed support height and the operator's working position before selecting it for overhead lifting.
Specifications and included details
- L100-200-40, part 203240: 2 ton capacity and 40 ft lift.
- Listed Grade 100 corrosion-resistant load chain with 5/16 inch chain diameter.
- Overload protection and a Weston-style double-ratchet-pawl brake are listed.
- Heat-treated load plates, case-hardened internal parts and double-sealed ball bearings.
- Hand-chain length is described only as standard; no numerical length is supplied.
Before ordering
Confirm the actual hand-chain drop, headroom and rated support arrangement. A 40 ft lift does not establish the operator-chain length. Use the manufacturer's nameplate, permitted applications and inspection instructions; general pulling/tensioning language does not establish approval for side loading.
Product questions and answers
Does this 40 ft lift hoist include a 40 ft hand-chain drop?
That is not established. The specification describes hand-chain length only as standard. Confirm the supplied operating-chain length for the intended working position.
Does Grade 100 chain increase the hoist beyond 2 ton capacity?
No. Chain grade describes a component specification. The named hoist capacity remains 2 ton, subject to the manufacturer's marking and instructions.
Can I use the L100-200-40 for any horizontal pulling job?
Do not infer that permission from general application text. Confirm the manufacturer's approved orientation and application for this hand chain hoist and the complete rigging setup.
