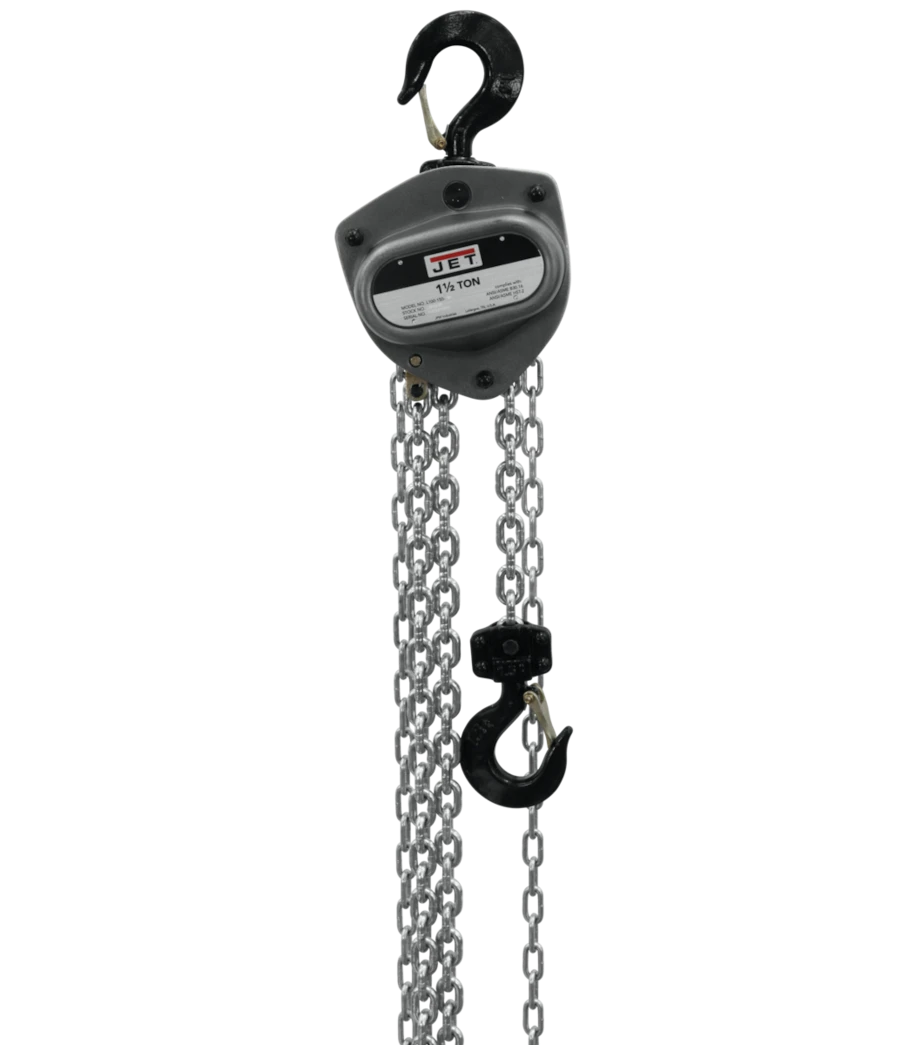

Jet L100-150WO-20 1.5Ton Hoist 20' Lift & Overload Protection (201120)
The Jet L100-150WO-20 1.5 Ton Hoist 20' Lift & Overload Protection (201120) is a 1-1/2 ton capacity chain hoist designed for heavy-duty lifting applications. Built with durability and safety in mind, this hoist is ideal for industrial, construction, and maintenance tasks.
KEY FEATURES AND BENEFITS:
Slip Clutch Overload Protection: Prevents damage to the hoist and load by automatically disengaging when overloaded.
All-Steel Construction: Offers superior strength and durability for demanding environments.
Double Sealed Ball Bearings: Provides smooth and efficient operation.
Grade 100 Load Chain: Stronger and more compact than standard Grade 80 chain.
Heat Treated Load Plates: Resist corrosion and extend the hoist's lifespan.
Industrial Rated Alloy Steel Hooks: Rotate 360 degrees for easy rigging and indicate overload conditions.
Weston Style Double Ratchet Pawl Brake: Enhances load security.
Lightweight Design: Ideal for confined spaces and low headroom applications.
Capacity: 1-1/2 ton (3300 lbs)
Load Chain Dimensions: 7 x 21 mm
Hand Chain to Lift Load 1 ft: 57 lbs
Pull to Lift Capacity: 77 lbs
Headroom: 13-3/4 inches
Compliance: OSHA, ANSI/ASME B30.16, HST-2 standards
Inspect the hoist: Check for any damage or wear before use.
Attach the load hook: Securely hook the load chain to the load.
Position the hoist: Ensure the hoist is securely mounted and positioned for safe operation.
Engage the brake: Apply downward pressure on the brake lever to engage the brake.
Lift the load: Pull the hand chain to lift the load.
Lower the load: Release the hand chain to lower the load.
Engage the brake: Apply downward pressure on the brake lever to stop the load.
BENEFITS OF USING Jet L100-150WO-20 1.5 Ton Hoist 20' Lift & Overload Protection (201120):
Increased productivity: Due to efficient lifting capabilities.
Improved safety: With overload protection and reliable braking.
Reduced downtime: With minimal maintenance requirements.
Durability and longevity: Thanks to high-quality construction materials.
All-steel construction
Double sealed ball bearings
Grade 100 load chain
Heat-treated load plates
Industrial rated alloy steel hooks
Weston style double ratchet pawl brake
Lightweight design
Product identification
- Brand: Jet
- Model / MPN: 201120
